Attachment 8. Front Elevation / Section - 18 Fenton Road

October 17, 2017Page 401 section

Elevation drawing showing the appearance of the house with the proposed addition and structural sections.

Front Elevation

Architectural Drawings - Mr. & Mrs. Haynes

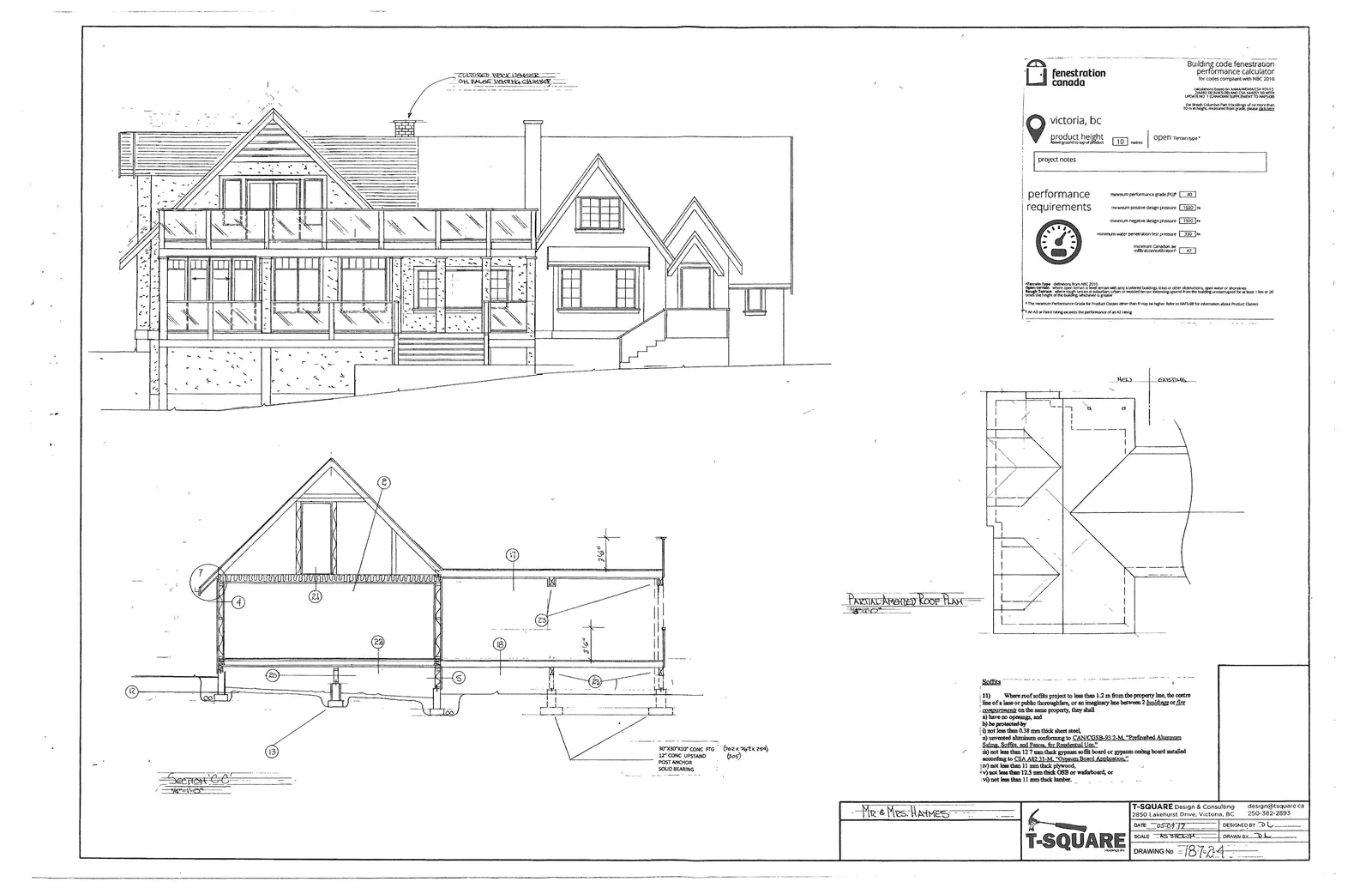

Full architectural drawing sheet containing house elevation, structural sections, roof plan, and fenestration requirements
Full architectural drawing sheet containing house elevation, structural sections, roof plan, and fenestration requirements

Elevation View

Fenestration Canada Performance Calculator

Building code fenestration performance calculator for codes compliant with NBC 2010.

Item Value
Location Victoria, BC
Product height (Above ground to top of product) 10 metres
Terrain type open

Performance Requirements

Requirement Value
Minimum performance grade (PG) 40
Minimum positive design pressure 1920 Pa
Minimum negative design pressure 1920 Pa
Minimum water penetration test pressure 330 Pa
Minimum Canadian air infiltration/exfiltration A3

Section C-C

Foundation Notes:

  • 30"X30"X10" CONC. FTG (762x762x254)
  • 12" CONC. UPSTAND (305)
  • POST ANCHOR
  • SOLID BEARING

Partial Amended Roof Plan

Soffits

  1. Where roof soffits project to less than 1.2 m from the property line, the centre line of a lane or public thoroughfare, or an imaginary line between 2 buildings or fire compartments on the same property, they shall
  • a) have no openings, and
  • b) be protected by
    • i) not less than 0.38 mm thick sheet steel,
    • ii) unvented aluminum conforming to CAN/CGSB-93.2-M, "Prefinished Aluminum Siding, Soffits, and Fascia, for Residential Use,"
    • iii) not less than 12.7 mm thick gypsum soffit board or gypsum ceiling board installed according to CSA A82.31-M, "Gypsum Board Application,"
    • iv) not less than 11 mm thick plywood,
    • v) not less than 12.5 mm thick OSB or waferboard, or
    • vi) not less than 11 mm thick lumber.

Project Information

  • Client: Mr. & Mrs. HAYNES
  • Company: T-SQUARE Design & Consulting
  • Address: 2850 Lakehurst Drive, Victoria, BC
  • Contact: design@tsquare.ca | 250-382-2893
  • Date: 05-09-17
  • Designed By: D.L.
  • Scale: AS SHOWN
  • Drawn By: D.L.
  • Drawing No: 187-2-4
Page 40
Extracted from: 2017 10 17 Council Agenda - Agenda - Pdf
