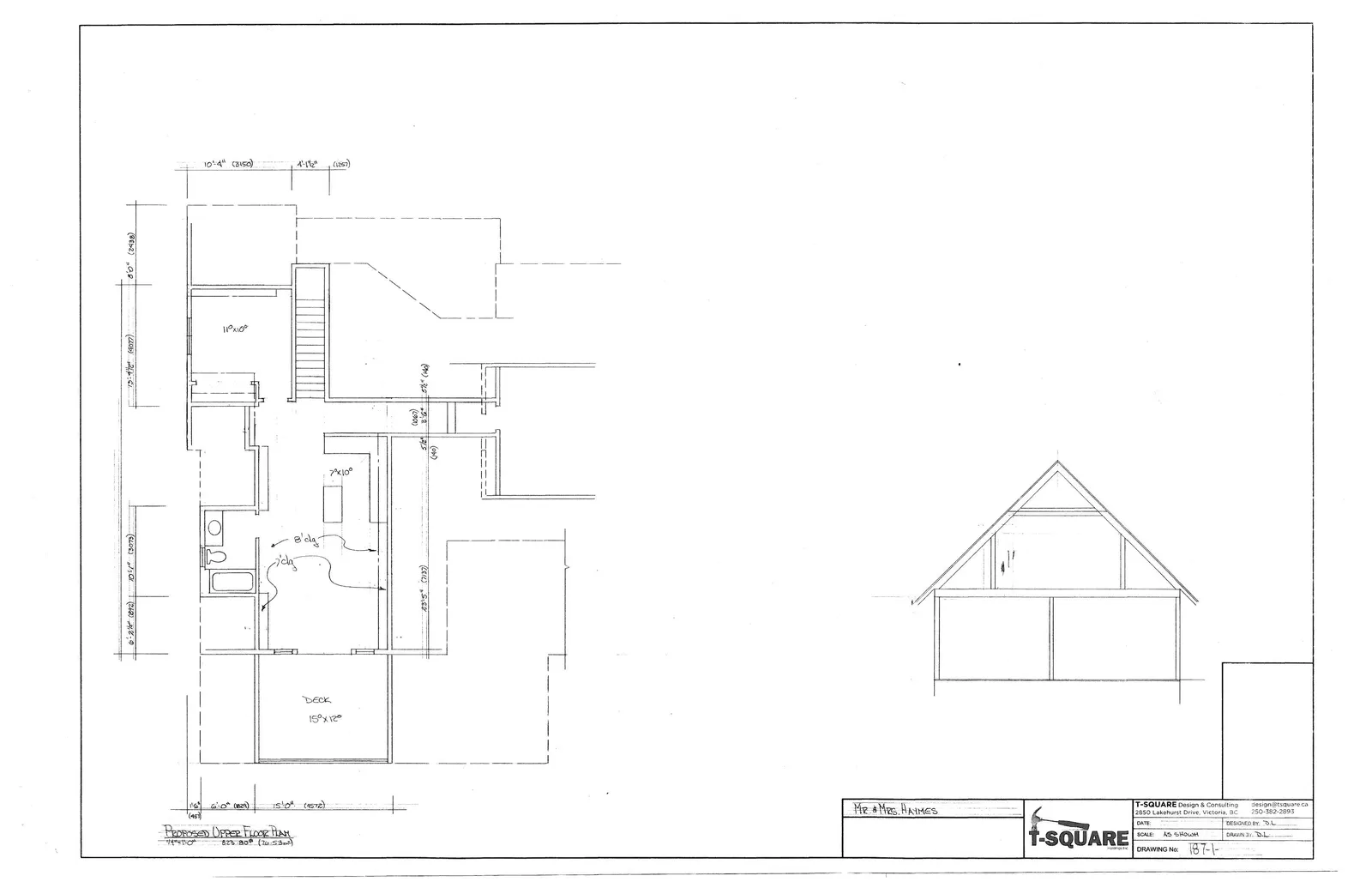

Proposed Upper Floor Plan

Project Information

Client: MR. & MRS. HAIMES
Design Firm: T-SQUARE Design & Consulting
Address: 2850 Lakehurst Drive, Victoria, BC
Contact: design@tsquare.ca | 250-382-2895
Designed By: D.L.
Drawn By: D.L.
Drawing No: 187-1-
Scale: 1/4" = 1'-0" / AS SHOWN
Area: 323 SQ FT (30.0 m²)

Floor Plan Details

The proposed upper floor plan includes the following features and dimensions:

Interior Layout and Annotations:

Main Room 1: 11' x 10'
Main Room 2: 7' x 10'
Bathroom: Contains a bathtub, toilet, and vanity.
Deck: Measures 15' x 12'.
Ceiling Height: Noted as "8' clg".
Stairs: Central staircase leading to the floor.

Exterior and Structural Dimensions:

Top Dimensions: 10'-4" (3150 mm) and 4'-1 1/2" (1257 mm).
Left Side Dimensions (Top to Bottom):
- 8'-0" (2438 mm)
- 13'-4 1/2" (4077 mm)
- 10'-1" (3073 mm)
- 6'-2 1/2" (1892 mm)
Bottom Dimensions: 1'-6" (457 mm), 6'-0" (1829 mm), and 15'-0" (4572 mm).
Internal Right Side Dimensions: 23'-5" (7137 mm), 5'-3" (1600 mm), 1'-5 1/2" (445 mm), and 1'-3" (381 mm).

Structural Section View

The drawing includes a separate elevation or cross-section view on the right, depicting a steep gabled roof structure with internal framing details and a vaulted ceiling area.
