Appendix A: Conceptual Road Designs

Appendix A: Conceptual Road Designs

Island Highway Existing Condition

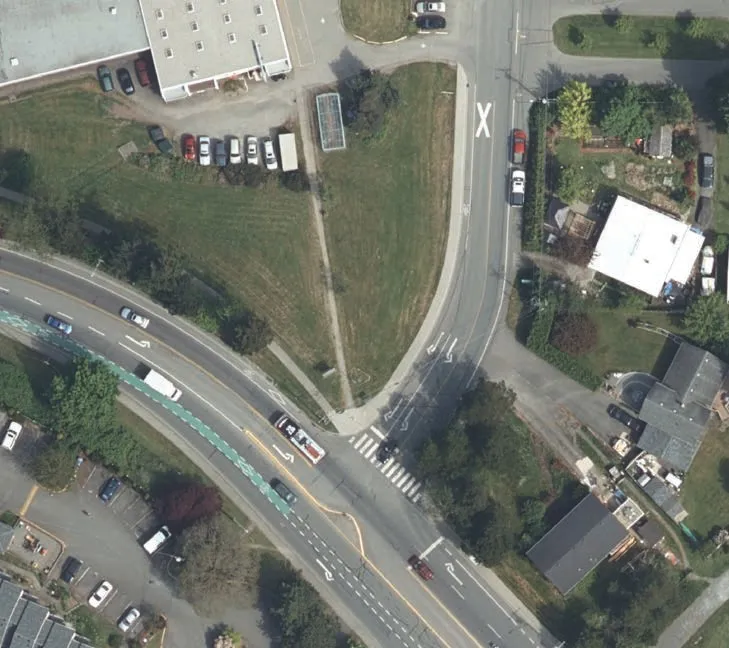

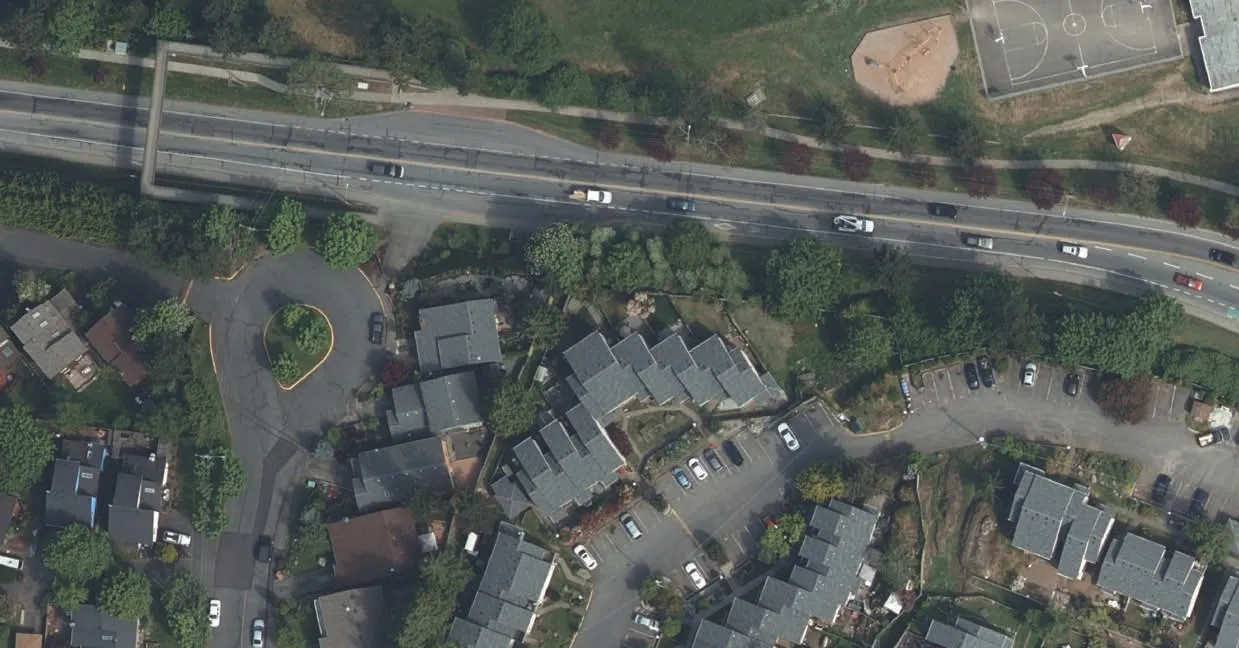

Street Aerial - Existing Scale 1:1000

Street Section 1 - Existing Scale 1:100

FOR ILLUSTRATIVE PURPOSES ONLY: SUBJECT TO ENGINEERING AND DESIGN DEVELOPMENT PROPERTY LINE INFORMATION IS APPROXIMATED FROM CRD REGIONAL MAP DATA

---

Island Highway Schematic Design

Schematic Street Plan - Proposed Scale 1:1000

(Plan view showing proposed lane configurations and bus stop locations on Island Highway near Shoreline Drive)

• BUS STOP
• EXISTING BUS STOP
• ISLAND HIGHWAY (Dimensions: 85m and 100m marked)
• SHORELINE DRIVE

Schematic Street Section 1 - Proposed Scale 1:100

FOR ILLUSTRATIVE PURPOSES ONLY: SUBJECT TO ENGINEERING AND DESIGN DEVELOPMENT PROPERTY LINE INFORMATION IS APPROXIMATED FROM CRD REGIONAL MAP DATA

---

Shoreline Drive Sidewalk

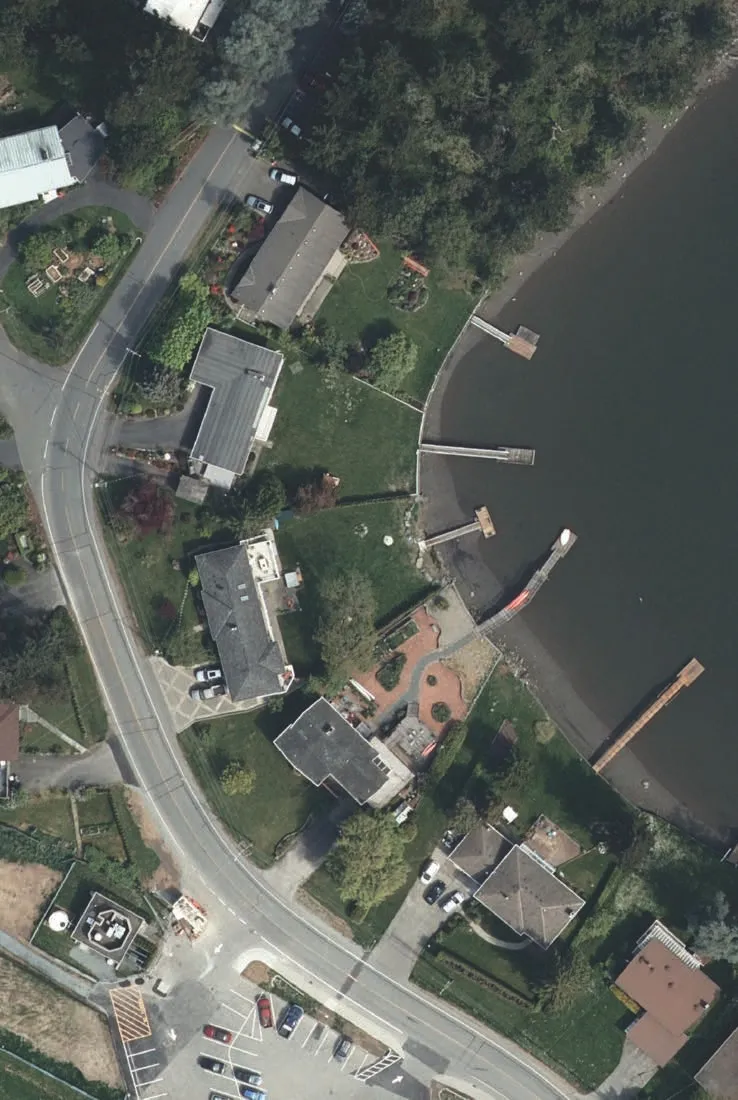

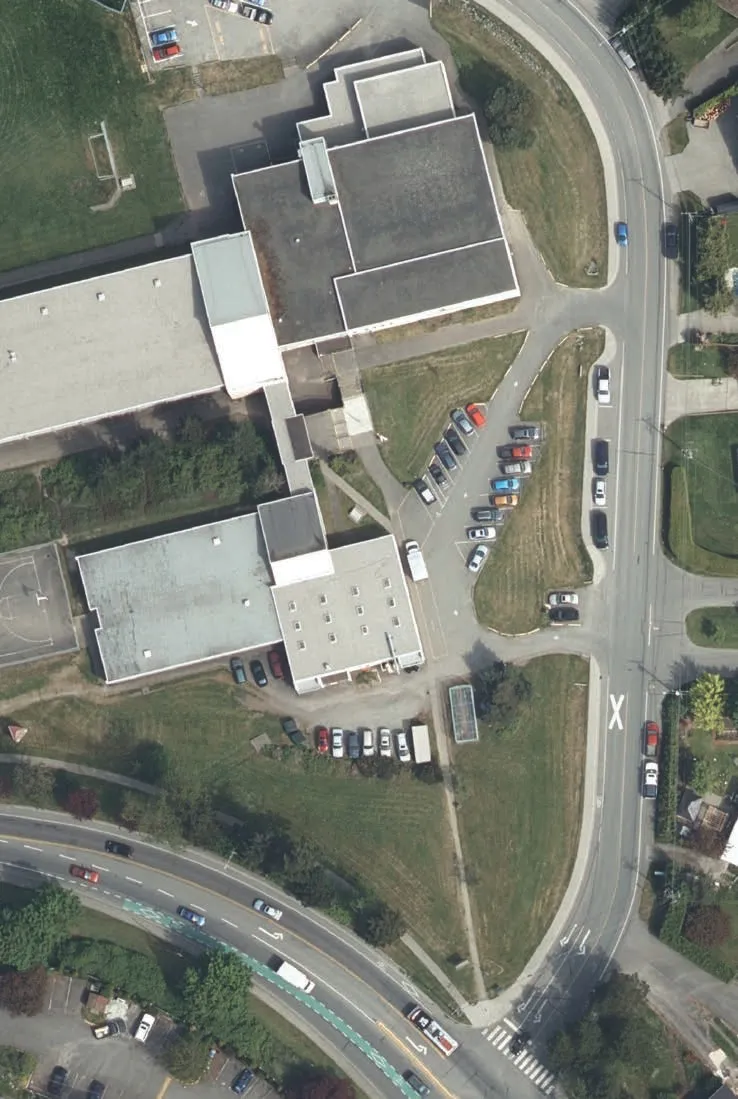

Street Aerial - Existing Scale 1:1000

Street Plan - Proposed Scale 1:1000 (Plan showing proposed concrete pedestrian sidewalk along Shoreline Drive and Craigowan Rd.)

Property Entrance Detail Plan Scale 1:250

Key Labels:

• PEDESTRIAN SIDEWALK TO CHRISTIE POINT BUILDING 'A'
• NEW CONCRETE PEDESTRIAN SIDEWALK
• MARKED CROSSWALK
• INTERLOCKING UNIT PAVERS AT PROPERTY ENTRANCE
• TO CHRISTIE POINT FOREST TRAIL
• SHORELINE DRIVE
• CRAIGOWAN RD.
• ISLAND HIGHWAY

FOR ILLUSTRATIVE PURPOSES ONLY: SUBJECT TO ENGINEERING AND DESIGN DEVELOPMENT PROPERTY LINE INFORMATION IS APPROXIMATED FROM CRD REGIONAL MAP DATA

---

Shoreline Trail / Island Highway Connection

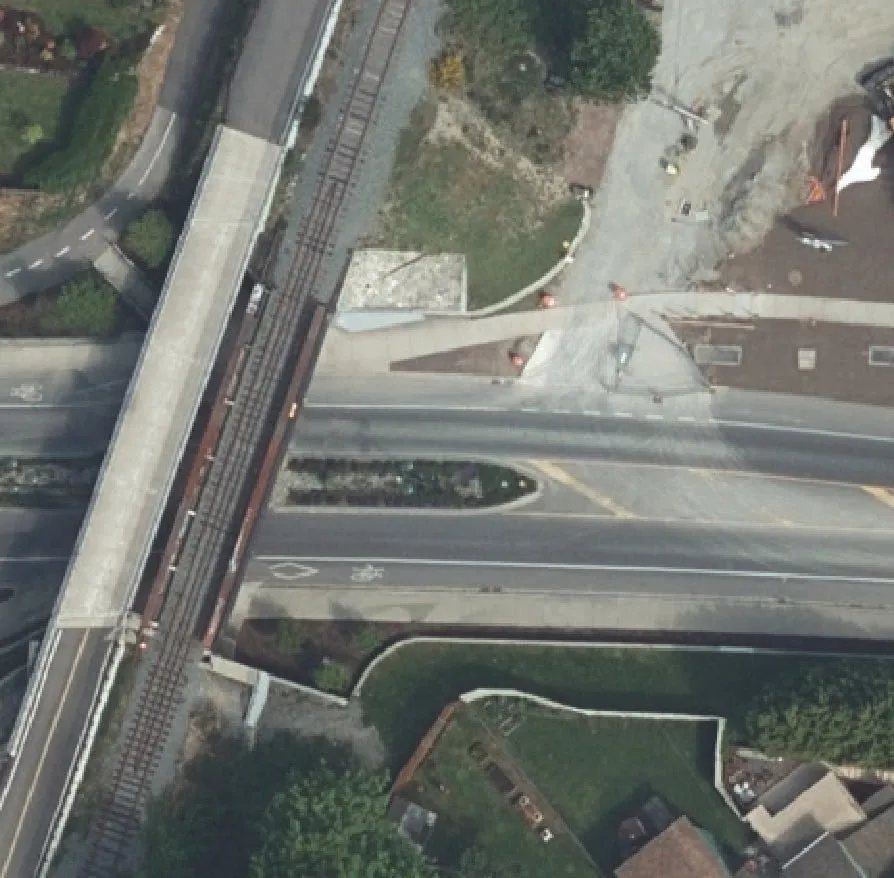

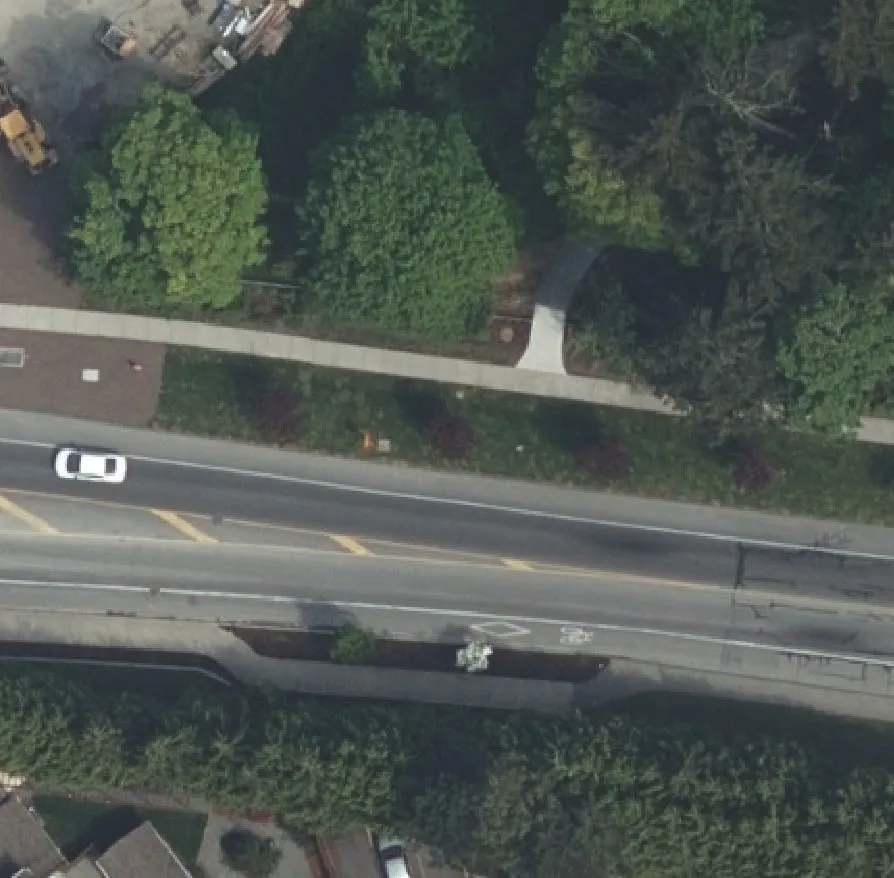

Street Aerial - Existing Scale 1:1000

Schematic Trail/Road Intersection Plan - Proposed Scale 1:1000

Key Labels and Features:

• E&N RAILWAY & RAIL TRAIL
• ISLAND HIGHWAY
• SHORELINE TRAIL
• PAVED TWO-WAY PATH WITH CENTRE LINE
• CURVE SLOWS CYCLISTS FOR UPCOMING INTERSECTIONS
• BUS STOP

Shoreline Trail Key Plan Scale 1:2000

FOR ILLUSTRATIVE PURPOSES ONLY: SUBJECT TO ENGINEERING AND DESIGN DEVELOPMENT PROPERTY LINE INFORMATION IS APPROXIMATED FROM CRD REGIONAL MAP DATA
