Occupancy Load Calculations Level 2 - Configuration #5
March 5, 2019Page 281 section

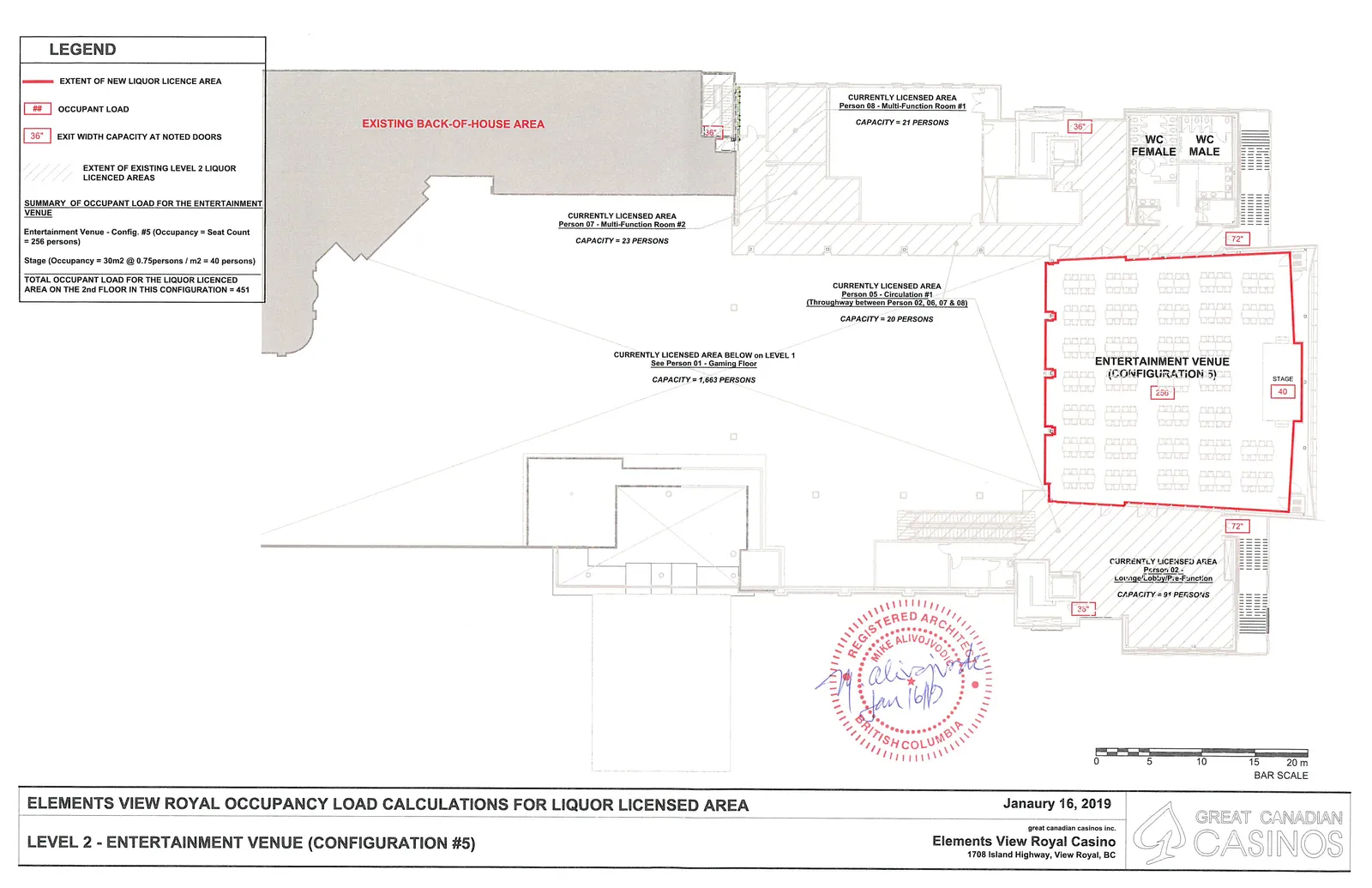

Technical floor plan drawing for the casino's entertainment venue showing configuration #5 (theatre style) seating.
January 16, 2019Venue Capacity: 256 personsTotal load for Configuration #5: 451
ELEMENTS VIEW ROYAL OCCUPANCY LOAD CALCULATIONS FOR LIQUOR LICENSED AREA
LEVEL 2 - ENTERTAINMENT VENUE (CONFIGURATION #5)
LEGEND
| Symbol | Description |
|---|---|
| Solid Red Line | EXTENT OF NEW LIQUOR LICENCE AREA |
| ## | OCCUPANT LOAD |
| 36" | EXIT WIDTH CAPACITY AT NOTED DOORS |
| Diagonal Hatching | EXTENT OF EXISTING LEVEL 2 LIQUOR LICENCED AREAS |
SUMMARY OF OCCUPANT LOAD FOR THE ENTERTAINMENT VENUE
- Entertainment Venue - Config. #5 (Occupancy = Seat Count = 256 persons)
- Stage (Occupancy = 30m2 @ 0.75persons / m2 = 40 persons)
- TOTAL OCCUPANT LOAD FOR THE LIQUOR LICENCED AREA ON THE 2nd FLOOR IN THIS CONFIGURATION = 451
FLOOR PLAN LABELS AND CAPACITIES
- EXISTING BACK-OF-HOUSE AREA
- CURRENTLY LICENSED AREA: Person 08 - Multi-Function Room #1
- CAPACITY = 21 PERSONS
- CURRENTLY LICENSED AREA: Person 07 - Multi-Function Room #2
- CAPACITY = 23 PERSONS
- CURRENTLY LICENSED AREA: Person 05 - Circulation #1
- (Throughway between Person 02, 06, 07 & 08)
- CAPACITY = 20 PERSONS
- CURRENTLY LICENSED AREA BELOW ON LEVEL 1: See Person 01 - Gaming Floor
- CAPACITY = 1,663 PERSONS
- ENTERTAINMENT VENUE (CONFIGURATION 5)
- Occupant Load: 256
- STAGE
- Occupant Load: 40
- CURRENTLY LICENSED AREA: Person 02 - Lounge/Lobby/Pre-Function
- CAPACITY = 91 PERSONS
- RESTROOMS
- WC FEMALE
- WC MALE
- EXIT WIDTHS
- 36"
- 72"
- 72"
- 36"
PROJECT INFORMATION
- Date: January 16, 2019
- Project: Elements View Royal Casino
- Address: 1708 Island Highway, View Royal, BC
- Client: great canadian casinos inc.
