Occupancy Load Calculations Level 2 - Configuration #6
March 5, 2019Page 291 section

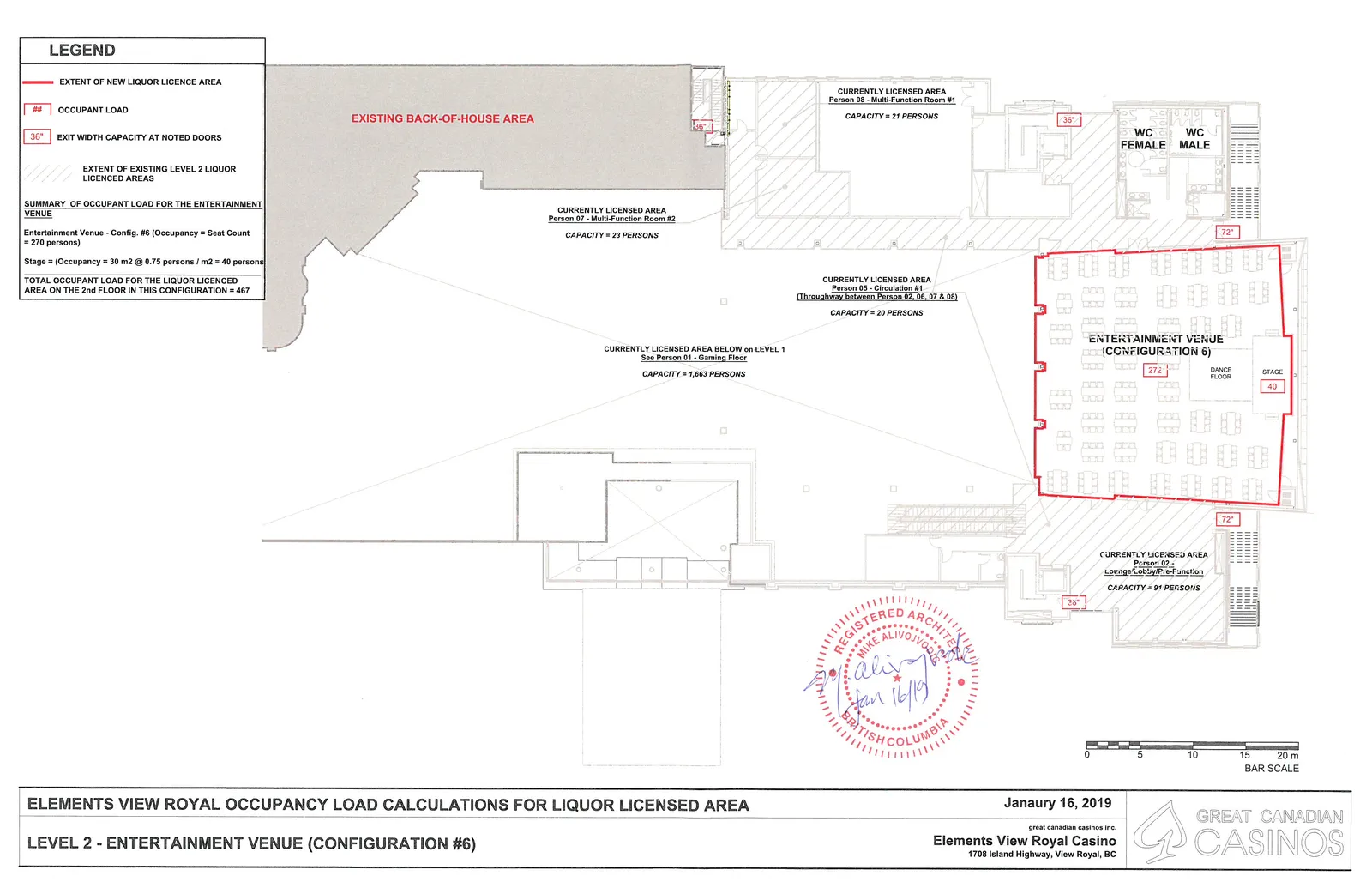

Technical floor plan drawing for the casino's entertainment venue showing configuration #6 seating with a dance floor.
January 16, 2019Venue Capacity: 270 personsTotal load for Configuration #6: 467
ELEMENTS VIEW ROYAL OCCUPANCY LOAD CALCULATIONS FOR LIQUOR LICENSED AREA
LEVEL 2 - ENTERTAINMENT VENUE (CONFIGURATION #6)
LEGEND
| Symbol | Description |
|---|---|
| Solid red line | EXTENT OF NEW LIQUOR LICENCE AREA |
| ## | OCCUPANT LOAD |
| 36" | EXIT WIDTH CAPACITY AT NOTED DOORS |
| Hatched lines | EXTENT OF EXISTING LEVEL 2 LIQUOR LICENCED AREAS |
SUMMARY OF OCCUPANT LOAD FOR THE ENTERTAINMENT VENUE
- Entertainment Venue - Config. #6 (Occupancy = Seat Count = 270 persons)
- Stage = (Occupancy = 30 m2 @ 0.75 persons / m2 = 40 persons)
- TOTAL OCCUPANT LOAD FOR THE LIQUOR LICENCED AREA ON THE 2nd FLOOR IN THIS CONFIGURATION = 467
Floor Plan Labels and Data:
- EXISTING BACK-OF-HOUSE AREA
- CURRENTLY LICENSED AREA Person 08 - Multi-Function Room #1: CAPACITY = 21 PERSONS
- CURRENTLY LICENSED AREA Person 07 - Multi-Function Room #2: CAPACITY = 23 PERSONS
- CURRENTLY LICENSED AREA Person 05 - Circulation #1 (Throughway between Person 02, 06, 07 & 08): CAPACITY = 20 PERSONS
- CURRENTLY LICENSED AREA BELOW ON LEVEL 1 See Person 01 - Gaming Floor: CAPACITY = 1,663 PERSONS
- ENTERTAINMENT VENUE (CONFIGURATION 6):
- Occupant Load: 272
- DANCE FLOOR
- STAGE: Occupant Load 40
- CURRENTLY LICENSED AREA Person 02 - Lounge/Lobby/Pre-Function: CAPACITY = 91 PERSONS
- Restrooms: WC FEMALE, WC MALE
- Exit Width Capacities:
- North exit (near Multi-Function Room #1): 36"
- North-east exit (near WC): 36"
- East venue exit: 72"
- South venue exit: 72"
- South-west exit (near Lounge/Lobby): 36"
Project Information: Janaury 16, 2019 Elements View Royal Casino 1708 Island Highway, View Royal, BC
