Occupancy Load Calculations Level 2 - Configuration #8
March 5, 2019Page 311 section

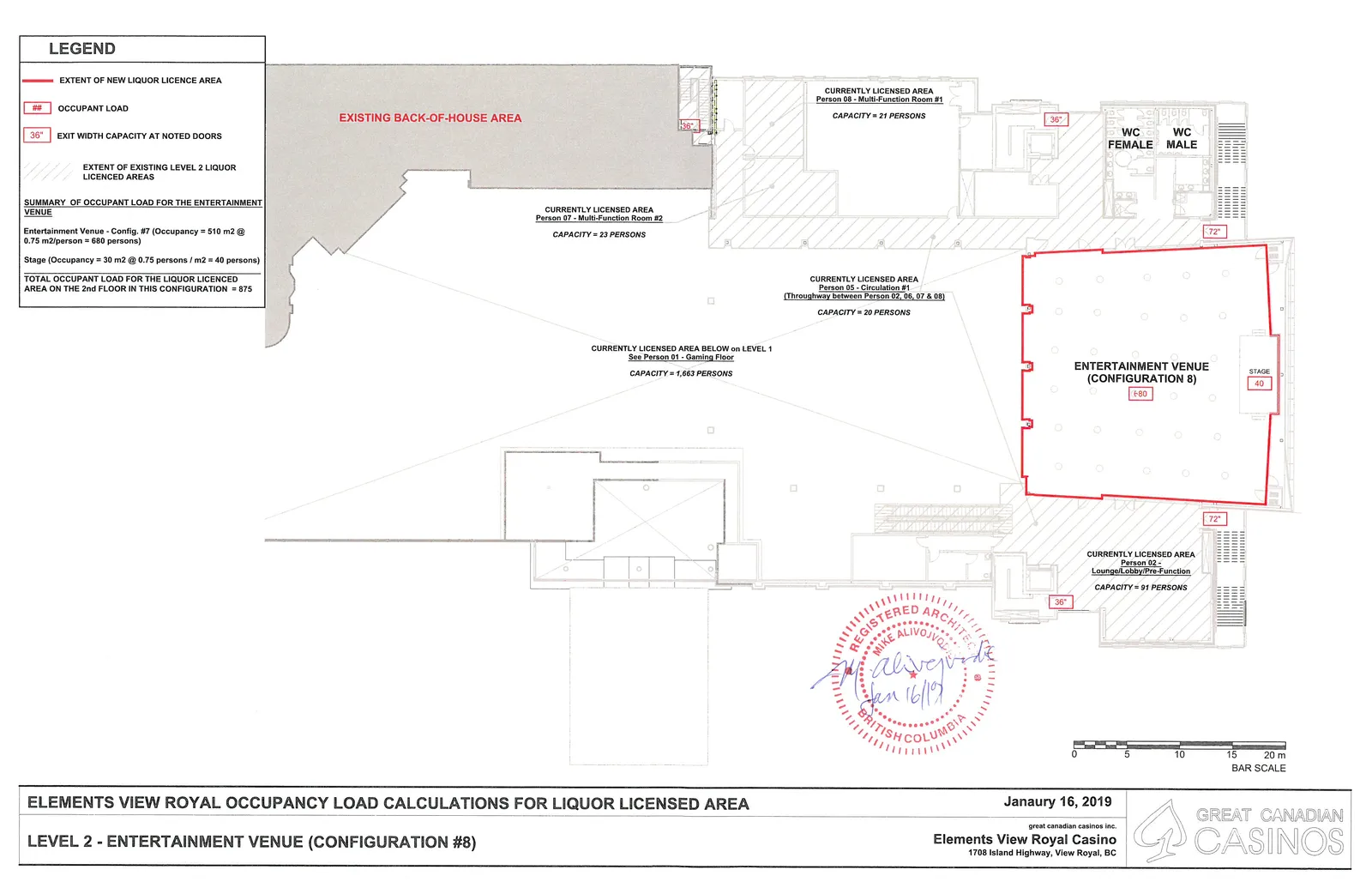

Technical floor plan drawing for the casino's entertainment venue showing configuration #8 for standing receptions.
January 16, 2019Venue Capacity: 680 personsTotal load for Configuration #8: 875
ELEMENTS VIEW ROYAL OCCUPANCY LOAD CALCULATIONS FOR LIQUOR LICENSED AREA
LEVEL 2 - ENTERTAINMENT VENUE (CONFIGURATION #8)
Janaury 16, 2019 Elements View Royal Casino 1708 Island Highway, View Royal, BC
LEGEND
- EXTENT OF NEW LIQUOR LICENCE AREA (Indicated by red outline)
- ## OCCUPANT LOAD (Indicated by red boxed numbers)
- 36" EXIT WIDTH CAPACITY AT NOTED DOORS (Indicated by red boxed dimensions)
- EXTENT OF EXISTING LEVEL 2 LIQUOR LICENCED AREAS (Indicated by diagonal hatching)
SUMMARY OF OCCUPANT LOAD FOR THE ENTERTAINMENT VENUE
- Entertainment Venue - Config. #7 (Occupancy = 510 m2 @ 0.75 m2/person = 680 persons)
- Stage (Occupancy = 30 m2 @ 0.75 persons / m2 = 40 persons)
TOTAL OCCUPANT LOAD FOR THE LIQUOR LICENCED AREA ON THE 2nd FLOOR IN THIS CONFIGURATION = 875
LICENSED AREA AND CAPACITY DETAILS
| Area Description | Occupant Load / Capacity |
|---|---|
| ENTERTAINMENT VENUE (CONFIGURATION 8) | 680 |
| STAGE | 40 |
| CURRENTLY LICENSED AREA Person 02 - Lounge/Lobby/Pre-Function | CAPACITY = 91 PERSONS |
| CURRENTLY LICENSED AREA Person 05 - Circulation #1 (Throughway between Person 02, 06, 07 & 08) | CAPACITY = 20 PERSONS |
| CURRENTLY LICENSED AREA Person 07 - Multi-Function Room #2 | CAPACITY = 23 PERSONS |
| CURRENTLY LICENSED AREA Person 08 - Multi-Function Room #1 | CAPACITY = 21 PERSONS |
| CURRENTLY LICENSED AREA BELOW ON LEVEL 1 (See Person 01 - Gaming Floor) | CAPACITY = 1,663 PERSONS |
EXIT WIDTH CAPACITIES
- 36": Multiple locations including Multi-Function Room exit, WC area exit, and Lounge/Lobby exit.
- 72": Two main exits from the Entertainment Venue.
ADDITIONAL PLAN LABELS
- EXISTING BACK-OF-HOUSE AREA
- WC FEMALE
- WC MALE
