Occupancy Load Calculations - Level 2 Expanded Area Special Event

ELEMENTS VIEW ROYAL OCCUPANCY LOAD CALCULATIONS FOR LIQUOR LICENSED AREA

LEVEL 2 - EXPANDED AREA WHEN ENTERTAINMENT VENUE IS IN BANQUET SEATING MODE

LEGEND

• EXTENT OF NEW LIQUOR LICENCE AREA (indicated by red border)
• 102 OCCUPANT LOAD
• 36" EXIT WIDTH CAPACITY AT NOTED DOORS
• EXTENT OF EXISTING LEVEL 2 LIQUOR LICENCED AREAS (indicated by cross-hatching)

SUMMARY OF THE OCCUPANT LOAD FOR EXPANDED ENTERTAINMENT VENUE ON THE SECOND FLOOR

• Expanded Venue (Occupancy = Seat Count + 6 Staff = 102 persons)
• TOTAL OCCUPANT LOAD FOR THE NEW LIQUOR LICENCED AREA ON THE SECOND FLOOR = 102

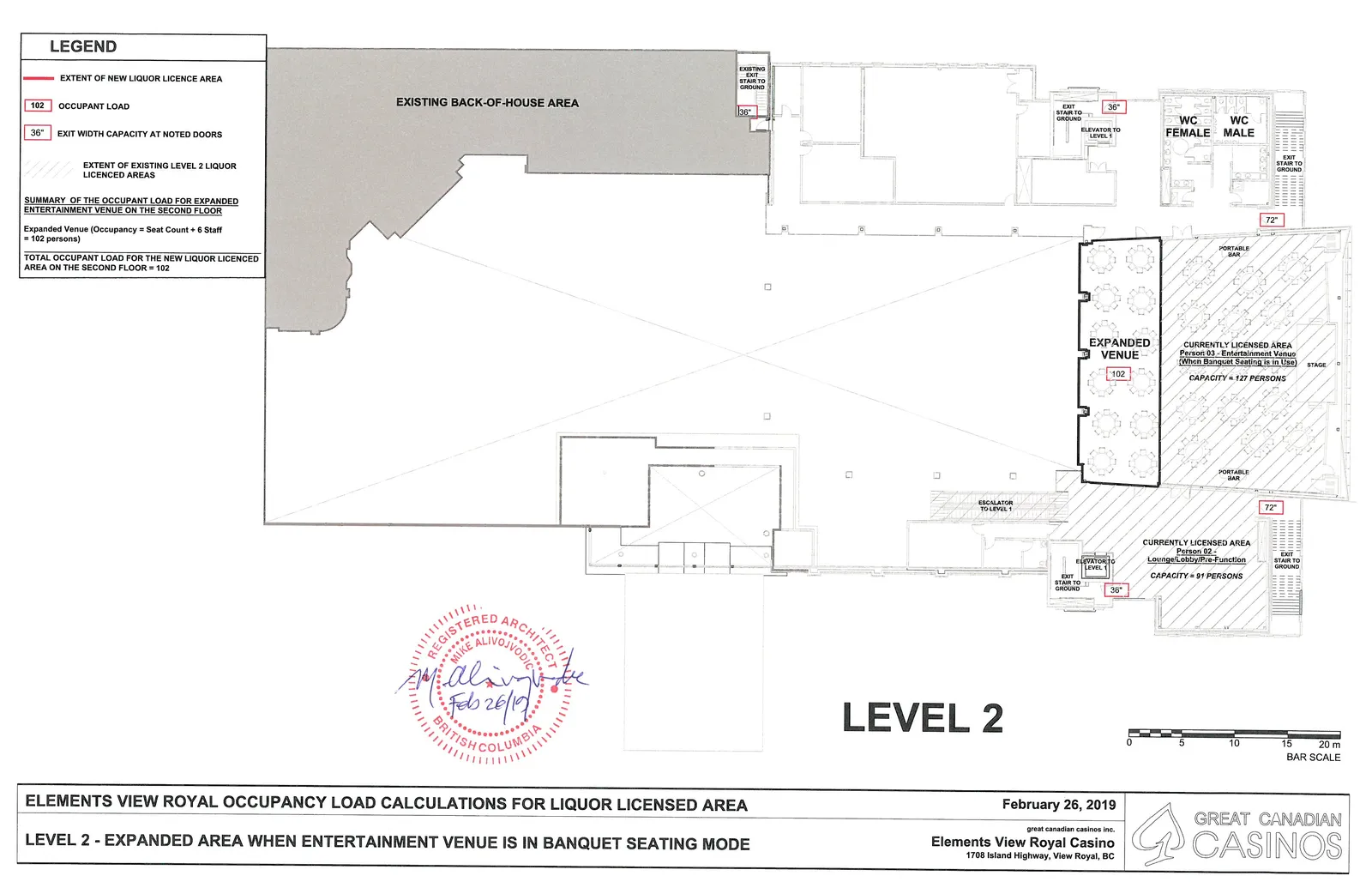

Floor Plan Annotations:

• EXISTING BACK-OF-HOUSE AREA
• EXPANDED VENUE
  • Occupant Load: 102
• CURRENTLY LICENSED AREA Person 03 - Entertainment Venue (When Banquet Seating is in Use)
  • CAPACITY = 127 PERSONS
  • Features: PORTABLE BAR, STAGE
• CURRENTLY LICENSED AREA Person 02 - Lounge/Lobby/Pre-Function
  • CAPACITY = 91 PERSONS
  • Features: PORTABLE BAR
• Building Features:
  • WC FEMALE
  • WC MALE
  • ELEVATOR TO LEVEL 1
  • ESCALATOR TO LEVEL 1
  • EXIT STAIR TO GROUND
• Exit Width Capacities:
  • 36" (multiple locations at exit stairs and elevators)
  • 72" (locations at main venue exits)

Project Information:

• Date: February 26, 2019
• Client: great canadian casinos inc.
• Project: Elements View Royal Casino
• Address: 1708 Island Highway, View Royal, BC
