Conceptual Design Sketch 003X - 6-Mile Park and Ride

BC TRANSIT: ISLAND HWY TRANSIT PRIORITY PLAN

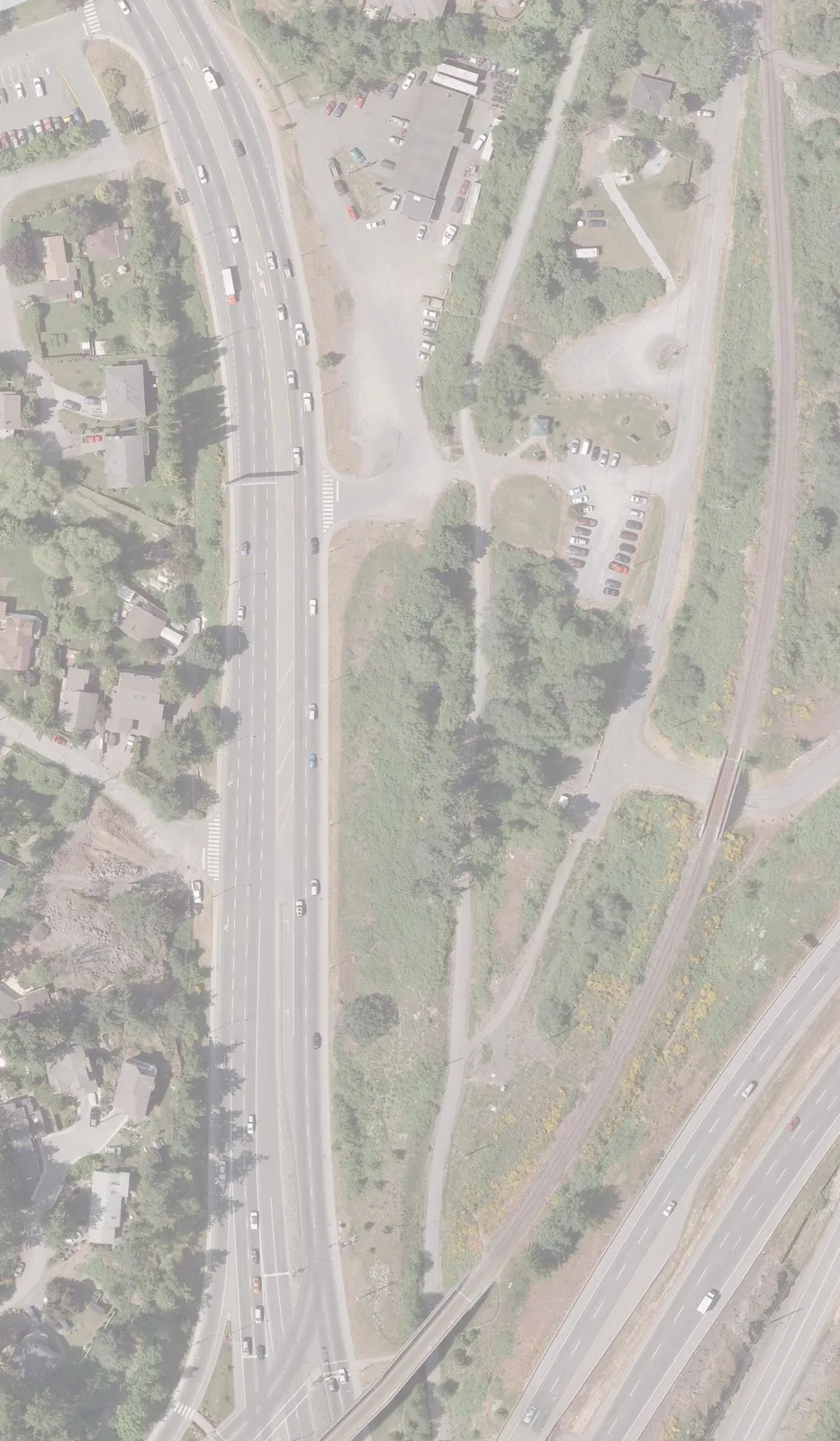

6-MILE PARK AND RIDE, VIEW ROYAL

CONCEPTUAL DESIGN - PROJECT #652113 - SKETCH 003X

6-Mile Park and Ride Specifications

• 233 Regular Stalls (Typ. Stall Size: 2.8 m x 5.4 m)
• 6 Disabled Accessible Stalls
• Shelters for 36 Bikes

Project Status and Design Parameters

• Status: PROGRESS PRINT - FOR COORDINATION ONLY - NOT AN OFFICIAL ISSUE (2018-07-30)
• Status: PRELIMINARY FOR INFORMATION ONLY (2018-07-30)
• Design Speed: 50 km/h

Site Features and Infrastructure

Roadways and Railway:

• Island Hwy
• Atkins Rd
• Brydon Rd
• Price Rd
• Dukrill Rd
• Woodville Pl
• Trans Canada Highway (Hwy 1)
• E&N Railway

Transit Infrastructure:

• 3.5 m x 28 m Bus Station Platforms
• Bus Stops
• Transit signal priority or fully protected transit queue jump phase (if bus lane not extended south in Phase 1)
• Fully protected transit queue jump phase
• Area reserved for future rapid transit

Active Transportation and Parking:

• 1.8 m Bike Lanes
• 1.5 m and 1.8 m Sidewalks
• Bike Shelters (Typ.)
• Existing Galloping Goose Regional Trail and associated parking
• Area to be reserved for future parking

Key Facilities and Design Elements:

• Existing Tourist Information Centre
• Integra Tire and Auto Centre
• Signalized NB-WB turn and pedestrian crossing
• Curbed median
• Curbed island with railings
• Existing wall to remain

Consultant Address: SNC-Lavalin 500 - 745 Thurlow Street Vancouver, B.C., Canada, V6E 0C5
