Lighting Specifications (Attachment 8)
Technical data sheets for proposed outdoor lighting fixtures, including luminaires and flush mounts.

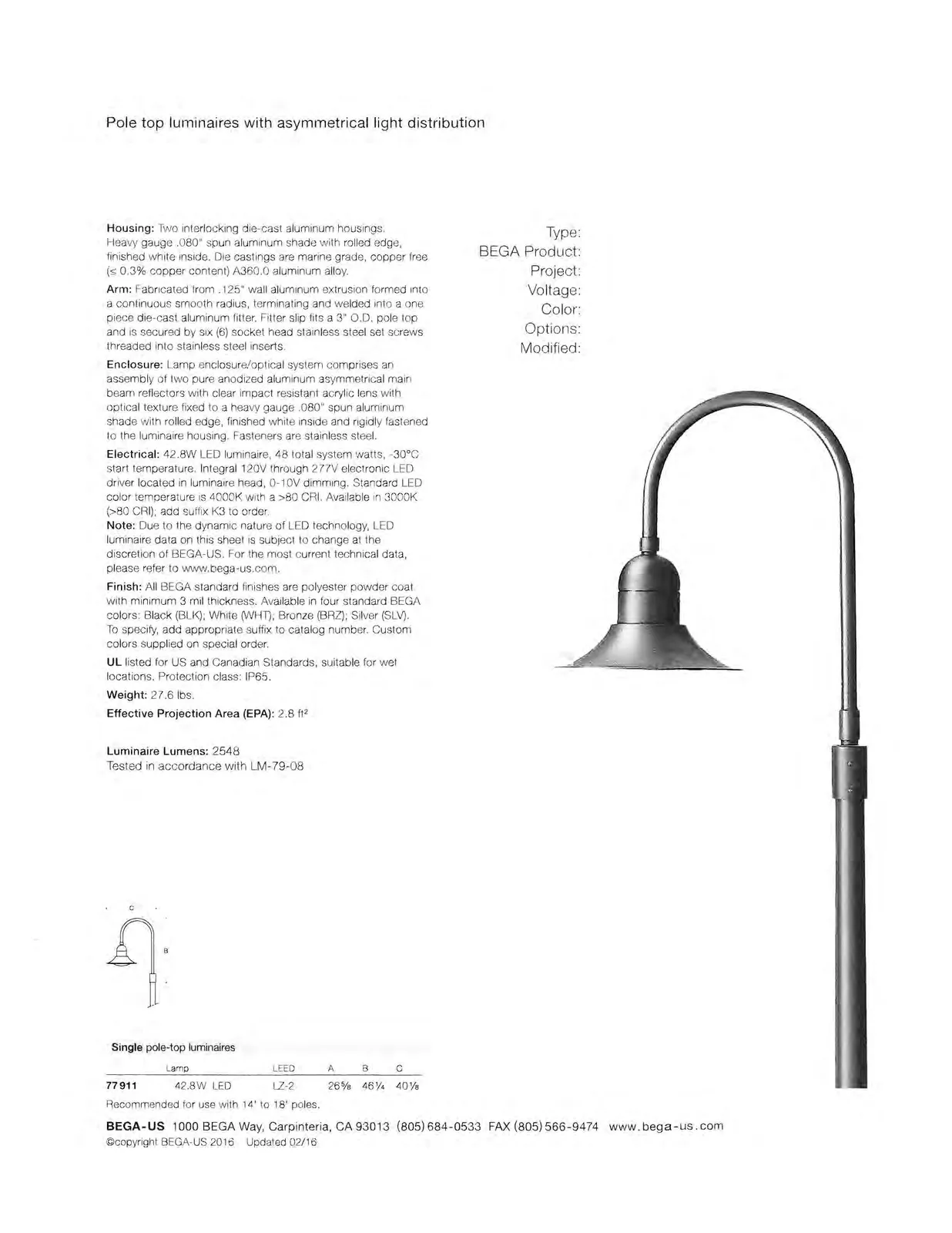

Pole top luminaires with asymmetrical light distribution
Housing: Two interlocking die-cast aluminum housings. Heavy gauge .080" spun aluminum shade with rolled edge, finished white inside. Die castings are marine grade, copper free (≤ 0.3% copper content) A360.0 aluminum alloy.
Arm: Fabricated from .125" wall aluminum extrusion formed into a continuous smooth radius, terminating and welded into a one piece die-cast aluminum fitter. Fitter slip fits a 3" O.D. pole top and is secured by six (6) socket head stainless steel set screws threaded into stainless steel inserts.
Enclosure: Lamp enclosure/optical system comprises an assembly of two pure anodized aluminum asymmetrical main beam reflectors with clear impact resistant acrylic lens with optical texture fixed to a heavy gauge .080" spun aluminum shade with rolled edge, finished white inside and rigidly fastened to the luminaire housing. Fasteners are stainless steel.
Electrical: 42.8W LED luminaire, 48 total system watts, -30°C start temperature. Integral 120V through 277V electronic LED driver located in luminaire head, 0-10V dimming. Standard LED color temperature is 4000K with a >80 CRI. Available in 3000K (>80 CRI), add suffix K3 to order.
Note: Due to the dynamic nature of LED technology, LED luminaire data on this sheet is subject to change at the discretion of BEGA-US. For the most current technical data, please refer to www.bega-us.com.
Finish: All BEGA standard finishes are polyester powder coat with minimum 3 mil thickness. Available in four standard BEGA colors: Black (BLK); White (WHT); Bronze (BRZ); Silver (SLV). To specify, add appropriate suffix to catalog number. Custom colors supplied on special order.
UL listed for US and Canadian Standards, suitable for wet locations. Protection class: IP65.
Weight: 27.6 lbs.
Effective Projection Area (EPA): 2.8 ft²
Luminaire Lumens: 2548
Tested in accordance with LM-79-08
Single pole-top luminaires
| Lamp | LEED | A | B | C |
|---|---|---|---|---|
| 77 911 42.8W LED | LZ-2 | 26 5/8 | 46 1/4 | 40 1/2 |
Recommended for use with 14' to 18' poles.
BEGA-US 1000 BEGA Way, Carpinteria, CA 93013 (805) 684-0533 FAX (805) 566-9474 www.bega-us.com

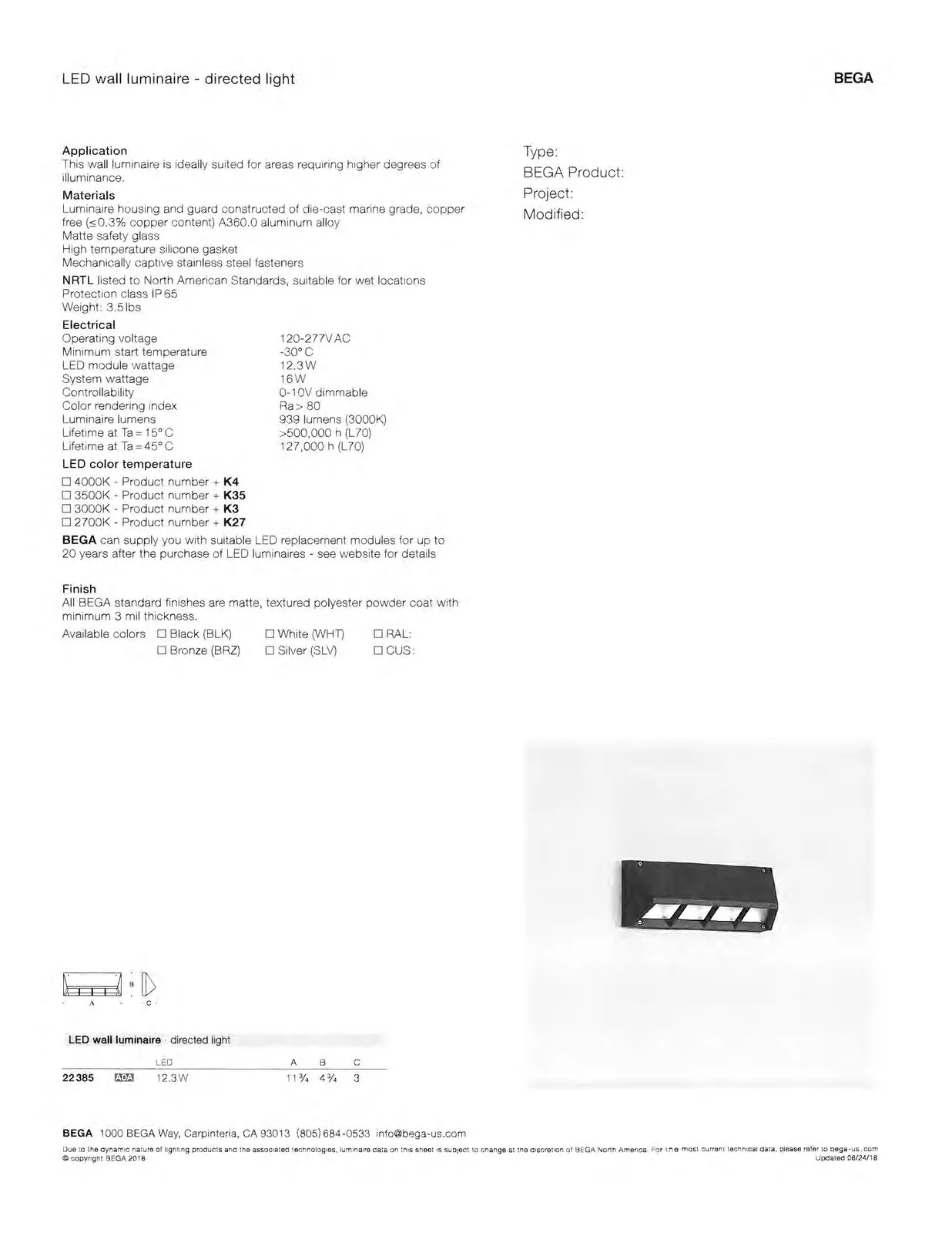

LED wall luminaire - directed light
Application
This wall luminaire is ideally suited for areas requiring higher degrees of illuminance.
Materials
- Luminaire housing and guard constructed of die-cast marine grade, copper free (≤0.3% copper content) A360.0 aluminum alloy
- Matte safety glass
- High temperature silicone gasket
- Mechanically captive stainless steel fasteners
NRTL listed to North American Standards, suitable for wet locations Protection class IP 65 Weight: 3.5 lbs
Electrical
- Operating voltage: 120-277VAC
- Minimum start temperature: -30° C
- LED module wattage: 12.3W
- System wattage: 16W
- Controllability: 0-10V dimmable
- Color rendering index: Ra > 80
- Luminaire lumens: 939 lumens (3000K)
- Lifetime at Ta = 15° C: >500,000 h (L70)
- Lifetime at Ta = 45° C: 127,000 h (L70)
LED color temperature
- 4000K - Product number + K4
- 3500K - Product number + K35
- 3000K - Product number + K3
- 2700K - Product number + K27
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured polyester powder coat with minimum 3 mil thickness. Available colors:
- Black (BLK)
- Bronze (BRZ)
- White (WHT)
- Silver (SLV)
- RAL:
- CUS:
LED wall luminaire - directed light
| LED | A | B | C | |
|---|---|---|---|---|
| 22 385 ADA | 12.3W | 11 3/4 | 4 3/4 | 3 |
BEGA 1000 BEGA Way, Carpinteria, CA 93013 (805) 684-0533 info@bega-us.com

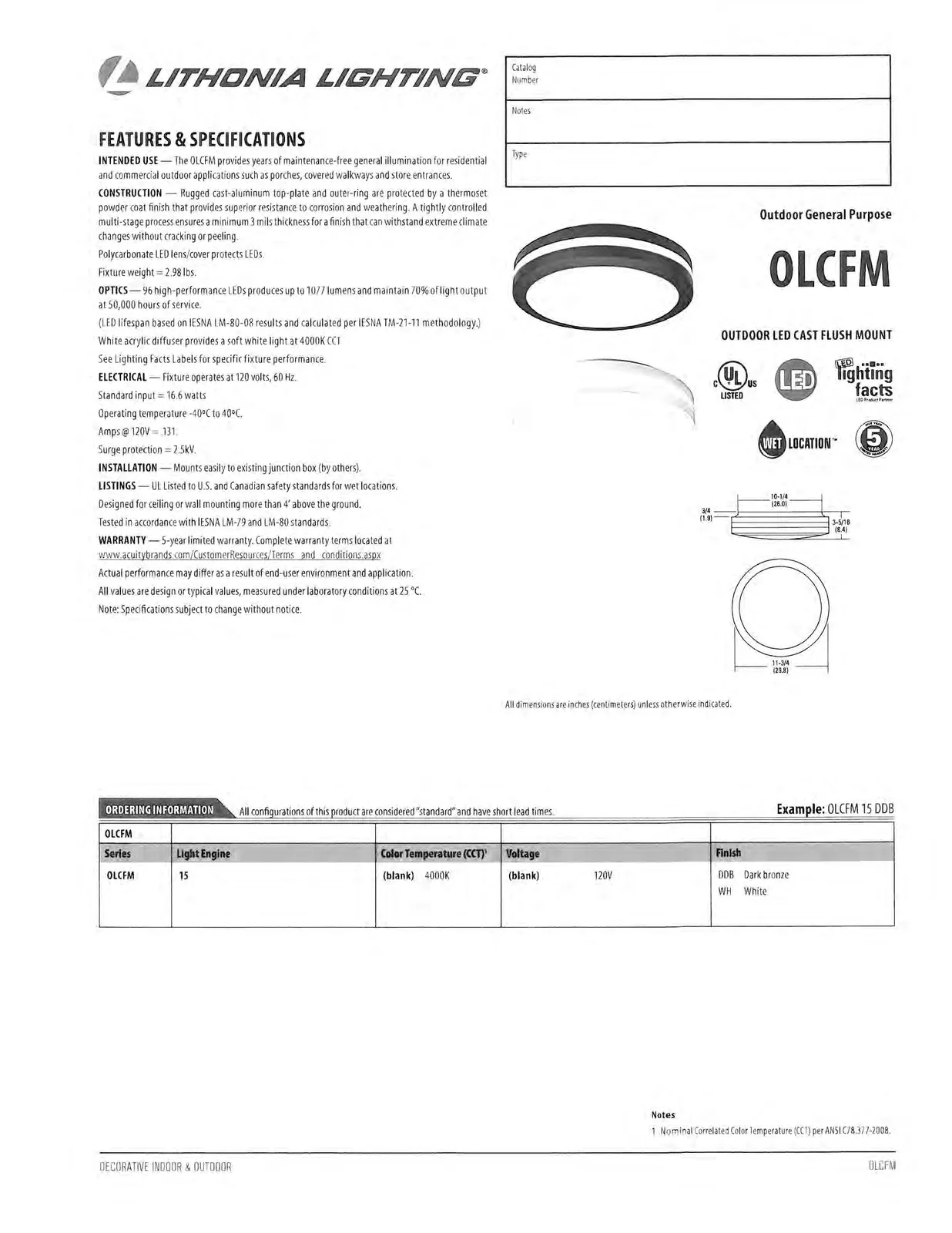

FEATURES & SPECIFICATIONS
INTENDED USE — The OLCFM provides years of maintenance-free general illumination for residential and commercial outdoor applications such as porches, covered walkways and store entrances.
CONSTRUCTION — Rugged cast-aluminum top-plate and outer-ring are protected by a thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling. Polycarbonate LED lens/cover protects LEDs. Fixture weight = 2.98 lbs.
OPTICS — 96 high-performance LEDs produces up to 1077 lumens and maintain 70% of light output at 50,000 hours of service. (LED lifespan based on IESNA LM-80-08 results and calculated per IESNA TM-21-11 methodology.) White acrylic diffuser provides a soft white light at 4000K CCT. See Lighting Facts Labels for specific fixture performance.
ELECTRICAL — Fixture operates at 120 volts, 60 Hz. Standard input = 16.6 watts. Operating temperature -40°C to 40°C. Amps @ 120V = .131. Surge protection = 2.5kV.
INSTALLATION — Mounts easily to existing junction box (by others).
LISTINGS — UL Listed to U.S. and Canadian safety standards for wet locations. Designed for ceiling or wall mounting more than 4’ above the ground. Tested in accordance with IESNA LM-79 and LM-80 standards.
WARRANTY — 5-year limited warranty. Complete warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Note: Specifications subject to change without notice.
ORDERING INFORMATION
All configurations of this product are considered "standard" and have short lead times. Example: OLCFM 15 DDB
| Series | Light Engine | Color Temperature (CCT)¹ | Voltage | Finish |
|---|---|---|---|---|
| OLCFM | 15 | (blank) 4000K | (blank) 120V | DDB Dark bronze |
| WH White |
Notes 1 Nominal Correlated Color Temperature (CCT) per ANSI C78.377-2008.

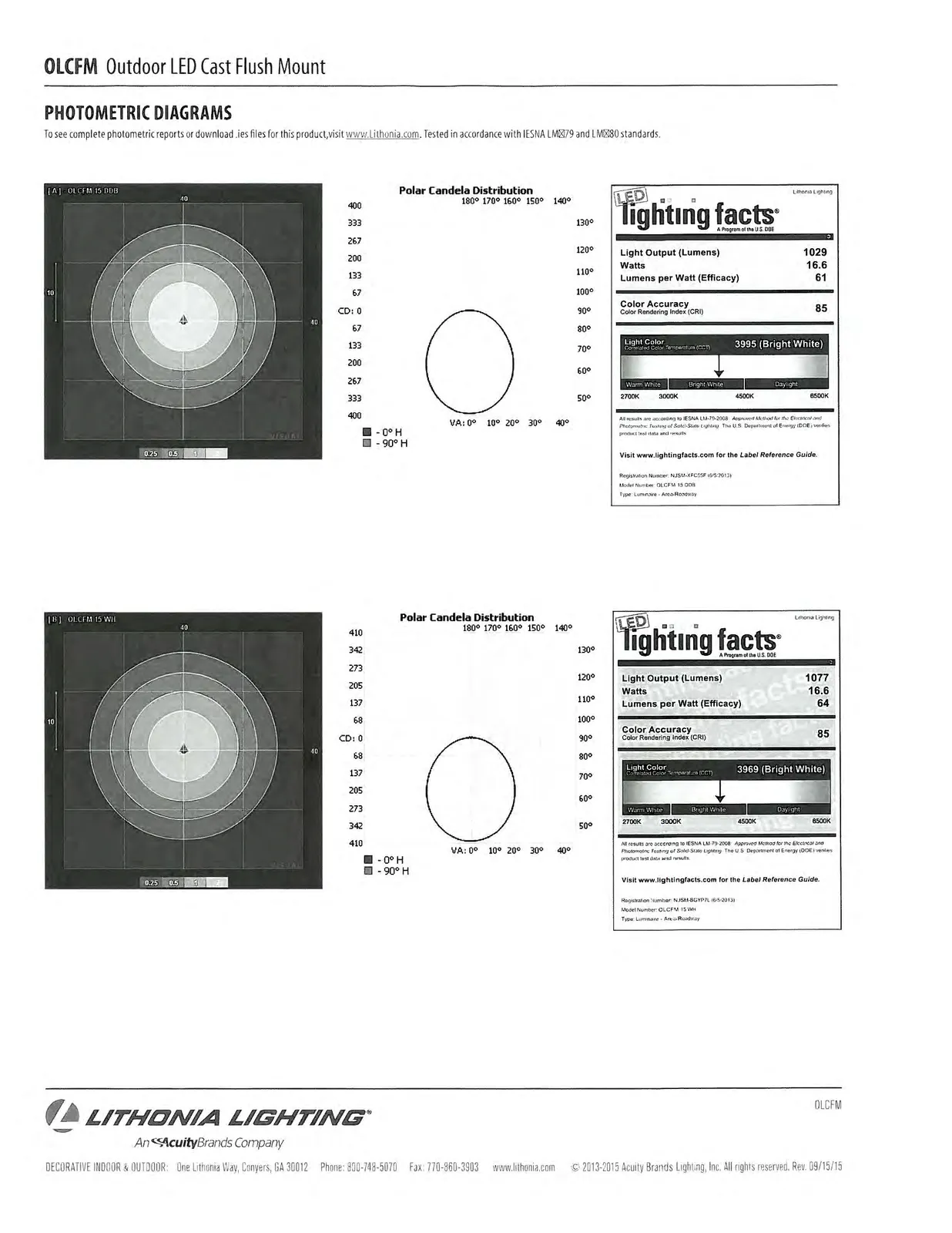

OLCFM Outdoor LED Cast Flush Mount PHOTOMETRIC DIAGRAMS
To see complete photometric reports or download .ies files for this product, visit www.lithonia.com. Tested in accordance with IESNA LM79 and LM80 standards.
[A] OLCFM 15 DDB
LED Lighting Facts
- Light Output (Lumens): 1029
- Watts: 16.6
- Lumens per Watt (Efficacy): 61
- Color Accuracy (Color Rendering Index (CRI)): 85
- Light Color (CCT): 3995 (Bright White)
[B] OLCFM 15 WH
LED Lighting Facts
- Light Output (Lumens): 1077
- Watts: 16.6
- Lumens per Watt (Efficacy): 64
- Color Accuracy (Color Rendering Index (CRI)): 85
- Light Color (CCT): 3969 (Bright White)
LITHONIA LIGHTING® An AcuityBrands Company DECORATIVE INDOOR & OUTDOOR One Lithonia Way, Conyers, GA 30012 Phone: 800-748-5070 Fax: 770-860-3903 www.lithonia.com © 2013-2015 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/15/15
