Color Sample Board

(all colors Benjamin Moore)

Scheme 1-Blocks L

  • Main Body: Sea Haze 2137-50, Duxbury Gray HC-163, Flint AF-560
  • Trim: Cloud White CC-40
  • Fascia: Cloud White CC-40
  • Garage Door: Flint AF-560
  • Front Door: Cloud White CC-40

Scheme 5-Blocks M, Q

  • Main Body: Pilgrim Haze 2132-50, Eclipse 2132-40
  • Trim: Cloud White CC-40
  • Fascia: Cloud White CC-40
  • Garage Door: Eclipse 2132-40
  • Front Door: Cloud White CC-40

Scheme 6-Blocks N

  • Main Body: Carolina Gull 2138-40, Boothbay Gray HC 165, Puritan Gray HC 164
  • Trim: Cloud White CC-40
  • Fascia: Cloud White CC-40
  • Garage Door: Boothbay Gray HC 165
  • Front Door: Cloud White CC-40

Scheme 7-Blocks O, P

  • Main Body: Chelsea Gray HC 168, Kendall Charcoal HC 166, Storm AF 700
  • Trim: Cloud White CC-40
  • Fascia: Cloud White CC-40
  • Garage Door: Storm AF 700
  • Front Door: Cloud White CC-40
Color swatch for Storm AF-700
Color swatch for Storm AF-700

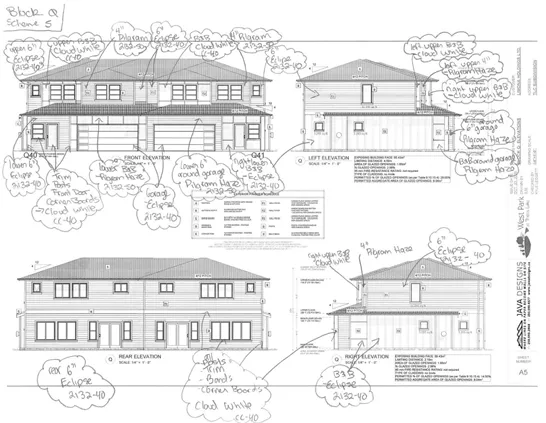

Site plan showing building locations for Schemes 1, 5, 6, and 7, and house renderings for Scheme 1 and Scheme 5
Site plan showing building locations for Schemes 1, 5, 6, and 7, and house renderings for Scheme 1 and Scheme 5
Page 59–63

Exterior Materials

Material Type Detail / Image
James Hardie- Plank
Sample of James Hardie Plank siding
Sample of James Hardie Plank siding
James Hardie -Board and Batton
Garage Door-North West Door Therma Tech T-108
Front Door-Trim Lite, Flush Glazed with Satin etched Glass
  • Roof Shingles: Owen’s Corning, Duration, Onyx Black
  • Soffits, Gutters & Downspouts: Aluminum, Kaycan, Black
  • Flashings: Black
  • Fascia Boards: Combed Spruce, Wood Tone
  • Belly Bands: Combed Spruce, 2x12
  • Window Trim: Combed Spruce, Wood Tone, 1x4
  • Corner Boards: Combed Spruce, Wood Tone 1x4
  • Hardi Plank: Fibre Cement Plank, James Hardie (4 and 6 inch exposure)
  • Board and Batton: Fibre Cement Plank, James Hardie
  • Garage Doors (Painted): Steel, Northwest Doors
  • Front Posts: Combed Spruce, Wrapped
  • Rear Patio: Exposed Concrete, ICL, Gray
Page 59–63

Exterior Lighting

Placed around front door and garage

WEST Outdoor Light

  • -CAN IOL283-BK
  • -Black
  • -Outdoor 1 Light
  • -Watermark Glass
  • -100W Type A Bulb
  • -Down Light

Example

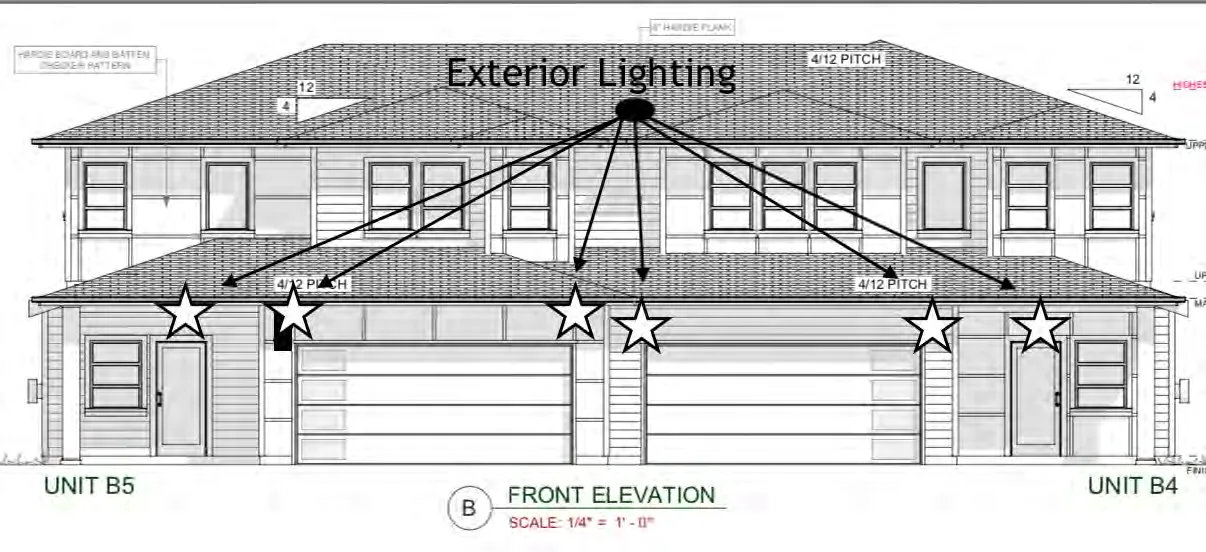

Front elevation diagram with stars indicating placement points for exterior lighting
Front elevation diagram with stars indicating placement points for exterior lighting
Page 59–63

Document Images

(3)
Sample of James Hardie Plank siding

Sample of James Hardie Plank siding

Sample of James Hardie Board and Batton siding

Sample of James Hardie Board and Batton siding

Diagram of North West Door Therma Tech T-108 garage door

Diagram of North West Door Therma Tech T-108 garage door
