Attachment 2. Blasting Volumes Information Only

October 19, 2021Pages 51–522 sections

Site plans showing approximate blasting volumes for Buildings A, B, C, and D.

8.1.b 9 Erskine Lane - Soil Removal
Building A/B approximate volume: 10,027m3Building C/D approximate volume: 6,636m3

Erskine Rd Multifamily - Site Plan Lot A Buildings A & B

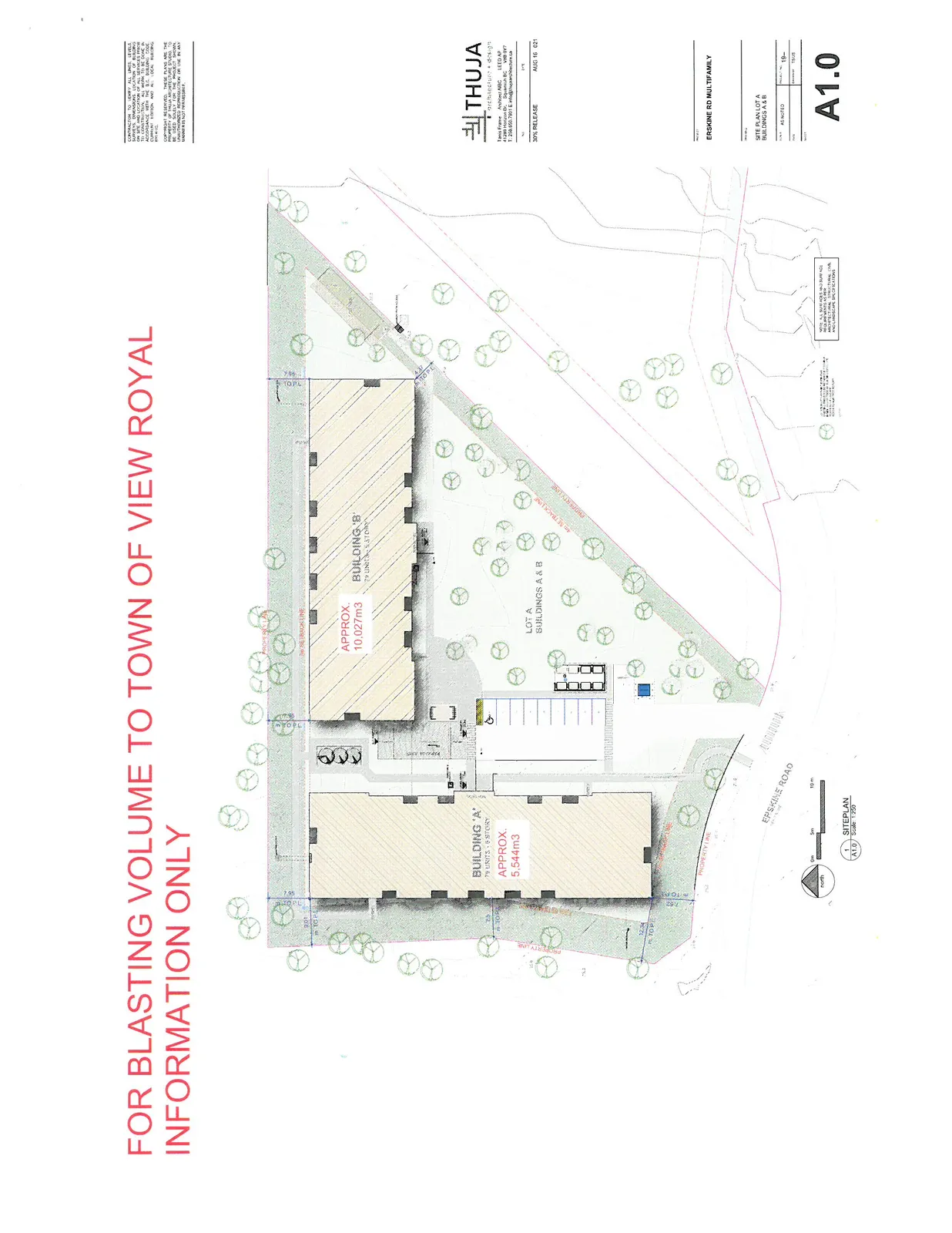

Site plan for Lot A, featuring Building 'A' and Building 'B' at Erskine Road. Building 'A' is noted as 78 units, 6 stories, with approximately 5,544m3 volume. Building 'B' is noted as 79 units, 6 stories, with approximately 10,027m3 volume.
Site plan for Lot A, featuring Building 'A' and Building 'B' at Erskine Road. Building 'A' is noted as 78 units, 6 stories, with approximately 5,544m3 volume. Building 'B' is noted as 79 units, 6 stories, with approximately 10,027m3 volume.

Project Information

  • Project Name: Erskine Rd Multifamily
  • Sheet Name: Site Plan Lot A Buildings A & B
  • Firm: THUJA Architecture + Design
  • Project Number: 19025
  • Scale: As Noted
  • Release: 30% Release (Aug 16 021)
  • Sheet Number: A1.0
Page 51–52

Erskine Lane Multifamily - Building 'C' & 'D' Site Plan

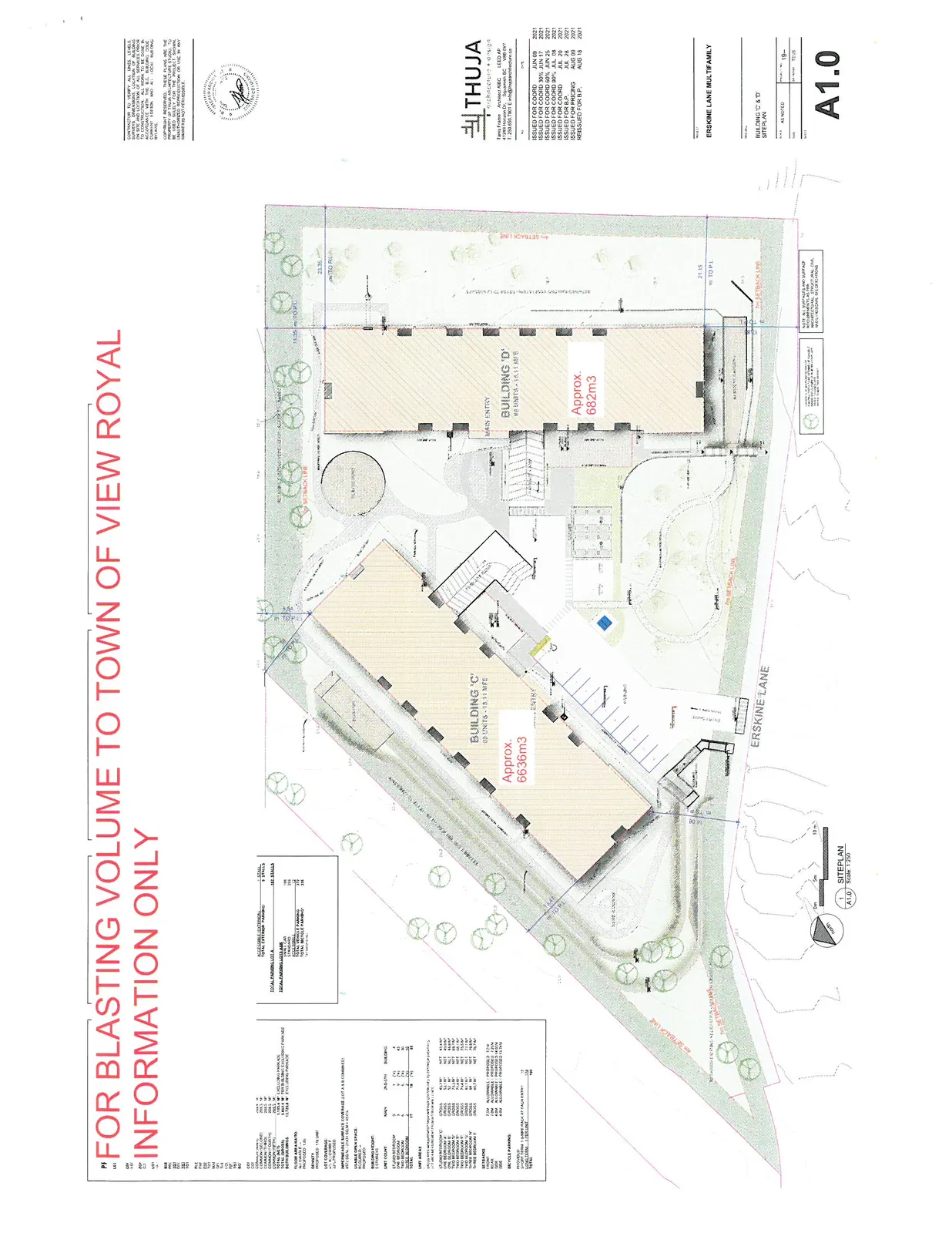

Site plan for Building 'C' and Building 'D' at Erskine Lane. Building 'C' is noted as 103 units, 1-6 stories, with approximately 6,636m3 volume. Building 'D' is noted as 48 units, 1-6 stories, with approximately 682m3 volume.
Site plan for Building 'C' and Building 'D' at Erskine Lane. Building 'C' is noted as 103 units, 1-6 stories, with approximately 6,636m3 volume. Building 'D' is noted as 48 units, 1-6 stories, with approximately 682m3 volume.

Project Information

  • Project Name: Erskine Lane Multifamily
  • Sheet Name: Building 'C' & 'D' Site Plan
  • Firm: THUJA Architecture + Design
  • Project Number: 19025
  • Scale: As Noted
  • Sheet Number: A1.0

Revision Schedule

  • Issued for Coord 30%: Jun 09 2021
  • Issued for Coord 60%: Jun 11 2021
  • Issued for Coord 90%: Jun 25 2021
  • Issued for DP: Jul 09 2021
  • Issued for Pricing: Jul 20 2021
  • Issued for Building: Aug 09 2021
  • Reissued for B.P.: Aug 18 2021

Site Data

Category Requirement / Data
Zoning R3-A
Lot Area (Total) 7,654 m²
Lot Area (Lot A) 3,369 m²
Lot Area (Lot B) 4,285 m²
Lot Coverage (Total) 4,064 m² (53%)
Lot Coverage (Lot A) 1,971 m² (58%)
Lot Coverage (Lot B) 2,093 m² (49%)
Floor Area (Total) 14,030 m²
Floor Area (Lot A) 7,001 m²
Floor Area (Lot B) 7,029 m²
Floor Space Ratio (FSR) 1.83

Unit Count

Unit Type Bldg 'A' Bldg 'B' Bldg 'C' Bldg 'D' Total
1 Bedroom 42 43 66 28 179
2 Bedroom 36 36 37 20 129
Total Units 78 79 103 48 308

Parking

Description Count
Required Parking 308 Stalls
Total Provided Parking 332 Stalls
Surface Parking 45
Underground Parking 287

Setbacks

Location Allowed Proposed
Front 7.5m 7.5m
Rear 7.5m 7.5m
Side (Internal) 4.0m 4.0m
Side (Exterior) 4.0m 4.0m
Page 51–52
