Attachment 4. Tree Management Plan

Tree Management Plan

Westurban Developments: Erskine Lane

Project Information

• Sheet Title: TREE REMOVAL PROPOSED OUTSIDE BUIDLING ENVELOPE
• Date: May 10, 2020
• Scale: 1:350 METERS
• Drawn By: LS/SD
• Drawing No: L 2.2

Revisions

Notes

• NOTE: THIS PLAN IS TO BE READ IN CONJUNCTION WITH MJR TREE SERVICE, TREE INVENTORY REPORT DATED MAY 4th 2020
• NOTE: EACH WAYPOINT ID PIN COORESPONDS TO THE INVENTORY LIST FROM THE ARBORITS REPORT AND IN MANY INSTANCES INCLUDES MORE THAN 1 TREE PER PIN.
• ARBORIST SURVEY LOCATION FOR EACH TREE BASED ON GPS FIELD DATA FINAL - TREE LOCATIONS ARE APPROXIMATE AND ARE TO BE CONFIRMED ON SITE PRIOR TO REMOVAL. ANY DISCREPACY BETWEEN THIS PLAN AND SITE CONDITION SHOULD BE BROUGH TO LANDSCAPE ARCHITECTS ATTENTION.

Legend

• Property Line: (Solid black line)
• Setback Line (Building Envelope): (Blue dashed line)
• Underground Parkade: (Magenta dashed line)
• Approximate Extent & Location of Tree Protection Fencing: (Black dashed line) Exact Location to be Confirmed by Arborist After on Site Inspection of Trees & Individual RPZ (ROOT PROTECTION ZONE)
• Indicates Location of Waypoint ID Pin For Existing Trees To Be Retained If Possible INSIDE & OUTSIDE BUILDING ENVELOPE: (Green Circle) Refer To MJR Tree Report For Detailed Information. TOTAL ID PINS TO BE RETAINED 130.
• INDICATES LOCATION OF WAYPOINT ID PIN FOR EXISTING PROTECTED TREES TO BE REMOVED OUTSIDE BUIDING ENVELOPE: (Red Circle with X) Refer To MJR Tree Report For Detailed Information.
• INDICATES LOCATION OF WAYPOINT ID PIN FOR OTHER EXISTING TREES TO BE REMOVED OUTSIDE BUIDING ENVELOPE: (Grey Circle with X) Refer To MJR Tree Report For Detailed Information.

Protected Trees Summary

• PROTECTED TREES (253 TOTAL)
• 32 TO BE REMOVED
• 221 TO BE RETAINED

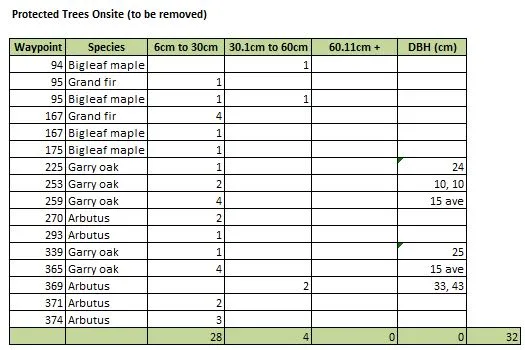

Protected Trees Onsite (to be removed)
