Attachment 5. Landscape Plan

Westurban Developments - Landscape Plan North West Site

Date	Revisions	By
May 20 2020	Preliminary Draft Issued for Review	LS/SS
May 22 2020	SUBMISSION 1 FOR REVIEW	LS
AUG 7 2020	FOR REZONING	LS
FEB 17 2021	FOR DP REVIEW	LS
MAY 11 2021	ISSUE FOR DP	LS
Sept 20 2021	REVISED WALLS FOR REVIEW	LS

ALL WORK AND MATERIALS SHALL BE TO CANADIAN LANDSCAPE STANDARDS
WHERE NEW TREES ARE REQUIRED IN AREAS OF RETAINED VEGETATION TAKE CARE TO NOT DAMAGE EXISTING TREE ROOTS

Property Line: (Heavy dashed line)
Setback Line (Building Envelope): (Thin dashed line)
Underground Parkade: (Dashed-dotted line)
CS: Brushed Concrete, Patterns TBD - Refer to Civil Eng. Dwgs.
Proposed ROW Sidewalk: Refer to Civil For Details
Compacted 3/4" Crush Rock: For Informal Walkways & Dog Runs
Planting Beds: cw 60 mm Bark Mulch on Filter Fabric on Approved Growing Medium At Specified Depths (450 mm minimum For Shrubs & 750 mm minimum For Trees) For both on and off slab conditions.
LAWN: Seeded Lawn Areas cw 150 mm Min. Depth of Approved Growing Medium
Existing Vegetation Area To Be Retained: (Tree cluster symbol)
Decorative (1" - 3") Washed Round Cobble Rock Groundcover: Sized Cobble TBD With Detailed Design To Coordinate With On Slab Drainage
Feature Decorative Boulders: as Locally Available and Sourced From Site. Size Range 600mm - 1200mm
Lock Block Retaining Walls: Utilize Bench Block for Top Row. Heights May Adjust to Fit Block Dimensions. *Refer to Eng. For Final Wall Design, Location & Details
Black Vinyl Coated Chain Link Fence 5' Ht.: (Line with 'x' marks)

Powder Coated Metal Style: Insulated for 4 Season Planting - Approx Size 24" x 72"
CIP Concrete Tree Planter: Insulated for 4 Season Planting - Refer to Plan for Sizes
Aluminum Horse Trough Vegetable Garden Planters: 2 Sizes - 2' x 2' x 4' & 6' Set On Crush Gravel On Slab. (This Type Planter On South East Development Only)

Bike Racks: Dero Rolling Rack or Approved Equivalent Colour TBD to Complement Building Character
Decorative Screen Feature: With Semi Transparent Style For Screening Between Parking & Mini Plaza Spaces
Light Bollard or Interpretive Signage: 36" Height
Bench Seating: Wood or Wood Composite Construction

The plan details the landscaping for two primary residential structures:

Key site features identified on the map:

Semi Private Courtyard: Features raised concrete or block planters and seating on slab with a small lawn area at the north end.
Connection Pathway: Pedestrian link from the building egress to the existing bus stop.
Planted Tiered Retaining Walls: Textured lock block or as determined by Geotech.
Entry Garden Feature: Includes a circular seat with a tree.
Garbage Recycle with Screening: Central facility for waste management.
- Recycle symbol used on the plan
- Garbage bin symbol used on the plan
Covered Bike Shelter: Located near the main entry of Building 'B'.
Corten Screens: Decorative screening on cobble rock, situated on the parkade slab.
Dog Run with Chain Link Fence: Located at the north-east corner; site fit required to avoid damaging existing trees.
Retention Areas: Large zones of retained existing vegetation surround the north, east, and west perimeters of the site.
Lighting and Furniture:

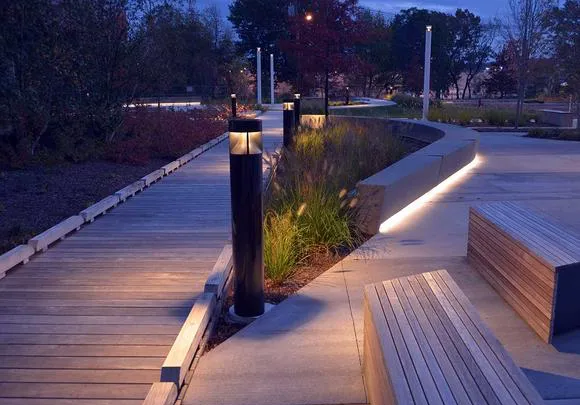

- Nighttime photo showing the proposed Selux Inula light bollards and illuminated wooden bench seating.
