Foundation Improvements and Structural Drawings - 8 Eaton Avenue
May 19, 2020Pages 121–1277 sections
Technical drawings for the proposed Carter accessory building, including foundation plans, elevations, and structural cross-sections.
Drawn by Kyle MaceDate: Jan 26, 2020 and April 2, 2020Includes West, East, South, and North elevations
Existing Concrete Foundation and Foundation Improvements
Existing Concrete Foundation
- Dimension: 3048 mm
- Dimension: 4775 mm
- Dimension: 5944 mm
- Note: Existing 150 mm concrete foundation
Foundation Improvements
- Dimension: 2744 mm
- New 150 concrete curb
- 12.7 Simpson wedge anchor 1200 O/C TYP
- Sections indicated: A, B
Project Details:
- Carter Accessory Building
- Location: View Royal, BC
- Drawn By: Kyle Mace
- Date: Jan 26, 2020
- Scale: 1:50
- All dimensions in mm U.N.O. (Unless Noted Otherwise)
Page 121–127

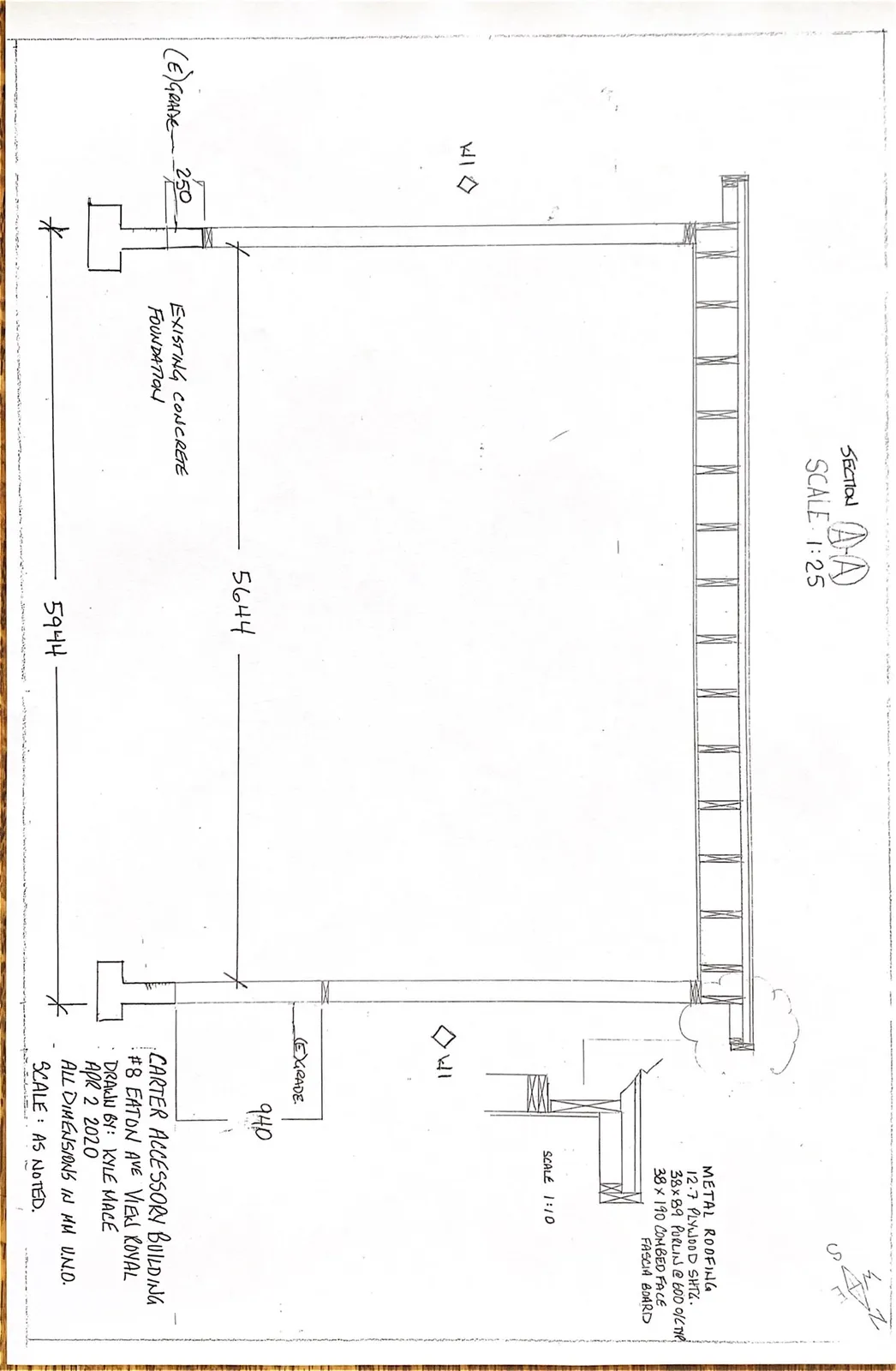

Section A-A
Section Details
- Scale: 1:25
- Dimension: 5644 mm (internal width)
- Dimension: 5944 mm (external width)
- (E) Grade dimension: 250 mm / 940 mm
- Note: Existing concrete foundation
Roof Detail (Scale 1:10)
- Metal roofing
- 12.7 plywood shtg.
- 38x89 purlin @ 600 O/C TYP
- 38x190 combed face fascia board
Project Details:
- Carter Accessory Building
- #8 Eaton Ave View Royal
- Drawn By: Kyle Mace
- Date: Apr 2, 2020
- All dimensions in mm U.N.O.
- Scale: As Noted
Page 121–127

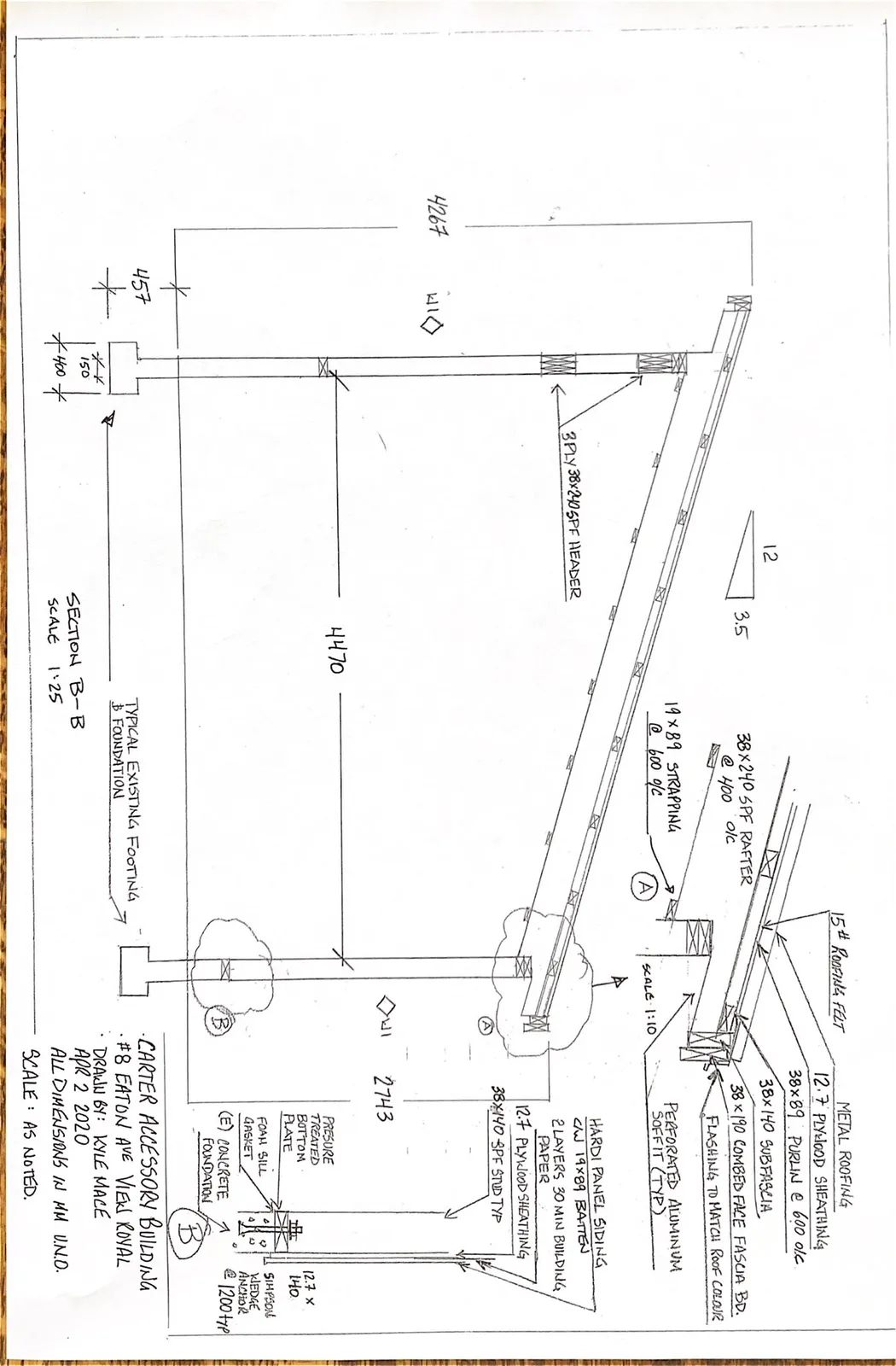

Section B-B
Section Details
- Scale: 1:25
- Dimension: 4267 mm (internal height)
- Dimension: 4470 mm (internal width)
- Dimension: 2743 mm (internal height to header)
- Footing dimensions: 457 mm, 150 mm, 400 mm
- Roof Slope: 12:3.5
Construction Specifications
- Metal roofing
- 12.7 plywood sheathing
- 38x89 purlin @ 600 O/C
- 38x140 subfascia
- 38x190 combed face fascia bd.
- Flashing to match roof color
- Perforated aluminum soffit (TYP) (Scale 1:10)
- 15# roofing felt
- 38x240 SPF rafter @ 400 O/C
- 19x89 strapping @ 600 O/C
- 3PLY 38x240 SPF header
- Hardi panel siding c/w 19x89 batten
- 2 layers 30 min building paper
- 12.7 plywood sheathing
- 38x140 SPF stud TYP
- Pressure treated bottom plate
- Foam sill gasket
- (E) concrete foundation
- 12.7 x 140 Simpson wedge anchor @ 1200 +/-
- Typical existing footing & foundation
Project Details:
- Carter Accessory Building
- #8 Eaton Ave View Royal
- Drawn By: Kyle Mace
- Date: Apr 2, 2020
- All dimensions in mm U.N.O.
- Scale: As Noted
Page 121–127

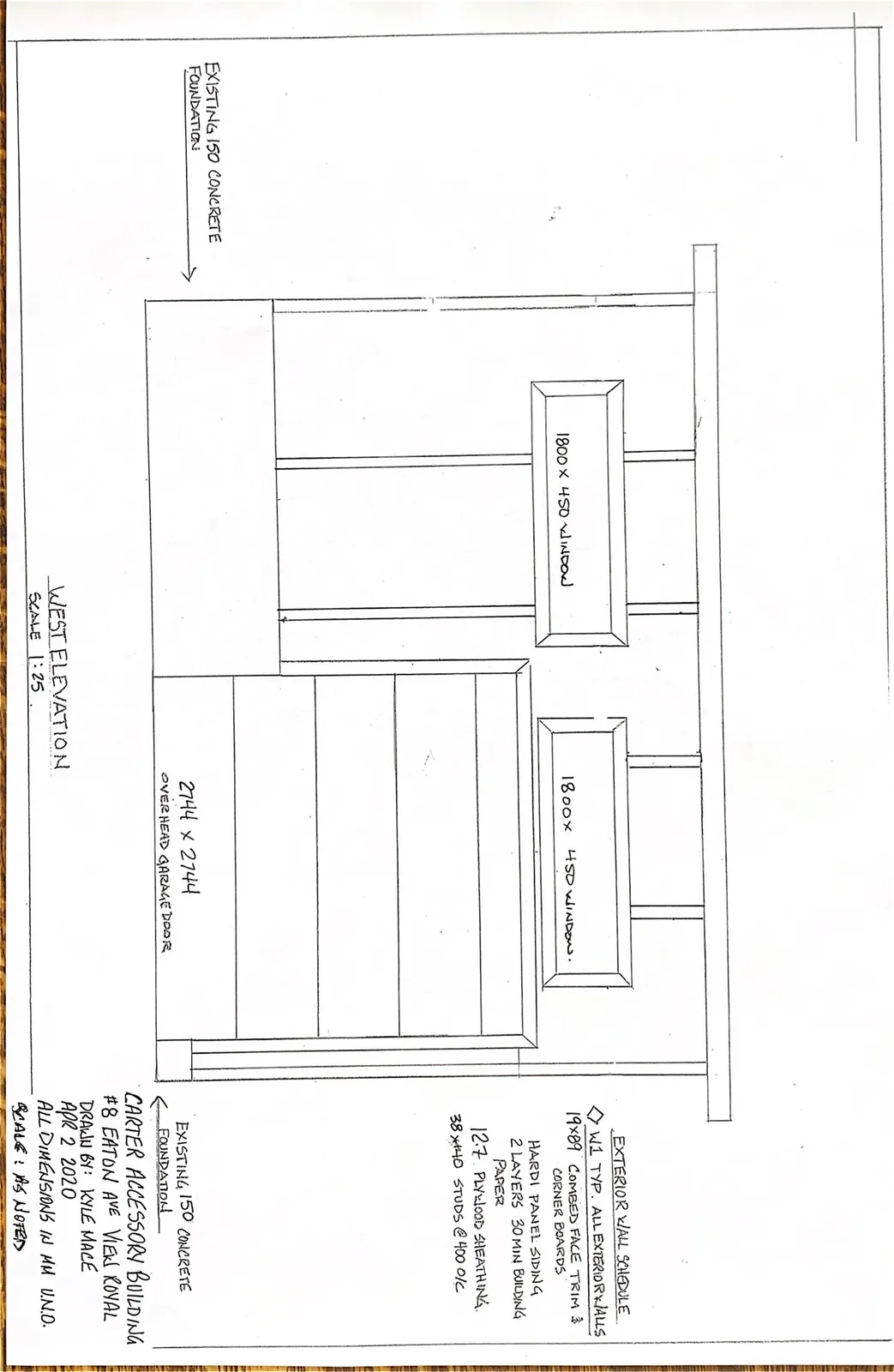

West Elevation
Elevation Details
- Scale: 1:25
- Windows: 1800 x 450 window (x2)
- Garage Door: 2744 x 2744 overhead garage door
- Note: Existing 150 concrete foundation
Exterior Wall Schedule
- W1 TYP. All exterior walls
- 19x89 combed face trim & corner boards
- Hardi panel siding
- 2 layers 30 min building paper
- 12.7 plywood sheathing
- 38x140 studs @ 400 O/C
Project Details:
- Carter Accessory Building
- #8 Eaton Ave View Royal
- Drawn By: Kyle Mace
- Date: Apr 2, 2020
- All dimensions in mm U.N.O.
- Scale: As Noted
Page 121–127

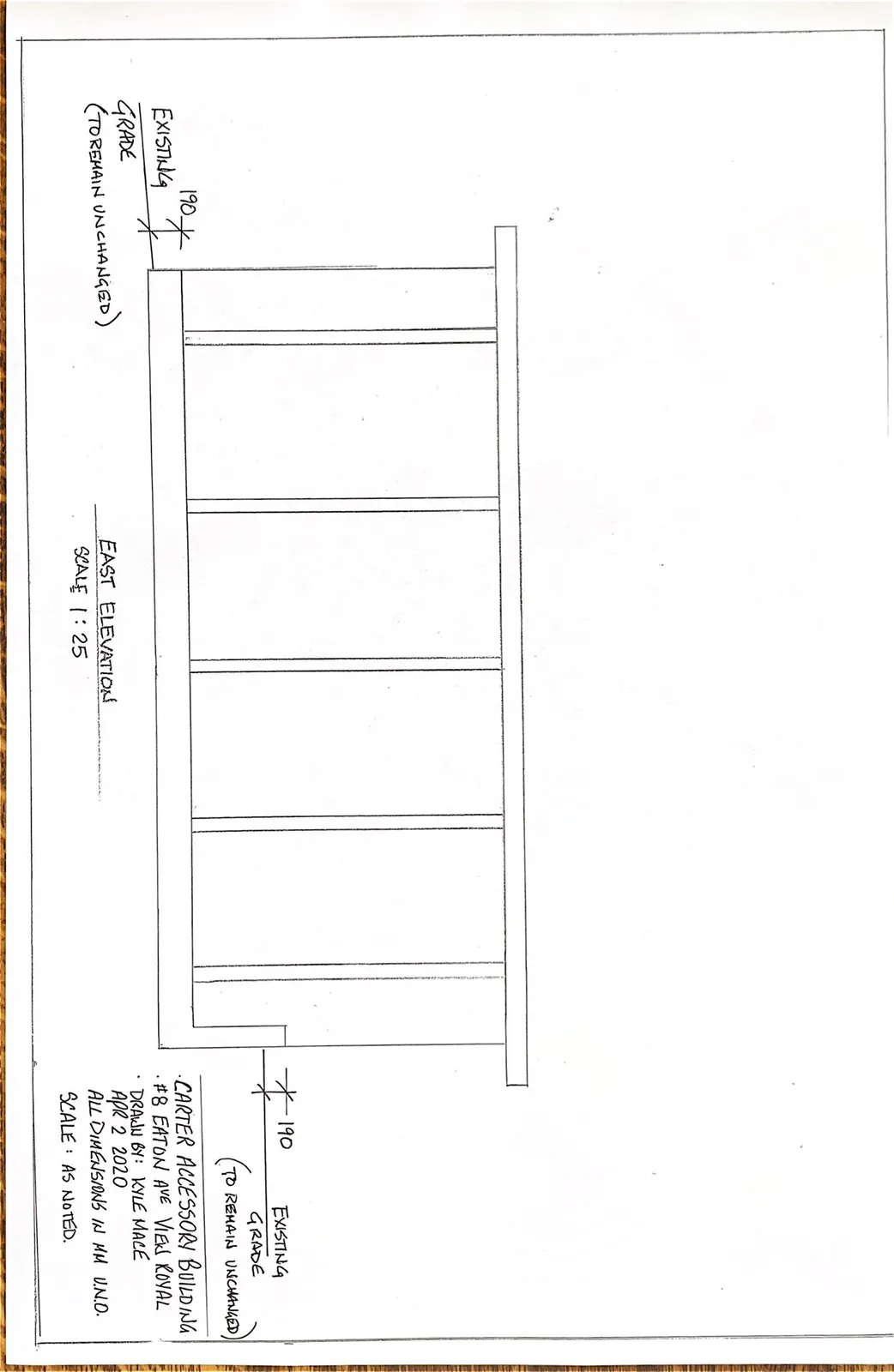

East Elevation
Elevation Details
- Scale: 1:25
- Note: Existing grade 190 mm (to remain unchanged)
Project Details:
- Carter Accessory Building
- #8 Eaton Ave View Royal
- Drawn By: Kyle Mace
- Date: Apr 2, 2020
- All dimensions in mm U.N.O.
- Scale: As Noted
Page 121–127

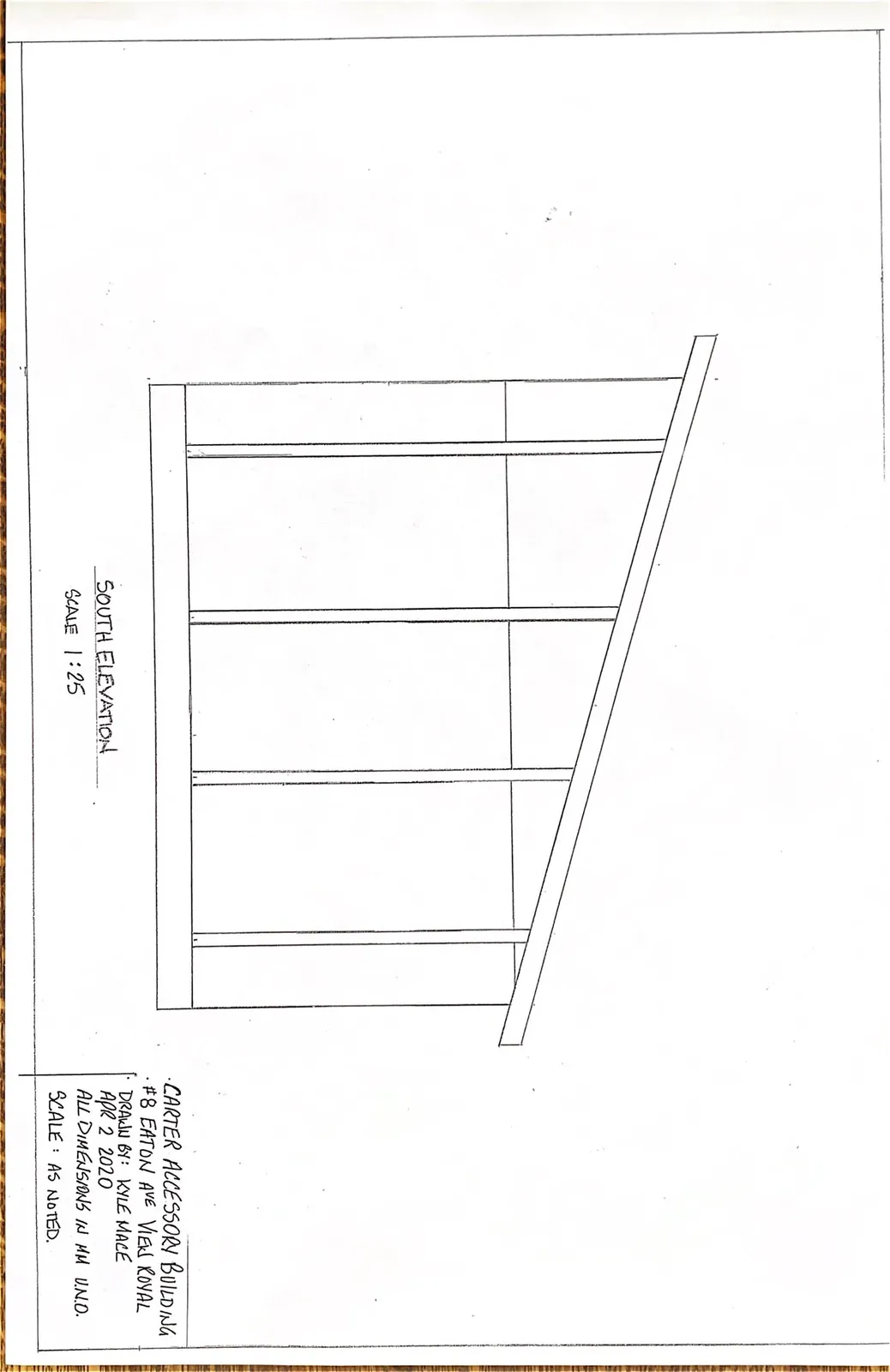

South Elevation
Elevation Details
- Scale: 1:25
Project Details:
- Carter Accessory Building
- #8 Eaton Ave View Royal
- Drawn By: Kyle Mace
- Date: Apr 2, 2020
- All dimensions in mm U.N.O.
- Scale: As Noted
Page 121–127

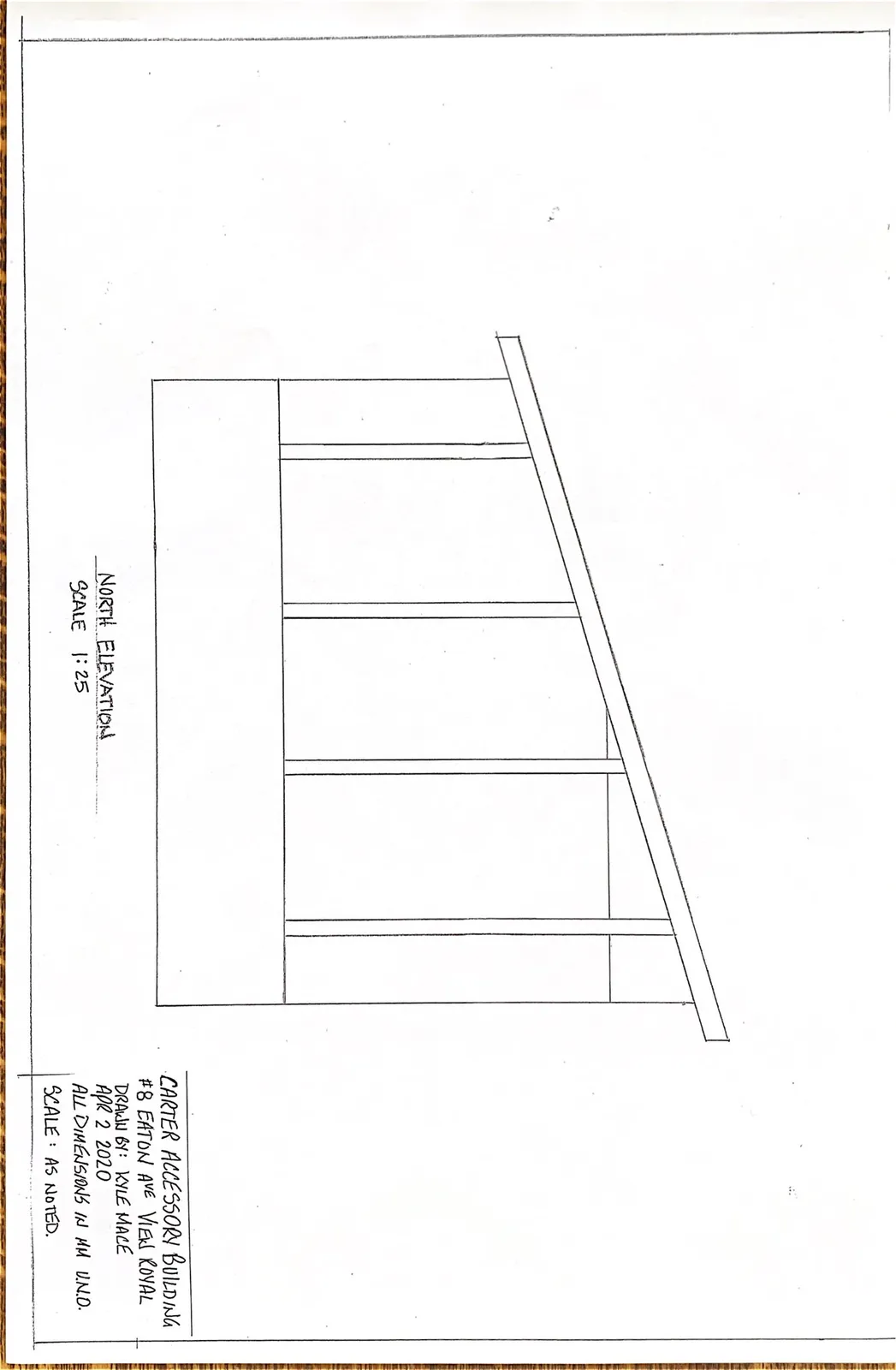

North Elevation
Elevation Details
- Scale: 1:25
Project Details:
- Carter Accessory Building
- #8 Eaton Ave View Royal
- Drawn By: Kyle Mace
- Date: Apr 2, 2020
- All dimensions in mm U.N.O.
- Scale: As Noted
Page 121–127
