Dock Plan and Elevation - 2750 Herbate Road

May 19, 2020Pages 218–2192 sections

Technical drawings showing the plan view and side elevation profiles of the proposed elevated boardwalk and floating dock.

1 CALL TO ORDER
Elevated Boardwalk footprint: 36m2Floating footprint: 27m2Maximum height above ground level: 0.5m

Proposed dock location

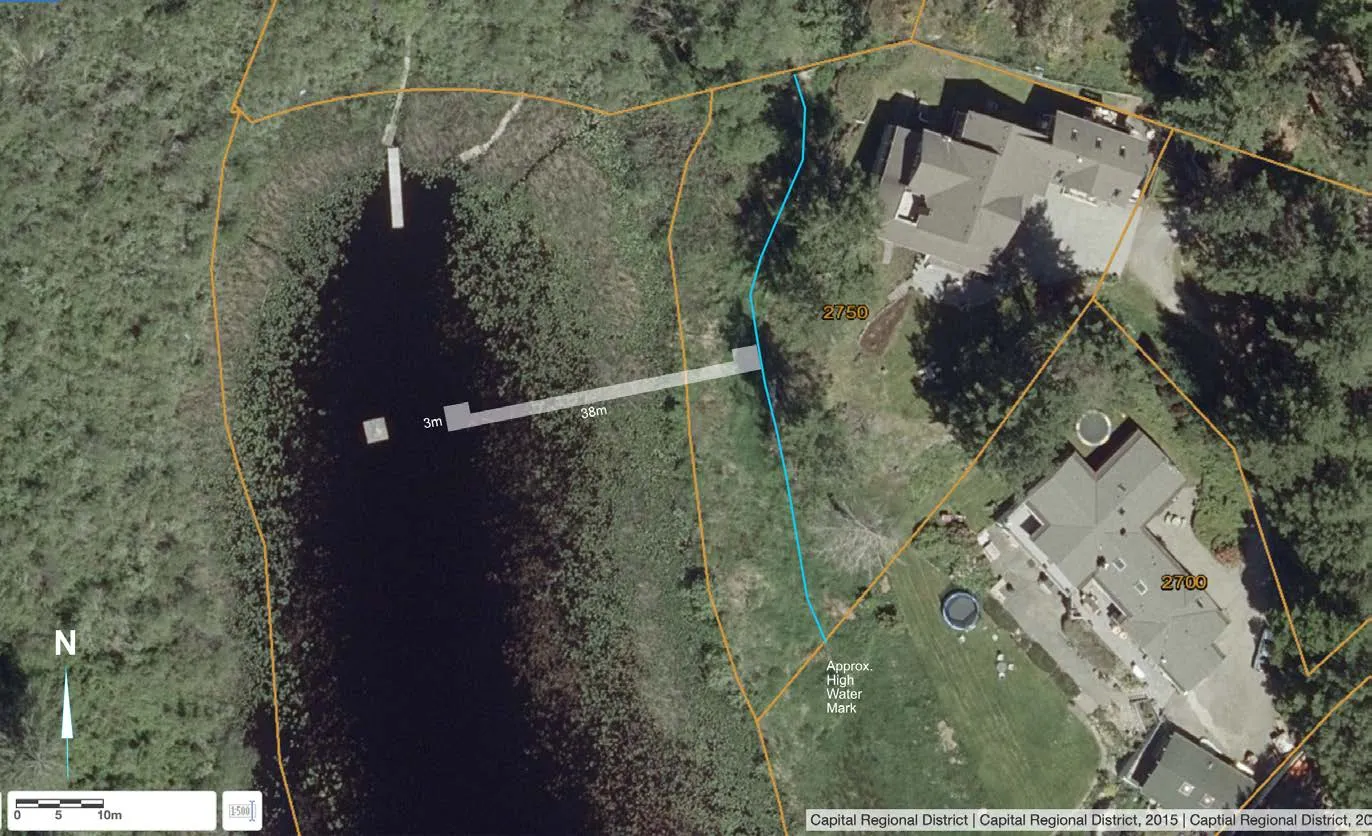

Aerial map showing the proposed dock location at 2750 Herbate Road, indicating property boundaries, the 38m total dock length, and proximity to the shoreline.
Aerial map showing the proposed dock location at 2750 Herbate Road, indicating property boundaries, the 38m total dock length, and proximity to the shoreline.
Page 218–219

2750 Herbate Road Dock Design

For: Brian Richmond Drawing by: Swell Environmental Consulting Ltd. Based on specifications by Dock Contractor: WINRICH Cedar - Drake Dyck Date: March 5, 2020

Technical drawing of the dock design, featuring plan and profile views with dimensions, materials, and construction notes.
Technical drawing of the dock design, featuring plan and profile views with dimensions, materials, and construction notes.

Footprint

  • Total Length = 38m
  • Elevated Boardwalk footprint = 36m2
  • Ramp footprint = 3m2
  • Floating footprint = 27m2
  • Total Footprint = 66m2

Construction and Materials

  • Dock surface: 2"x6" decking with 1/4" gaps
  • Materials:
    • Floats: encapsulated foam
    • Decking and supports: yellow cedar
    • Connectors: powder coated screws
  • Construction: By hand, including hand held pile driver

Design Notes

  • Vertical height: 2m length (not to scale)
  • Height: 0.5m = height above ground level for the boardwalk section.
  • Boardwalk Supports: Elevated boardwalk supports consist of 6"x6" yellow cedar posts with cross braces.
  • Environmental Context: The dock passes through a riparian shrub fringe and aquatic vegetation.
  • Floating Section: Anchors to be determined by dock installer. Location of drop off to floating section is approximate based on observed vegetation changes and airphoto measurements. No bathymetric depth measurements have been conducted.
  • Water Elevation: Design indicates the High Water Mark and Summer Water Elevation.
  • Layout: Includes steps at the shore end and various sections with dimensions:
    • 3m x 3m landing
    • 6m x 1.5m boardwalk
    • 12m x 1.5m boardwalk
    • 2m x 1.5m ramp
    • 12m x 1.5m floating section
    • 3m x 3m floating section end
Page 218–219
