Attachment 2. Amended Development Permit Plans for Building 7 Rooftop

Eagle Creek Village - Site Sections

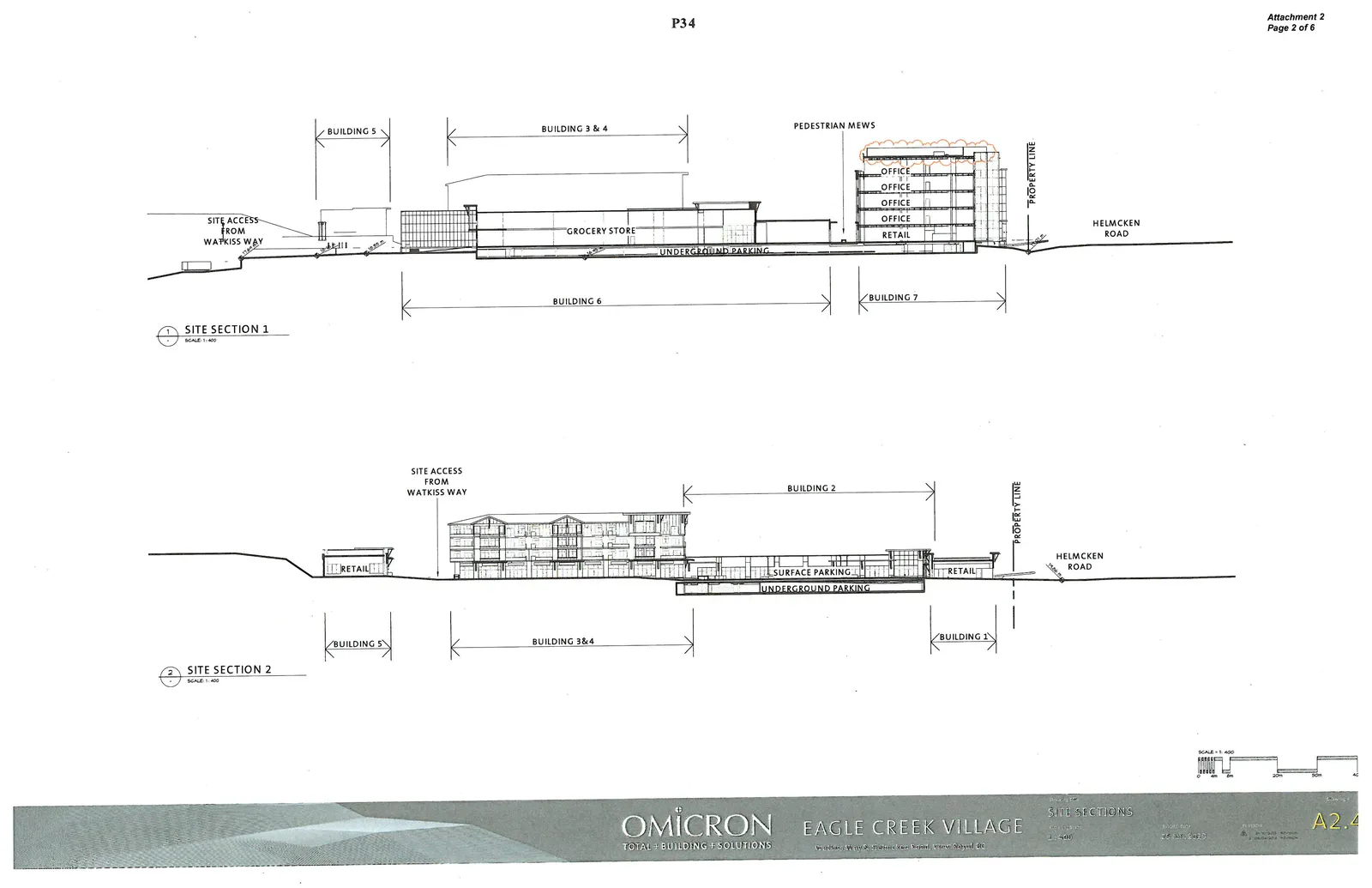

Site Section 1

• Scale: 1:400
• Features: Site access from Watkiss Way, Building 5, Building 3 & 4, Building 6 (Grocery Store), Building 7 (Retail/Office levels), Pedestrian Mews, Underground Parking, Property Line, and Helmcken Road.

Site Section 2

• Scale: 1:400
• Features: Site access from Watkiss Way, Building 5 (Retail), Building 3 & 4, Building 2 (Surface Parking/Underground Parking), Building 1 (Retail), Property Line, and Helmcken Road.

---

Eagle Creek Village - Site Sections 2

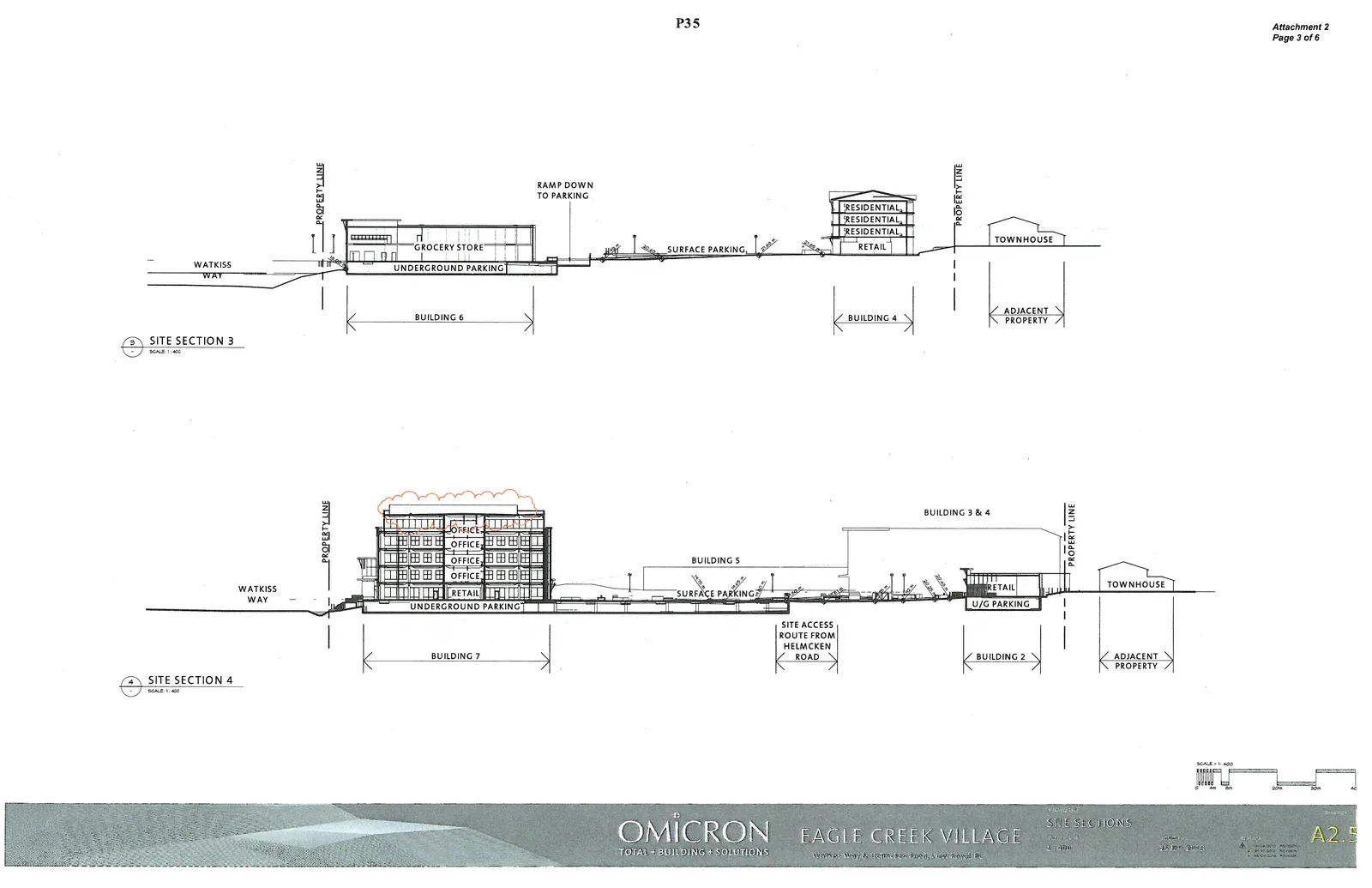

Site Section 3

• Scale: 1:400
• Features: Watkiss Way, Property Line, Building 6 (Grocery Store/Underground Parking), Ramp down to parking, Surface Parking, Building 4 (Retail/Residential levels), Property Line, Townhouse, and Adjacent Property.

Site Section 4

• Scale: 1:400
• Features: Watkiss Way, Property Line, Building 7 (Retail/Office/Underground Parking), Building 5, Surface Parking, Site access route from Helmcken Road, Building 3 & 4, Building 2 (Retail/U/G Parking), Property Line, Townhouse, and Adjacent Property.

---

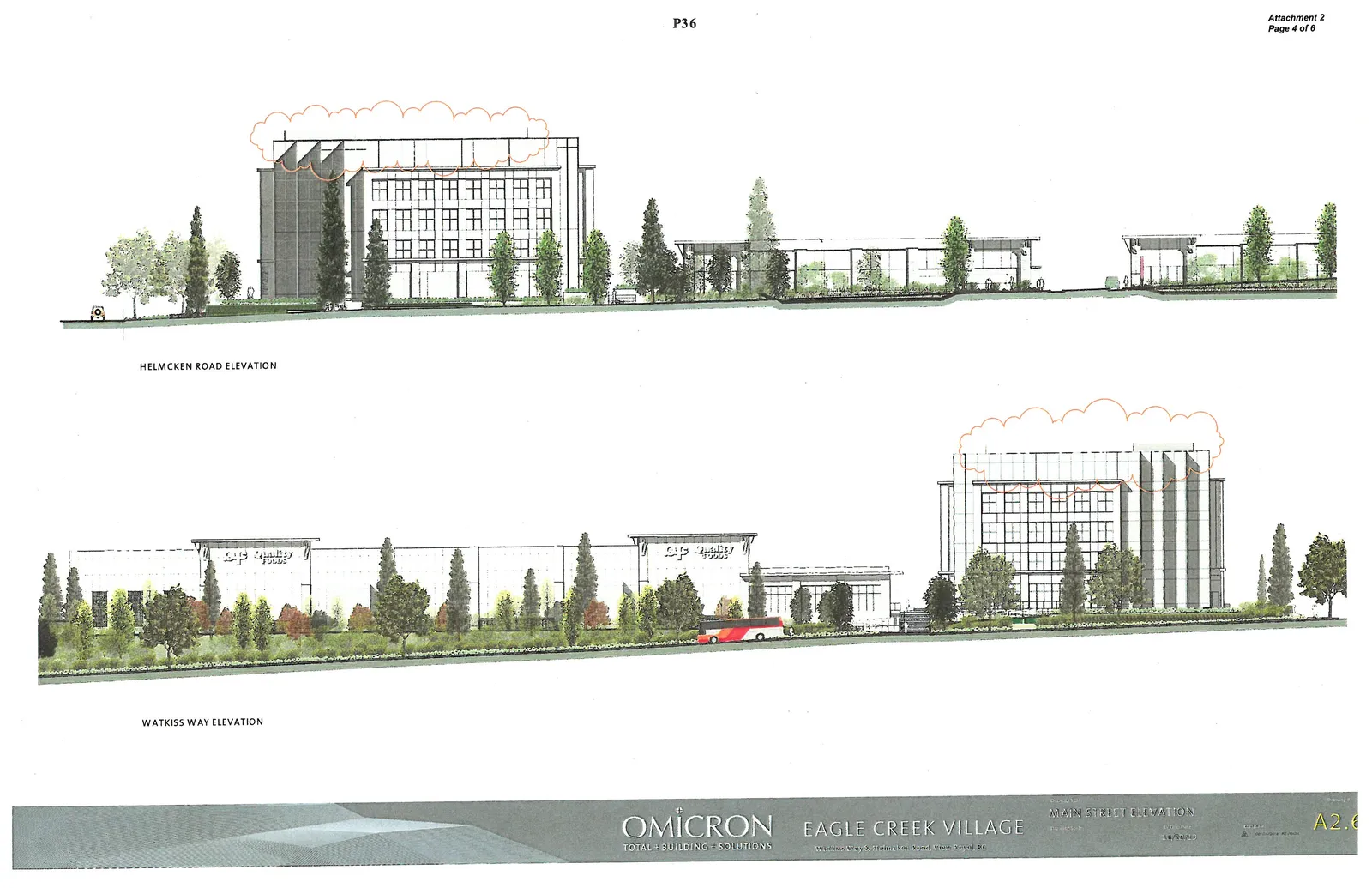

Eagle Creek Village - Main Street Elevation

Helmcken Road Elevation

Rendered view showing Building 7 and adjacent structures with integrated landscaping.

Watkiss Way Elevation

Rendered view showing the "Quality Foods" storefront, surrounding retail buildings, a bus, and extensive landscaping.

---

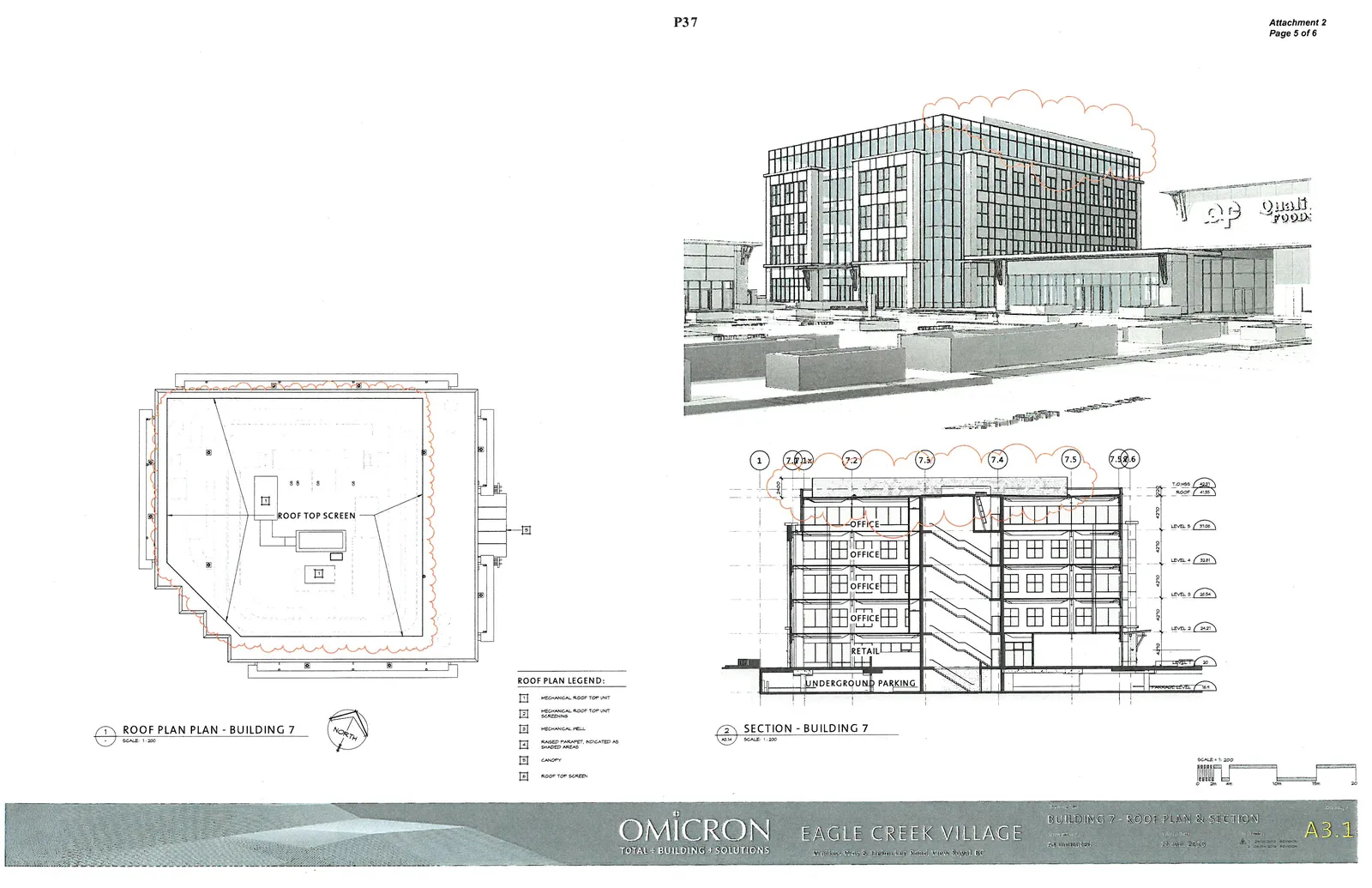

Eagle Creek Village - Building 7 - Roof Plan & Section

Roof Plan - Building 7

• Scale: 1:200
• Features: Detailed layout of the rooftop including the roof top screen area.

Section - Building 7

• Scale: 1:200
• Levels:
  • T.O. MSS: 42.27
  • Roof: 41.35
  • Level 5: 37.05 (Office)
  • Level 4: 32.81 (Office)
  • Level 3: 28.54 (Office)
  • Level 2: 24.27 (Office)
  • Level 1: 20.00 (Retail)
  • Parkade Level: 16.9
  • Underground Parking

Roof Plan Legend

1. Mechanical Roof Top Unit
2. Mechanical Roof Top Unit Screening
3. Mechanical Well
4. Raised Parapet, Indicated as Shaded Areas
5. Canopy
6. Roof Top Screen

---

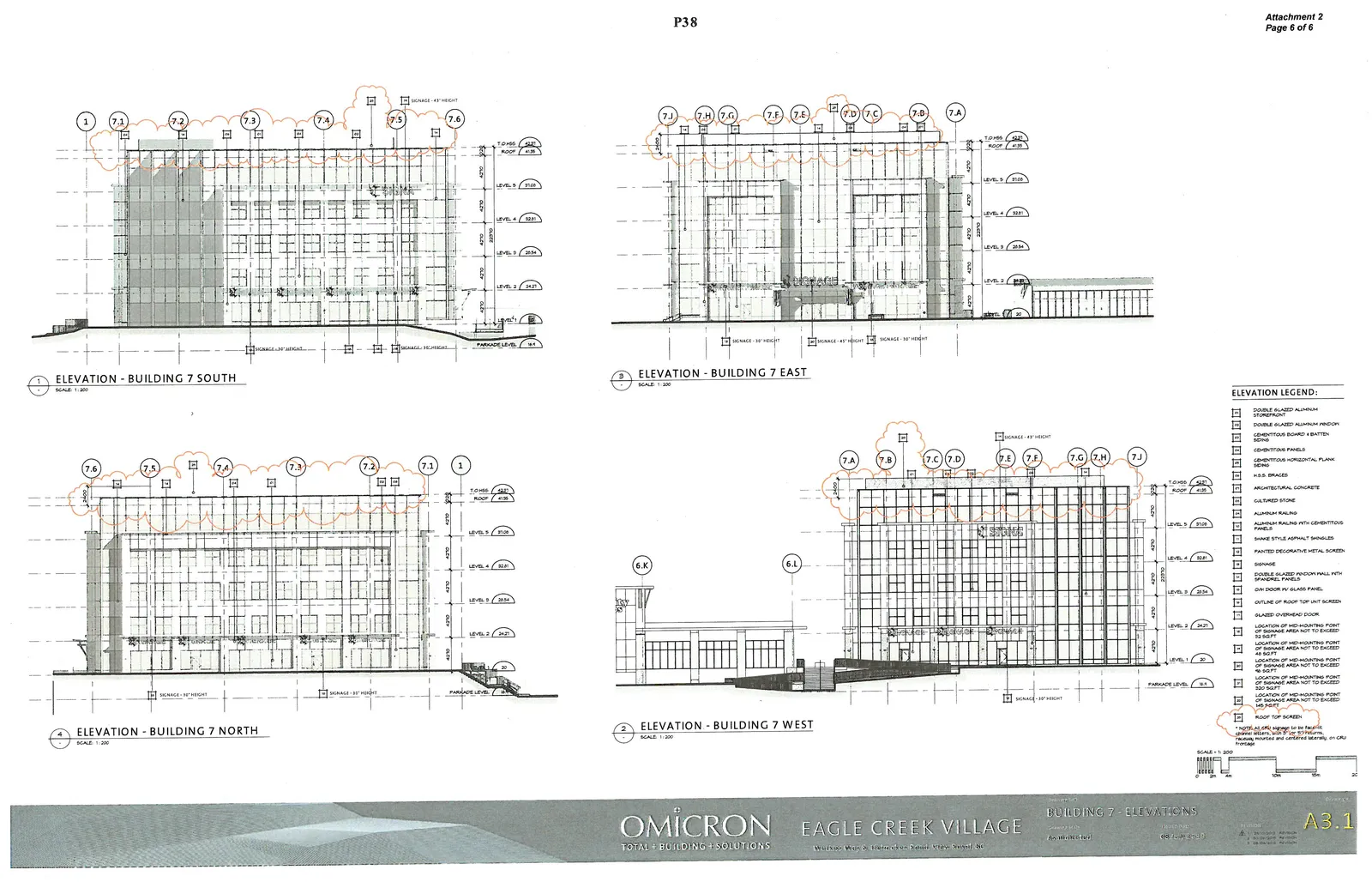

Eagle Creek Village - Building 7 - Elevations

Elevation - Building 7 South

• Scale: 1:200
• Signage: Indicated heights of 30" and 48".

Elevation - Building 7 East

• Scale: 1:200
• Signage: Indicated heights of 30" and 45".

Elevation - Building 7 North

• Scale: 1:200
• Signage: Indicated heights of 30" and 35".

Elevation - Building 7 West

• Scale: 1:200
• Signage: Indicated height of 35".

Elevation Legend

1. Double Glazed Aluminum Storefront
2. Double Glazed Aluminum Window
3. Cementitious Board & Batten Siding
4. Cementitious Panels
5. Cementitious Horizontal Plank Siding
6. H.S.S. Braces
7. Architectural Concrete
8. Cultured Stone
9. Aluminum Railing
10. Aluminum Railing with Cementitious Panels
11. Shake Style Asphalt Shingles
12. Painted Decorative Metal Screen
13. Signage
14. Double Glazed Window Wall with Spandrel Panels
15. O/H Door w/ Glass Panel
16. Outline of Roof Top Unit Screen
17. Glazed Overhead Door
18. Location of mid-mounting point of signage area not to exceed 32 sq. ft.
19. Location of mid-mounting point of signage area not to exceed 45 sq. ft.
20. Location of mid-mounting point of signage area not to exceed 64 sq. ft.
21. Location of mid-mounting point of signage area not to exceed 320 sq. ft.
22. Location of mid-mounting point of signage area not to exceed 145 sq. ft.
23. Roof Top Screen

Note: All CRU signage to be fascia mounted, vertically and centered laterally on CRU frontage.
