Attachment 4. LED Illuminated Channel Letters - Dollar Tree

LED Illuminated Channel Letters - 1 Required

Scale: As Shown

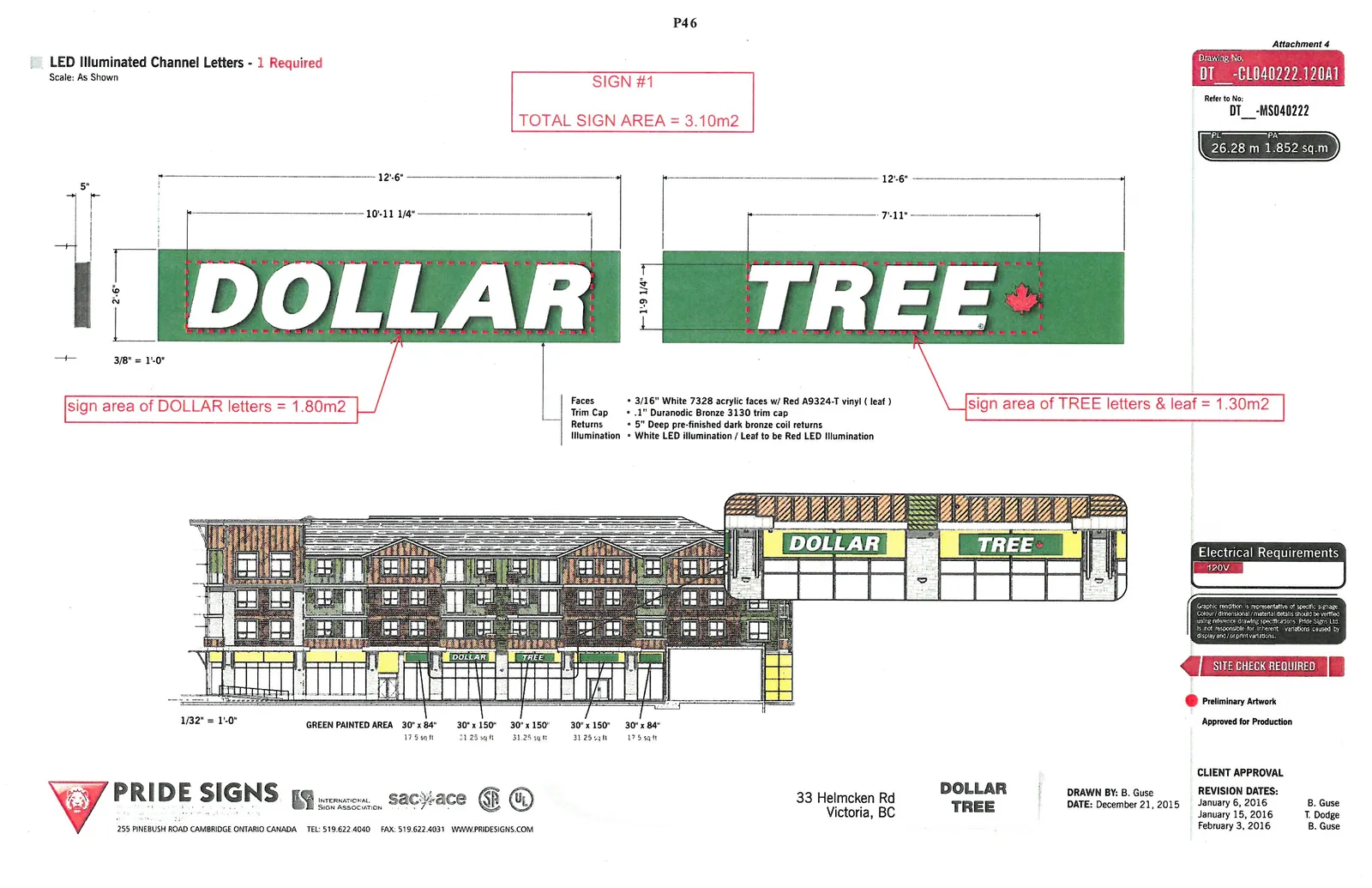

Technical drawing and architectural rendering of illuminated channel letter signage for Dollar Tree at 33 Helmcken Rd, Victoria, BC, including dimensions, material specifications, and building elevation placement.

SIGN #1

TOTAL SIGN AREA = 3.10m2

Dimensions and Area Calculations:

DOLLAR letters: sign area = 1.80m2
- Panel Dimensions: 12'-6" length x 2'-6" height
- Letter Area Dimensions: 10'-11 1/4" length x 1'-9 1/4" height
TREE letters & leaf: sign area = 1.30m2
- Panel Dimensions: 12'-6" length
- Letter Area Dimensions: 7'-11" length
Scale: 3/8" = 1'-0"

Specifications:

Faces: 3/16" White 7328 acrylic faces w/ Red A9324-T vinyl (leaf)
Trim Cap: .1" Duranodic Bronze 3130 trim cap
Returns: 5" Deep pre-finished dark bronze coil returns
Illumination: White LED illumination / Leaf to be Red LED Illumination

Electrical Requirements:

120V

Building Elevation Details

Scale: 1/32" = 1'-0"

GREEN PAINTED AREA:

Dimensions	Area
30" x 84"	17.5 sq ft
30" x 150"	31.25 sq ft
30" x 150"	31.25 sq ft
30" x 150"	31.25 sq ft
30" x 84"	17.5 sq ft

Project Administration

Attachment 4
Drawing No.: DT - CL040222.120A1
Refer to No: DT - MS040222
PL: 26.28 m
PA: 1.852 sq.m
Project Address: 33 Helmcken Rd, Victoria, BC
Project Name: DOLLAR TREE
Drawn By: B. Guse
Date: December 21, 2015

Revision Dates:

January 6, 2016 (B. Guse)
January 15, 2016 (T. Dodge)
February 3, 2016 (B. Guse)

Status:

SITE CHECK REQUIRED
Preliminary Artwork

Graphic Note: Graphic rendition is representative of specific signage. Colour/dimensional/material details should be verified using reference drawing specifications. Pride Signs Ltd. is not responsible for inherent variations caused by display and/or print variations.

Company Contact Information: 255 PINEBUSH ROAD CAMBRIDGE ONTARIO CANADA TEL: 519.622.4040 FAX: 519.622.4031 WWW.PRIDESIGNS.COM
