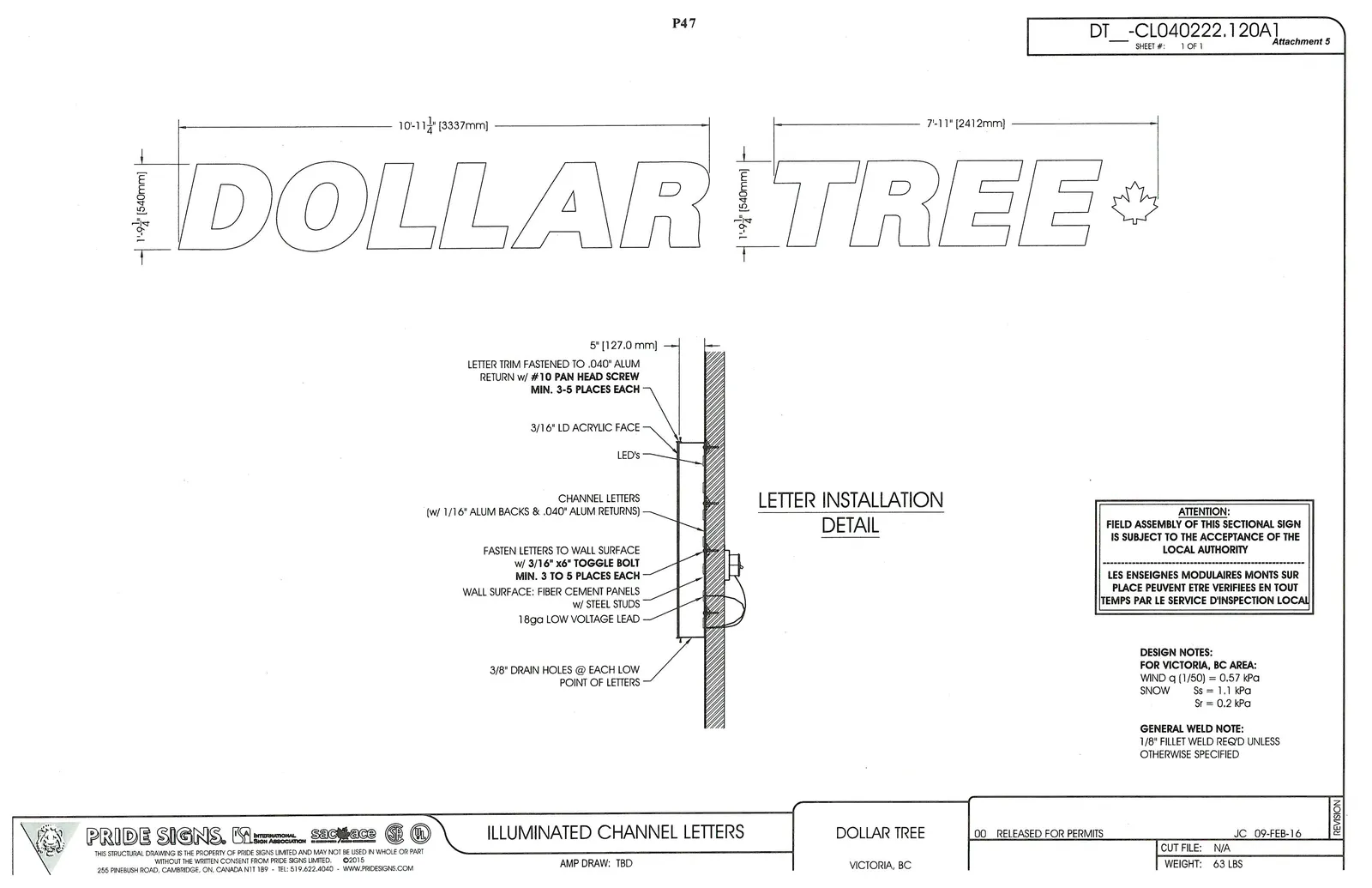

Attachment 5. Illuminated Channel Letters - Technical Drawing

ILLUMINATED CHANNEL LETTERS

Technical drawing showing the front elevation and side-profile installation detail for illuminated "DOLLAR TREE" channel letters, including dimensions and materials.

Dimensions

DOLLAR section: 10'-11 1/4" [3337mm] width x 1'-9 1/4" [540mm] height
TREE section (including maple leaf logo): 7'-11" [2412mm] width x 1'-9 1/4" [540mm] height

LETTER INSTALLATION DETAIL

Depth: 5" [127.0 mm]
Trim: Letter trim fastened to .040" alum return w/ #10 pan head screw min. 3-5 places each
Face: 3/16" LD acrylic face
Lighting: LED's
Letter Construction: Channel letters (w/ 1/16" alum backs & .040" alum returns)
Fastening: Fasten letters to wall surface w/ 3/16" x 6" toggle bolt min. 3 to 5 places each
Wall Surface: Fiber cement panels w/ steel studs
Wiring: 18ga low voltage lead
Drainage: 3/8" drain holes @ each low point of letters

ATTENTION

FIELD ASSEMBLY OF THIS SECTIONAL SIGN IS SUBJECT TO THE ACCEPTANCE OF THE LOCAL AUTHORITY

LES ENSEIGNES MODULAIRES MONTS SUR PLACE PEUVENT ETRE VERIFIEES EN TOUT TEMPS PAR LE SERVICE D'INSPECTION LOCAL

DESIGN NOTES

FOR VICTORIA, BC AREA:

WIND q (1/50) = 0.57 kPa
SNOW Ss = 1.1 kPa
Sr = 0.2 kPa

GENERAL WELD NOTE

1/8" FILLET WELD REQ'D UNLESS OTHERWISE SPECIFIED

Project Specifications

Feature	Description
Project	ILLUMINATED CHANNEL LETTERS
Client	DOLLAR TREE
Location	VICTORIA, BC
Drawing Number	DT_-CL040222.120A1
Sheet	1 OF 1
Revision	00 RELEASED FOR PERMITS
Date	JC 09-FEB-16
Cut File	N/A
Weight	63 LBS
Amp Draw	TBD
