Attachment 6. South & West Elevations - Building 7
May 17, 2016Page 521 section

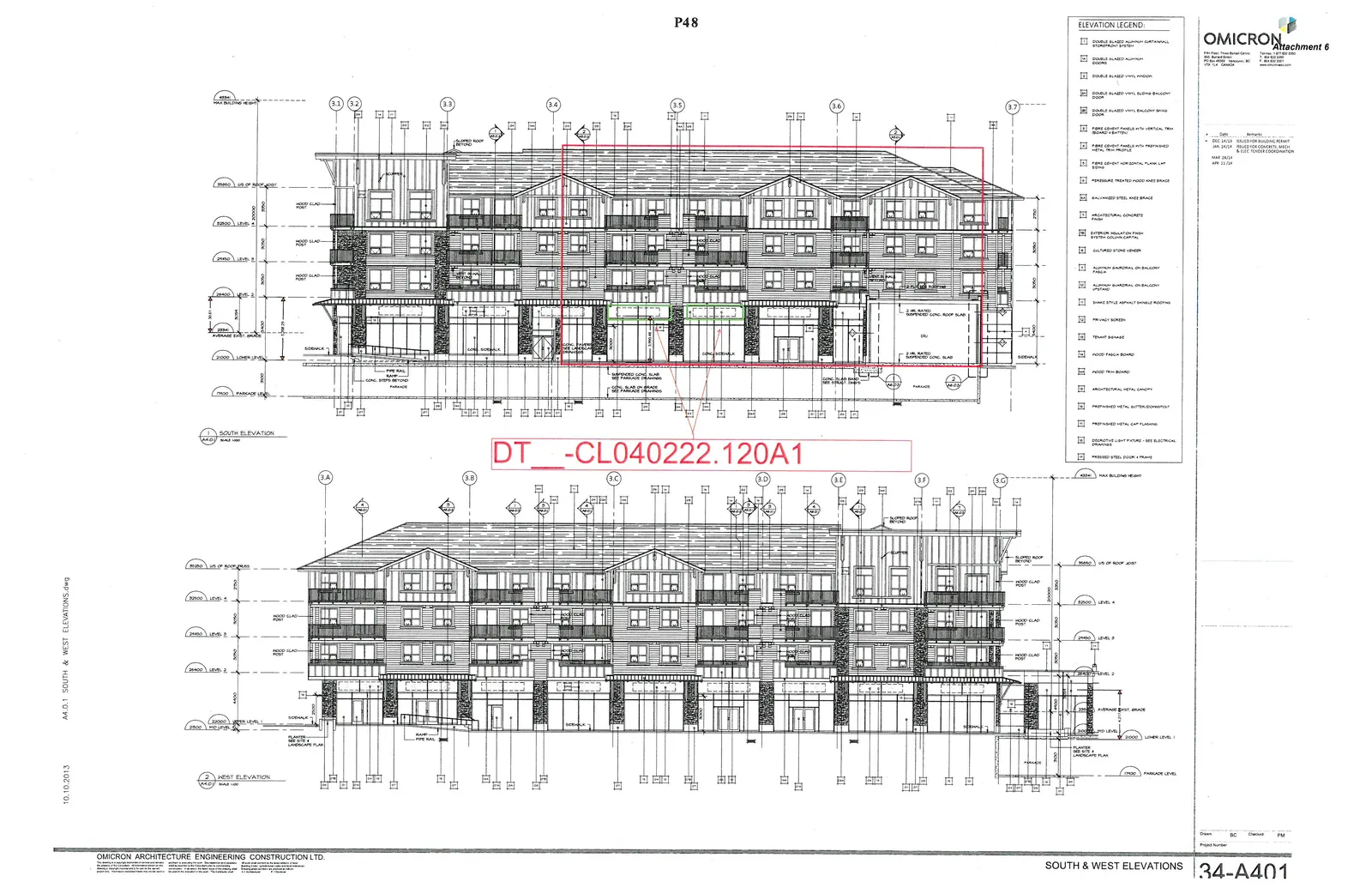

Architectural elevation drawings showing the Dollar Tree signage in the context of the whole building wall.
SOUTH & WEST ELEVATIONS
Sheet Number: 34-A401 Project: P48
ELEVATION LEGEND
| Symbol | Description |
|---|---|
| 1 | DOUBLE GLAZED ALUMINUM CURTAINWALL STOREFRONT SYSTEM |
| 2 | DOUBLE GLAZED ALUMINUM WINDOW |
| 3 | DOUBLE GLAZED VINYL WINDOW |
| 4 | DOUBLE GLAZED VINYL SLIDING BALCONY DOOR |
| 5 | DOUBLE GLAZED VINYL BALCONY SWING DOOR |
| 6 | FIBRE CEMENT PANELS WITH VERTICAL TRIM (BOARD + BATTEN) |
| 7 | FIBRE CEMENT PANELS WITH PREFINISHED METAL TRIM PROFILE |
| 8 | FIBRE CEMENT HORIZONTAL PLANK LAP SIDING |
| 9 | PRESSURE TREATED WOOD KNEE BRACE |
| 10 | GALVANIZED STEEL KNEE BRACE |
| 11 | ARCHITECTURAL CONCRETE (POURED) |
| 12 | EXTERIOR INSULATION FINISH SYSTEM COLUMN CAPITAL |
| 13 | CULTURED STONE VENEER |
| 14 | ALUMINUM GUARDRAIL ON BALCONY FASCIA |
| 15 | ALUMINUM GUARDRAIL ON BALCONY UPSTAND |
| 16 | SHAKE STYLE ASPHALT SHINGLE ROOFING |
| 17 | PRIVACY SCREEN |
| 18 | TENANT SIGNAGE |
| 19 | WOOD FASCIA BOARD |
| 20 | WOOD TRIM BOARD |
| 21 | ARCHITECTURAL METAL CANOPY |
| 22 | PREFINISHED METAL GUTTER/DOWNSPOUT |
| 23 | PREFINISHED METAL CAP FLASHING |
| 24 | DECORATIVE LIGHT FIXTURE - SEE ELECTRICAL DRAWINGS |
| 25 | PRESSED STEEL DOOR & FRAME |
Project Revisions
| Date | Remarks |
|---|---|
| DEC 13/13 | ISSUED FOR BUILDING PERMIT |
| JAN 24/14 | ISSUED FOR CONCRETE, MECH & ELEC TENDER COORDINATION |
| MAR 26/14 | |
| APR 11/14 |
1 SOUTH ELEVATION
Scale 1:200
Levels:
- Max Building Height: 36341
- U/S of Roof Joist: 35250
- Level 4: 32100
- Level 3: 29450
- Level 2: 26800
- Average Exist. Grade: 22514
- Lower Level: 21000
- Parkade Level: 17900
Key Notes:
- Annotation Overlay: DT __-CL040222.120A1
- SLOPED ROOF BEYOND
- HOOD CLAD POST
- PIPE RAIL
- RAMP
- CONC. STEPS BEYOND
- SIDEWALK
- SUSPENDED CONC. SLAB SEE PARKADE DRAWINGS
- CONC. SLAB ON GRADE SEE PARKADE DRAWINGS
- CONC. SLAB BAND SEE PARKADE DRAWINGS
- PARKADE
- CRU
- 2 HR. RATED SUSPENDED CONC. ROOF SLAB
2 WEST ELEVATION
Scale 1:200
Levels:
- Max Building Height: 42011
- U/S of Roof Joist: 35850
- Level 4: 32500
- Level 3: 29850
- Level 2: 27200
- Average Exist. Grade: 22514
- Mid Level: 22000
- Lower Level: 21000
- Parkade Level: 17900
Key Notes:
- SLOPED ROOF BEYOND
- HOOD CLAD POST
- SIDEWALK
- RAMP
- PIPE RAIL
- PLANTER SEE SITE & LANDSCAPE PLAN
- PARKADE
