Proposed Landscape Drawings - Murdoch deGreef

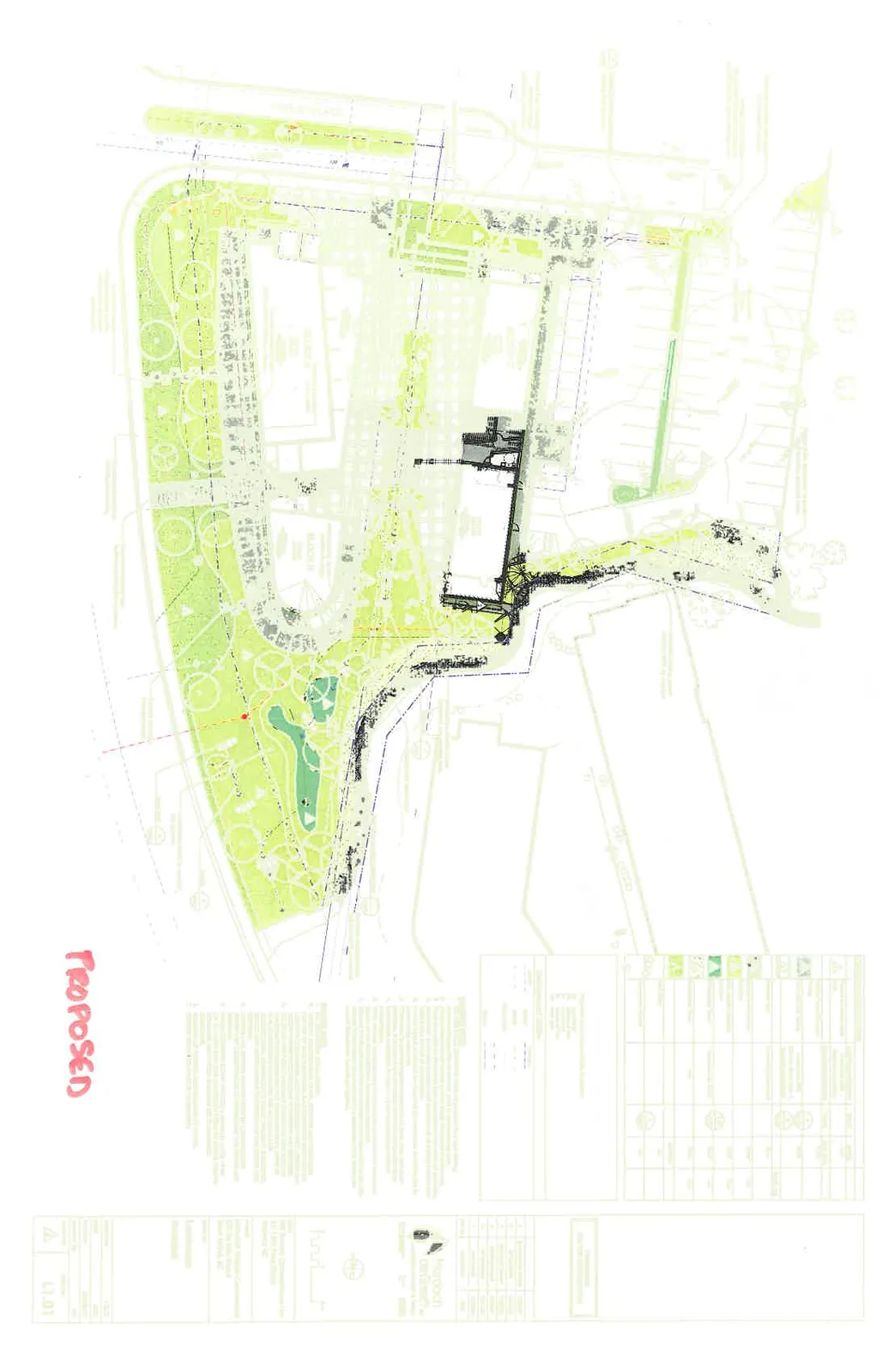

Planting Plan

Plant List

Trees

Shrubs

Groundcover and Vines

Rain Garden

Coastal Native Sod/Seed Mixture

Supplier-Pickseed

Seed weight / % Seed count

• 75.0% / 36 Comox Red Fescue
• 17.0% / 32 Camviv Canada Bluegrass
• 8.0% / 31 Schoen Slender Hairgrass

Seeding Rate: 1.5kg/100 sq. M

Recommended seed time: Fall or spring, soil temperature min 10° Celsius.

Drawing Notes

1. DO NOT SCALE DRAWING: Verify all property lines and existing structures/vegetation to remain, prior to commencing work.
2. All plan dimensions in metres and all detail dimensions in millimetres.
3. Plant quantities on Plans shall take precedence over plant list quantities.
4. Contractor to confirm location and elevation of all existing services and utilities prior to start of construction.
5. Provide layout of all work for approval by Landscape Architect prior to proceeding with work.
6. Contractor to provide irrigation system for all lawn, tree, and shrub plantings, to current BABC Standards and Contract Specifications.
7. Landscape installation to carry a 1 year warranty from date of acceptance.
8. Plant material, installation and maintenance to conform to the current edition of the BCSLA/BCLNA Landscape Standard.
9. General Contractor and/or sub-contractors are responsible for all costs related to production and submission to consultant of all landscape as-built information including irrigation.

---

Landscape Details

1 Rain Garden with underdrain

Section drawing detailing:

• Mulch all planting areas - 50 mm deep
• Top of Pool
• Bottom of Pool
• Overflow drain, with beehive grate Neenah R-4353.
• Pea gravel 25 mm dia. drain rock
• Perforated drain pipe
• Rain Garden growing medium
• Scarify subsoil

2 Section through Commercial Parking Rain Garden

Section drawing detailing:

• Reinforced barrier curb with gutter
• Retaining wall as per architectural drawings, with curb drop inlets, as per plan
• Top of pool (100 mm depth ponded area)
• Growing medium
• Underdrain
• Commercial parking areas
• Wheel stops

3 Rock weir

Plan and section (AA, BB) drawings detailing:

• 25-75 mm crushed angular rock
• 200 mm river rock
• 300 to 450 mm river (smooth) boulder
• 100 mm angular rock
• 100 mm minus river rock
• Rip-rap both banks with 100mm minus river rock
• 75 mm river rock bank protection
• Water 2-25mm crushed angular gravel into face of check dam until a solid surface is created
• 300-450 mm dia. rock crest or 450 mm dia. log wall

4 Cast In Place Concrete Paving - On Grade

Section drawing detailing:

• 13mm deep sawcut control joint
• Cast in place concrete paving, medium broom finish
• 10mm Expansion joint; asphaltic fiber board with 10mm caulking top. Provide at minimum 6000mm O.C. Intervals as per paving pattern permits.
• 20mm minus crushed gravel base compacted to 100% M.P.D.
• Subgrade compacted to 95% M.P.D.

5 Concrete Unit Paving - On Grade

Section drawing detailing:

• Adjacent surface edge (see landscape drawings for treatment)
• Cast in place concrete curb, sidewalk, or band.
• Concrete unit pavers (see L1.01 for type and pattern).
• Screening levelling course Min. 25mm, Max. 38mm depth.
• 24mm crushed gravel base course compacted 150mm depth.
• Subgrade compacted to 95% S.P.D.

6 Tree Planting detail

Section drawing with the following notes:

1. Max. depth of planting pit = rootball depth + 150 mm.
2. Place stakes parallel to prevailing wind direction.
3. Wooden stakes to remain for one growing season only.
4. Do not drive stakes through root ball.
5. Set tree at original grade of nursery (trunk flare visible).

• 50mm dia. pressure treated wood stakes 2m long.
• 1 meter diameter mulch ring.
• "1" fabric tree ties (Arbor Tie or equivalent) at 1/3 tree height.
• Scarify subsoil to a depth of 300mm before installing growing medium.

---

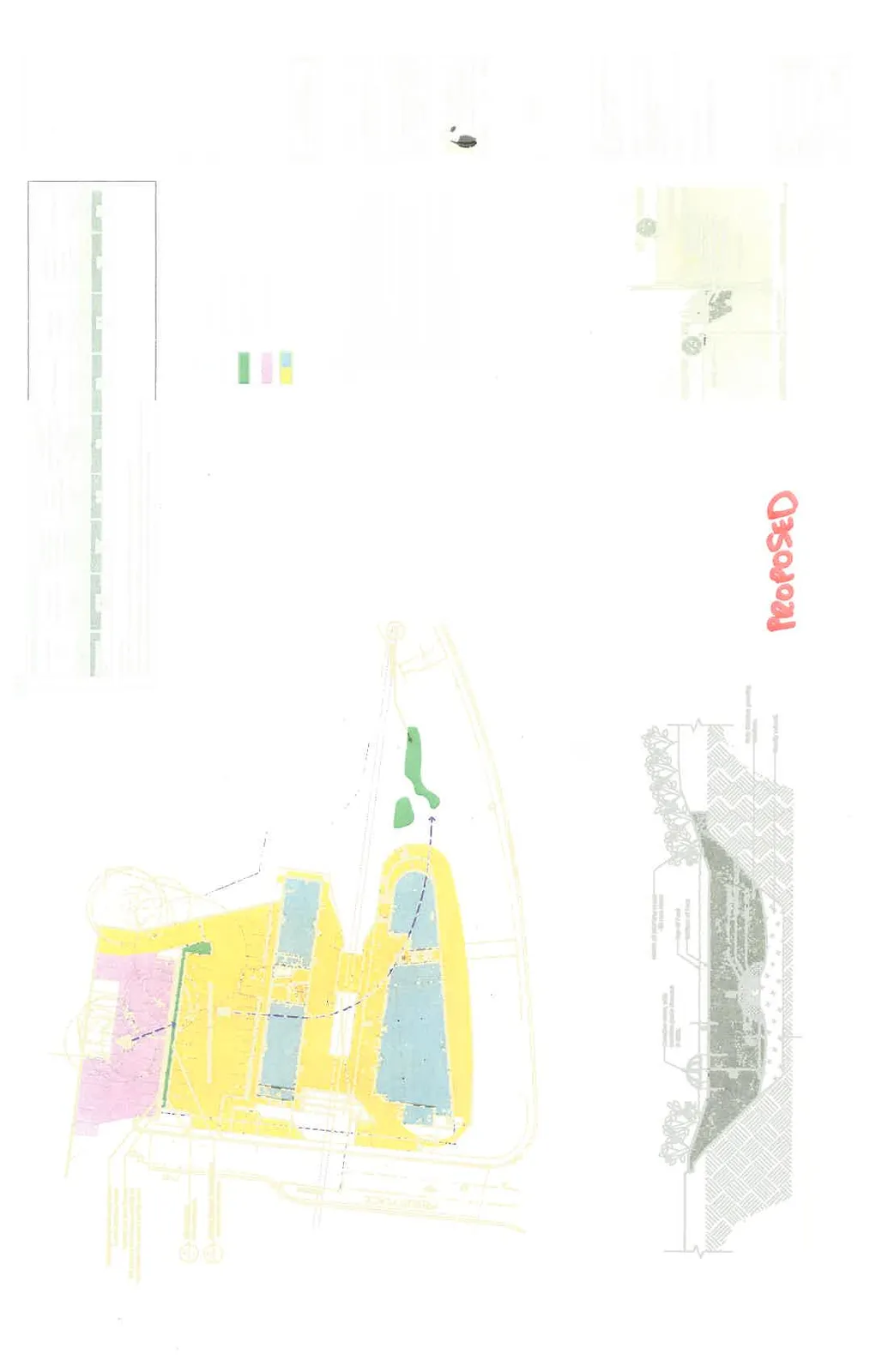

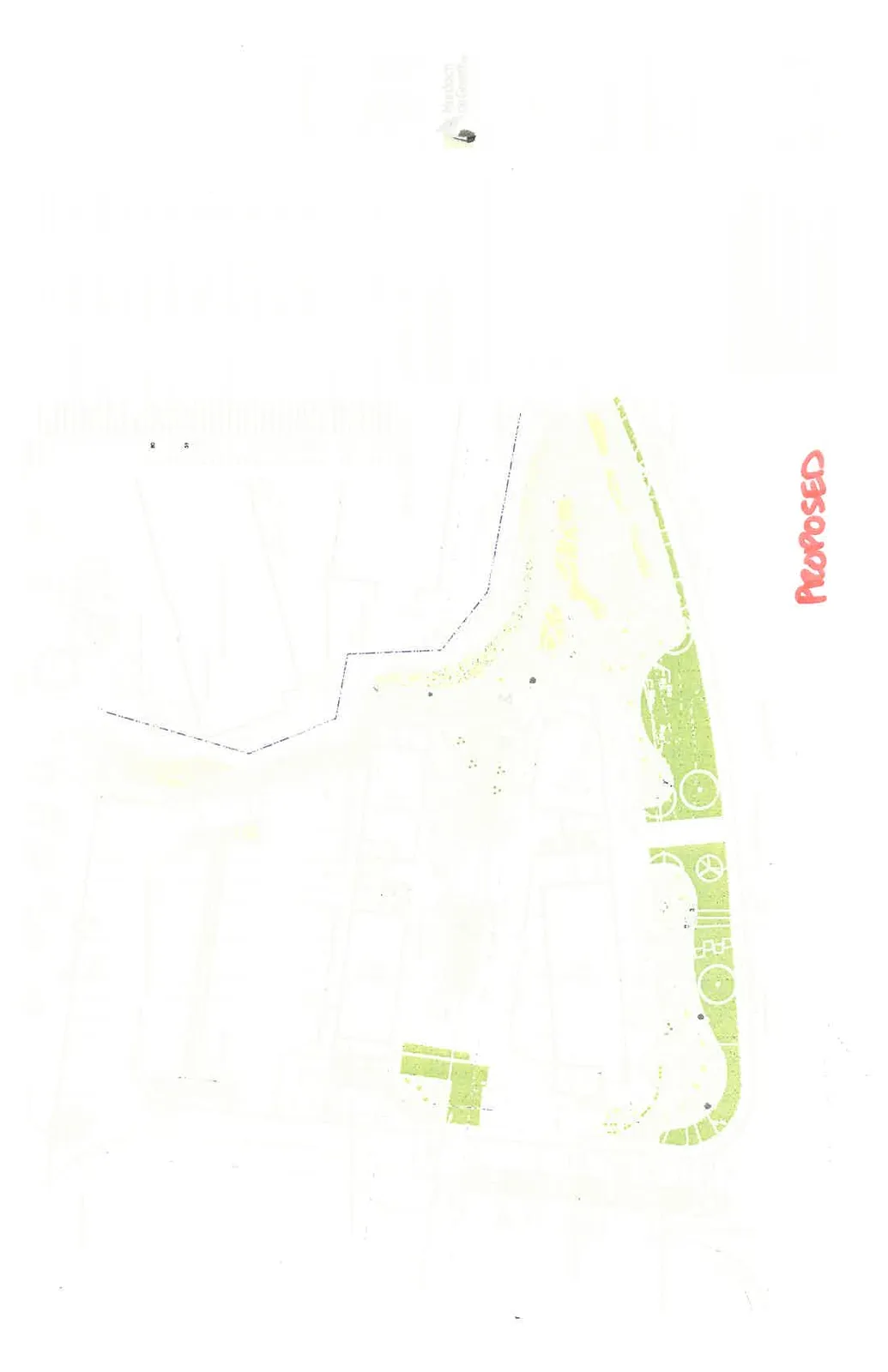

Stormwater Management Plan

Rain Garden Capacity Calculations

Assumptions

1. Design storm is a 2 year storm event which equals 5 cm of water, in a 24 hr period.
2. Rain Garden design based on 100 - 200 mm live ponding plus 20% of the sand/compost growing medium volume (assuming growing medium has 20% void space) with a minimum infiltration rate of 2 cm/hour (or 48 cm per day), via perforated underdrain.

Legend

• [Solid Line] Property line
• [Dashed Line with Arrow] Direction of overland flow
• [Green Shaded Area] Rain Garden Area (SEE DETAIL, L3.01)
• [Pink Shaded Area] Catchment Area A
• [Yellow Shaded Area] Catchment Area B

Drawing Notes

1. DO NOT SCALE DRAWING: Verify all property lines and existing structures/vegetation to remain, prior to commencing work.
2. All plan dimensions in metres and all detail dimensions in millimetres.
3. Plant quantities on Plans shall take precedence over plant list quantities.
4. Contractor to confirm location and elevation of all existing services and utilities prior to start of construction.
5. Provide layout of all work for approval by Landscape Architect prior to proceeding with work.
6. Contractor to provide irrigation system for all lawn, tree, and shrub plantings, to current BABC Standards and Contract Specifications.
7. Landscape installation to carry a 1 year warranty from date of acceptance.
8. Plant material, installation and maintenance to conform to the current edition of the BCSLA/BCLNA Landscape Standard.
9. General Contractor and/or sub-contractors are responsible for all costs related to production and submission to consultant of all landscape as-built information including irrigation.

Details

1. Rain Garden with underdrain (Section) 2. Section through Commercial Parking Rain Garden
