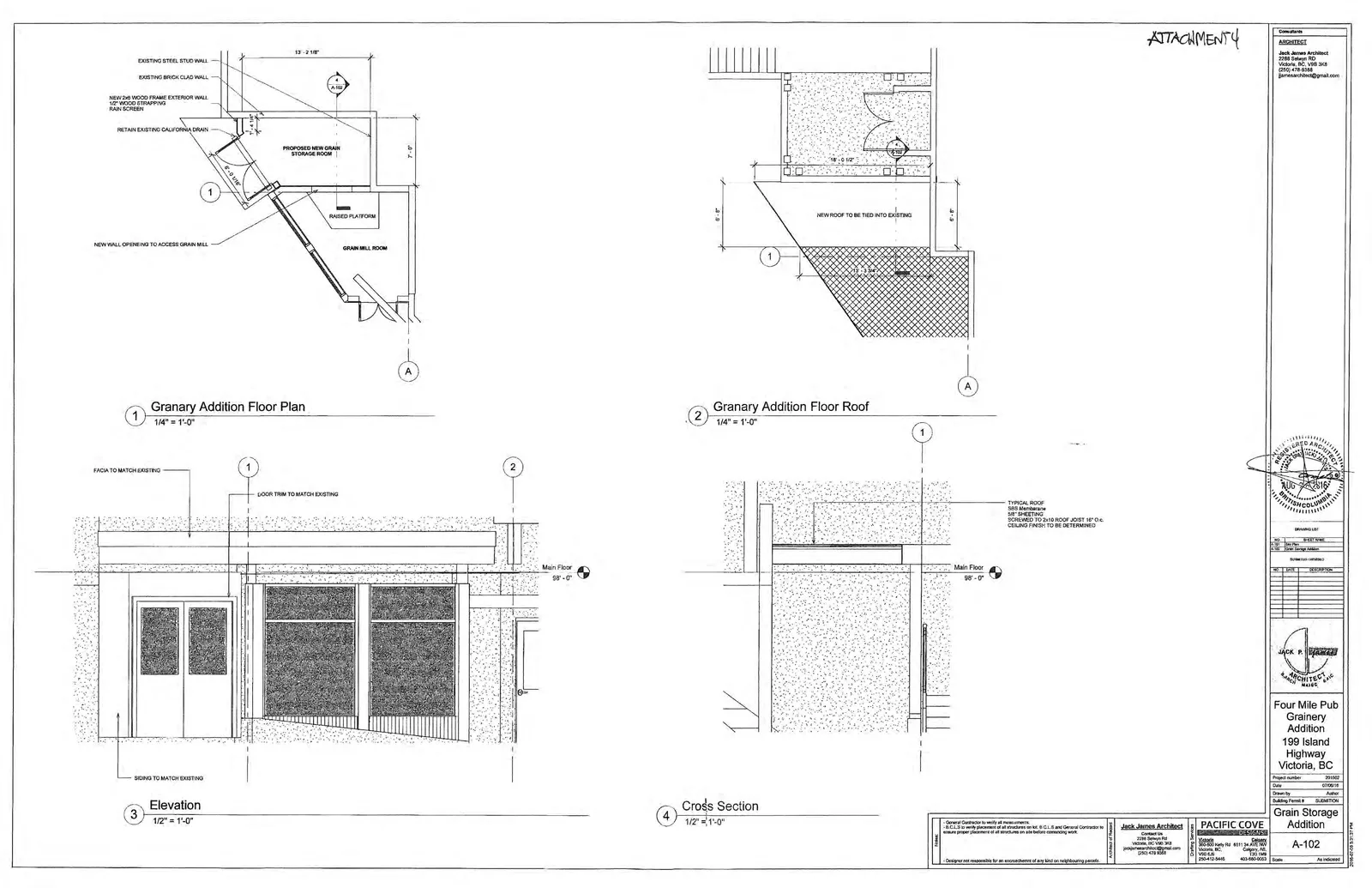

Attachment 4. Plan A102 - Granary Storage Addition

Four Mile Pub Grainery Addition

199 Island Highway Victoria, BC

1. Granary Addition Floor Plan

Scale: 1/4" = 1'-0"

• EXISTING STEEL STUD WALL
• EXISTING BRICK CLAD WALL
• NEW 2x6 WOOD FRAME EXTERIOR WALL 1/2" WOOD STRAPPING RAIN SCREEN
• RETAIN EXISTING CALIFORNIA DRAIN
• PROPOSED NEW GRAIN STORAGE ROOM
• RAISED PLATFORM
• GRAIN MILL ROOM
• NEW WALL OPENING TO ACCESS GRAIN MILL

2. Granary Addition Floor Roof

Scale: 1/4" = 1'-0"

• NEW ROOF TO BE TIED INTO EXISTING

3. Elevation

Scale: 1/2" = 1'-0"

• FACIA TO MATCH EXISTING
• DOOR TRIM TO MATCH EXISTING
• SIDING TO MATCH EXISTING
• Main Floor 98' - 0"

4. Cross Section

Scale: 1/2" = 1'-0"

• TYPICAL ROOF:
  • SBS Membrane
  • 5/8" SHEETING
  • SCREWED TO 2x10 ROOF JOIST 16" O.C.
  • CEILING FINISH TO BE DETERMINED
• Main Floor 98' - 0"

Project Information

Architect: Jack James Architect 2288 Salsbury RD Victoria, BC, V9B 3X8 (250) 478-9388 jackjamesarchitect@gmail.com

Consulting Services: PACIFIC COVE

• Victoria: 500-660 Kelly Rd, Victoria, BC V9B 6J8, (250) 412-5445
• Calgary: 6031 3rd AVE SW, Calgary, AB T3H 1X9, (403) 680-5053

Notes

• General Contractor to verify all measurements.
• B.C.L.S. to verify placement of all structures on lot. B.C.L.S. and General Contractor to assure proper placement of all structures on site before commencing work.
• Designer not responsible for an encroachment of any kind on neighbouring parcels.

ATTACHMENT 4
