Project: Freestanding Monument Sign with EMC
November 1, 2016Page 351 section

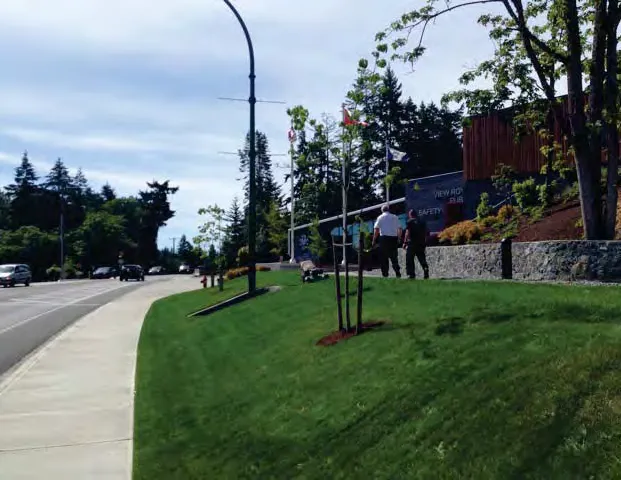

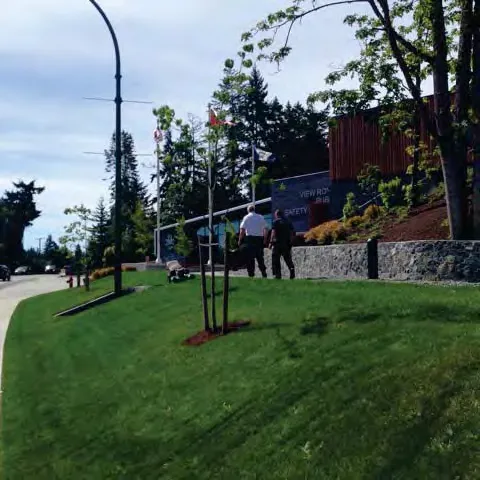

Technical rendering and measurements for the proposed Public Safety Building monument sign.
July 5, 2016Houston Sign
PROJECT: Freestanding Monument Sign with EMC
CLIENT: View Royal Fire Rescue
Sign Description
DOUBLE SIDED FREE STANDING SIGN with RGB OPTEC EMC TOPPER IS FORMED SILVER ALUPANEL HOUSING FOR WHITE LED LIGHTS TO CREATE EXTERIOR GLOW LIGHTING ONTO DIMENSIONAL BRUSHED SILVER LETTERS MOUNTED TO CEDAR PANELLED CABINET COMPLETE WITH BRICK BASE
Signage Content
- Dimensional Letters: VIEW ROYAL FIRE & RESCUE
- Electronic Message Center (EMC): PRACTICE FIRE SAFETY -ALWAYS WATCH- WHAT YOU HEAT.
Dimensions
| Feature | Metric | Imperial |
|---|---|---|
| Total Height | 2821 mm | 9' 3" |
| Sign Cabinet Height | 2708 mm | 8' 10 1/2" |
| Topper Section Height | 508 mm | 1' 8" |
| EMC Section Height | 914 mm | 3' 0" |
| Base Section Height | 1524 mm | 5' 0" |
| Sign Overall Width | 2642 mm | 8' 8" |
| Cabinet Width | 2438 mm | 8' 0" |
| Base Width | - | 7' 6" |
| Side Profile Depth (Overall) | 711 mm | 2' 4" |
| Side Profile Depth (Inner) | 559 mm | 1' 10" |
| EMC Visual Area | - | 2' 6" |
Base Material
Project Information
- Job File: VIEW ROYAL PUBLIC SAFETY BLDG Monument Sign & EMC 070516.cdr
- Date: July 5, 2016
- Revision: 2
- Scale: 1:20
- Sales: Dan Houston
- Designer: Claudette Campbell
- Production Method: CorelDRAW X6
- Address: 502 William St., Victoria, BC V9A 3Y9
- Website: www.houstonsign.ca
