SITE PLAN (Attachment 3 DP1.0)

SITE PLAN - Eagle Creek Village Phase 2

SHEET NOTES

A. ALL SITE INFORMATION TAKEN FROM INFORMATION PROVIDED BY MCELHANNEY ASSOCIATES LAND SURVEYING LTD. GENERAL CONTRACTOR TO CONSULT WITH CIVIL ENGINEER PRIOR TO ESTABLISHING PROPERTY LINE, DATUM AND BUILDING LOCATION. B. GENERAL CONTRACTOR TO COORDINATE ALL UTILITY LINE CONNECTIONS WITH TOWN OF VIEW ROYAL. C. REFER TO LANDSCAPE ARCHITECT'S DRAWINGS AND SPECS FOR ALL LANDSCAPING, SITE GRADING, SITE DRAINAGE AND STORM WATER MANAGEMENT. D. BUILDING OUTLINE REPRESENTS EDGE OF SLAB MAIN LEVEL. ALL DIMENSIONS SHOWN ARE TO GRID LINES. E. REFER TO CIVIL ENGINEER'S DRAWINGS AND SPECS. FOR ALL CURB WORKS, ROADWORK, RETAINING WALLS & DRAINAGE. F. REFER TO ELECTRICAL DRAWINGS FOR ALL UTILITY CONNECTIONS. G. GENERAL CONTRACTOR TO PATCH AND MAKE GOOD ALL LANDSCAPING, WALKWAYS, AND ROADWAYS DAMAGED DURING CONSTRUCTION. H. THIS PLAN IS ISSUED FOR THE PURPOSE OF POSITIONING THE BUILDING IN RELATION TO THE SITE. REFER TO ENGINEER'S AND LANDSCAPE ARCHITECT'S DRAWINGS FOR ALL OTHER SITE INFORMATION. I. UNLESS OTHERWISE NOTED ALL DIMENSIONS TO THE PROPERTY LINE ARE PERPENDICULAR TO THE PROPERTY LINE. J. REFER TO FIRE CHIEF FOR FIRE TRUCK ACCESS. K. BARRIER-FREE ACCESS, CURB CUTS AND RAMPS TO CONFORM TO BC BUILDING CODE. L. CROSSWALK AND PARKING/SPACING SYMBOLS TO BE PAINTED. REFER TO LANDSCAPE ARCHITECT'S DRAWINGS.

LEGEND

• PROPOSED NEW BUILDING FOOTPRINT
• SIDE WALK & CONC. CURB
• ASPHALT
• LANDSCAPED WHEEL STOP

KEYNOTE LEGEND

1. TRENCH DRAIN 2A. STACKED BOULDERS, FACETED SHOTCRETE WALL OR EXPOSED NATURAL ROCK, HIGHER THAN 1.2m 2B. FACETED SHOTCRETE WALL OR EXPOSED NATURAL ROCK, HIGHER THAN 1.2m 2C. ALLAN BLOCK RETAINING WALLS, HIGHER THAN 1.2m
2. ROOF OVERHANG / CANOPY ABOVE
3. FIRE HYDRANT - SEE CIVIL ENGINEERING DRAWINGS
4. MAN HOLE - SEE CIVIL ENGINEERING DRAWINGS
5. ROLL CURB
6. PAD-MOUNTED TRANSFORMER
7. ENTRY SIGN
8. TELUS / SHAW SERVICE POINT
9. CATCH BASIN - SEE CIVIL ENGINEERING DRAWINGS
10. BICYCLE RACKS (6 SPACES)
11. DIRECTIONAL SIGNAGE FOR PATHWAY TO PARK

REVISIONS

DRAWING INFORMATION

• Project Name: Eagle Creek Village Phase 2
• Drawing Title: SITE PLAN
• Drawing Number: DP1.0
• Project Number: 11 14 032
• Date: 02 SEP 2016
• Drawn By: KN
• Checked By: IM
• Scale: 1:200
• Status: NOT FOR CONSTRUCTION

SITE PLAN DETAILS

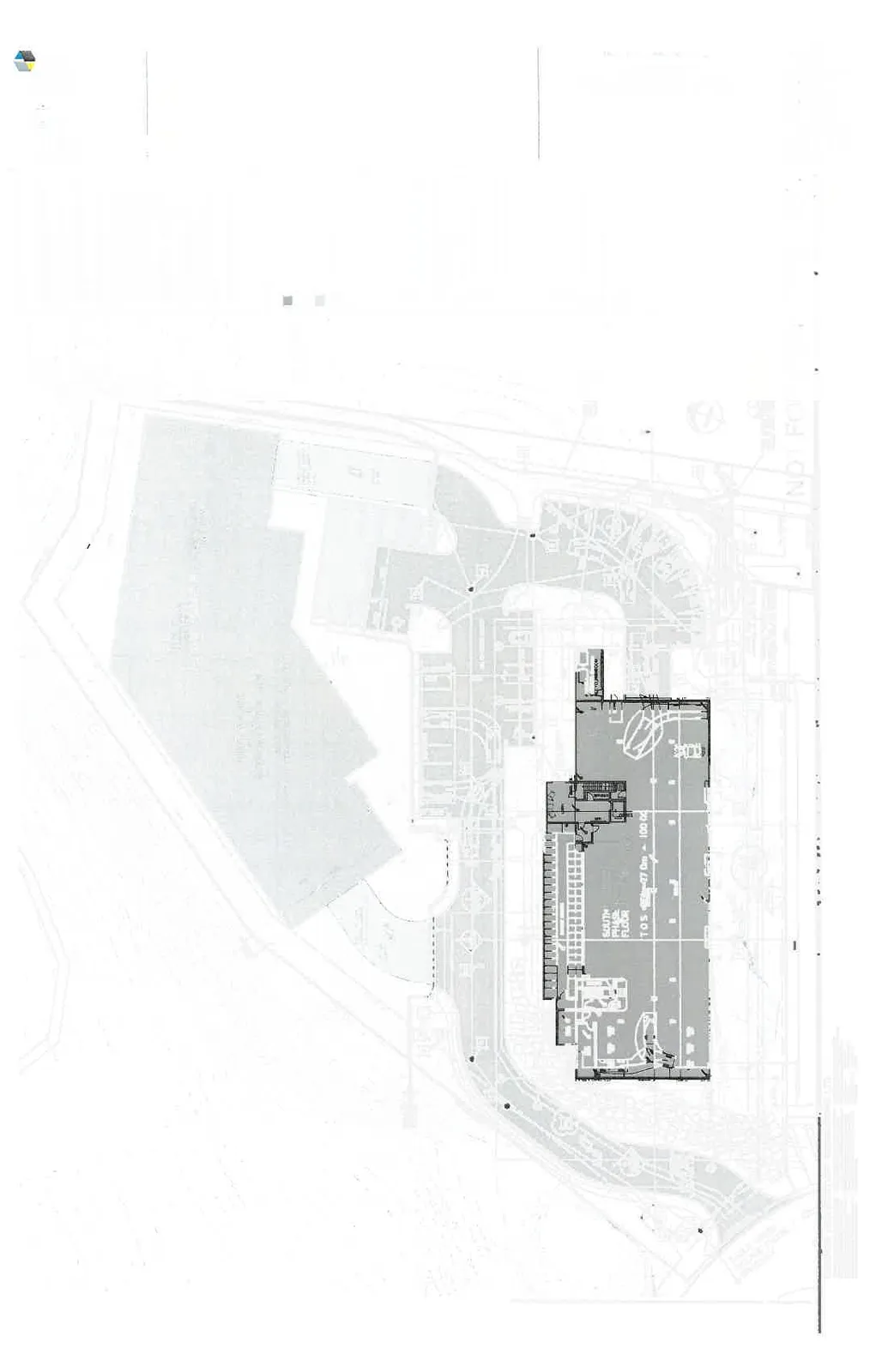

The primary building shown on the plan is labeled as follows: SOUTH BUILDING PHASE A FLOOR AREA 1209 SQ.M. T.O.S. EL. = 27.0m = 100.00

Other site annotations include:

• FUTURE PHASE B
• PARK ACCESS PATHWAY PART OF EAGLE CREEK VILLAGE PHASE 1 SCOPE
• 4m SETBACK
• PROPERTY LINE
• 30 AT-GRADE STALLS
• PHASE B / PHASE A boundary line
