LUMINAIRE DETAILS (Attachment 20 EDP1.1)
October 18, 2016Page 951 section
Visual specs for the lighting fixtures to be used on the site.

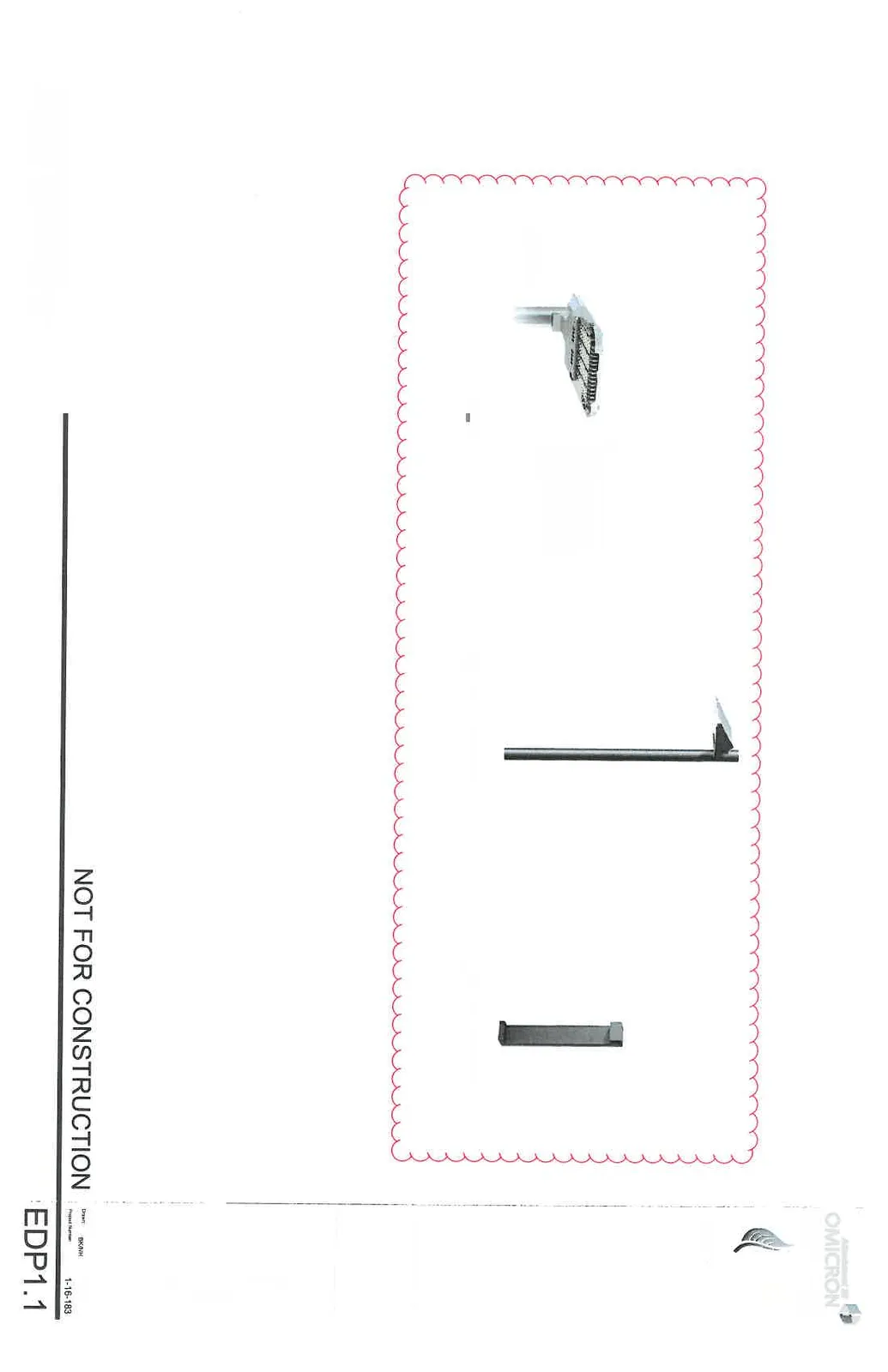

Drawing Number: EDP1.1Shows Type 'LA', 'LB', and 'LC' luminaires
Eagle Creek Village Phase 2
Town of View Royal, British Columbia
Drawing Number: EDP1.1 Details: Luminaire Details Project Number: 1-16-183 Drawn By: SK/NH Checked By: RTD
Issue History
| Δ | Date | Remarks |
|---|---|---|
| 2 | Jul 18, 2016 | Issued for DP |
| 1 | Sept 27, 2016 | Re-issued for DP |
Notes
- POLE BASE BACK-FILL TO CONFORM TO MMCD SPECIFICATIONS, LATEST EDITION.
- ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE NOTED.
- CONFIRM BOLT CIRCLE RADIUS REQUIREMENTS WITH POLE MANUFACTURER PRIOR TO INSTALLATION OF CONCRETE BASES.
- CONCRETE POLE BASE TO MEET MMCD STANDARDS. TYPE 'C' CONCRETE POLE BASE SUITABLE FOR SERVICE BASE, MANAIMO PRECAST LTD, FRASER PRECAST LTD, OR APPROVED EQUAL. ANY CAST IN PLACE POLE BASES MUST BE REVIEWED AND SIGNED OFF BY A BC REGISTERED STRUCTURAL ENGINEER PRIOR TO AND AFTER POURING OF CONCRETE. ALL ASSOCIATED COST FOR THE SERVICES OF A STRUCTURAL ENGINEER ARE THE RESPONSIBILITY OF THE CONTRACTOR.
Luminaire Specifications
1 TYPE 'LA' LUMINAIRE DETAIL
- Reference: E2.0
- Scale: NOT TO SCALE
- Fixture Notes: WEST COAST ENGINEERING NATURAL ALUMINUM POWDER COAT FINISH - SEE MOUNT
2 TYPE 'LB' LUMINAIRE DETAIL
- Reference: E2.0
- Scale: NOT TO SCALE
3 TYPE 'LC' LUMINAIRE DETAIL
- Reference: E2.0
- Scale: NOT TO SCALE
