Appendix
Current Development Permit Drawings
July 19, 2016Pages 34–363 sections
Architectural and landscape drawings from the previously approved development permit DP 2014/02.
April 15, 2014 approvalDP 2014/02

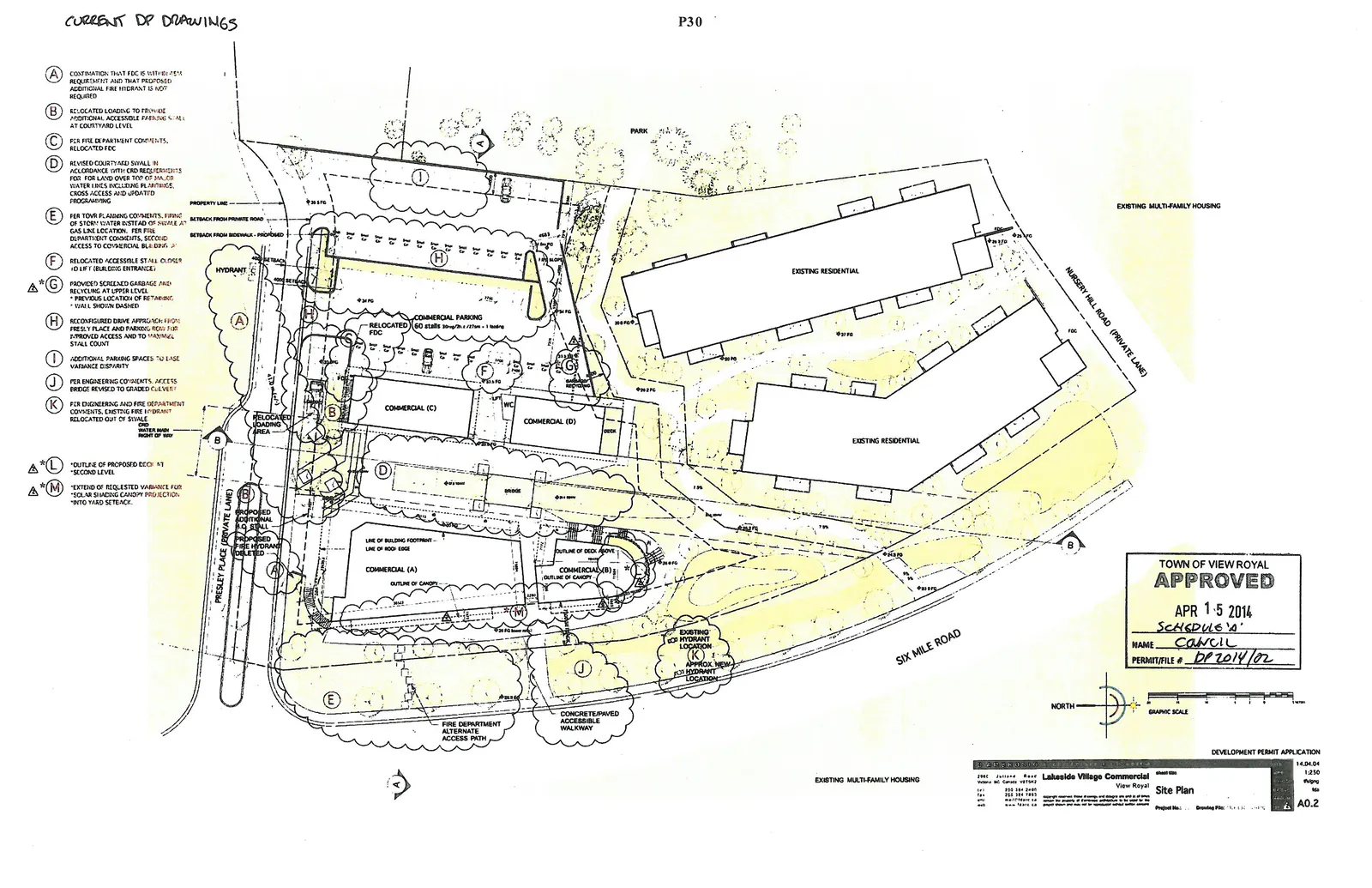

Lakeside Village Commercial Site Plan
Site Plan Notes
- A: CONTINUATION THAT FDC IS WITHIN 45M REQUIREMENT AND THAT PROPOSED ADDITIONAL FIRE HYDRANT IS NOT REQUIRED.
- B: RELOCATED LOADING TO PROVIDE ADDITIONAL ACCESSIBLE PARKING STALL AT COURTYARD LEVEL.
- C: PER FIRE DEPARTMENT COMMENTS, RELOCATED FDC.
- D: REVISED COURTYARD SWALE IN ACCORDANCE WITH CRD REQUIREMENTS FOR LAND OVER TOP OF MAJOR WATER LINES INCLUDING RE-PLANTING, CROSS ACCESS AND UPDATED PROGRAMMING.
- E: PER TOWN PLANNING COMMENTS, FIRING OF STORM WATER INSTEAD OF SWALE AT GAS LINE LOCATION. PER FIRE DEPARTMENT COMMENTS, SECOND ACCESS TO COMMERCIAL BUILDING.
- F: RELOCATED ACCESSIBLE STALL CLOSER TO LIFT (BUILDING ENTRANCE).
- G: PROVIDED SCREENED GARBAGE AND RECYCLING AT UPPER LEVEL. *PREVIOUS LOCATION OF RETAINING WALL SHOWN DASHED.
- H: RECONFIGURED DRIVE APPROACH FROM PRESLEY PLACE AND PARKING ROW FOR IMPROVED ACCESS AND TO MAXIMIZE STALL COUNT.
- I: ADDITIONAL PARKING SPACES TO EASE VARIANCE DISPARITY.
- J: PER ENGINEERING COMMENTS, ACCESS BRIDGE REVISED TO SHARED CULVERT.
- K: PER ENGINEERING AND FIRE DEPARTMENT COMMENTS, EXISTING FIRE HYDRANT RELOCATED OUT OF SWALE.
- L: *OUTLINE OF PROPOSED DECK AT SECOND LEVEL.
- M: *EXTEND OF REQUESTED VARIANCE FOR SOLAR SHADING CANOPY PROJECTION INTO YARD SETBACK.
Page 34–36

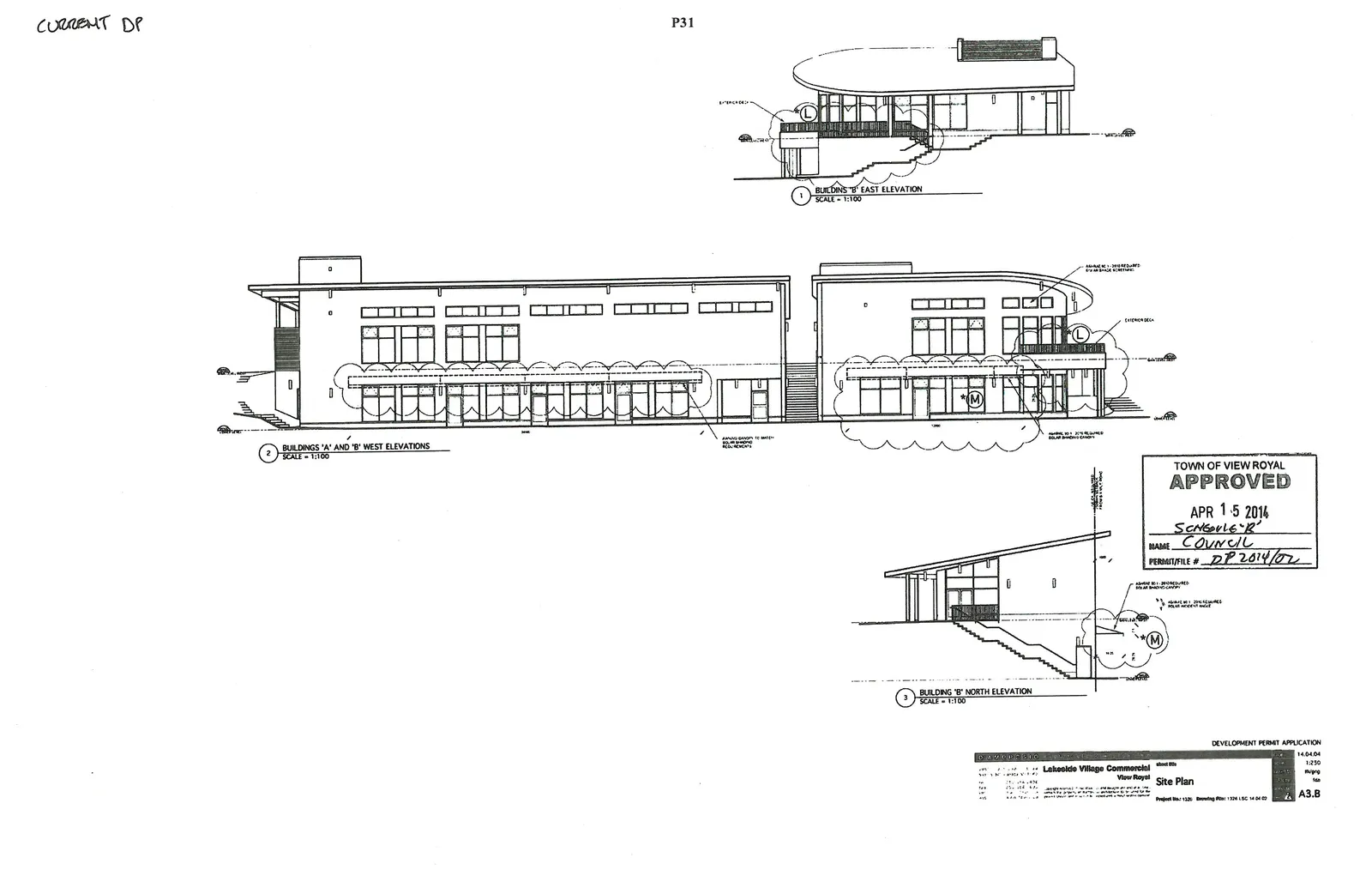

Building Elevations
- BUILDING 'B' EAST ELEVATION (Scale 1:100)
- BUILDINGS 'A' AND 'B' WEST ELEVATIONS (Scale 1:100)
- BUILDING 'B' NORTH ELEVATION (Scale 1:100)
Page 34–36

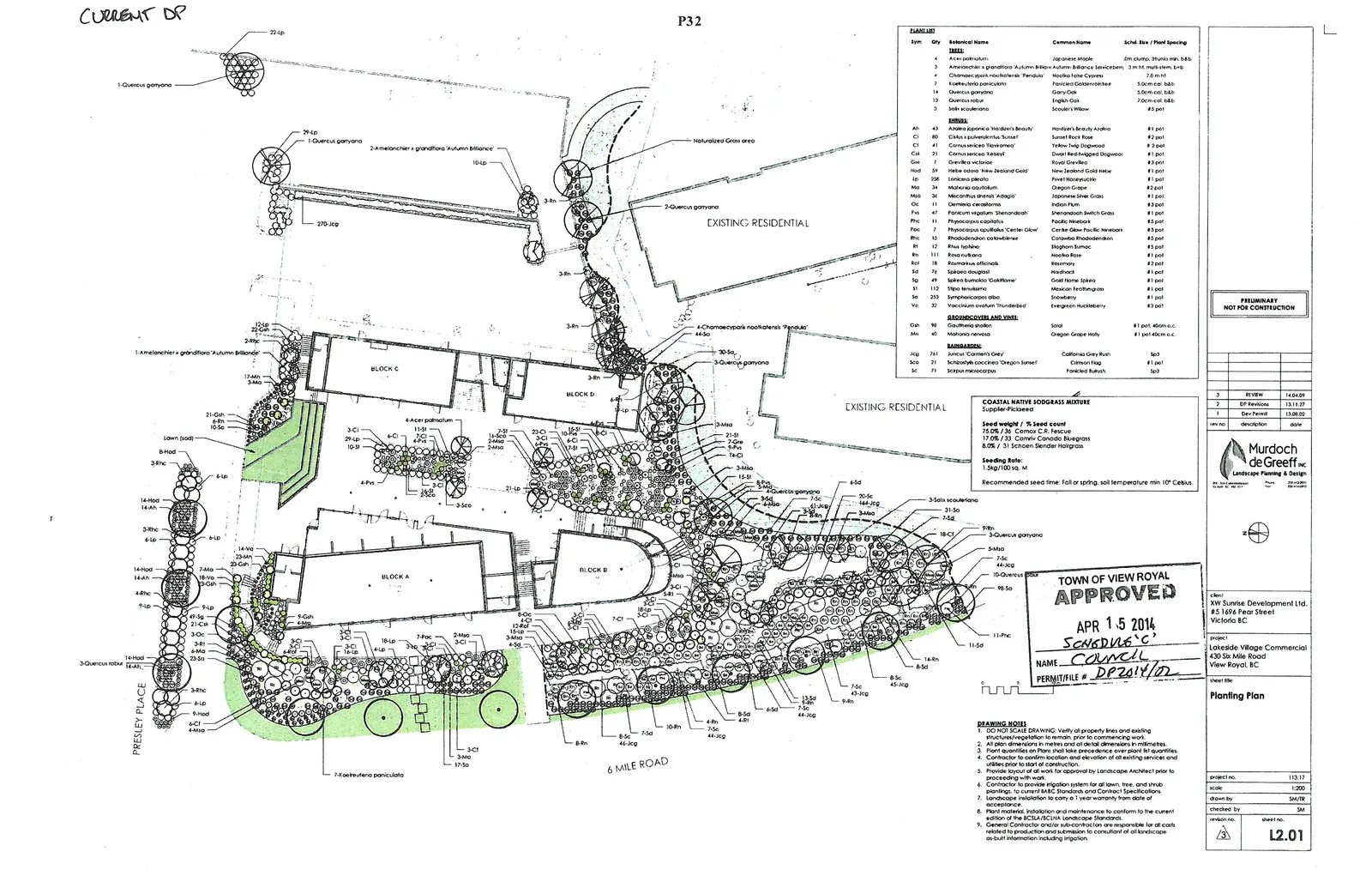

Planting Plan
Plant List
| Sym | Qty | Botanical Name | Common Name | Size / Plant Spacing |
|---|---|---|---|---|
| TREES | ||||
| Ap | 4 | Acer palmatum | Japanese Maple | 2m clump, 3hunks min, b&b |
| Ag | 3 | Amelanchier x grandiflora 'Autumn Brilliance' | Autumn Brilliance Serviceberry | 2m ht. multi-stem, b&b |
| Cnp | 4 | Chamaecyparis nootkatensis 'Pendula' | Weeping Nootka Cypress | 2.0 m ht. |
| Kp | 7 | Koelreuteria paniculata | Panicled Goldenraintree | 5.0cm cal. b&b |
| Qg | 14 | Quercus garryana | Garry Oak | 3.0cm cal. b&b |
| Qr | 13 | Quercus robur | English Oak | 7.0cm cal. b&b |
| Ss | 3 | Salix scouleriana | Scouler's Willow | #5 pot |
| SHRUBS | ||||
| Ah | 43 | Azalea japonica 'Hino-Crimson' | Hinodegiri Beauty Azalea | #1 pot |
| Cp | 80 | Cistus x pulverulentus 'Sunset' | Sunset Rock Rose | #2 pot |
| Cs | 41 | Cornus sericea 'Flaviramea' | Yellow Twig Dogwood | #2 pot |
| Csd | 21 | Cornus stolonifera 'Kelsey's Dwarf' | Dwarf Red-osier Dogwood | #2 pot |
| Gv | 7 | Grevillea victoriae | Royal Grevillea | #2 pot |
| Ho | 59 | Hebe ochracea 'James Stirling' | James Stirling Hebe | #1 pot |
| Lp | 258 | Lonicera pileata | Privet Honeysuckle | #1 pot |
| Ma | 34 | Mahonia aquifolium | Tall Oregon Grape | #1 pot |
| Msa | 36 | Miscanthus sinensis 'Adagio' | Japanese Silver Grass | #1 pot |
| Pt | 253 | Pachysandra terminalis | Japanese Spurge | 10cm pot |
| Pvs | 47 | Panicum virgatum 'Shenandoah' | Shenandoah Switch Grass | #1 pot |
| Pc | 11 | Physocarpus capitatus | Pacific Ninebark | #2 pot |
| Poc | 7 | Physocarpus opulifolius 'Center Glow' | Center Glow Pacific Ninebark | #3 pot |
| Rhc | 15 | Rhododendron catawbiense | Catawba Rhododendron | #5 pot |
| Rn | 151 | Rosa nutkana | Nootka Rose | #1 pot |
| Rr | 111 | Rosa rugosa | Nootka Rose | #5 pot |
| Sd | 18 | Spiraea douglasii | Hardhack | #1 pot |
| Sic | 76 | Stephanandra incisa 'Crispa' | Cutleaf Stephanandra | #1 pot |
| St | 112 | Stipa tenuissima | Mexican Feathergrass | #1 pot |
| Sa | 253 | Symphoricarpos albus | Snowberry | #1 pot |
| Vo | 32 | Vaccinium ovatum 'Thunderbird' | Evergreen Huckleberry | #1 pot |
| GROUNDCOVERS AND VINES | ||||
| Gsh | 98 | Gaultheria shallon | Salal | #1 pot, 45cm o.c. |
| Mn | 40 | Mahonia nervosa | Oregon Grape Holly | #1 pot 45cm o.c. |
| RAINGARDEN | ||||
| Jcg | 761 | Juncus patens 'Carmen's Grey' | California Grey Rush | 5p3 |
| Sco | 21 | Schizachyrium scoparium 'The Blues' | Crimson Hay | #1 pot |
| Sc | 71 | Scirpus microcarpus | Panicled Bulrush | 5p3 |
Coastal Native Sodgrass Mixture
Supplier: Pickseed
Seed weight / % seed count
- 75.0% / 36 Comox C.R. Fescue
- 17.0% / 33 Conviv Canada Bluegrass
- 8.0% / 31 Schoen Slender Hairgrass
Seeding Rate: 1.5kg/100 sq. m
Recommended seed time: fall or spring, soil temperature min 10° Celsius.
Drawing Notes
- DO NOT SCALE DRAWING. Verify all property lines and existing structures/vegetation to remain, prior to commencing work.
- All plan dimensions in metres and all detail dimensions in millimetres.
- Plant quantities on Plans shall take precedence over plant list quantities.
- Contractor to confirm location and elevation of all existing services and utilities prior to start of construction.
- Provide layout of all work for approval by Landscape Architect prior to proceeding with work.
- Contractor to provide irrigation system for all lawn, tree, and shrub plantings, to current BCLA Standards and Contract Specifications. Landscape installation to carry a 1 year warranty from date of acceptance.
- All plant material, installation and maintenance to conform to the current edition of the BCSLA/BCLNA Landscape Standards.
- General Contractor and/or subcontractors are responsible for all costs related to production and submission to consultant of all landscape as-built information including irrigation.
Page 34–36
