Engineering Site Servicing - Scope Definition Plan
July 19, 2016Page 482 sections

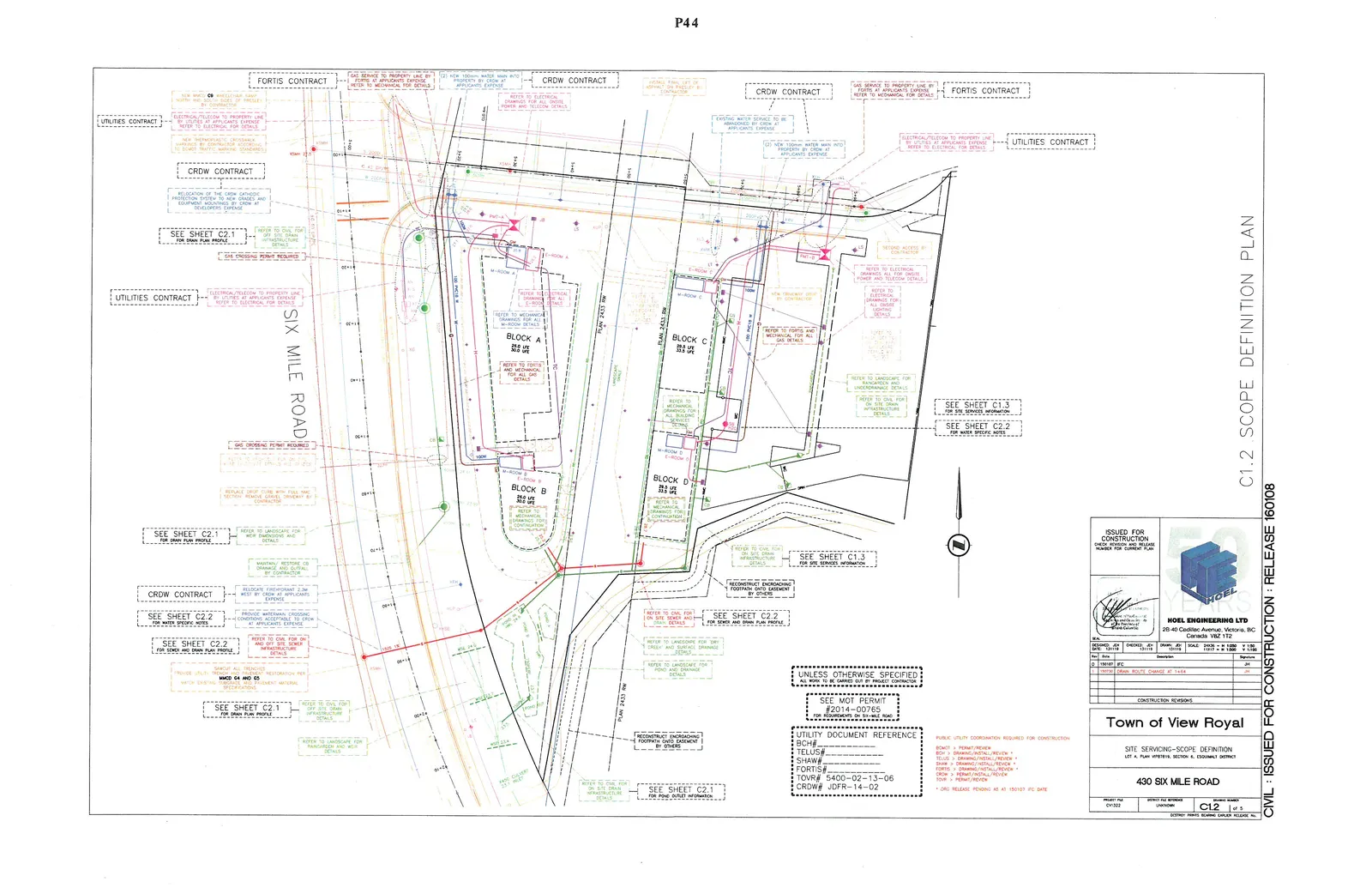

Engineering drawing defining the scope of off-site civil infrastructure works.
Hoel Engineering Ltd.430 Six Mile Road
Page 48
Town of View Royal
Site Servicing - Scope Definition
Lot A, Plan VIP87819, Section 6, Esquimalt District 430 Six Mile Road
Project Details
- Project No: CV322
- Date: 12/01/15
- Scale: 1:250 @ A1 (1:500 @ A3)
- Drawing No: C1.2 (Sheet 1 of 5)
Construction Revisions
| No. | Date | Description | By |
|---|---|---|---|
| 0 | 15/01/07 | IFC | JH |
| 1 | 15/01/12 | DRAIN ROUTE CHANGE AT 1+84 | JH |
Utility Document Reference
| Utility | Document Reference |
|---|---|
| BC H# | |
| TELUS# | |
| SHAW# | |
| FORTIS# | |
| TOVR# | 5400-02-13-06 |
| CRD# | JDFR-14-02 |
Public Utility Coordination Required for Construction
- BC H# > PERMIT/REVIEW
- BCH > DRAWING/INSTALL/REVIEW *
- TELUS > DRAWING/INSTALL/REVIEW *
- SHAW > DRAWING/INSTALL/REVIEW *
- FORTIS > DRAWING/INSTALL/REVIEW *
- CRD# > PERMIT/INSTALL/REVIEW
- TOVR > PERMIT/REVIEW
- CRD RELEASE PENDING AT 15/01/07 IFC DATE
General Notes
- UNLESS OTHERWISE SPECIFIED ALL WORK TO BE CARRIED OUT AT PROJECT CONSTRUCTION.
- SEE MOT PERMIT #2014-00765 FOR REQUIREMENTS ON SIX MILE ROAD.
Plan Notes and Callouts
Utilities and Infrastructure
- Fortis Contract: GAS SERVICE TO PROPERTY LINE BY FORTIS AT APPLICANTS EXPENSE. REFER TO MECHANICAL FOR DETAILS.
- CRD Contract: (2) NEW 100mm WATER MAIN INTO PROPERTY BY CRD AT APPLICANTS EXPENSE.
- Utilities Contract: ELECTRICAL/TELECOM TO PROPERTY LINE BY UTILITIES AT APPLICANT'S EXPENSE. REFER TO ELECTRICAL FOR DETAILS.
- CRD Contract: RELOCATION OF THE CRD# CATHODIC PROTECTION SYSTEM TO NEW CABINET AND EQUIPMENT MOUNTING BASE AT DEVELOPERS EXPENSE.
- GAS CROSSING PERMIT REQUIRED.
- REFER TO CIVIL FOR OFF SITE DRAIN INFRASTRUCTURE DETAILS.
- REPLACE DROP CURB WITH FULL NMC SECTION AT NEW DRIVEWAY BY CONTRACTOR.
- RECONSTRUCT ENCROACHING FOOTPATH ONTO EASEMENT BY OTHERS.
Building Blocks
- Block A: 28.0 UFE, 30.0 UFE
- Block B: 28.0 UFE, 30.0 UFE
- Block C: 28.5 UFE, 33.5 UFE
- Block D: 28.5 UFE, 33.5 UFE
- REFER TO ELECTRICAL DRAWINGS FOR ALL IN-ROOM DETAILS.
- REFER TO FORTIS AND MECHANICAL FOR GAS DETAILS.
Site References
- SEE SHEET C2.1 FOR DRAIN PLAN PROFILE.
- SEE SHEET C2.2 FOR WATER SPECIFIC NOTES.
- SEE SHEET C1.3 FOR SITE SERVICE INFORMATION.
- REFER TO LANDSCAPE FOR NMC DIMENSIONS AND DETAILS.
- REFER TO LANDSCAPE FOR DRY CREEK AND SURFACE DRAINAGE DETAILS.
- REFER TO LANDSCAPE FOR RAINGARDEN AND WEIR DETAILS.
