Engineering On Site Services Information
July 19, 2016Page 491 section

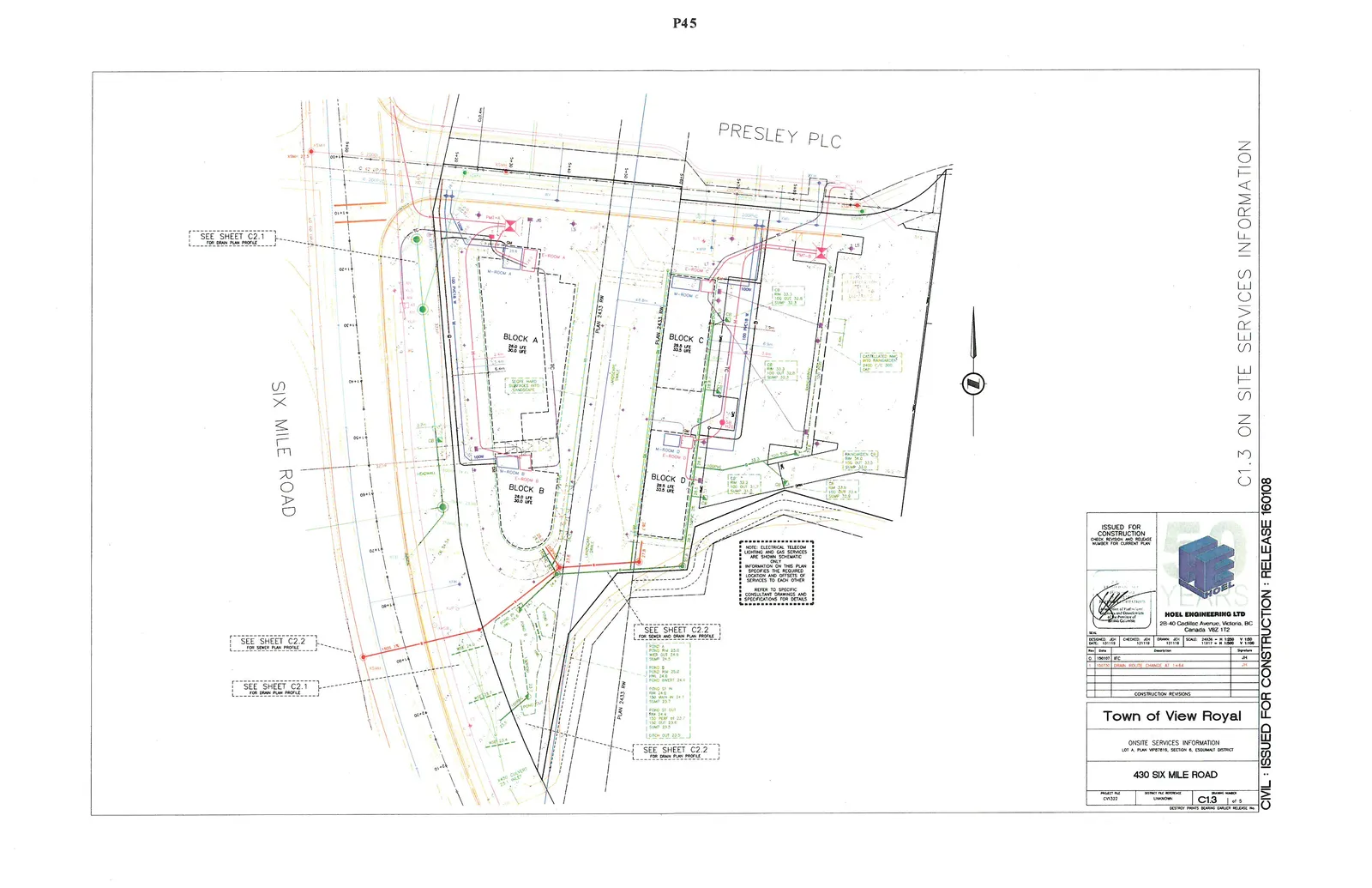

Technical drawing showing detailed layouts for water and gas connections on site.
Hoel Engineering Ltd.
Onsite Services Information
Town of View Royal Lot A, Plan VIP87815, Section 8, Esquimalt District 430 Six Mile Road
Project Details
| Field | Value |
|---|---|
| Project File | CV1322 |
| Drawing Number | C13 of 5 |
| Designed / Checked | JCH |
| Drawn | JDJ |
| Scale | Horiz: 1:250, Vert: 1:100 |
| Date | 12/11/19 |
Construction Revisions
| Rev. No. | Date | Description | Signature |
|---|---|---|---|
| 0 | 15/01/21 | IFC | JH |
| 1 | 13/01/21 | DRAIN ROUTE CHANGE AT 1+64 | JH |
Site Plan Components
The plan identifies four primary building blocks and their Finished Floor Elevations (FFE):
- Block A: 28.0 UFE, 30.0 UFE
- Block B: 28.0 UFE, 30.0 UFE
- Block C: 28.5 UFE, 33.5 UFE
- Block D: 28.5 UFE, 33.5 UFE
Surrounding Streets:
- Six Mile Road
- Presley PLC
Technical Notes
- Note: Electrical, telecom, lighting, and gas services are shown schematic only. Information on this plan specifies the required location and size/type of services to each other. Refer to specific consultant drawings and specifications for details.
- Storm and Sewer Data: Detailed invert (INV), foundation (FOND), and sump elevations are provided for various catch basins (CB) and manholes across the site.
- Raingarden CB Data:
- RIM: 34.3
- 100 INV: 33.5
- SUMP: 32.8
Drawing References
- See Sheet C2.1 for Drain Plan Profile
- See Sheet C2.2 for Sewer Plan Profile
- See Sheet C2.2 for Sewer and Drain Plan Profile
