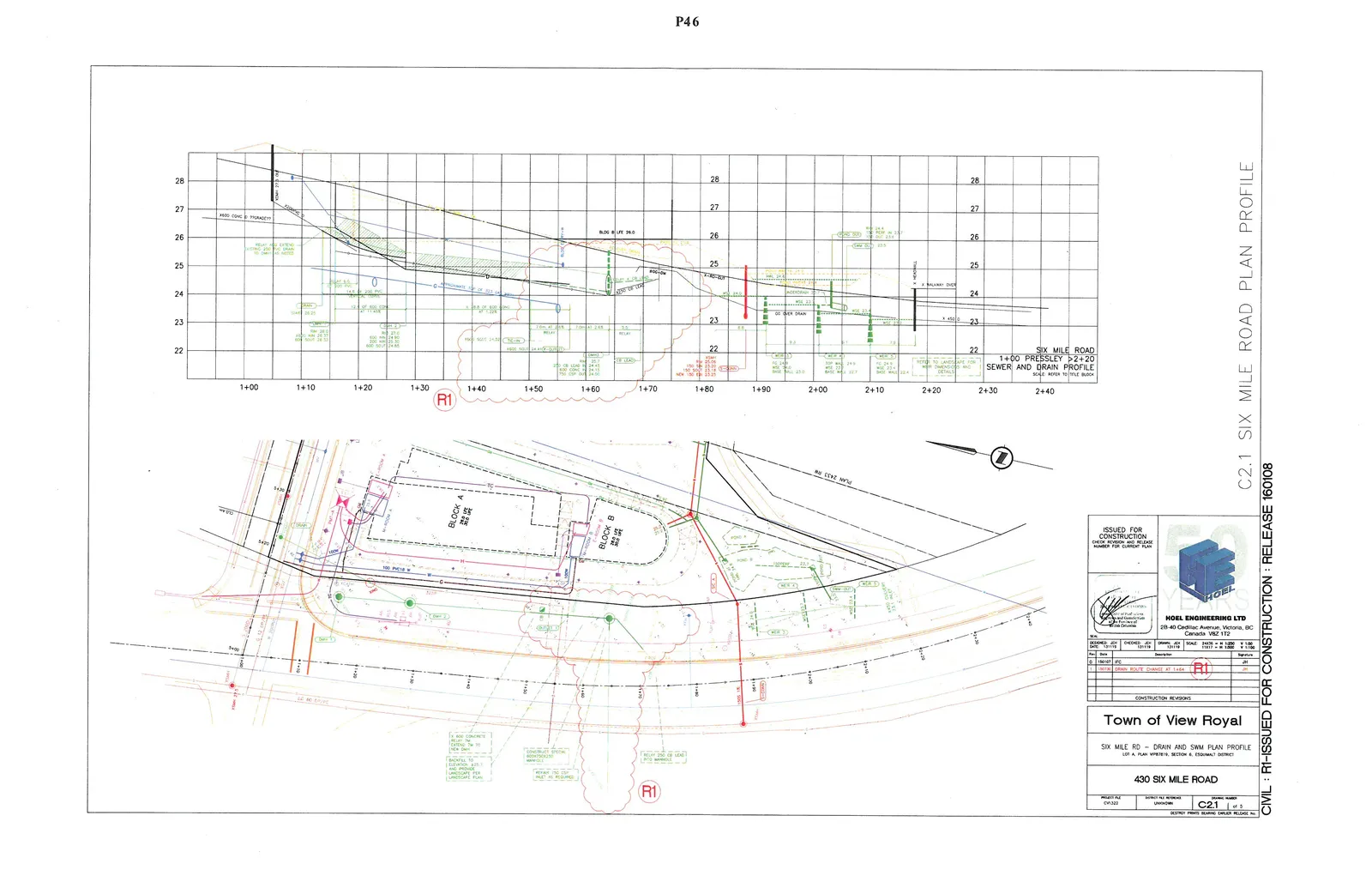

Six Mile Road Plan Profile - Sewer and Drain

SIX MILE ROAD PLAN PROFILE

Profile View

The profile section spans from station 1+00 to 2+40 with elevations ranging from 22.0 to 28.0 meters. Key features and annotations include:

• Station 1+00 to 1+40: 600 CONC D. (DRAIN), 150 PVC DRAIN, 100 PVC W, and existing ground line.
• Station 1+40 to 1+60 (Revision R1): Indicates a drainage route change. Notes include "TIE-IN", "CB LEAD", and "CONSTRUCT SPECIAL 600x750x250 MANHOLE".
• Station 1+60 to 2+00: 250 PVC DRAIN, "RELAY 250 CB LEAD", and labels for "WEIR 3".
• Station 2+00 to 2+40: Structures including "WEIR 4", "WEIR 5", "POND OUT", "HEADWALL", and "WALKWAY OVER".
  • WEIR 3: T.O.W. 24.2, BASE 23.0
  • WEIR 4: T.O.W. 24.9, BASE 23.7
  • WEIR 5: T.O.W. 24.5, BASE 22.4
  • POND OUT: IE IN 23.7, IE OUT 23.4

Plan View

The plan view illustrates the layout of Six Mile Road, "BLOCK A", and "BLOCK B". Annotations include:

• Infrastructure: 100 PVC W, 150 PVC DRAIN, 600 CONC D, various catch basins (CB), and manholes.
• Revision 1 (R1): Located near Station 1+44, showing a modified drain route. Notes include:
  • "RELAY 7M - EXTEND TM TO NEW DMH"
  • "BACKFILL TO ELEVATION ±23.7 AND PROVIDE LANDSCAPE PER LANDSCAPE PLAN"
  • "CONSTRUCT SPECIAL 600x750x250 MANHOLE"
  • "RELAY 250 CB LEAD INTO MANHOLE"
  • "REPAIR 150 CB INLET AS REQUIRED"
• Landscape Features: "POND A" and designated weir locations (WEIR 3, WEIR 4, WEIR 5).

Revisions

Project Information

• Municipality: Town of View Royal
• Project: SIX MILE RD - DRAIN AND SWM PLAN PROFILE
• Location: LOT A, PLAN VIP87870, SECTION 8, ESQUIMALT DISTRICT
• Address: 430 SIX MILE ROAD
• Engineering Firm: HOEL ENGINEERING LTD, 28-40 Cadillac Avenue, Victoria, BC, Canada V8Z 1T2
• Designed: JDH
• Checked: JDH
• Drawn: JDH
• Date: 131119
• Scale: 1:250 H, 1:50 V
• Project No: CV-322
• Drawing Number: C21
• Sheet: 1 of 5
• Status: ISSUED FOR CONSTRUCTION: RELEASE 160108
