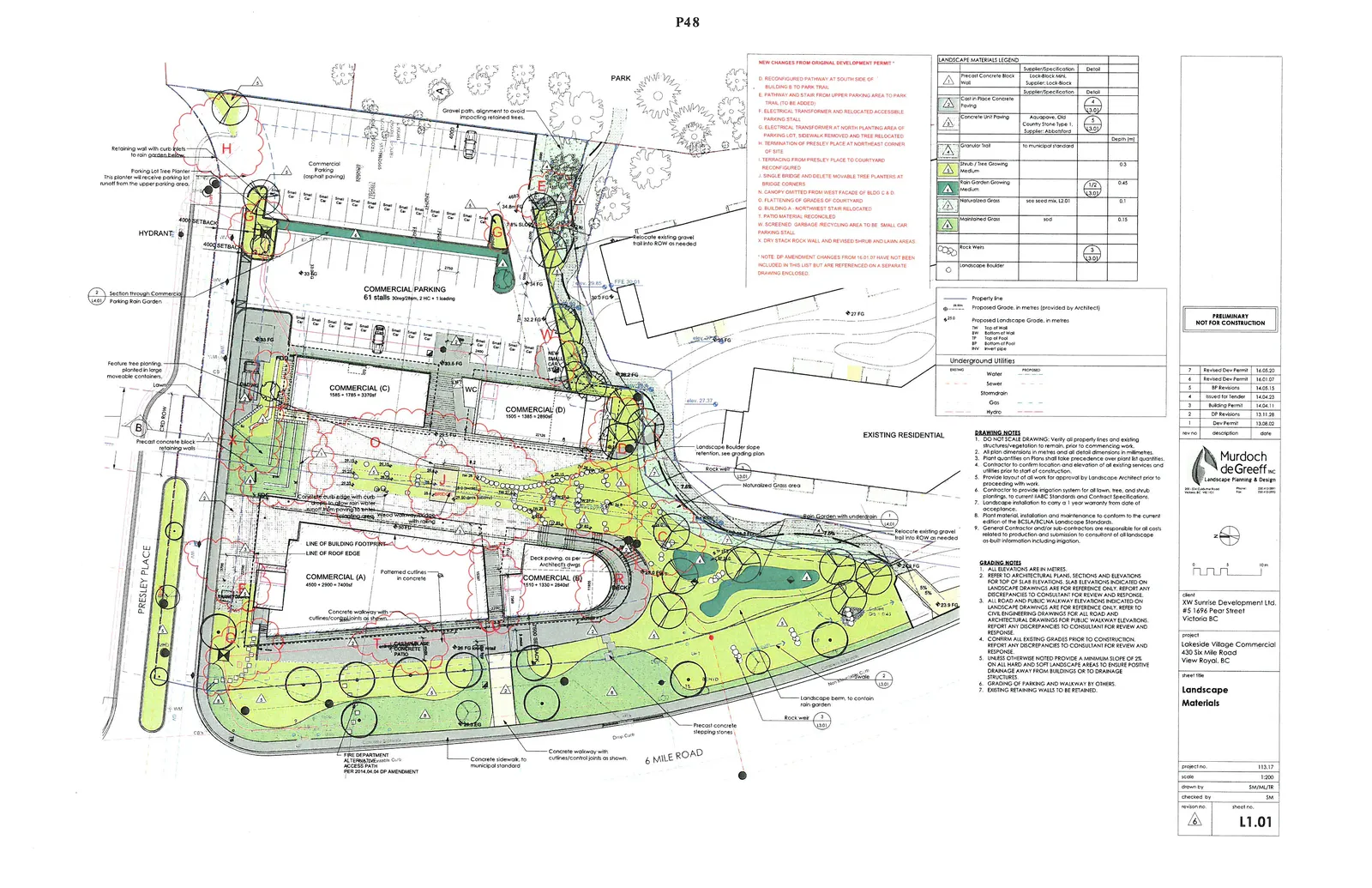

Landscape Materials Site Plan

P48

D. RECONFIGURED PATHWAY AT SOUTH SIDE OF BUILDING B TO PARK TRAIL
E. PATHWAY AND STAIR FROM UPPER PARKING AREA TO PARK TRAIL (TO BE ADDED)
F. ELECTRICAL TRANSFORMER AND RELOCATED ACCESSIBLE PARKING STALL
G. ELECTRICAL TRANSFORMER AT NORTH PLANTING AREA OF PARKING LOT, SIDEWALK REMOVED AND TREE RELOCATED
H. TERMINATION OF PRESLEY PLACE AT NORTHEAST CORNER OF SITE
I. TERRACING FROM PRESLEY PLACE TO COURTYARD RECONFIGURED
J. SINGLE BRIDGE AND DELETE MOVABLE TREE PLANTERS AT BRIDGE CORNERS
N. CANOPY OMITTED FROM WEST FACADE OF BLDG C & D
O. FLATTENING OF GRADES OF COURTYARD
Q. BUILDING H - NORTHWEST STAIR RELOCATED
T. PATIO MATERIAL RECONFIGURED
W. SCREENED GARBAGE RECYCLING AREA TO BE SMALL CAR PARKING STALL
X. DRY STACK ROCK WALL AND REVISED SHRUB AND LAWN AREAS
*NOTE: DP AMENDMENT CHANGES FROM 16.01.07 HAVE NOT BEEN INCLUDED IN THIS LIST BUT ARE REFERENCED ON A SEPARATE DRAWING ENCLOSED.

Symbol	Description	Supplier/Specification	Detail	Depth (m)
[Triangle Hatch]	Precast Concrete Block Wall	Supplier: Lock-Block; Lock-Block Mini	4/L3.01	-
[Stipple]	Cast in Place Concrete Paving	-	4/L3.01	-
[Square Hatch]	Concrete Unit Paving	Aquapave; Old Country Stone Type 1; Supplier: Abbotford	5/L3.01	-
[Fine Stipple]	Granular Trail	to municipal standard	-	-
[Dark Green Stipple]	Shrub / Tree Growing Medium	-	-	0.3
[Blue/Green Stipple]	Rain Garden Growing Medium	-	1/L3.01	0.45
[Grass Tufts]	Naturalized Grass	see seed mix L2.01	-	0.1
[Solid Green]	Maintained Grass	sod	-	0.15
[Circles]	Rock Walls	-	3/L3.01	-
[Open Circle]	Landscape Boulder	-	-	-

(Existing and Proposed lines for:)

DO NOT SCALE DRAWING. Verify all property lines and existing structures/vegetation to remain, prior to commencing work.
All plan dimensions in metres and all detail dimensions in millimetres.
Plant quantities on Plans shall take precedence over plant list quantities.
Contractor to confirm location and elevation of all existing services and utilities prior to start of construction.
Provide layout of all work for approval by Landscape Architect prior to proceeding with work.
Contractor to provide irrigation system for all lawn, tree, and shrub plantings, to current MMCD Standards and Contract Specifications.
Landscape installation to carry a 1 year warranty from date of acceptance.
Plant material, installation and maintenance to conform to the current edition of the BCLNA/BCSLA Landscape Standards.
General Contractor and/or sub-contractors are responsible for all costs related to production and submission to consultant of all landscape as-built information including irrigation.

ALL ELEVATIONS ARE IN METRES.
REFER TO ARCHITECTURAL PLANS, SECTIONS AND ELEVATIONS FOR TOP OF SLAB ELEVATIONS. SLAB ELEVATIONS INDICATED ON LANDSCAPE DRAWINGS ARE FOR REFERENCE ONLY. REPORT ANY DISCREPANCIES TO CONSULTANT FOR REVIEW AND RESPONSE.
ALL ROAD AND PUBLIC WALKWAY ELEVATIONS INDICATED ON LANDSCAPE DRAWINGS ARE FOR REFERENCE ONLY. REFER TO CIVIL ENGINEERING DRAWINGS FOR ALL ROAD AND ARCHITECTURAL DRAWINGS FOR PUBLIC WALKWAY ELEVATIONS. REPORT ANY DISCREPANCIES TO CONSULTANT FOR REVIEW AND RESPONSE.
CONFIRM ALL EXISTING GRADES PRIOR TO CONSTRUCTION. REPORT ANY DISCREPANCIES TO CONSULTANT FOR REVIEW AND RESPONSE.
UNLESS OTHERWISE NOTED PROVIDE A MINIMUM SLOPE OF 2% ON ALL HARD AND SOFT LANDSCAPE AREAS TO ENSURE POSITIVE DRAINAGE AWAY FROM BUILDINGS OR TO DRAINAGE STRUCTURES.
GRADING OF PARKING AND WALKWAY BY OTHERS.
EXISTING RETAINING WALLS TO BE RETAINED.

client XW Sunrise Development Ltd. #5 1496 Pear Street Victoria BC

project Lakeside Village Commercial 430 Six Mile Road View Royal, BC

sheet title Landscape Materials
