Electrical Development Permit Layout - Ground Level
July 19, 2016Page 851 section
Technical lighting and electrical plan for the parking and commercial areas.
RB Engineering Ltd.July 2016

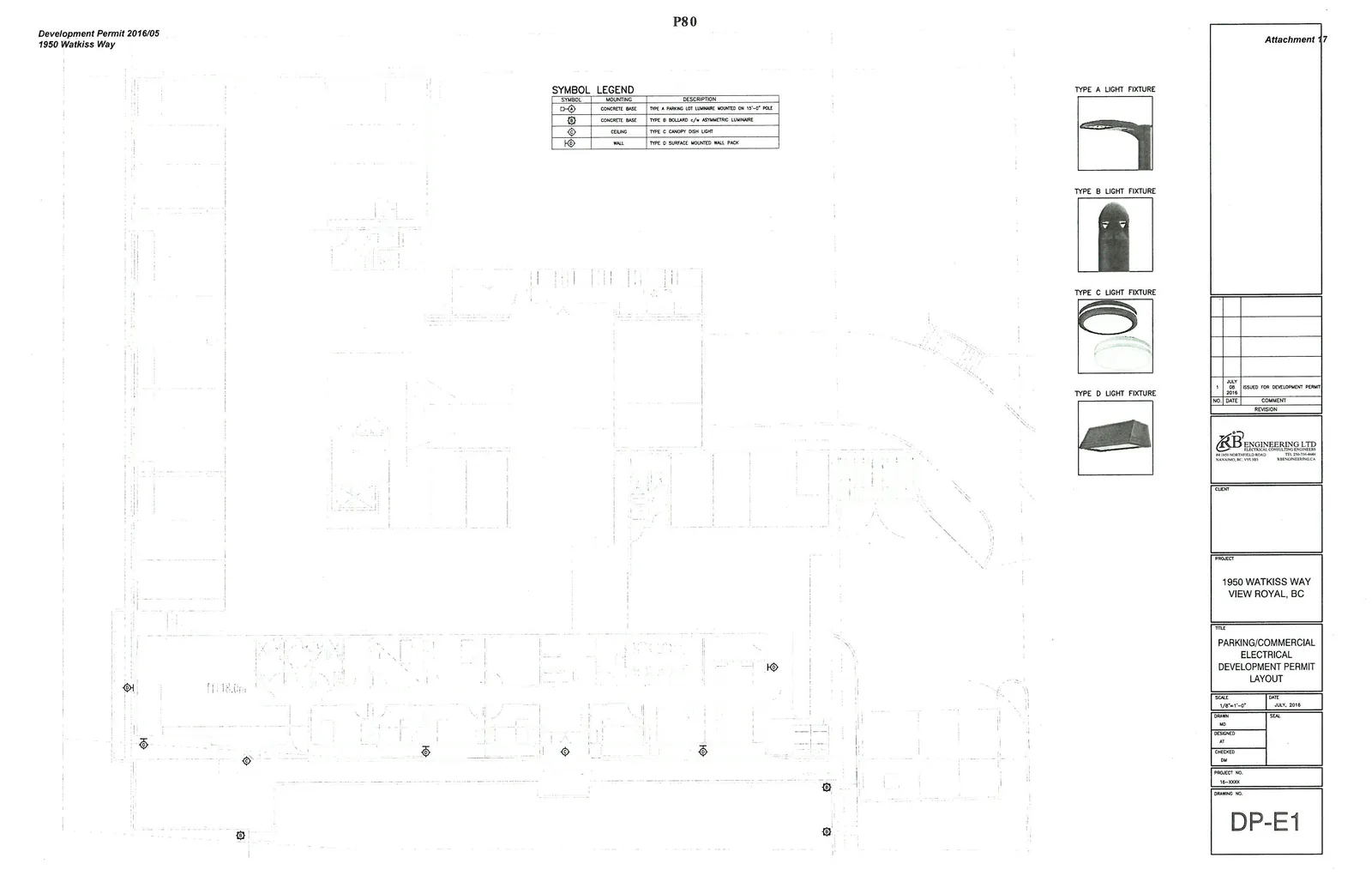

PARKING/COMMERCIAL ELECTRICAL DEVELOPMENT PERMIT LAYOUT
Project: 1950 WATKISS WAY, VIEW ROYAL, BC Title: PARKING/COMMERCIAL ELECTRICAL DEVELOPMENT PERMIT LAYOUT Scale: 1/8" = 1'-0" Date: JULY, 2016 Project No: 16-XXXX Drawing No: DP-E1
Symbol Legend
| SYMBOL | MOUNTING | DESCRIPTION |
|---|---|---|
| [Symbol: Pole light] | CONCRETE BASE | TYPE A PARKING LOT LUMINAIRE MOUNTED ON 15'-0" POLE |
| [Symbol: Bollard] | CONCRETE BASE | TYPE B BOLLARD c/w ASYMMETRIC LUMINAIRE |
| [Symbol: Ceiling light] | CEILING | TYPE C CANOPY DISK LIGHT |
| [Symbol: Wall pack] | WALL | TYPE D SURFACE MOUNTED WALL PACK |
Revision History
| NO. | DATE | COMMENT |
|---|---|---|
| 1 | 08 JULY 2016 | ISSUED FOR DEVELOPMENT PERMIT |
Electrical Layout and Fixtures
Engineering Information
RB ENGINEERING LTD ELECTRICAL CONSULTING ENGINEERS #4-2035 NORTHFIELD ROAD NANAIMO, BC V9S 3B9 TEL: 250-756-4081 RBENGINEERING.CA
