Appendix 6: Development Permit Lighting Plans (ED-ES1)

View Royal Casino Expansion

1708 Old Island Highway View Royal, B.C.

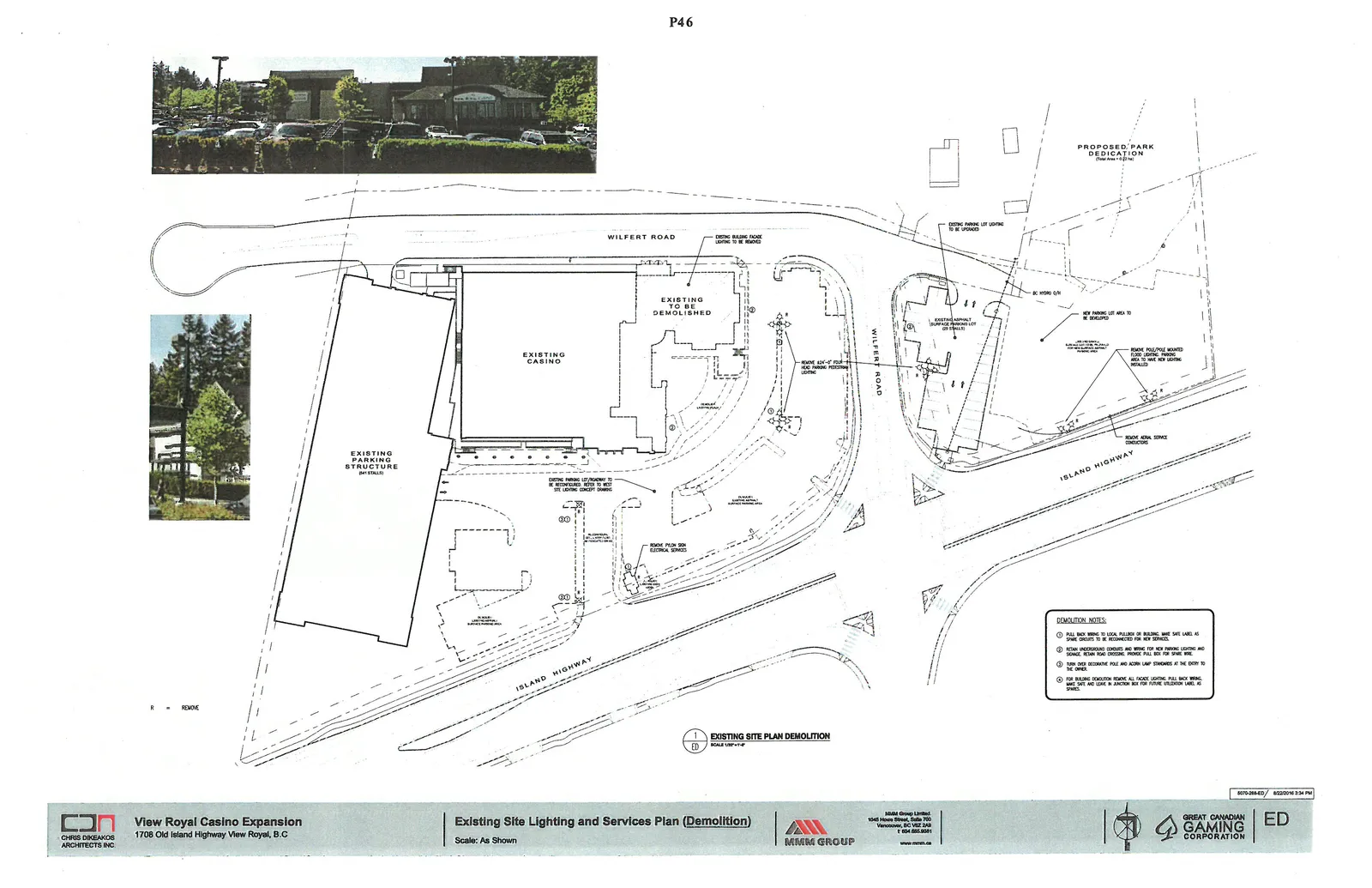

Existing Site Lighting and Services Plan (Demolition)

Plan Annotations:

• WILFERT ROAD
• ISLAND HIGHWAY
• EXISTING PARKING STRUCTURE (641 STALLS)
• EXISTING CASINO
• EXISTING TO BE DEMOLISHED
• EXISTING BUILDING FACADE LIGHTING TO BE REMOVED
• REMOVE 4X" -6" FOUR HEAD PARKING PEDESTRIAN LIGHTING
• EXISTING ASPHALT SURFACE PARKING LOT (23 STALLS)
• EXISTING PARKING LOT LIGHTING TO BE UPGRADED
• BC HYDRO O/H
• PROPOSED PARK DEDICATION (Total Area = 0.1 ha)
• NEW PARKING LOT AREA TO BE DEVELOPED
• REMOVE POLE/POST MOUNTED FLOOD LIGHTING. PARKING AREA TO HAVE NEW LIGHTING INSTALLED.
• REMOVE AERIAL SERVICE CONDUCTORS
• EXISTING PARKING LOT/ROADWAY TO BE RECONFIGURED. REFER TO WEST SITE LIGHTING CONCEPT DRAWING
• REMOVE PYLON SIGN ELECTRICAL SERVICES

Demolition Notes:

1. PULL BACK WIRING TO LOCAL PULLBOX OR BUILDING. MAKE SAFE. LABEL AS SPARE CIRCUITS TO BE RECONNECTED FOR NEW SERVICES.
2. RETAIN UNDERGROUND CONDUITS AND WIRING FOR NEW PARKING LIGHTING AND SIGNAGE. RETAIN ROAD CROSSING. PROVIDE PULL BOX FOR SPARE WIRE.
3. TURN OVER DECORATIVE POLE AND ACORN LAMP STANDARDS AT THE ENTRY TO THE OWNER.
4. FOR BUILDING DEMOLITION: REMOVE ALL FACADE LIGHTING. PULL BACK WIRING, MAKE SAFE AND LEAVE IN JUNCTION BOX FOR FUTURE UTILIZATION. LABEL AS SPARES.

Scale: As Shown Date: 8/22/2016

---

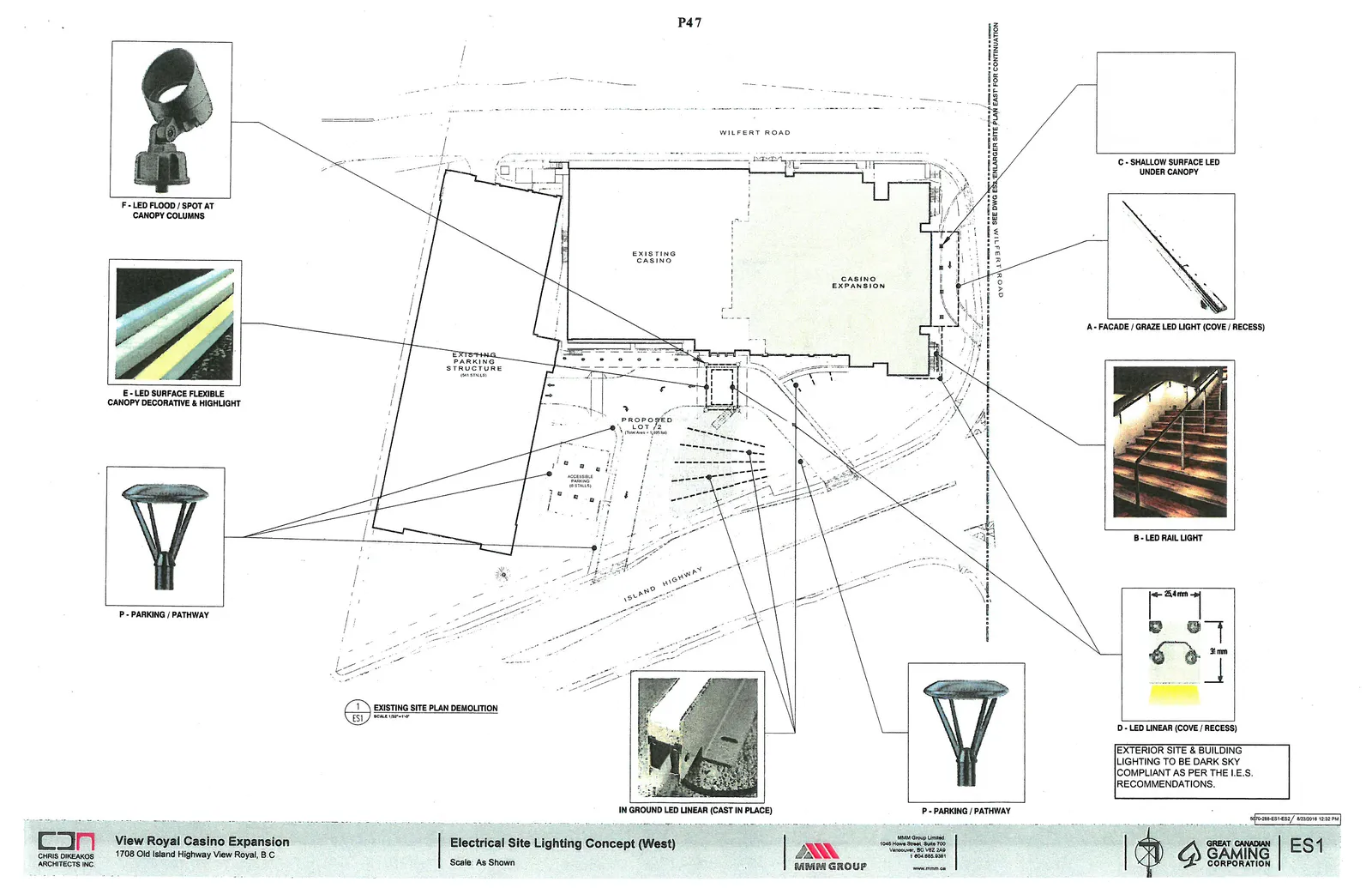

Electrical Site Lighting Concept (West)

Plan Annotations:

• WILFERT ROAD
• ISLAND HIGHWAY
• EXISTING PARKING STRUCTURE (641 STALLS)
• EXISTING CASINO
• CASINO EXPANSION
• PROPOSED LOT 2 (Total Area = 0.65 ha)
• ACCESSIBLE PARKING (6 STALLS)
• SEE DWG ES2 ENLARGER SITE PLAN EAST FOR CONTINUATION

Staff Recommendations: EXTERIOR SITE & BUILDING LIGHTING TO BE DARK SKY COMPLIANT AS PER THE I.E.S. RECOMMENDATIONS.

Scale: As Shown Date: 8/23/2016
