Plans and Elevations: Dietrich - Nespesney Residence
June 7, 2016Pages 35–4814 sections
Architectural drawings including floor plans, perspectives, and elevations for the proposed dwelling.
Basement area: 92.34m2Main Floor area: 197.73m22nd Floor area: 142.95m2Total building area: 445.92 sq. meterProposed building height and slopes shown in sections
Context Plan & Site Data
- Civic Address: 275 Kerwood St.
- Legal Description:
- Lot 1, Block 12, Section 27, Esquimalt District, Plan 1688
Legal Description detail for Lot 1 - And Lot 1-A, Block 12, Sec. 27, Esquimalt District, Plan 1688
- Zone: R1 Detached Residential
- Site Area (combined): 1,556 sq. meters
- Width: 29 meters
- Lot Coverage: 450 sq. meters (29% approx.)
Building Floor Area
| Level | Area |
|---|---|
| Basement | 92.34 sq. meter |
| Main Floor | 197.73 sq. meter |
| 2nd Floor | 142.95 sq. meter |
| Carport | 57.9 sq. meter |
| Carport credit | -45.00 |
| Total | 445.92 sq. meter (zoning allows 372 sq. meters) |
- Floor Space Ratio: .287 (zoning allows .42)
- Variance: Variance to Zoning asking for 74 sq. meter extra floor area at basement.
Page 35–48
Basement floor plan

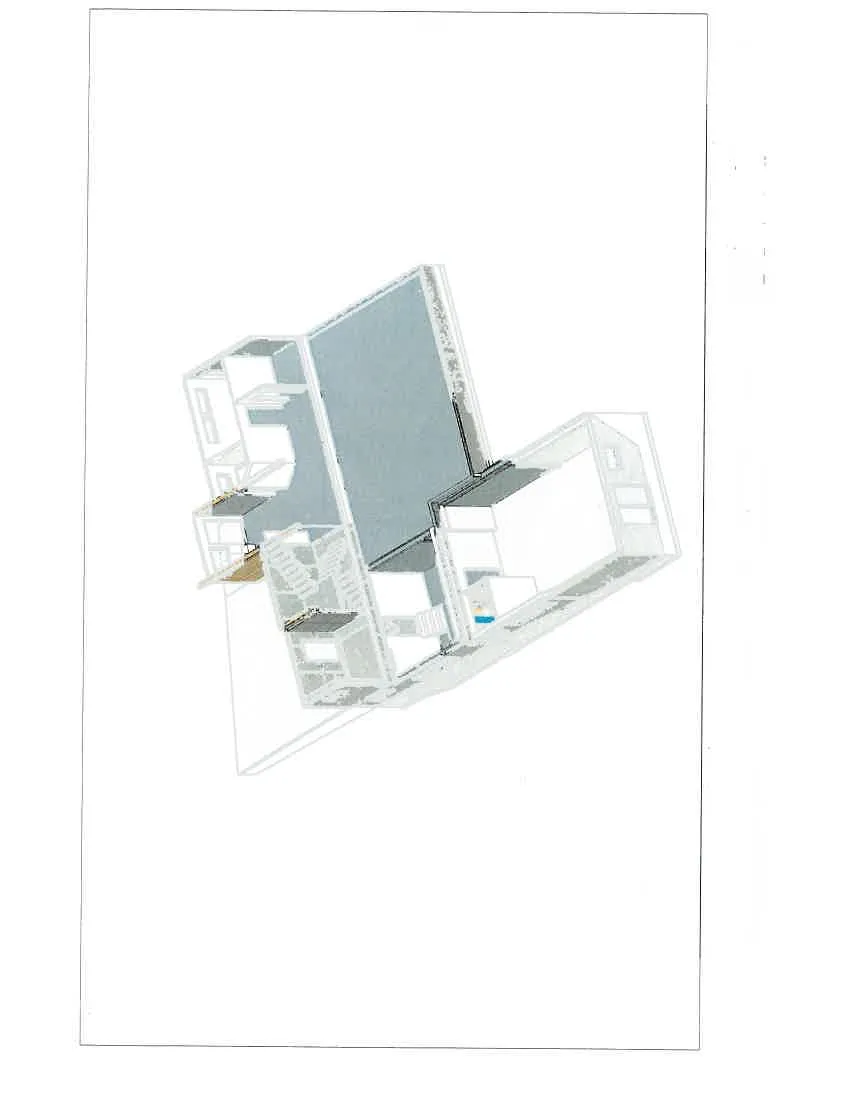

3D perspective rendering of the basement floor plan

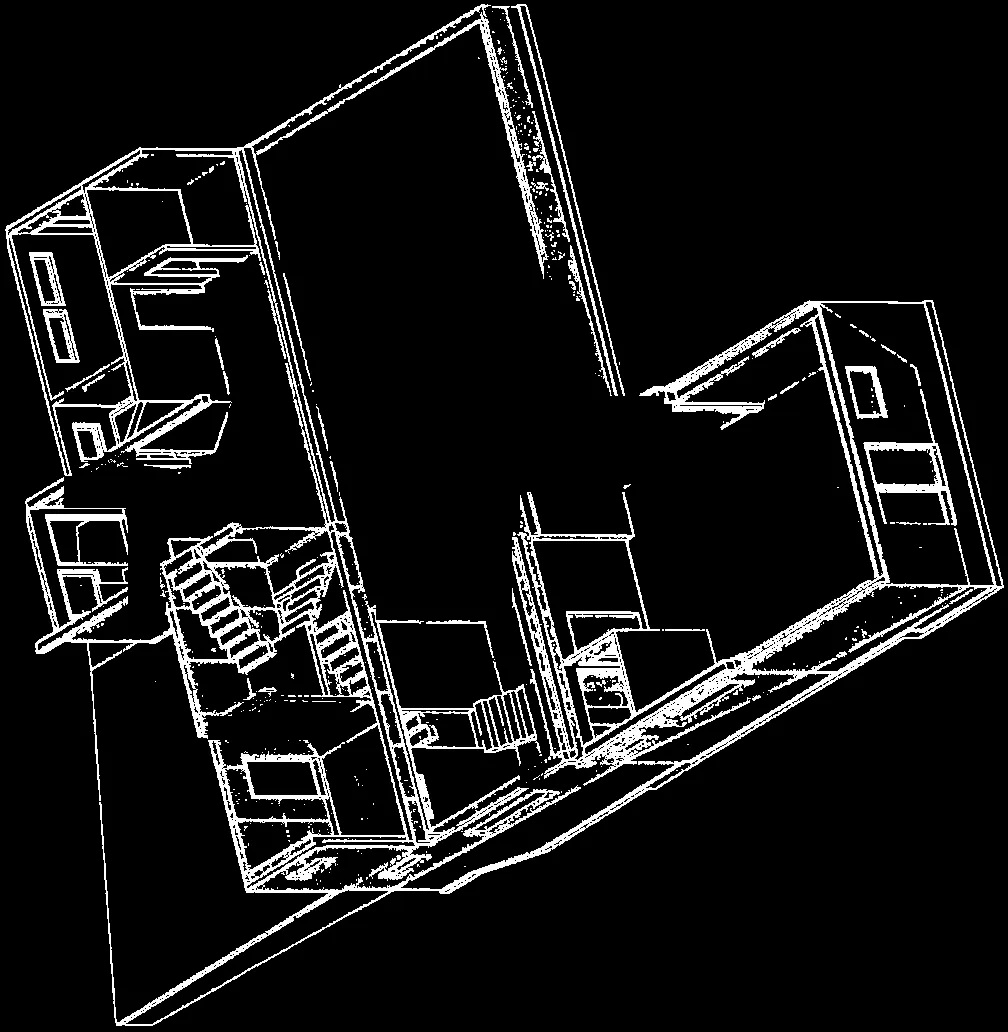

Isometric wireframe detail of the basement layout
Page 35–48
Basement perspective

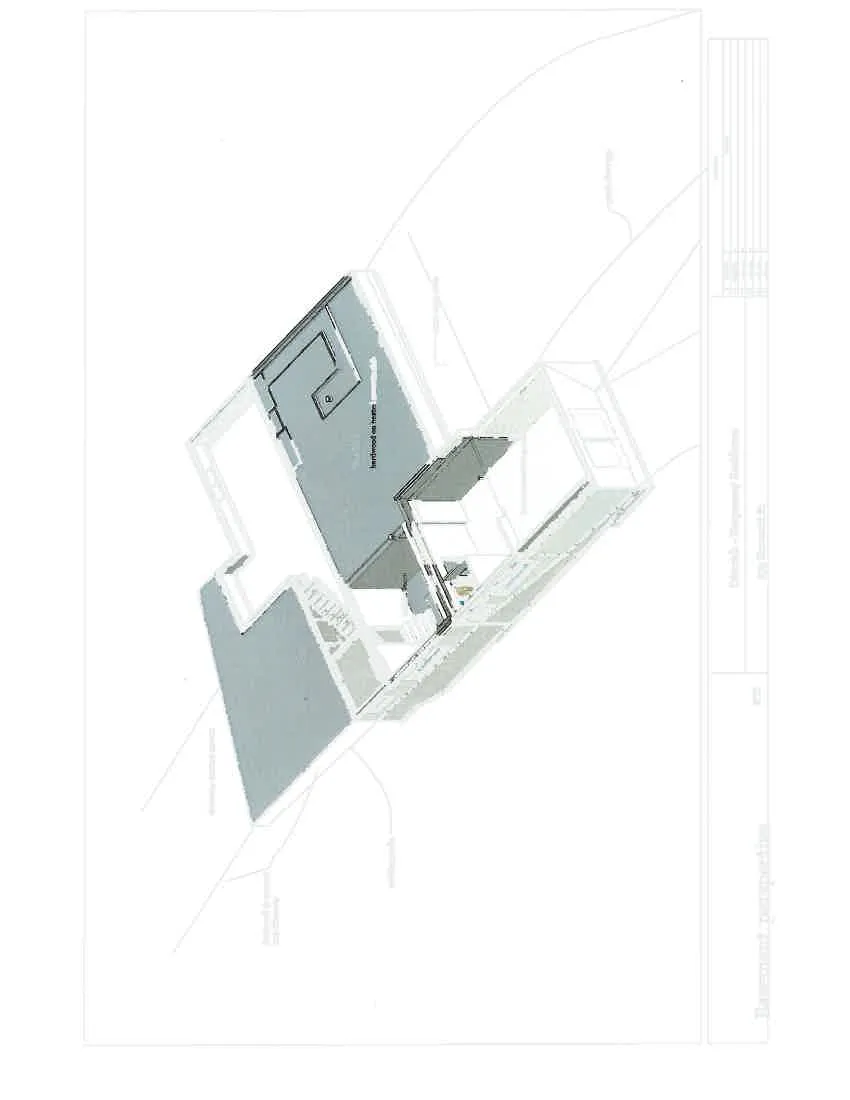

Labeled 3D perspective view of the basement level

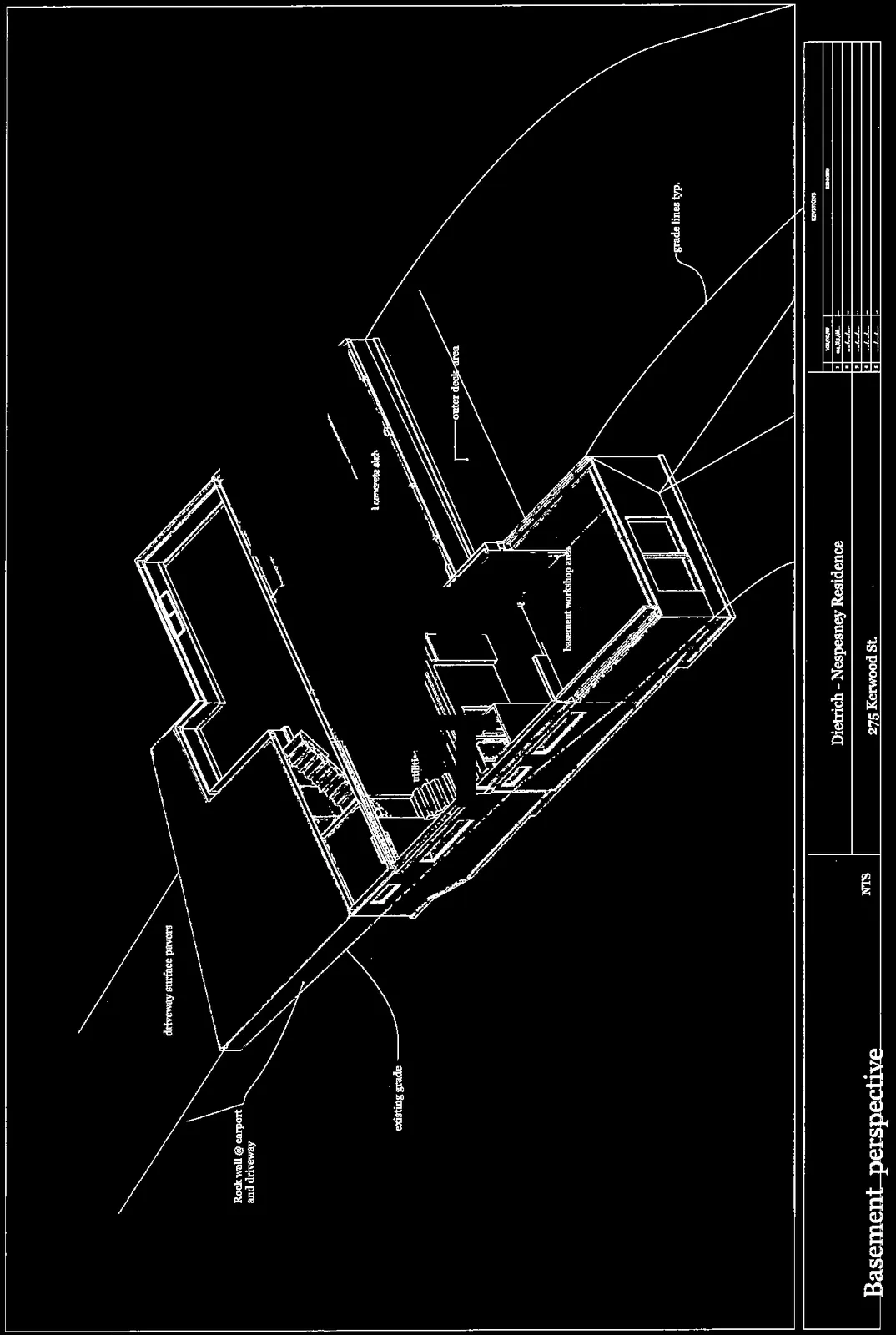

Wireframe perspective detail highlighting the basement workshop and deck areas
Page 35–48

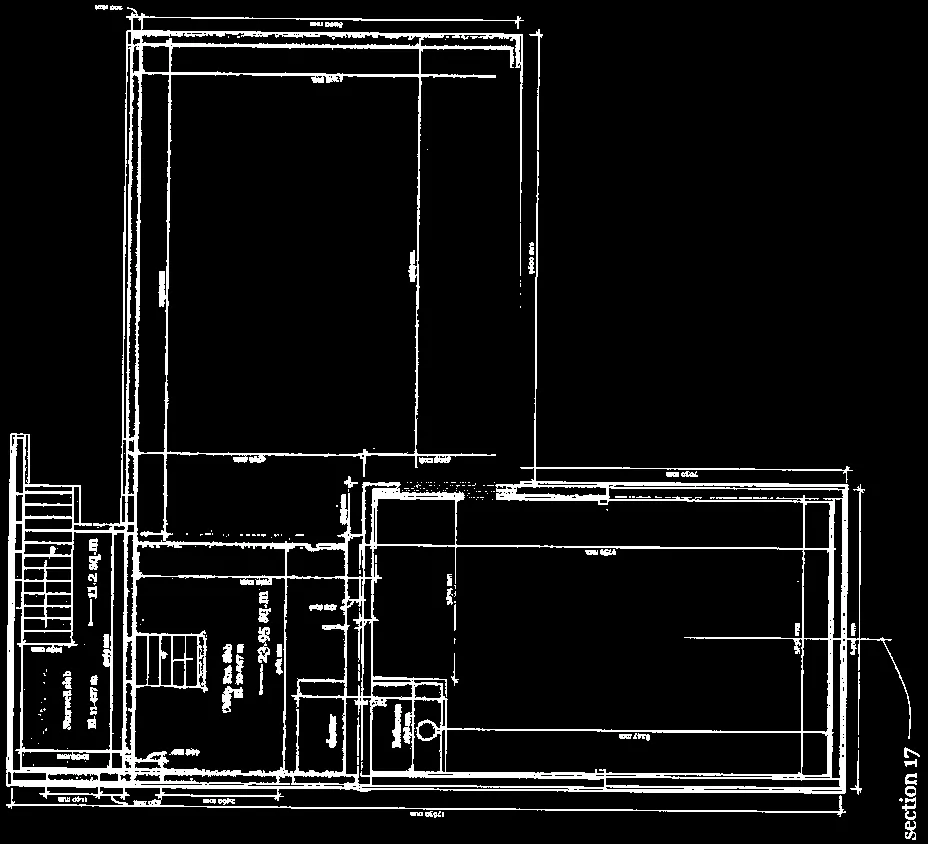

Basement Floor Plan
Detailed 2D architectural diagram for the basement floor plan
Technical layout of the basement area with floor space measurements
Page 35–48
Main Floor Plan

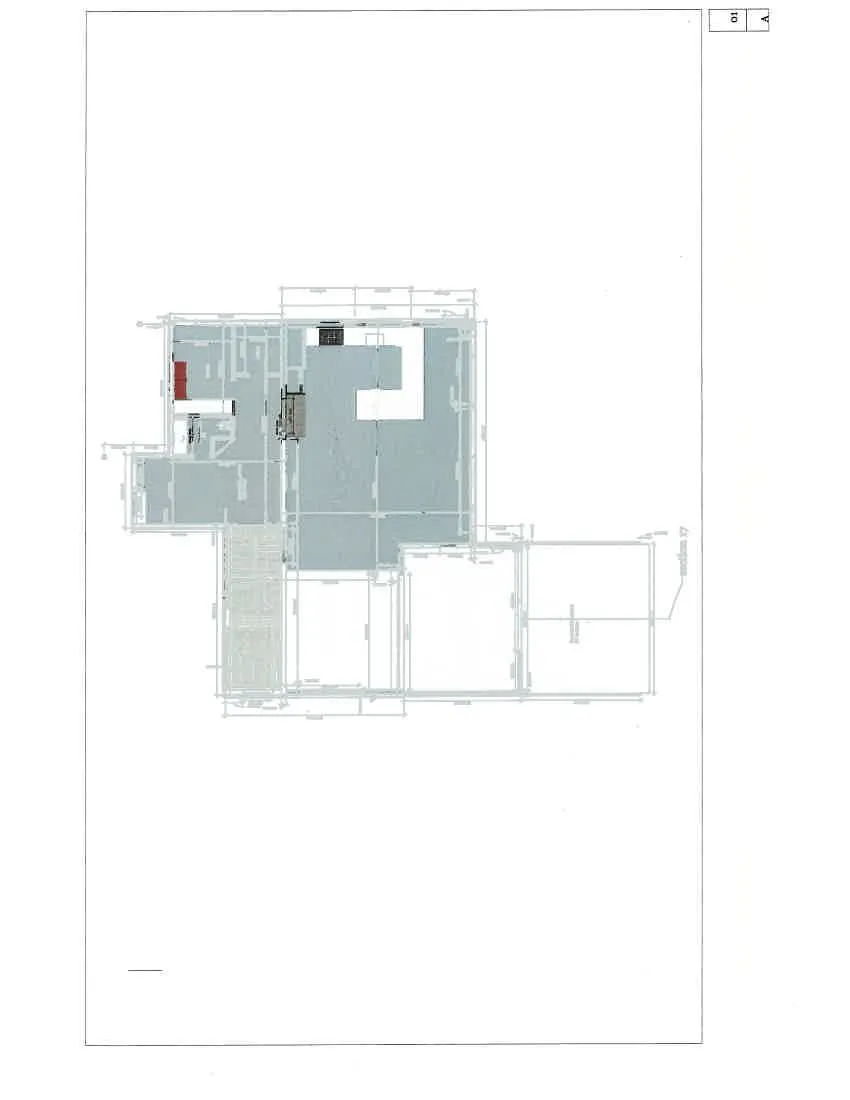

Detailed 2D architectural diagram for the main floor plan

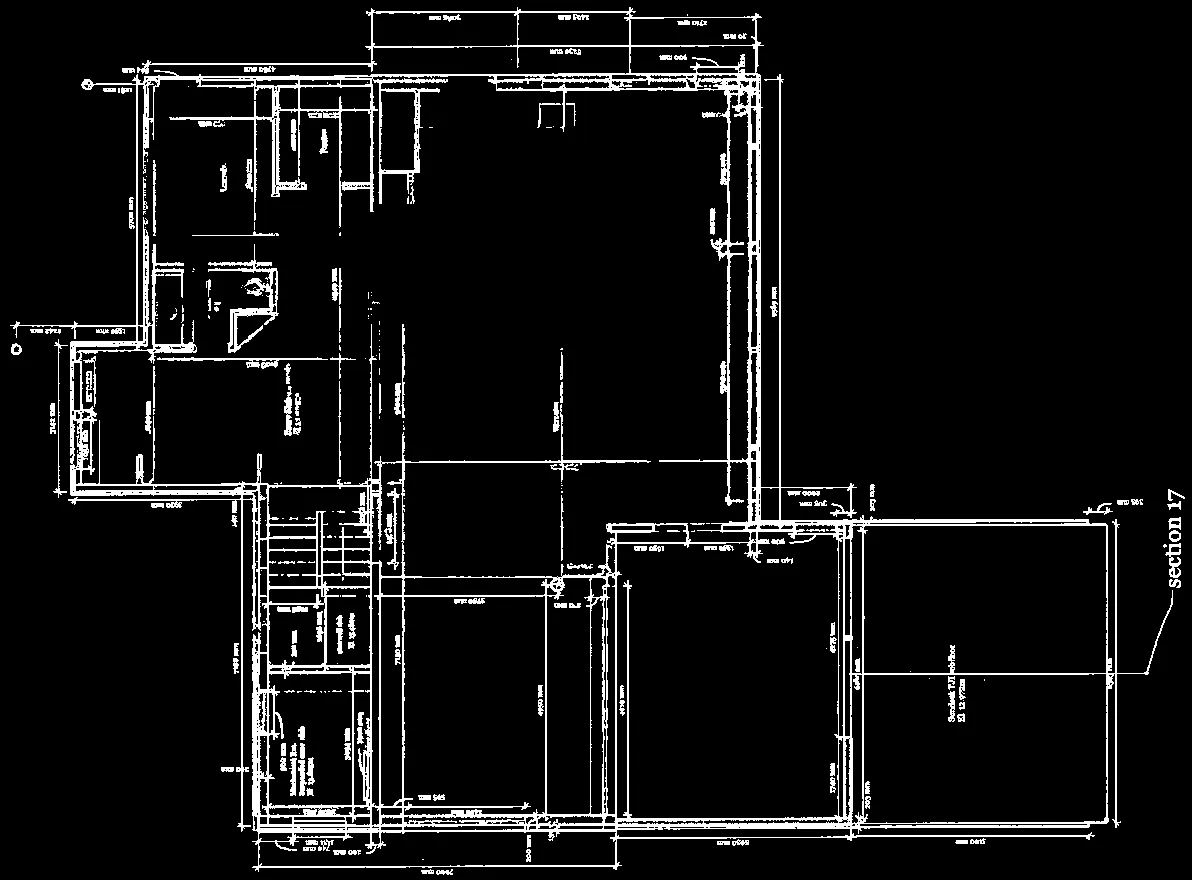

Technical layout of the main floor area including living spaces and kitchen
Page 35–48

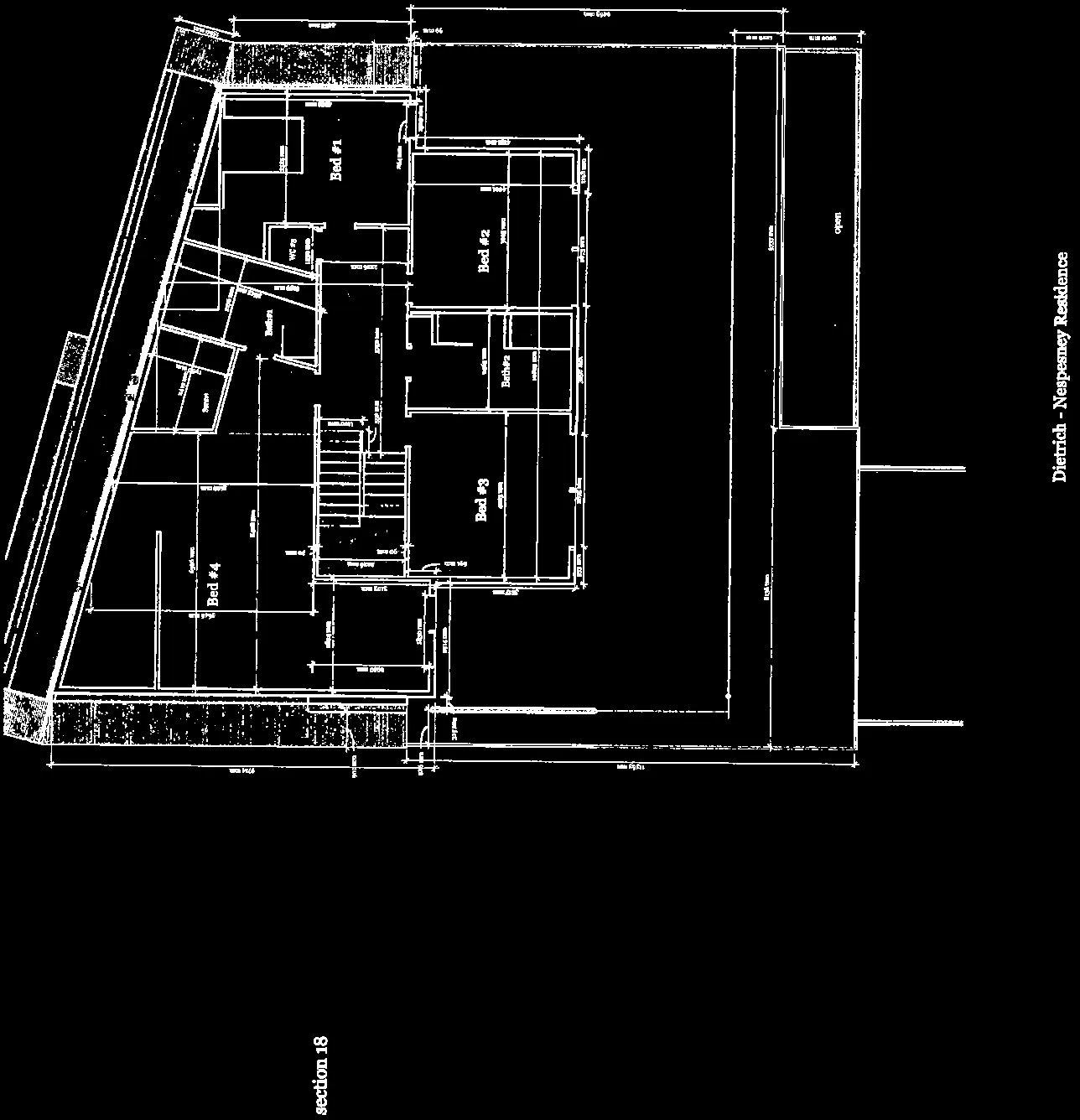

2nd Floor Plan
Detailed 2D architectural diagram for the second floor plan
Technical layout of the second floor showing bedroom and sundeck configurations
Page 35–48
Roof and Deck
Architectural plan for the roof and terrace levels

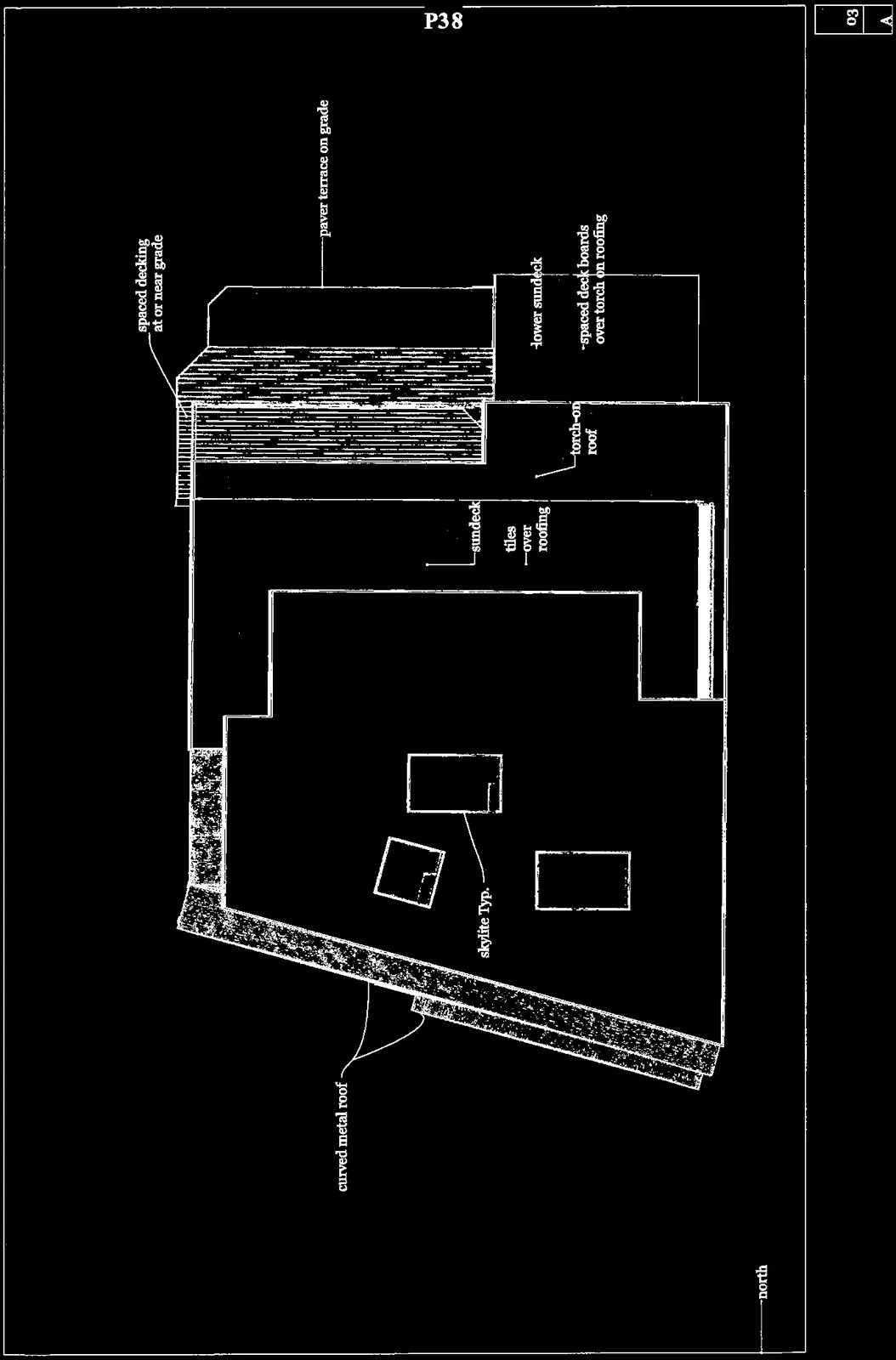

Plan view detail showing deck materials, skylights, and roofing types
Page 35–48
East Elevation

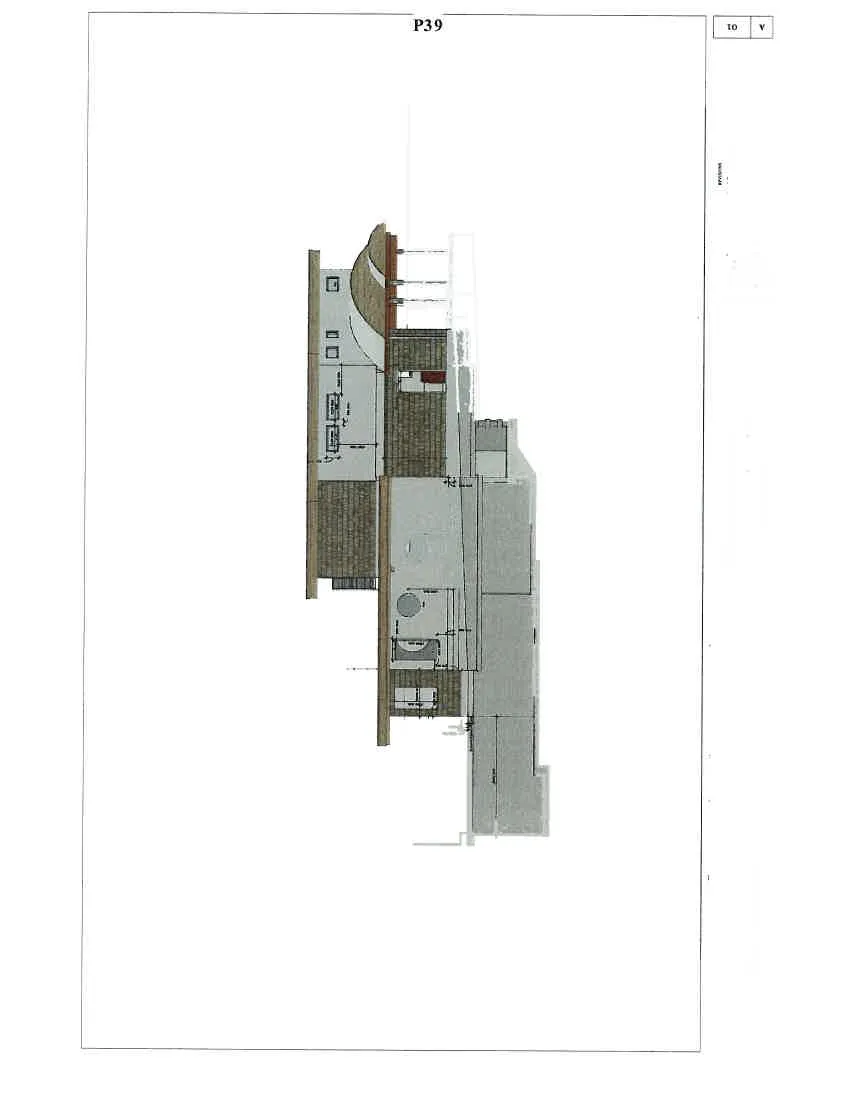

Architectural drawing of the building's east elevation
Page 35–48
West Elevation
Architectural drawing of the building's west elevation

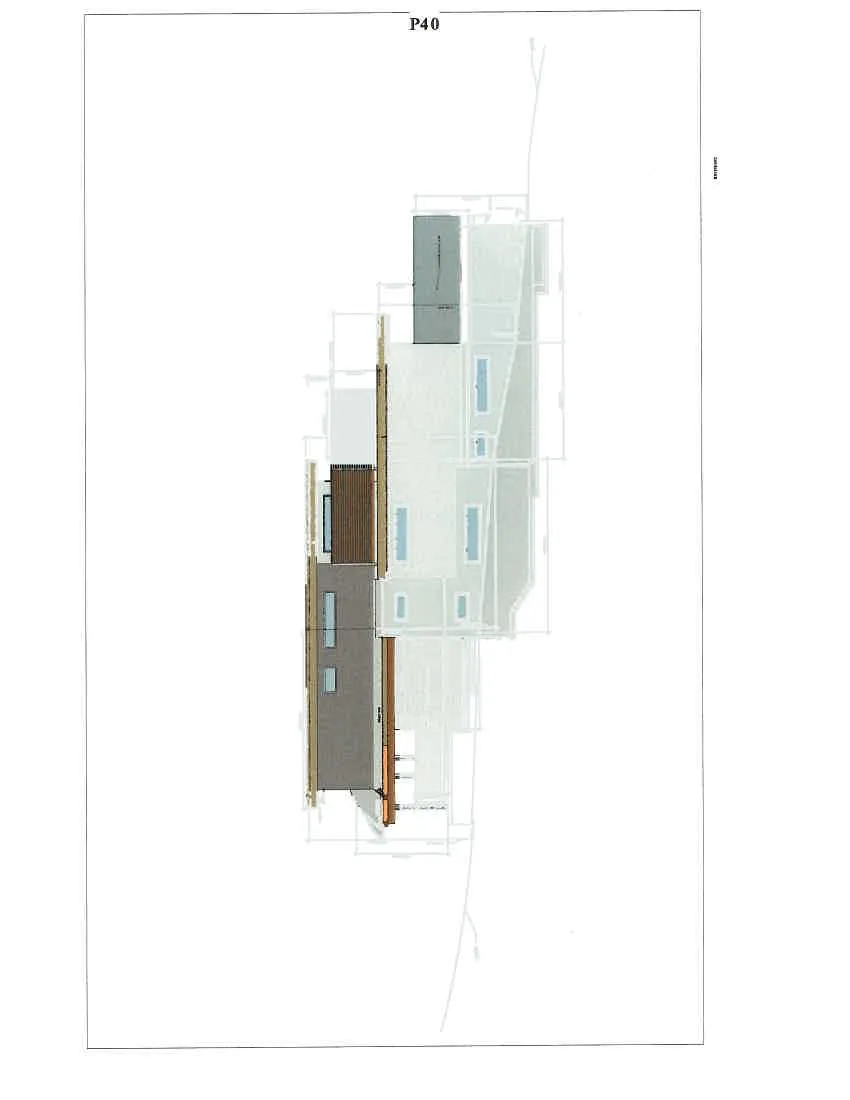

Vertical structural detail from the west elevation plan
Zoomed detail of structural elements on the west side
Page 35–48

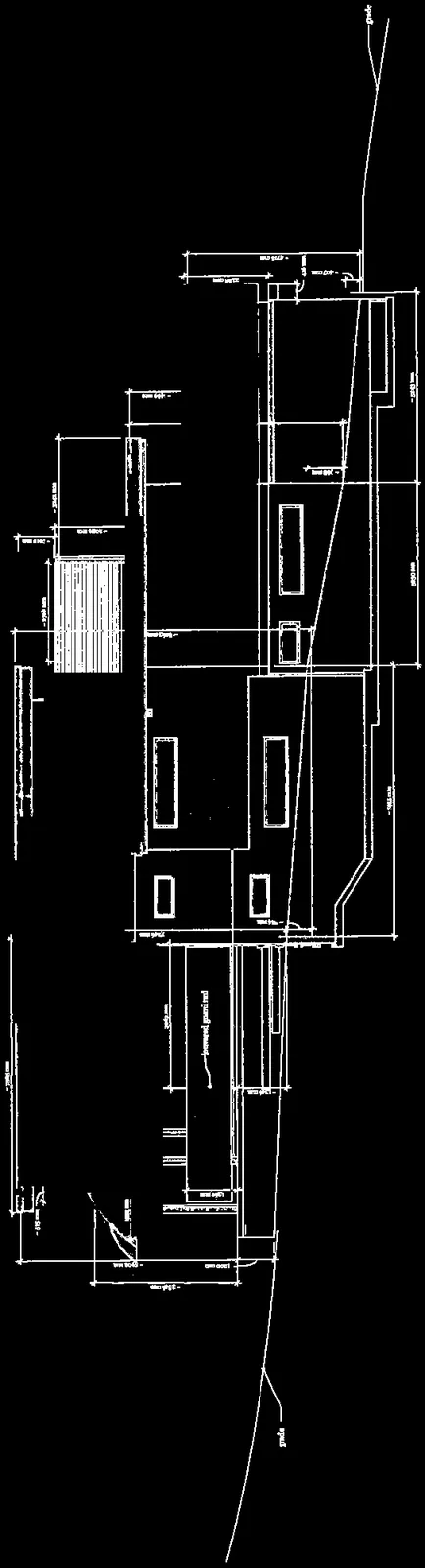

North elevation
Architectural drawing of the building's north elevation

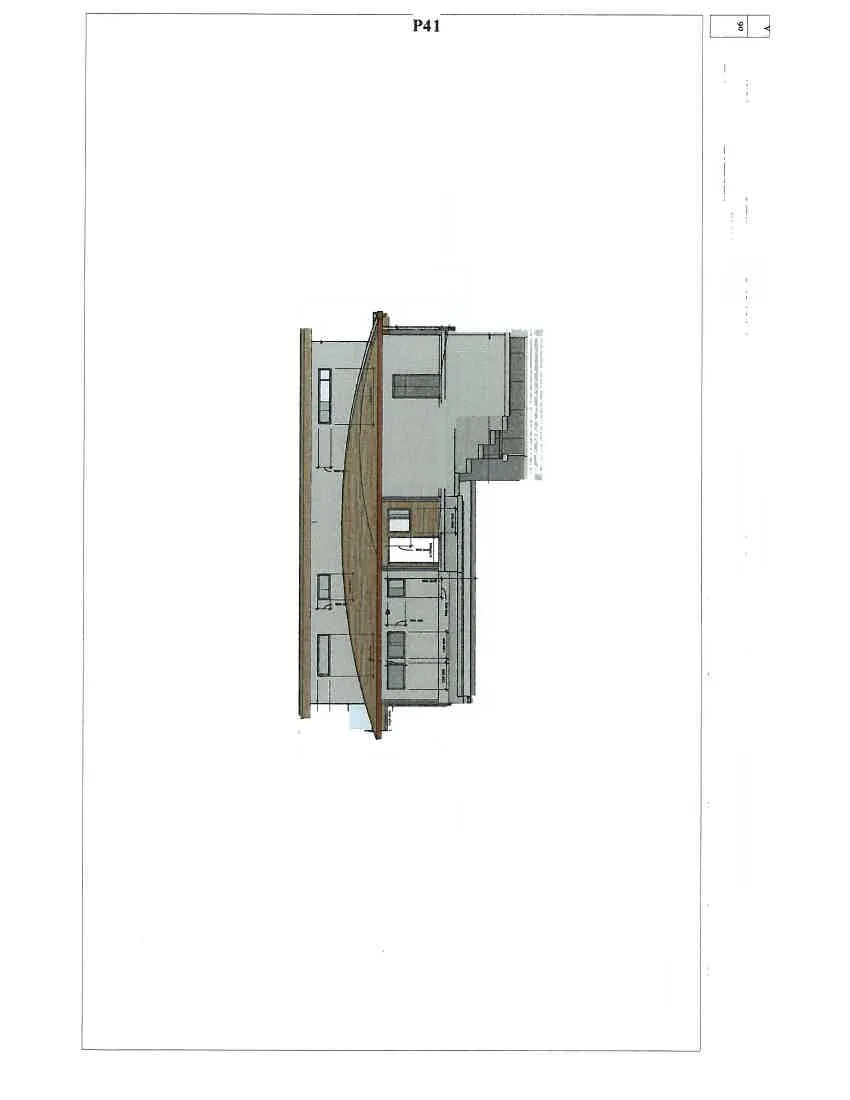

Detailed view of the building's north facade and carport area
Dimension line detail showing facade width on the north elevation
Site detail from north elevation showing carport slab and property line
Page 35–48

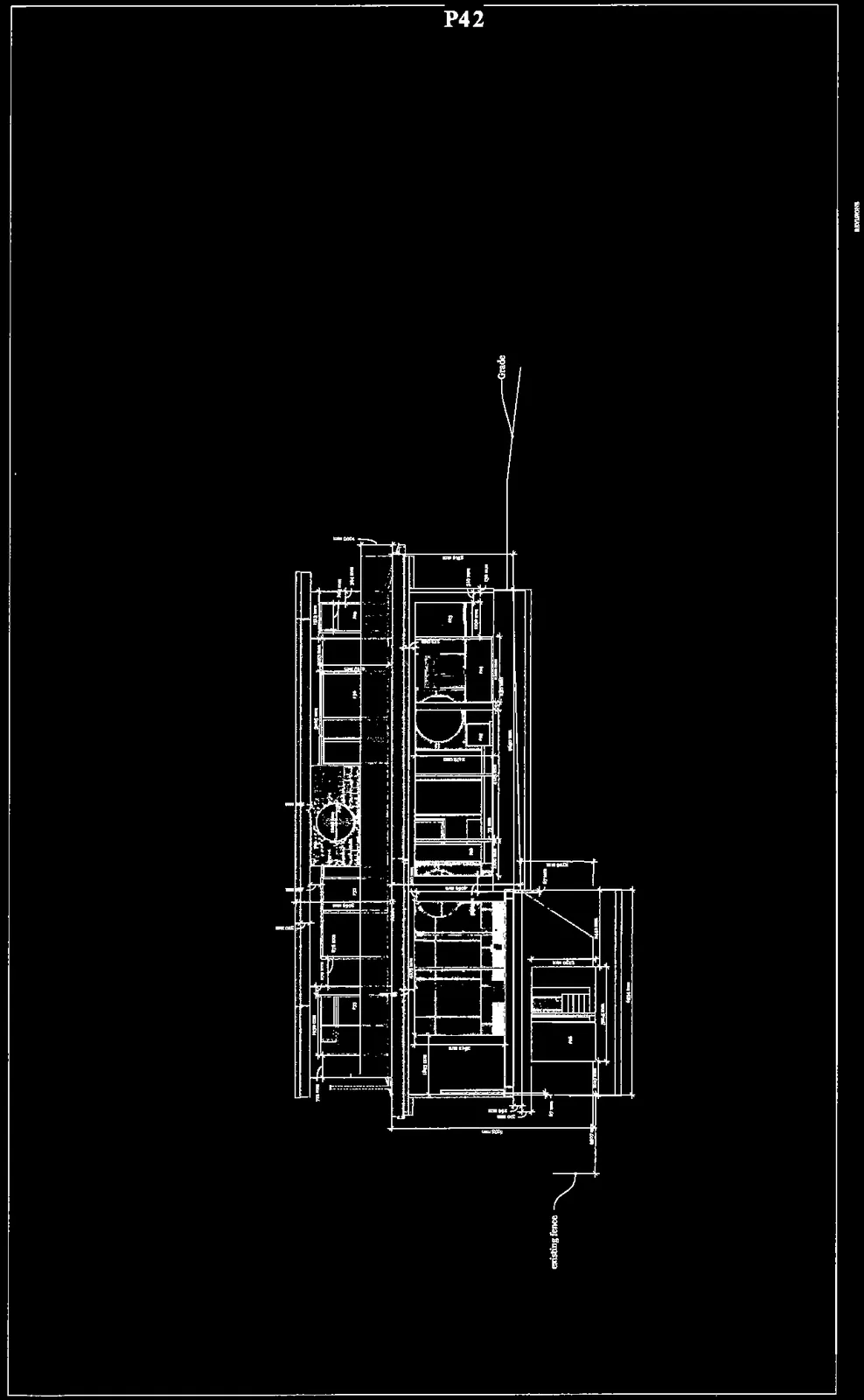

South Elevation
Zoomed detail of structural components on the south elevation facade
Architectural drawing of the building's south elevation
Page 35–48

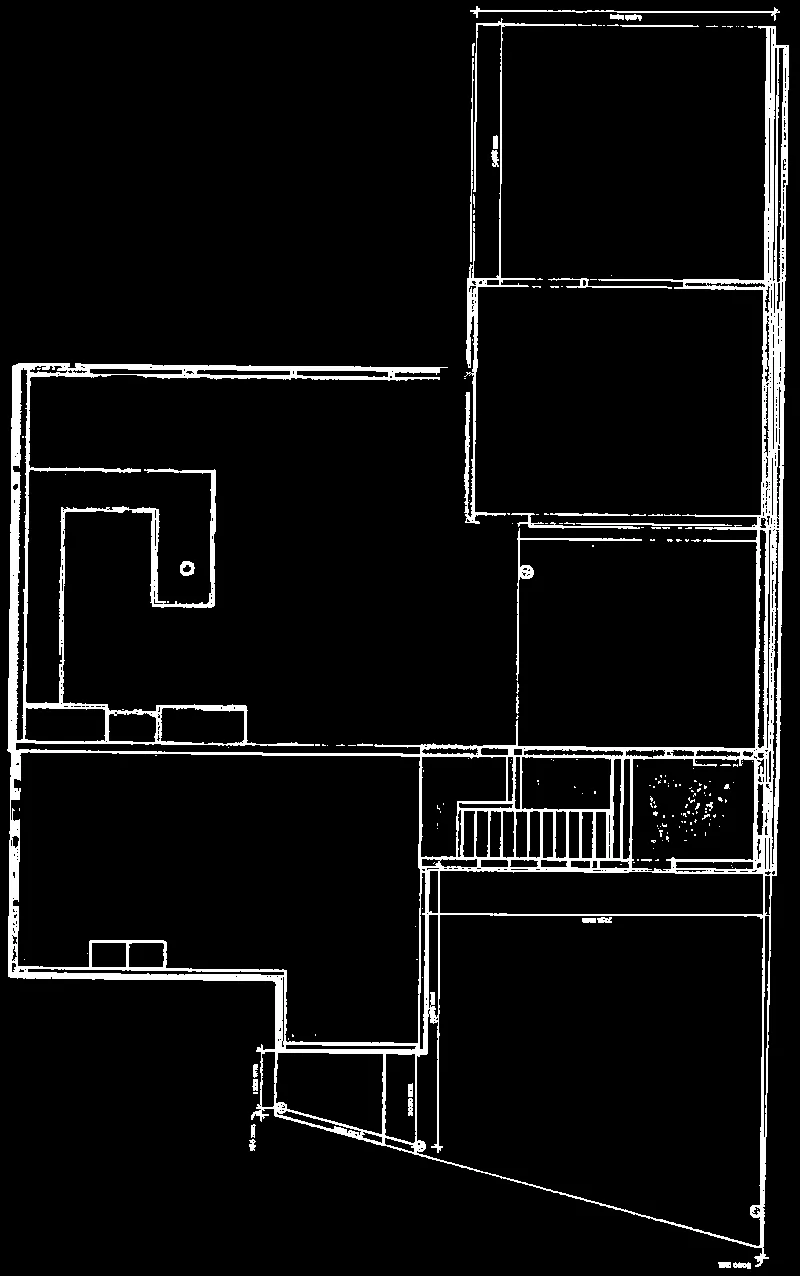

Decks and Carport
Plan view diagram for the decks and carport areas
Detailed layout showing carport dimensions and terrace levels
Page 35–48

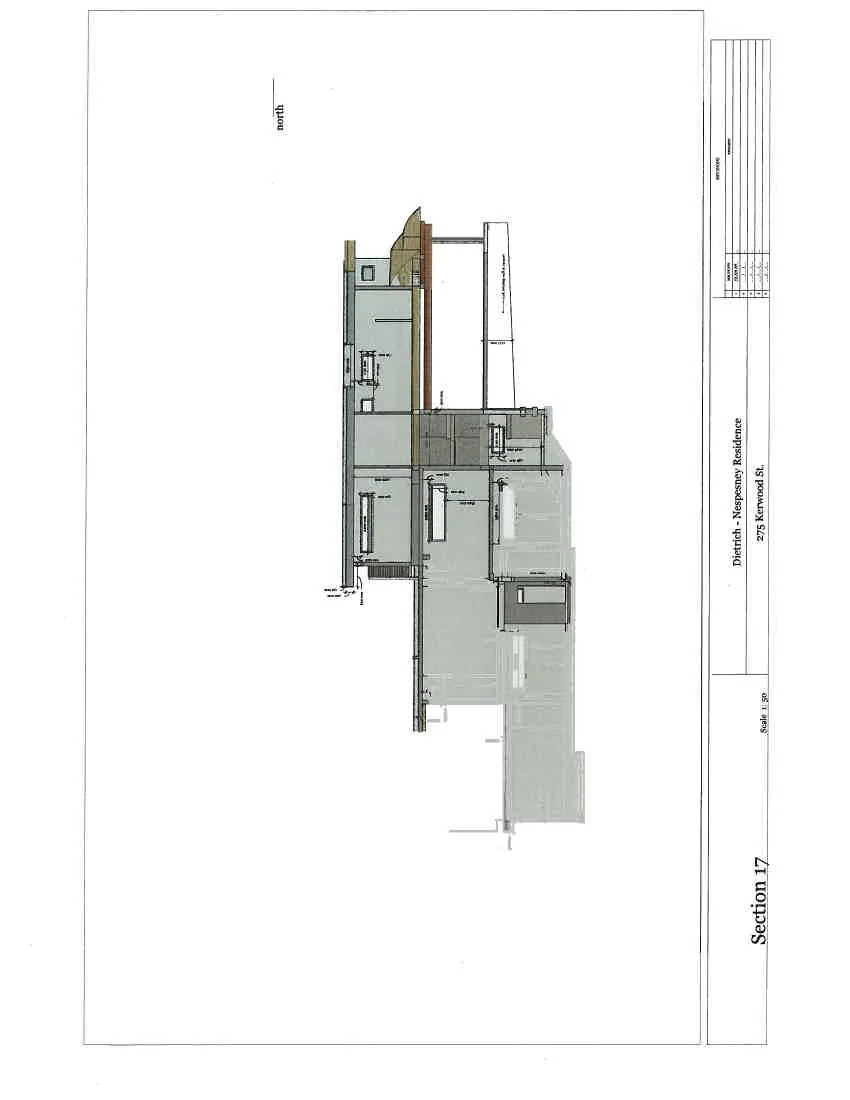

Section 17
Technical cross-section drawing labeled Section 17

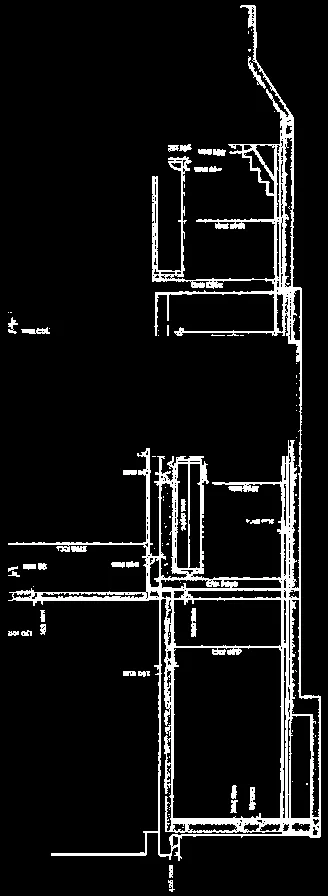

Detailed interior cross-section view from Section 17
Page 35–48
Section 18
Technical cross-section drawing labeled Section 18

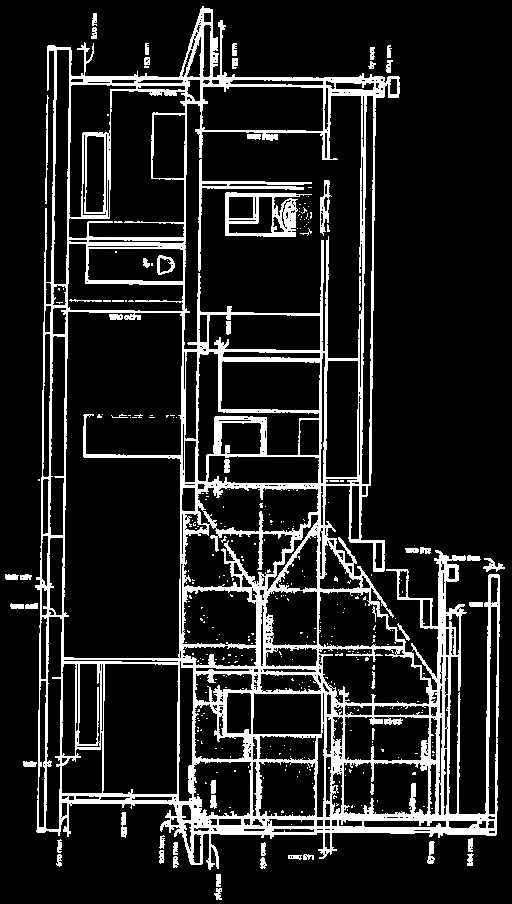

Detailed interior cross-section view from Section 18
Page 35–48
Document Images
