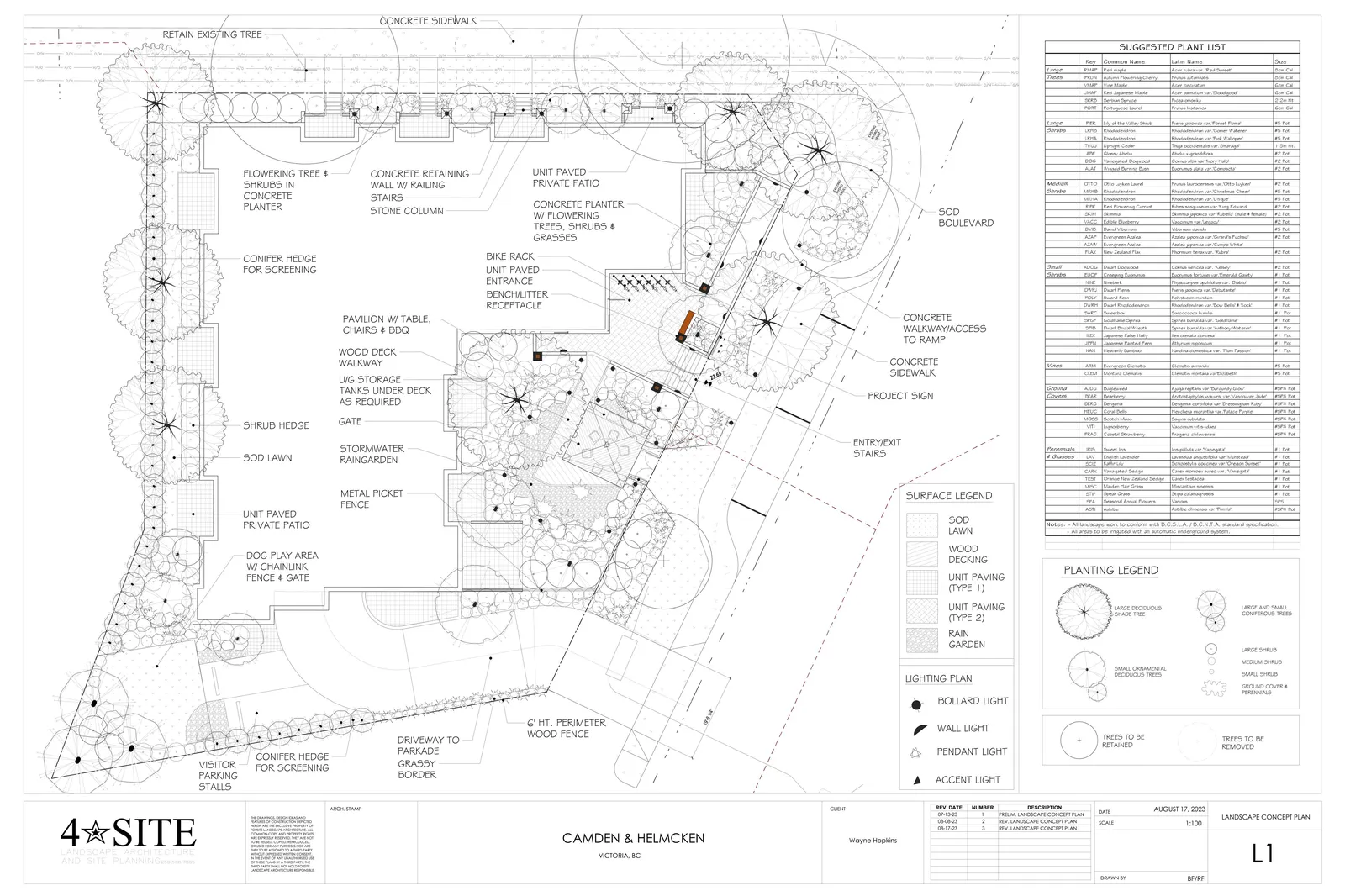

Landscape Concept Plan - Camden & Helmcken
January 9, 2024Page 1621 section
Landscape architecture plan for the development site including a suggested plant list and surface treatment legend.
August 17, 20234*SITE Landscape ArchitectureIncludes features like dog play area, rain garden, and private patios
Camden & Helmcken - Landscape Concept Plan
Suggested Plant List
| Key | Common Name | Latin Name | Size |
|---|---|---|---|
| Large Trees | |||
| RVAP | Red Maple | Acer rubrum var. 'Red Sunset' | 6cm Cal. |
| SMCH | Souris Flowering Cherry | Prunus x yedoensis | 6cm Cal. |
| VMAP | Vine Maple | Acer circinatum | 6cm Cal. |
| RKMA | Red Japanese Maple | Acer palmatum var. 'Bloodgood' | 6cm Cal. |
| SERB | Serbian Spruce | Picea omorika | 2.5m Ht. |
| PORT | Portuguese Laurel | Prunus lusitanica | 6cm Cal. |
| Large Shrubs | |||
| PIER | Lily of the Valley Shrub | Pieris japonica var. 'Forest Flame' | #5 Pot |
| LRHD | Rhododendron | Rhododendron var. 'Gomer Waterer' | #5 Pot |
| LKHA | Rhododendron | Rhododendron var. 'Loderi King George' | #5 Pot |
| THUJ | Upright Cedar | Thuja occidentalis var. 'Smaragd' | 1.5m Ht. |
| ABEL | Glossy Abelia | Abelia x grandiflora | #2 Pot |
| DOG | Variegated Dogwood | Cornus alba var. 'Ivory Halo' | #2 Pot |
| ALAT | Winged Burning Bush | Euonymus alata var. 'Compactus' | #5 Pot |
| Medium Shrubs | |||
| OTTO | Otto Luyken Laurel | Prunus laurocerasus var. 'Otto Luyken' | #2 Pot |
| MRHB | Rhododendron | Rhododendron var. 'Christmas Cheer' | #5 Pot |
| MRHA | Rhododendron | Rhododendron var. 'Snowcap' | #5 Pot |
| RIBE | Red Flowering Currant | Ribes sanguineum 'King Edward VII' | #5 Pot |
| SKIM | Skimmia | Skimmia japonica var. 'Rubella' (male) & female | #2 Pot |
| BLUE | Edible Blueberry | Vaccinium var. 'Legacy' | #2 Pot |
| DVIB | David Viburnum | Viburnum davidii | #3 Pot |
| AZAW | Evergreen Azalea | Azalea japonica var. 'Girard's Fuchsia' | #5 Pot |
| AZAW | Evergreen Azalea | Azalea japonica var. 'Gumpo White' | #3 Pot |
| FLAX | New Zealand Flax | Phormium tenax var. 'Rubra' | #2 Pot |
| Small Shrubs | |||
| ADOG | Dwarf Dogwood | Cornus sericea var. 'Kelsey' | #2 Pot |
| EUOF | Creeping Euonymus | Euonymus fortunei var. 'Emerald Gaiety' | #1 Pot |
| HEBE | Hebe | Hebe buxifolia var. 'Nana' | #1 Pot |
| DBFJ | Dwarf Pieris | Pieris japonica var. 'Debuts-ful' | #1 Pot |
| LAVP | Lavender | Lavandula var. 'Hidcote' | #1 Pot |
| DWRH | Dwarf Rhododendron | Rhododendron var. 'Door Bella/Blue Diamond' | #1 Pot |
| GARY | Gaultheria | Gaultheria shallon | #1 Pot |
| SPIF | Goldflame Spirea | Spiraea bumalda var. 'Goldflame' | #1 Pot |
| SPIR | Anthony Waterer Spirea | Spiraea japonica var. 'Anthony Waterer' | #1 Pot |
| ILEX | Japanese False Holly | Ilex crenata 'convexa' | #1 Pot |
| FERN | Sword Fern | Polystichum munitum | #1 Pot |
| NAN | Heavenly Bamboo | Nandina domestica var. 'Plum Passion' | #1 Pot |
| Vines | |||
| ARM | Evergreen Clematis | Clematis armandii | #5 Pot |
| CLEM | Montana Clematis | Clematis montana 'Elizabeth' | #5 Pot |
| Ground Covers | |||
| AJUG | Bugleweed | Ajuga reptans var. 'Burgundy Glow' | 4" Pot |
| BEAR | Kinnikinnick | Arctostaphylos uva-ursi var. 'Vancouver Jade' | 4" Pot |
| BERG | Bergenia | Bergenia cordifolia var. 'Bressingham Ruby' | 4" Pot |
| HEUC | Coral Bells | Heuchera var. 'Palace Purple' | 4" Pot |
| MOSS | Scotch Moss | Sagina subulata | 4" Pot |
| TYM | Creeping Thyme | Thymus serpyllum var. 'Coccineus' | 4" Pot |
| FRAG | Coastal Strawberry | Fragaria chiloensis | 4" Pot |
| Perennials & Grasses | |||
| IRIS | Sweet Iris | Iris pallida var. 'Variegata' | #1 Pot |
| LAV | English Lavender | Lavandula angustifolia var. 'Munstead' | #1 Pot |
| SCI2 | Kaffir Lily | Schizostylis coccinea var. 'Oregon Sunset' | #1 Pot |
| CORE | Tickseed Coreopsis | Coreopsis auriculata var. 'Nana' | #1 Pot |
| TEST | Orange New Zealand Sedge | Carex testacea | #1 Pot |
| MISC | Maiden Hair Grass | Miscanthus sinensis | #1 Pot |
| STIP | Spear Grass | Stipa calamagrostis | #1 Pot |
| SEA | Assorted Annual Flowers | Various | 4" Pot |
| ASTI | Astilbe | Astilbe chinensis var. 'Pumila' | 4" Pot |
Notes:
- All landscape work to conform with B.C.S.L.A. / B.C.N.T.A. standard specification.
- All areas to be irrigated with an automatic underground system.
Surface Legend
- SOD LAWN
- WOOD DECKING
- UNIT PAVING (TYPE 1)
- UNIT PAVING (TYPE 2)
- RAIN GARDEN
Lighting Plan
- BOLLARD LIGHT
- WALL LIGHT
- PENDANT LIGHT
- ACCENT LIGHT
Planting Legend
- LARGE DECIDUOUS / CONIFEROUS TREES
- SMALL ORNAMENTAL / DECIDUOUS TREES
- LARGE SHRUB
- MEDIUM SHRUB
- SMALL SHRUB
- GROUND COVER & PERENNIALS
- TREES TO BE RETAINED
- TREES TO BE REMOVED
Project Information
Camden & Helmcken Victoria, BC
Client: Wayne Hopkins Date: August 17, 2023 Scale: 1:100 Drawn By: BF/RF Drawing Number: L1
Revision History
| Number | Date | Description |
|---|---|---|
| 1 | 07-13-23 | PRELIM. LANDSCAPE CONCEPT PLAN |
| 2 | 08-08-23 | REV. LANDSCAPE CONCEPT PLAN |
| 3 | 08-17-23 | REV. LANDSCAPE CONCEPT PLAN |
