339 Island Highway Landscape A221

339 Island Highway

Landscape Plan

Boardwalk REIT - View Royal BC

Project Details:

• Drawing Title: Landscape
• Sheet Number: A221
• Scale: 1:200

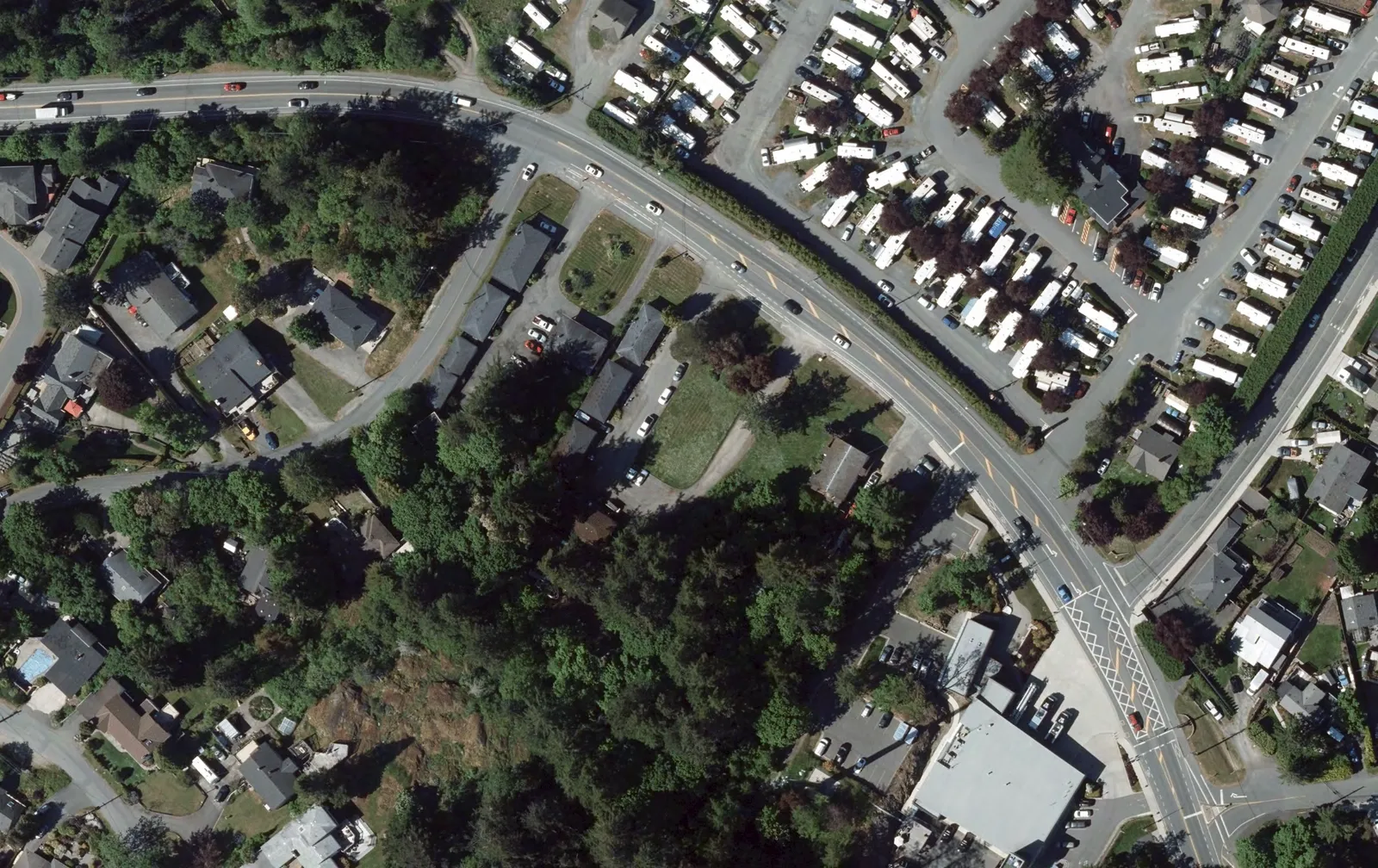

Site Layout and Infrastructure

• Street Frontage: Island Highway and Prince Robert Dr
• Vehicle Access:
  • Scored concrete multi-modal driveway with asphalt parking stalls (Numbered 307 through 338)
  • Commercial Loading Zone
  • Textured plaza & turnaround
  • Parkade Entry (Multiple locations)
  • Wide, large radius curb cut
• Pedestrian Facilities:
  • Public sidewalk and Bus stop
  • Stepped townhouse entries & planters (Typical)
  • Stepped pathway (Multiple)
  • Woodland path
  • Corner patio
  • Textured lobby entries
• Amenity and Open Space:
  • Play structures
  • Amenity spill out and lobby entry
  • Forecourt
  • Lawn and Multi-use lawn areas
  • Planted berm

Landscape and Vegetation

• Planting Areas:
  • Landscaped boulevard
  • Edge planting
  • Stepped planting
  • Naturalized perimeter planting
  • Layered planting buffer
  • Retained trees
  • Raised planters
• Boundaries:
  • Fence along length of rear property line (Material TBD)
  • Exit pathway and layered planting buffer

Technical Specifications and Dimensions

• Dimensional setbacks and widths indicated: 6m, 8m, 6.0m, 27.4m
