Appendix B - Intersection Turning Movement Traffic Count Data
December 12, 2023Pages 263–2662 sections
Data tables showing AM and PM peak hour traffic counts for all vehicles, heavy vehicles, passenger cars, and pedestrians at the Helmcken Road and Eltham Road intersection.
Count Date: December 13, 2022Intersection: Helmcken Road and Eltham Road
15-Unit Townhouses Traffic Impact Assessment, View Royal, Victoria, BC
Intersection: Helmcken Road and Eltham Road
Count Date: 12/13/2022
Count Day: Tuesday
Counted By: Addoz Engineering Inc.
ALL VEHICLES
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | - L | - T | - R | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum | 4-P Total | PHF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | 3 | 0 | 2 | 0 | 28 | 1 | 1 | 59 | 0 | 94 | ||
| 7:15 - 7:30 | 0 | 0 | 0 | 2 | 0 | 5 | 0 | 19 | 0 | 3 | 78 | 0 | 107 | ||
| 7:30 - 7:45 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 38 | 1 | 3 | 80 | 0 | 130 | ||
| 7:45 - 8:00 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 57 | 1 | 2 | 61 | 0 | 126 | 457 | |
| 8:00 - 8:15 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 49 | 2 | 2 | 81 | 0 | 139 | 502 | |
| 8:15 - 8:30 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 59 | 4 | 1 | 75 | 0 | 144 | 539 | |
| 8:30 - 8:45 | 0 | 0 | 0 | 2 | 0 | 6 | 0 | 78 | 2 | 0 | 72 | 0 | 160 | 569 | |
| 8:45 - 9:00 | 0 | 0 | 0 | 1 | 0 | 3 | 0 | 53 | 2 | 1 | 85 | 0 | 145 | 588 | 0.92 |
| Peak Hour | 0 | 0 | 0 | 7 | 0 | 15 | 0 | 239 | 10 | 4 | 313 | 0 | 588 | ||
| App Total | 0 | 22 | 249 | 317 | 588 | ||||||||||
| HV % | 0% | 5% | 4% | 1% | 2% |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | - L | - T | - R | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum | 4-P Total | PHF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 46 | 2 | 3 | 56 | 0 | 115 | ||
| 4:15 - 4:30 | 0 | 0 | 0 | 5 | 0 | 4 | 0 | 60 | 4 | 3 | 62 | 0 | 138 | ||
| 4:30 - 4:45 | 0 | 0 | 0 | 2 | 0 | 4 | 0 | 74 | 4 | 4 | 45 | 0 | 133 | ||
| 4:45 - 5:00 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 57 | 3 | 3 | 66 | 0 | 133 | 519 | |
| 5:00 - 5:15 | 0 | 0 | 0 | 1 | 0 | 4 | 0 | 53 | 2 | 4 | 52 | 0 | 116 | 520 | 0.94 |
| 5:15 - 5:30 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 47 | 3 | 2 | 61 | 0 | 116 | 498 | |
| 5:30 - 5:45 | 0 | 0 | 0 | 1 | 0 | 2 | 0 | 52 | 5 | 1 | 48 | 0 | 109 | 474 | |
| 5:45 - 6:00 | 0 | 0 | 0 | 2 | 0 | 0 | 0 | 33 | 2 | 2 | 49 | 0 | 88 | 429 | |
| Peak Hour | 0 | 0 | 0 | 8 | 0 | 16 | 0 | 244 | 13 | 14 | 225 | 0 | 520 | ||
| App Total | 0 | 24 | 257 | 239 | 520 | ||||||||||
| HV % | 0% | 0% | 3% | 3% | 3% |
TRUCKS, MULTI-AXLE VEHICLE, CITY BUS OR SCHOOL BUS
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | - L | - T | - R | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 |
| 7:15 - 7:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 |
| 7:30 - 7:45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 2 | 0 | 3 |
| 7:45 - 8:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 | 3 | 0 | 5 |
| 8:00 - 8:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 |
| 8:15 - 8:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 0 | 1 | 0 | 4 |
| 8:30 - 8:45 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 2 | 1 | 0 | 2 | 0 | 6 |
| 8:45 - 9:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 | 0 | 0 | 2 |
| Peak Hour | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 8 | 1 | 0 | 4 | 0 | 14 |
| App Total | 0 | 1 | 9 | 4 | 14 |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | - L | - T | - R | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 |
| 4:15 - 4:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 | 2 | 0 | 4 |
| 4:30 - 4:45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 2 | 0 | 3 |
| 4:45 - 5:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 |
| 5:00 - 5:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 0 | 1 | 0 | 4 |
| 5:15 - 5:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 |
| 5:30 - 5:45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 | 2 | 0 | 4 |
| 5:45 - 6:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 |
| Peak Hour | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 7 | 0 | 0 | 6 | 0 | 13 |
| App Total | 0 | 0 | 7 | 6 | 13 |
PASSENGER CARS, MINI-VANS, TWO AXLE TRUCKS, MOTOR CYCLES AND STATION WAGONS
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | - L | - T | - R | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | 3 | 0 | 2 | 0 | 27 | 1 | 1 | 58 | 0 | 92 |
| 7:15 - 7:30 | 0 | 0 | 0 | 2 | 0 | 5 | 0 | 19 | 0 | 3 | 77 | 0 | 106 |
| 7:30 - 7:45 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 37 | 1 | 3 | 78 | 0 | 127 |
| 7:45 - 8:00 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 55 | 1 | 2 | 58 | 0 | 121 |
| 8:00 - 8:15 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 48 | 2 | 2 | 80 | 0 | 137 |
| 8:15 - 8:30 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 56 | 4 | 1 | 74 | 0 | 140 |
| 8:30 - 8:45 | 0 | 0 | 0 | 2 | 0 | 5 | 0 | 76 | 1 | 0 | 70 | 0 | 154 |
| 8:45 - 9:00 | 0 | 0 | 0 | 1 | 0 | 3 | 0 | 51 | 2 | 1 | 85 | 0 | 143 |
| Peak Hour | 0 | 0 | 0 | 7 | 0 | 14 | 0 | 231 | 9 | 4 | 309 | 0 | 574 |
| App Total | 0 | 21 | 240 | 313 | 574 |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
Page 263–266
| Time Period | - L | - T | - R | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 45 | 2 | 3 | 55 | 0 | 113 |
| 4:15 - 4:30 | 0 | 0 | 0 | 5 | 0 | 4 | 0 | 58 | 4 | 3 | 60 | 0 | 134 |
| 4:30 - 4:45 | 0 | 0 | 0 | 2 | 0 | 4 | 0 | 73 | 4 | 4 | 43 | 0 | 130 |
| 4:45 - 5:00 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 56 | 3 | 3 | 65 | 0 | 131 |
| 5:00 - 5:15 | 0 | 0 | 0 | 1 | 0 | 4 | 0 | 50 | 2 | 4 | 51 | 0 | 112 |
| 5:15 - 5:30 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 46 | 3 | 2 | 60 | 0 | 114 |
| 5:30 - 5:45 | 0 | 0 | 0 | 1 | 0 | 2 | 0 | 50 | 5 | 1 | 46 | 0 | 105 |
| 5:45 - 6:00 | 0 | 0 | 0 | 2 | 0 | 0 | 0 | 32 | 2 | 2 | 48 | 0 | 86 |
| Peak Hour | 0 | 0 | 0 | 8 | 0 | 16 | 0 | 237 | 13 | 14 | 219 | 0 | 507 |
| App Total | 0 | 24 | 250 | 233 | 507 |
BICYCLE AND PEDESTRIAN TRAFFIC
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | PED S. Side | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | PED N. Side | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | PED E. Side | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | PED W. Side |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | - | |||||||||
| 7:15 - 7:30 | 0 | 0 | 1 | - | |||||||||
| 7:30 - 7:45 | 0 | 2 | 0 | 1 | 2 | - | |||||||
| 7:45 - 8:00 | 0 | 2 | 1 | 2 | - | ||||||||
| 8:00 - 8:15 | 0 | 0 | 3 | - | |||||||||
| 8:15 - 8:30 | 0 | 3 | 2 | - | |||||||||
| 8:30 - 8:45 | 0 | 0 | 3 | - | |||||||||
| 8:45 - 9:00 | 0 | 1 | 1 | 1 | - | ||||||||
| Peak Hour | 0 | 0 | 0 | 1 | 4 | 0 | 0 | 0 | 9 | 0 | 0 | 0 | 0 |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | PED S. Side | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | PED N. Side | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | PED E. Side | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | PED W. Side |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | - | |||||||||
| 4:15 - 4:30 | 0 | 0 | 3 | 1 | - | ||||||||
| 4:30 - 4:45 | 0 | 0 | 1 | - | |||||||||
| 4:45 - 5:00 | 0 | 0 | 2 | - | |||||||||
| 5:00 - 5:15 | 0 | 0 | 1 | 10 | - | ||||||||
| 5:15 - 5:30 | 0 | 0 | 0 | - | |||||||||
| 5:30 - 5:45 | 0 | 0 | 3 | 3 | 1 | - | |||||||
| 5:45 - 6:00 | 0 | 0 | 0 | - | |||||||||
| Peak Hour | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 16 | 0 | 1 | 0 | 0 |
Page 263–266
Document Images
(109)
Header section showing project title and intersection metadata
AM Peak Hour Traffic Count table for all vehicles at Helmcken Road and Eltham Road
PM Peak Hour Traffic Count table for all vehicles at Helmcken Road and Eltham Road
Header section for Page 2 data sheet

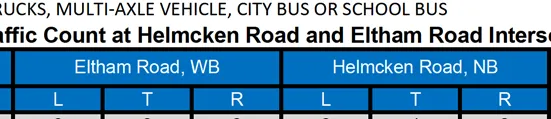

AM Peak Hour Traffic Count table for heavy vehicles at Helmcken Road and Eltham Road
PM Peak Hour Traffic Count table for heavy vehicles at Helmcken Road and Eltham Road
Header section for Page 3 data sheet

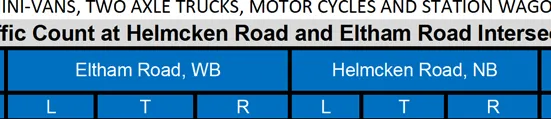

AM Peak Hour Traffic Count table for passenger vehicles at Helmcken Road and Eltham Road
PM Peak Hour Traffic Count table for passenger vehicles at Helmcken Road and Eltham Road
Header section for Page 4 data sheet

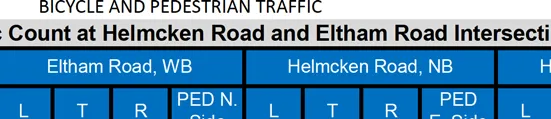

AM Peak Hour Traffic Count table for bicycle and pedestrian traffic at Helmcken Road and Eltham Road
PM Peak Hour Traffic Count table for bicycle and pedestrian traffic at Helmcken Road and Eltham Road
