Attachment 10 - Color Sample Board, Exterior Materials, and Lighting
Detailed specifications for exterior materials, color schemes (Benjamin Moore), and lighting fixtures for the West Park development.
Color Sample Board
(all colors Benjamin Moore)

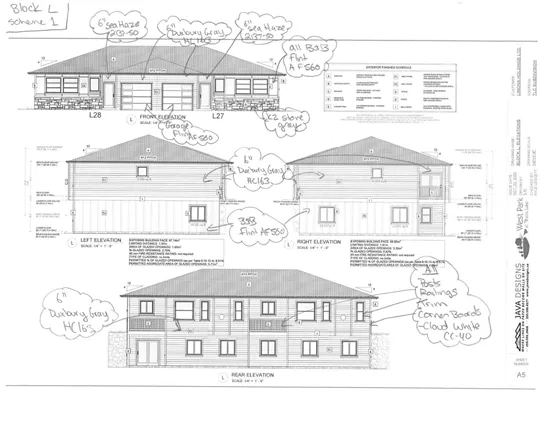

Scheme 1-Blocks L
Main Body-Sea Haze 2137-50, Duxbury Gray HC-163, Flint AF-560 Trim-Cloud White CC-40 Fascia-Cloud White CC-40 Garage Door-Flint AF-560 Front Door-Cloud White CC-40

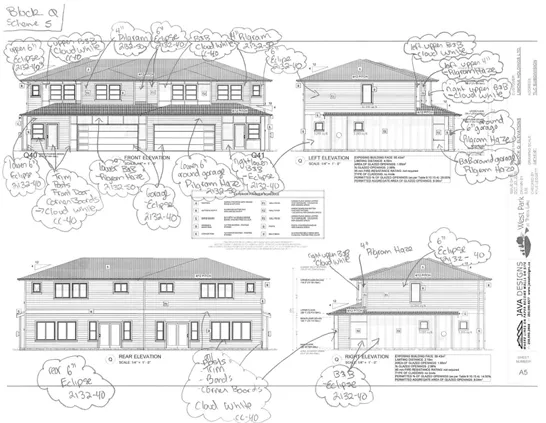

Scheme 5-Blocks M, Q
Main Body- Pilgrim Haze 2132-50, Eclipse 2132-40 Trim-Cloud White CC-40 Fascia-Cloud White CC-40 Garage Door-Eclipse 2132-40 Front Door-Cloud White CC-40
Scheme 6-Blocks N
Main Body- Carolina Gull 2138-40, Boothbay Gray HC 165, Puritan Gray HC 164 Trim-Cloud White CC-40 Fascia-Cloud White CC-40 Garage Door-Boothbay Gray HC 165 Front Door-Cloud White CC-40
Scheme 7-Blocks O, P
Main Body- Chelsea Gray HC 168, Kendall Charcoal HC 166, Storm AF 700 Trim-Cloud White CC-40 Fascia-Cloud White CC-40 Garage Door-Storm AF 700 Front Door-Cloud White CC-40
Schedule
| Quantity | Latin Name | Common Name | Category | Scheduled Size | Notes |
|---|---|---|---|---|---|
| 4 | Acer rubrum 'October Glory' | October glory red maple | Tree | #15 pot | Branching above 1.3m |
| 3 | Cornus 'Venus' | Venus dogwood | Tree | #15 pot | Branching above 1.3m |
Exterior Materials
- Roof Shingles: Owen’s Corning, Duration, Onyx Black
- Soffits, Gutters & Downspouts: Aluminum, Kaycan, Black
- Flashings: Black
- Fascia Boards: Combed Spruce, Wood Tone
- Belly Bands: Combed Spruce, 2x12
- Window Trim: Combed Spruce, Wood Tone, 1x4
- Corner Boards: Combed Spruce, Wood Tone 1x4
- Hardi Plank: Fibre Cement Plank, James Hardie (4 and 6 inch exposure)
- Board and Batton: Fibre Cement Plank, James Hardie
- Garage Doors (Painted): Steel, Northwest Doors
- Front Posts: Combed Spruce, Wrapped
- Rear Patio: Exposed Concrete, ICL, Gray

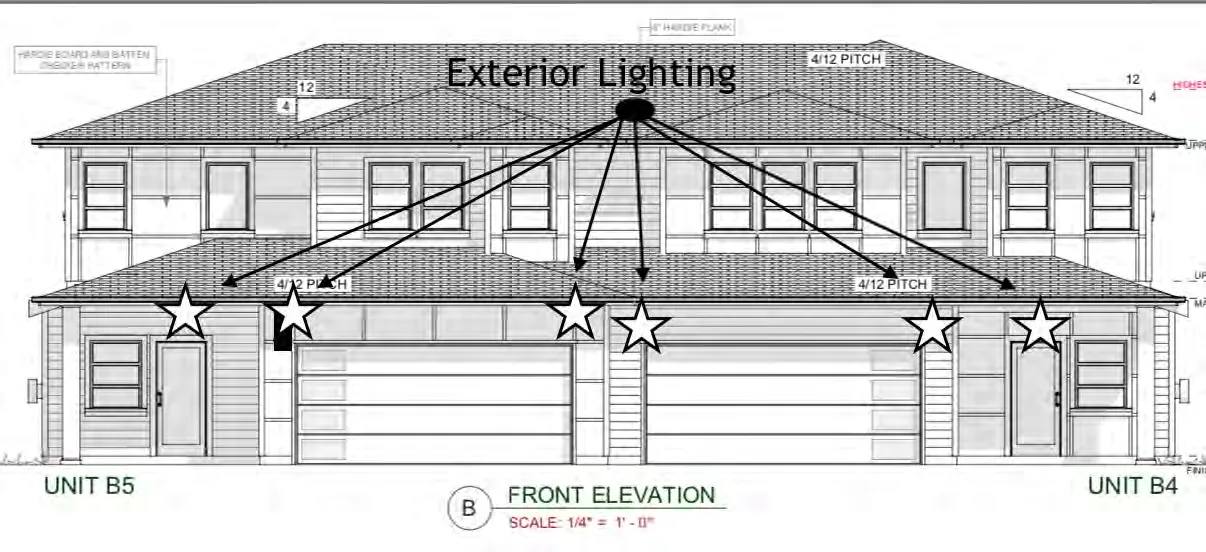

Exterior Lighting
Placed around front door and garage
WEST Outdoor Light
- CAN IOL283-BK
- Black
- Outdoor 1 Light
- Watermark Glass
- 100W Type A Bulb
- Down Light
Example
