Parking Lot Site Plan - 287 Pallisier Avenue (Victory Chapel)

March 9, 2021Page 5532 sections

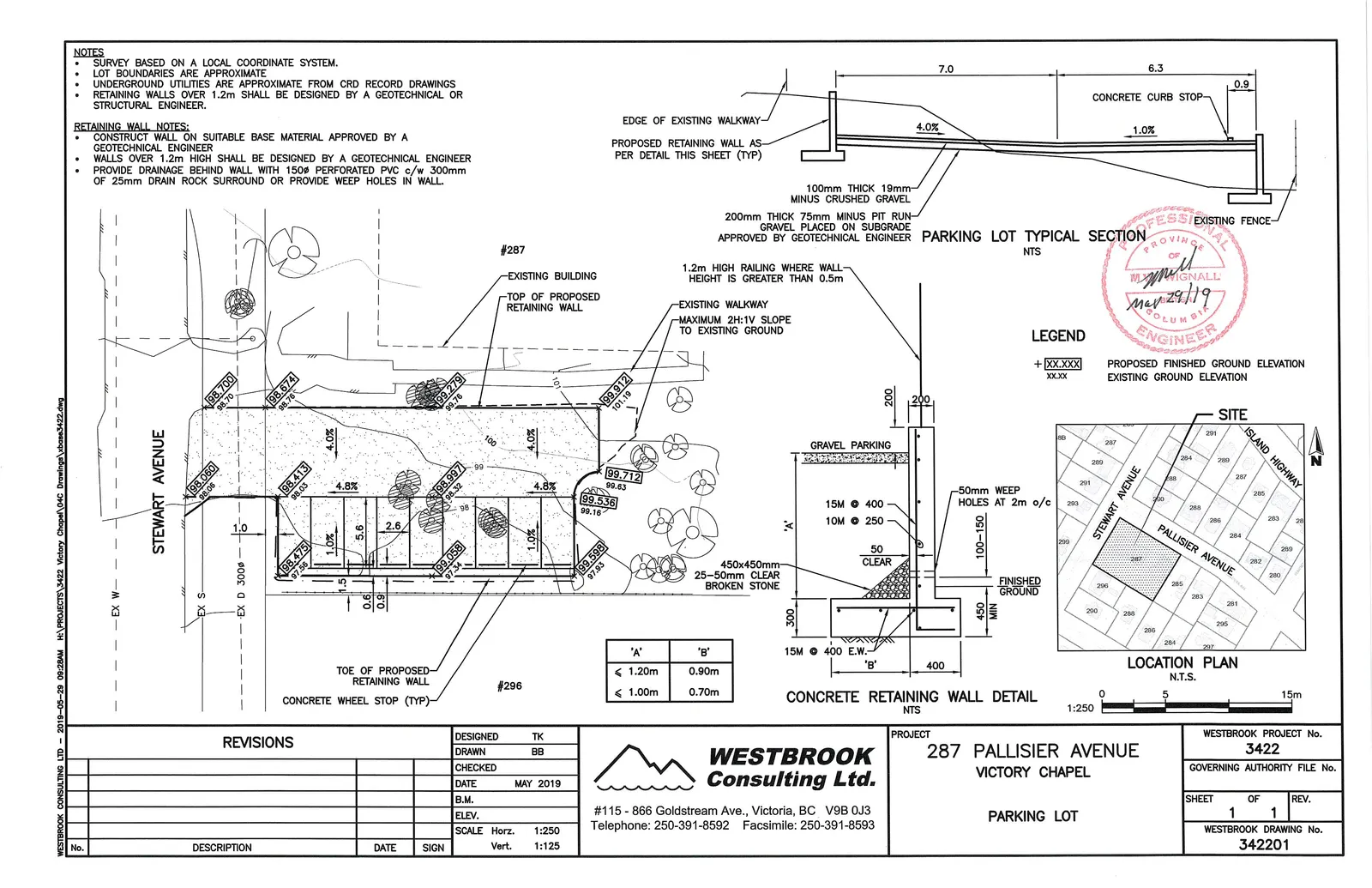

Engineering drawing showing the proposed parking lot layout and retaining walls for the Victory Chapel site.

May 2019Westbrook Consulting Ltd.Project No. 3422

NOTES

  • SURVEY BASED ON A LOCAL COORDINATE SYSTEM.
  • LOT BOUNDARIES ARE APPROXIMATE.
  • UNDERGROUND UTILITIES ARE APPROXIMATE FROM CRD RECORD DRAWINGS.
  • RETAINING WALLS OVER 1.2m SHALL BE DESIGNED BY A GEOTECHNICAL OR STRUCTURAL ENGINEER.
Page 553

RETAINING WALL NOTES:

  • CONSTRUCT WALL ON SUITABLE BASE MATERIAL APPROVED BY A GEOTECHNICAL ENGINEER.
  • WALLS OVER 1.2m HIGH SHALL BE DESIGNED BY A GEOTECHNICAL ENGINEER.
  • PROVIDE DRAINAGE BEHIND WALL WITH 150Ø PERFORATED PVC c/w 300mm OF 25mm DRAIN ROCK SURROUND OR PROVIDE WEEP HOLES IN WALL.

PARKING LOT TYPICAL SECTION

(NTS)

Parking lot typical section diagram showing layers of 100mm thick 19mm- minus crushed gravel and 200mm thick 75mm minus pit run gravel, with 4.0% and 1.0% slopes, and concrete curb stop details.
Parking lot typical section diagram showing layers of 100mm thick 19mm- minus crushed gravel and 200mm thick 75mm minus pit run gravel, with 4.0% and 1.0% slopes, and concrete curb stop details.

SITE PLAN

LEGEND

    • XX.XXX: PROPOSED FINISHED GROUND ELEVATION
  • XX.XX: EXISTING GROUND ELEVATION

CONCRETE RETAINING WALL DETAIL

(NTS)

'A' 'B'
< 1.20m 0.90m
< 1.00m 0.70m

LOCATION PLAN

(N.T.S.)

REVISIONS

No. DESCRIPTION DATE SIGN

PROJECT INFORMATION

WESTBROOK Consulting Ltd. #115 - 866 Goldstream Ave., Victoria, BC V9B 0J3 Telephone: 250-391-8592 Facsimile: 250-391-8593

PROJECT: 287 PALLISIER AVENUE VICTORY CHAPEL

PARKING LOT

DESIGNED TK
DRAWN BB
CHECKED
DATE MAY 2019
B.M.
ELEV.
SCALE Horz. 1:250
SCALE Vert. 1:125

WESTBROOK PROJECT No. 3422 GOVERNING AUTHORITY FILE No.

SHEET OF REV.
1 1 1

WESTBROOK DRAWING No. 342201

Page 553
