Committee of the Whole/Documents/Civil Engineering Site Plan and Typical Section - 2379 Lund Road
Appendix

Civil Engineering Site Plan and Typical Section - 2379 Lund Road

March 9, 2021Pages 628–6292 sections

Engineering drawings showing the site plan, grading, and typical cross-sections for the proposed townhouse development.

February 9, 20212379 Lund RoadAssociated Engineering

FIGURE 1-1: SITE PLAN - MARTINO TOWNHOME SITE

Project Information

  • AE Project No.: 2021-2101-00
  • Scale: 1:250
  • Approved: DD
  • Date: 2021FEB09
  • Rev: B
  • Description: ISSUED FOR DEVELOPMENT PERMIT
  • Project Name: ASH MOUNTAIN CONSTRUCTION
  • Discipline: CIVIL
Detailed site plan map for Martino Townhome Site showing building footprints for Units 1 through 6, visitor parking stalls 1-4, proposed driveway/road with stationing from 2+000 to 2+062.730, grading contours, and site boundaries.
Detailed site plan map for Martino Townhome Site showing building footprints for Units 1 through 6, visitor parking stalls 1-4, proposed driveway/road with stationing from 2+000 to 2+062.730, grading contours, and site boundaries.

Legend

  • Existing Ground: 47.92
  • Finished Grade: 48.244
  • Proposed Subgrade: 47.66
  • M: MAIN LEVEL WALKOUT
  • U: UPPER LEVEL WALKOUT
  • G = 48.09: PROPOSED GARAGE ELEVATION

Site Notes

  • Proposed Garage Elevations (G):
    • Units 1 & 2: G = 47.12
    • Unit 3: G = 47.18
    • Unit 4: G = 48.09
    • Units 5 & 6: G = 49.52
  • Retaining Wall: RETAINING WALL (OR BOULDER STACK) - HEIGHT VARIES 0.5 TO 1.2 m
  • Fencing: BLACK CHAINLINK FENCE FOR CASEY LANE TOWNHOMES

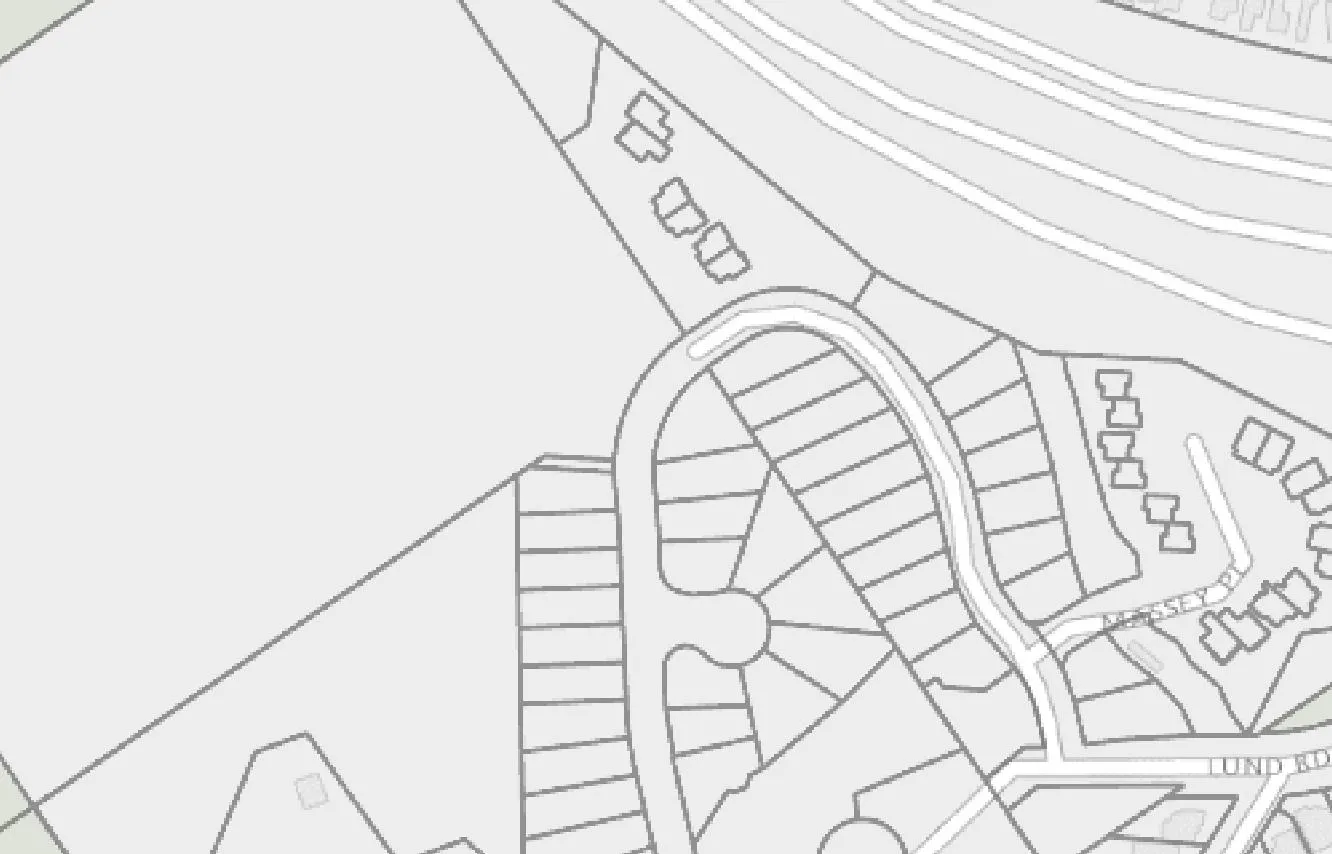

Location Plan

Page 628–629

FIGURE 1-2: TYPICAL SECTION A-A - MARTINO TOWNHOME SITE

Project Information

  • AE Project No.: 2021-2101-00
  • Scale: H 1:250 V 1:125
  • Approved: DD
  • Date: 2021FEB09
  • Rev: B
  • Description: ISSUED FOR DEVELOPMENT PERMIT
  • Project Name: ASH MOUNTAIN CONSTRUCTION
  • Discipline: CIVIL
Engineering profile diagram titled "Typical Section A-A" plotting elevation in meters against road stationing from 2+000 to 2+070, showing existing ground, finished ground, and subgrade profiles.
Engineering profile diagram titled "Typical Section A-A" plotting elevation in meters against road stationing from 2+000 to 2+070, showing existing ground, finished ground, and subgrade profiles.

Profile Details

  • CUT 1/2 : 1 TYP
  • EXISTING GROUND
  • SUBGRADE TYP
  • FINISHED GROUND TYP
  • PROPERTY LINE
  • FENCE - CASEY LN TOWNHOMES

Profile Elevations Table

Station PROF. ELEV. (Row 1) PROF. ELEV. (Row 2) PROF. ELEV. (Row 3)
2+000 57.32 57.317 0.00
2+010 54.92 54.921 0.00
2+020 50.71 50.708 0.00
2+030 47.81 47.813 0.00
2+040 46.49 46.495 0.00
2+050 45.83 45.828 0.00
2+060 45.04 45.040 0.00
Page 628–629
