Technical standards for the 'Share the Road' (WC-19) warning sign assembly.

Source: TAC Guidelines, 2nd Edition, 2012

Attachment B

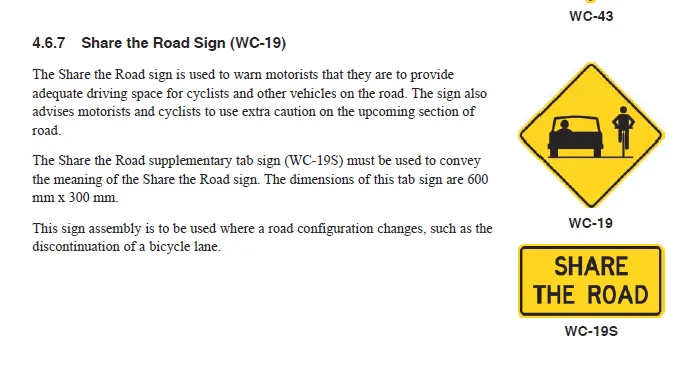

4.6.7 Share the Road Sign (WC-19)

Technical diagrams for road signs WC-43, WC-19 showing a car and cyclist symbol, and WC-19S with the text "SHARE THE ROAD"
Technical diagrams for road signs WC-43, WC-19 showing a car and cyclist symbol, and WC-19S with the text "SHARE THE ROAD"

The Share the Road sign is used to warn motorists that they are to provide adequate driving space for cyclists and other vehicles on the road. The sign also advises motorists and cyclists to use extra caution on the upcoming section of road.

The Share the Road supplementary tab sign (WC-19S) must be used to convey the meaning of the Share the Road sign. The dimensions of this tab sign are 600 mm x 300 mm.

This sign assembly is to be used where a road configuration changes, such as the discontinuation of a bicycle lane.

Source: TAC Bikeway Traffic Control Guidelines 2nd Edition, 2012

Page 129
