Landscape Plan for 1 Midwood Road Subdivision

Page 1: Landscape Plan

Project Information

  • Address: 1 Midwood Road Subdivision
  • Title: Landscape Plan
  • Scale: As noted (1:100 scale bar shown)
  • Date: September 15, 2021
  • Sheet No: L1
  • Client: WHITE WOLF HOMES

Site Overview The plan details the landscaping for two adjacent lots at the corner of Seabird Place and Midwood Road.

Northwest corner of the site plan showing the intersection of Seabird Place and Midwood Road
Northwest corner of the site plan showing the intersection of Seabird Place and Midwood Road
Northeast corner of the site plan along Midwood Road
Northeast corner of the site plan along Midwood Road

Lot Specification Table

LOT 1 LOT 2
DPA = ~250m2 DPA = ~300m2
155m2 native plantings 205m2 native plantings
95m2 lawn 95m2 lawn
Retain existing shoreline access Retain existing driveway and access stairs

Landscape Design Details

Overview of the central garden area shared between Proposed Lot 1 and Proposed Lot 2
Overview of the central garden area shared between Proposed Lot 1 and Proposed Lot 2

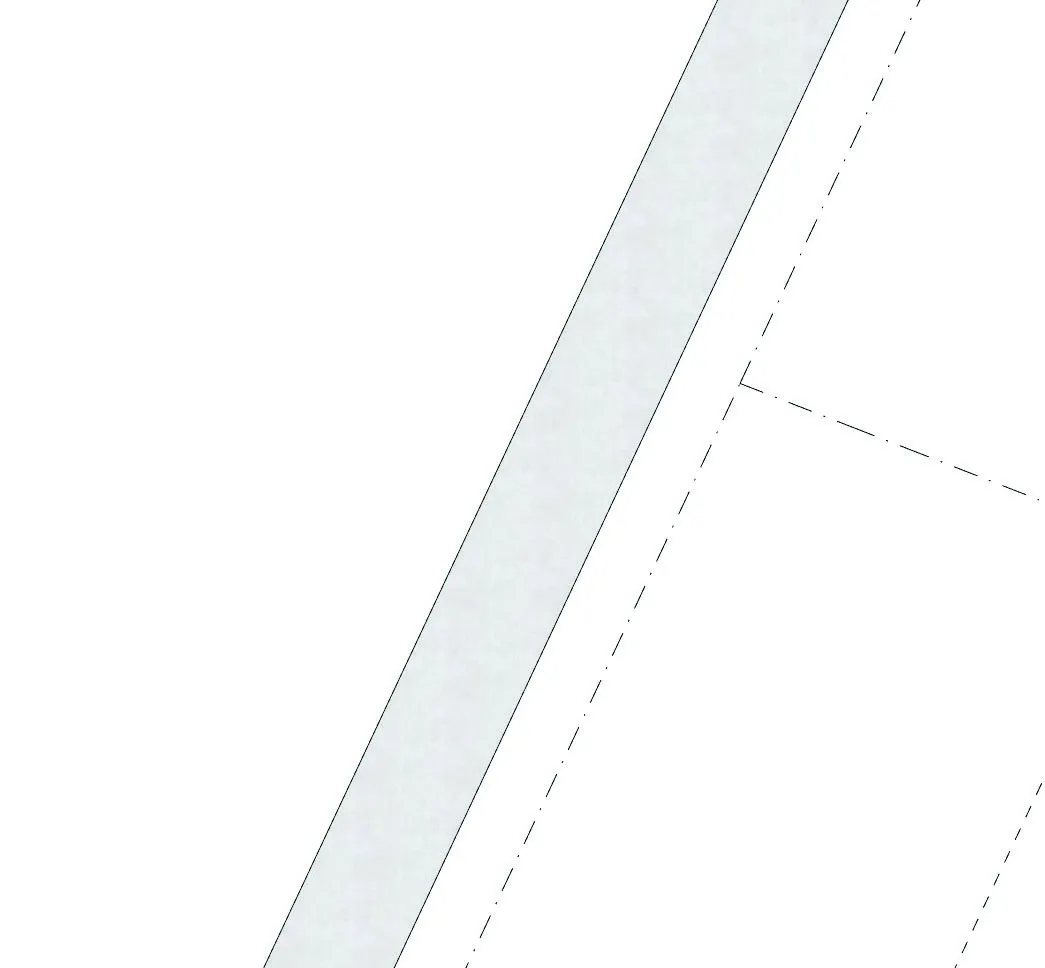

Detail of planting bed in the northwest corner of Lot 2
Detail of planting bed in the northwest corner of Lot 2
Detail of the northeast corner showing the stormdrain connection area
Detail of the northeast corner showing the stormdrain connection area

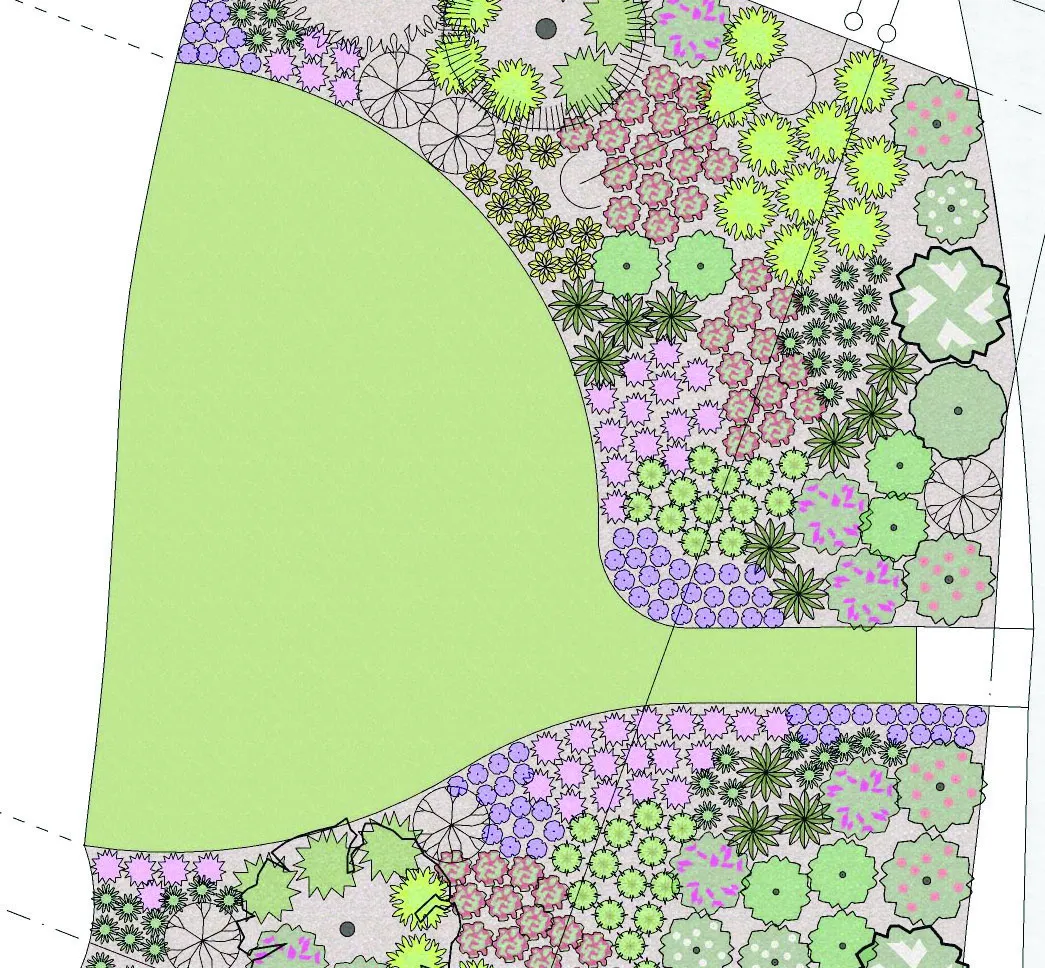

Planting plan detail for the central portion of Lot 2 adjacent to the lawn
Planting plan detail for the central portion of Lot 2 adjacent to the lawn
Detail of the eastern property boundary plantings on Lot 2
Detail of the eastern property boundary plantings on Lot 2
Detail of the southwest property boundary of Lot 1 along Seabird Place
Detail of the southwest property boundary of Lot 1 along Seabird Place
Planting detail for the southern boundary of Lot 1
Planting detail for the southern boundary of Lot 1
Detail showing the property line between Lot 1 and Lot 2 and associated plantings
Detail showing the property line between Lot 1 and Lot 2 and associated plantings
Detail of groundcover and shrub interface near the Lot 1 lawn area
Detail of groundcover and shrub interface near the Lot 1 lawn area
Detail of the southern garden area on Lot 2
Detail of the southern garden area on Lot 2
Southeast corner detail of the overall landscape plan
Southeast corner detail of the overall landscape plan

Planting Legend

Planting legend symbols for trees and large shrubs
Planting legend symbols for trees and large shrubs
Planting legend symbols for smaller shrubs, groundcovers, and perennials
Planting legend symbols for smaller shrubs, groundcovers, and perennials
* SALIX SCOULERIANA - SCOULER'S WILLOW * PINUS CONTORTA VAR. CONTORTA - SHORE PINE * MALUS FUSCA - PACIFIC CRABAPPLE * ARBUTUS MENZIESII - ARBUTUS * AMELANCHIER ALNIFOLIA - SASKATOON * HOLODISCUS DISCOLOR - OCEAN SPRAY * RUBUS PARVIFLORUS - THIMBLEBERRY * ROSA NUTKANA - NOOTKA ROSE * SAMBUCUS RACEMOSA - RED ELDERBERRY * RIBES SANGUINEUM - RED FLOWERING CURRANT * CORNUS STOLONIFERA - RED-OSIER DOGWOOD * ARCTOSTAPHYLOS UVA-URSI - KINNICKINNICK * POLYSTICHUM MUNITUM - SWORD FERN * CLINOPODIUM DOUGLASII - YERBA BUENA * FRAGARIA CHILOENSIS - COASTAL STRAWBERRY * POTENTILLA ANSERINA - SILVERWEED * PLECTRITIS CONGESTA - SEA BLUSH * ACHILLEA MILLEFOLIUM - YARROW * LUPINUS LITTORALIS - SEASHORE LUPINE * SEDUM SPATHULIFOLIUM - BROAD-LEAVED STONECROP * LAWN (Green fill) * MULCH (Grey texture)

Plant Species Gallery

  • SALIX SCOULERIANA - SCOULER'S WILLOW: [Image 5]
  • PINUS CONTORTA VAR. CONTORTA - SHORE PINE: [Image 8]
  • MALUS FUSCA - PACIFIC CRABAPPLE: [Image 7]
  • ARBUTUS MENZIESII - ARBUTUS: [Image 6]
  • AMELANCHIER ALNIFOLIA - SASKATOON: [Image 11]
  • HOLODISCUS DISCOLOR - OCEAN SPRAY: [Image 12]
  • RUBUS PARVIFLORUS - THIMBLEBERRY: [Image 9]
  • ROSA NUTKANA - NOOTKA ROSE: [Image 10]
  • SAMBUCUS RACEMOSA - RED ELDERBERRY: [Image 14]
  • RIBES SANGUINEUM - RED FLOWERING CURRANT: [Image 13]
  • CORNUS STOLONIFERA - RED-OSIER DOGWOOD: [Image 15]
  • SEDUM SPATHULIFOLIUM: [Image 16]
  • LUPINUS LITTORALIS - SEASHORE LUPINE: [Image 22]
  • ACHILLEA MILLEFOLIUM - YARROW: [Image 21]
  • PLECTRITIS CONGESTA - SEA BLUSH: [Image 24]
  • POTENTILLA ANSERINA - SILVERWEED: [Image 23]
  • FRAGARIA CHILOENSIS - COASTAL STRAWBERRY: [Image 17]
  • CLINOPODIUM DOUGLASII - YERBA BUENA: [Image 18]
  • POLYSTICHUM MUNITUM - SWORD FERN: [Image 19]
  • ARCTOSTAPHYLOS UVA-URSI - KINNICKINNICK: [Image 20]

Page 2: Landscape Plan - Measurements and Quantity

Project Information

  • Address: 1 Midwood Road Subdivision
  • Title: Landscape Plan - Measurements and Quantity
  • Scale: As noted
  • Date: September 15, 2021
  • Sheet No: L2
  • Client: WHITE WOLF HOMES

Quantity Table

CODE QTY LOT 1 QTY LOT 2 BOTANIC AND COMMON NAME SPECIFICATION
TREES
1 1 2 SALIX SCOULERIANA - SCOULER'S WILLOW 5 gallon
1 1 1 PINUS CONTORTA VAR. CONTORTA - SHORE PINE 5 gallon
2 1 0 MALUS FUSCA - PACIFIC CRABAPPLE 5 gallon
3 0 1 ARBUTUS MENZIESII - ARBUTUS 5 gallon
TOTAL 3 4
SHRUBS
1 3 2 AMELANCHIER ALNIFOLIA - SASKATOON 2 gallon
2 2 1 HOLODISCUS DISCOLOR - OCEAN SPRAY 2 gallon
3 3 4 RUBUS PARVIFLORUS - THIMBLEBERRY 2 gallon
4 8 9 ROSA NUTKANA - NOOTKA ROSE 2 gallon
5 6 9 SAMBUCUS RACEMOSA - RED ELDERBERRY 2 gallon
6 0 2 RIBES SANGUINEUM - RED FLOWERING CURRANT 2 gallon
7 2 5 CORNUS STOLONIFERA - RED-OSIER DOGWOOD 2 gallon
TOTAL 24 32
GROUNDCOVERS AND PERENNIALS
21 10 ARCTOSTAPHYLOS UVA-URSI - KINNICKINNICK 4" pot
10 12 POLYSTICHUM MUNITUM - SWORD FERN 1 gallon
11 22 CLINOPODIUM DOUGLASII - YERBA BUENA 4" pot
11 41 FRAGARIA CHILOENSIS - COASTAL STRAWBERRY 4" pot
34 11 POTENTILLA ANSERINA - SILVERWEED 4" pot
11 47 PLECTRITIS CONGESTA - SEA BLUSH 4" pot
25 36 ACHILLEA MILLEFOLIUM - YARROW 4" pot
16 73 LUPINUS LITTORALIS - SEASHORE LUPINE 1 gallon
24 27 SEDUM SPATHULIFOLIUM - BROAD-LEAVED STONECROP 4" pot
TOTAL 163 279
MULCH
155* 205* m2 Non-cypress, Dark Brown
GRASS
95* 95* m2 On leveled, fine grade topsoil surface
TOTAL 250* 300* m2 *ESTIMATED QTY, FIELD VERIFY

Planting Notes

  1. All landscape and construction to meet or exceed the BCSLA/BCNTA LANDSCAPE STANDARD, Latest edition.
  2. All trees to be retained to be protected by arborist during construction/installation.
  3. Minimum soil depths: 30cm in Perennials / Ground cover areas; 45cm in shrub areas.
  4. Planted areas to be mulched with 10cm composted mulch.
  5. Irrigation at the direction of the Landscape Architect or Contractor or,
    • Years 1 and 2 - watering minimum 1/week during the growing season (e.g. May 1-Sep 30, water-dependent), 2/week when temperatures are over 28 degrees C or plants are wilting.
    • Year 3 - Water as needed to establish and wean plants off irrigation.
  6. Invasive species removal a minimum of 4 times/growing season for a minimum of 3 growing seasons to control invasive species in the DPA and to prevent planted areas from becoming re-invaded by non-native, invasive species.
  7. Substitutions and layout changes must meet the Development permit Guidelines and be approved by the RPBio.
