Architectural Floor Plans - 1950 Watkiss Way

June 14, 2016Pages 173–1764 sections

Detailed drawings of the commercial parking, main floor, second floor, and third floor layouts.

2 APPROVAL OF AGENDA
Commercial Parking Floor Plan (A1.0)Second Floor Plan (A1.2)

Commercial Parking Floor Plan (A1.0)

Project: 1950 Watkiss Way, View Royal BC
Architect: D-Architecture (8377 Icarus Drive, Nanaimo, BC V9V 1N4)
Client: Denfor Investments Inc.
Date: April 25th 2016
Project No: 3639
Scale: 1/8" = 1'-0"

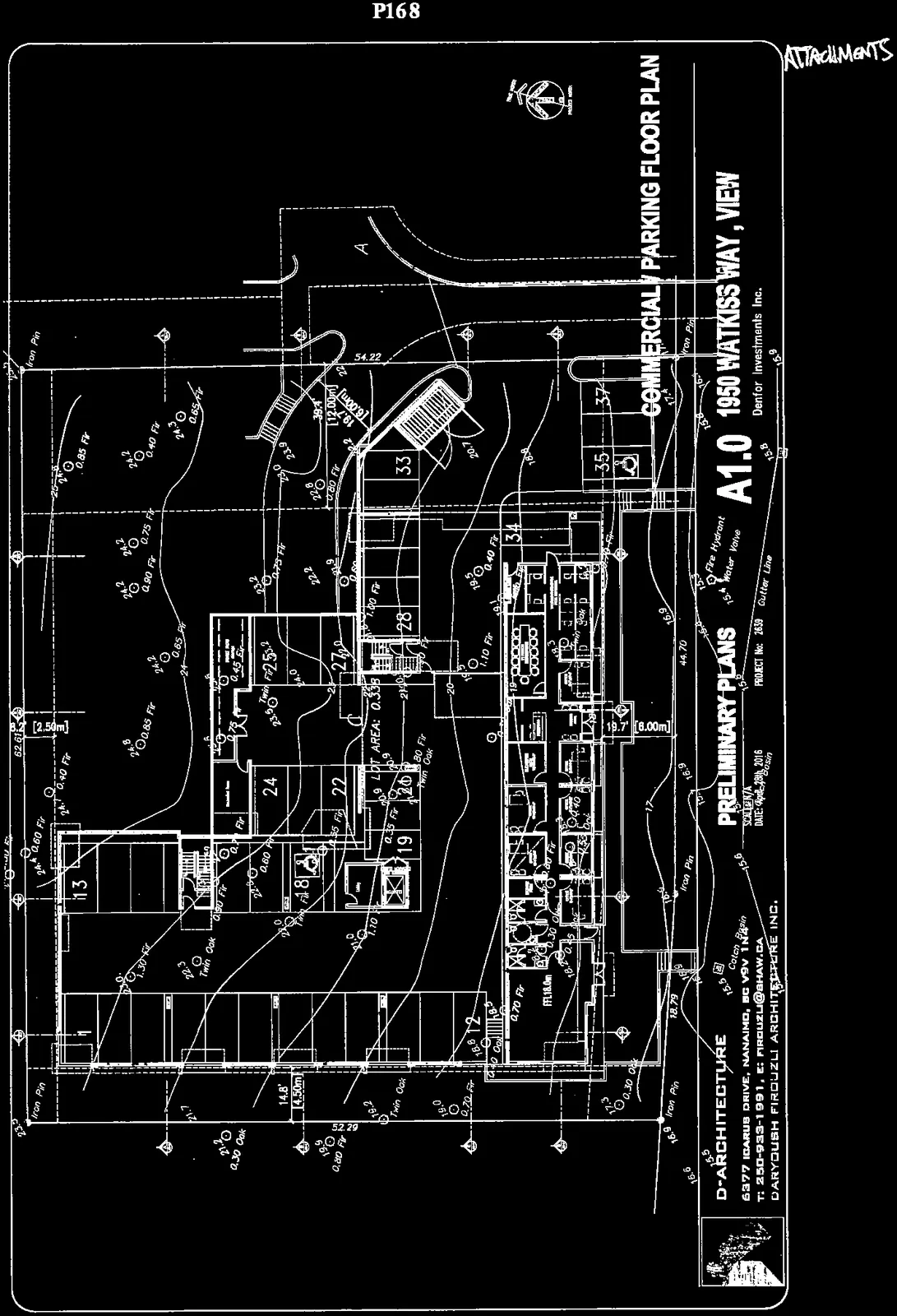

Preliminary Plans - Commercial Parking Floor Plan for 1950 Watkiss Way showing site contours ranging from 15.6 to 25.1, parking layout with stalls numbered up to 37, and locations of existing vegetation including Twin Oak and various Fir trees.
Preliminary Plans - Commercial Parking Floor Plan for 1950 Watkiss Way showing site contours ranging from 15.6 to 25.1, parking layout with stalls numbered up to 37, and locations of existing vegetation including Twin Oak and various Fir trees.

Site Details

  • Lot Area: 0.338
  • Finished Floor Level (FFL): 18.0m
  • Parking Stalls: Stalls 1-2, 12-13, 18-19, 22, 24, 25-26, 28, 33-35, and 37 are indicated.
Page 173–176

Main Floor Plan (A1.1)

Project: 1950 Watkiss Way, View Royal BC
Architect: D-Architecture
Client: Denfor Investments Inc.
Date: April 25th 2016
Project No: 3639
Scale: 1/8" = 1'-0"
Attachment: Attachment 6

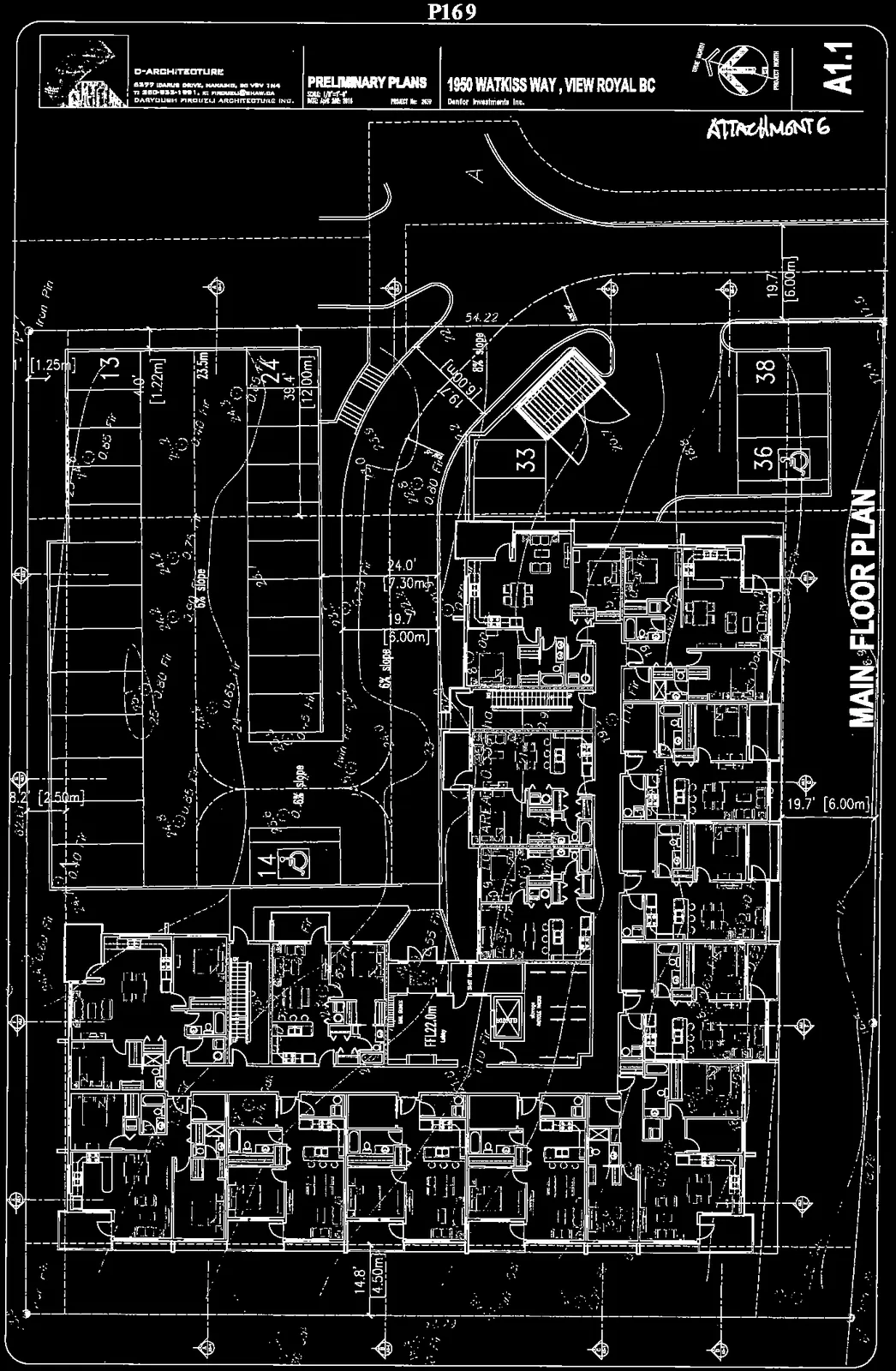

Preliminary Plans - Main Floor Plan for 1950 Watkiss Way showing the interior residential layout, common areas, and exterior parking/sloped driveway areas.
Preliminary Plans - Main Floor Plan for 1950 Watkiss Way showing the interior residential layout, common areas, and exterior parking/sloped driveway areas.

Floor Details

  • Finished Floor Level (FFL): 22.0m
  • Driveway Slopes: Indicated as 6% slope and 8% slope.
  • Dimensions: Site setbacks/dimensions include 19.7' [6.00m], 14.8' [4.50m], and 24.0' [7.30m].
  • Parking Stalls: Exterior stalls 13, 14, 24, 33, 36, and 38 are shown adjacent to the main floor footprint.
Page 173–176

Second Floor Plan (A1.2)

Project: 1950 Watkiss Way, View Royal BC
Architect: D-Architecture
Client: Denfor Investments Inc.
Date: April 25th 2016
Project No: 3639
Scale: 1/8" = 1'-0"
Attachment: Attachment 7

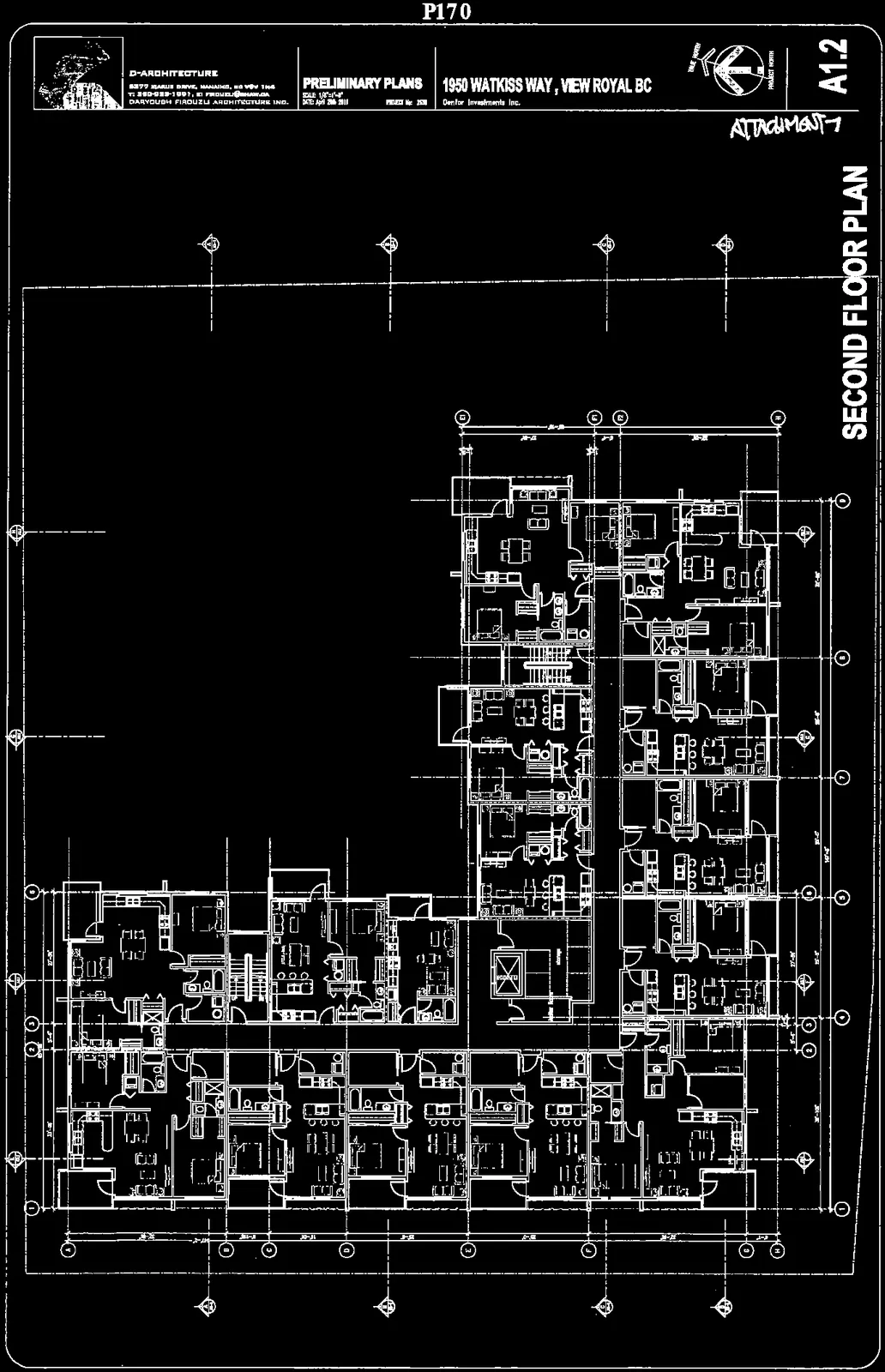

Preliminary Plans - Second Floor Plan for 1950 Watkiss Way showing a multi-unit residential floor layout with individual suites, balconies, and internal corridors.
Preliminary Plans - Second Floor Plan for 1950 Watkiss Way showing a multi-unit residential floor layout with individual suites, balconies, and internal corridors.
Page 173–176

Third Floor Plan (A1.3)

Project: 1950 Watkiss Way, View Royal BC
Architect: D-Architecture
Client: Denfor Investments Inc.
Date: April 25th 2016
Project No: 3639
Scale: 1/8" = 1'-0"
Attachment: Attachment 8

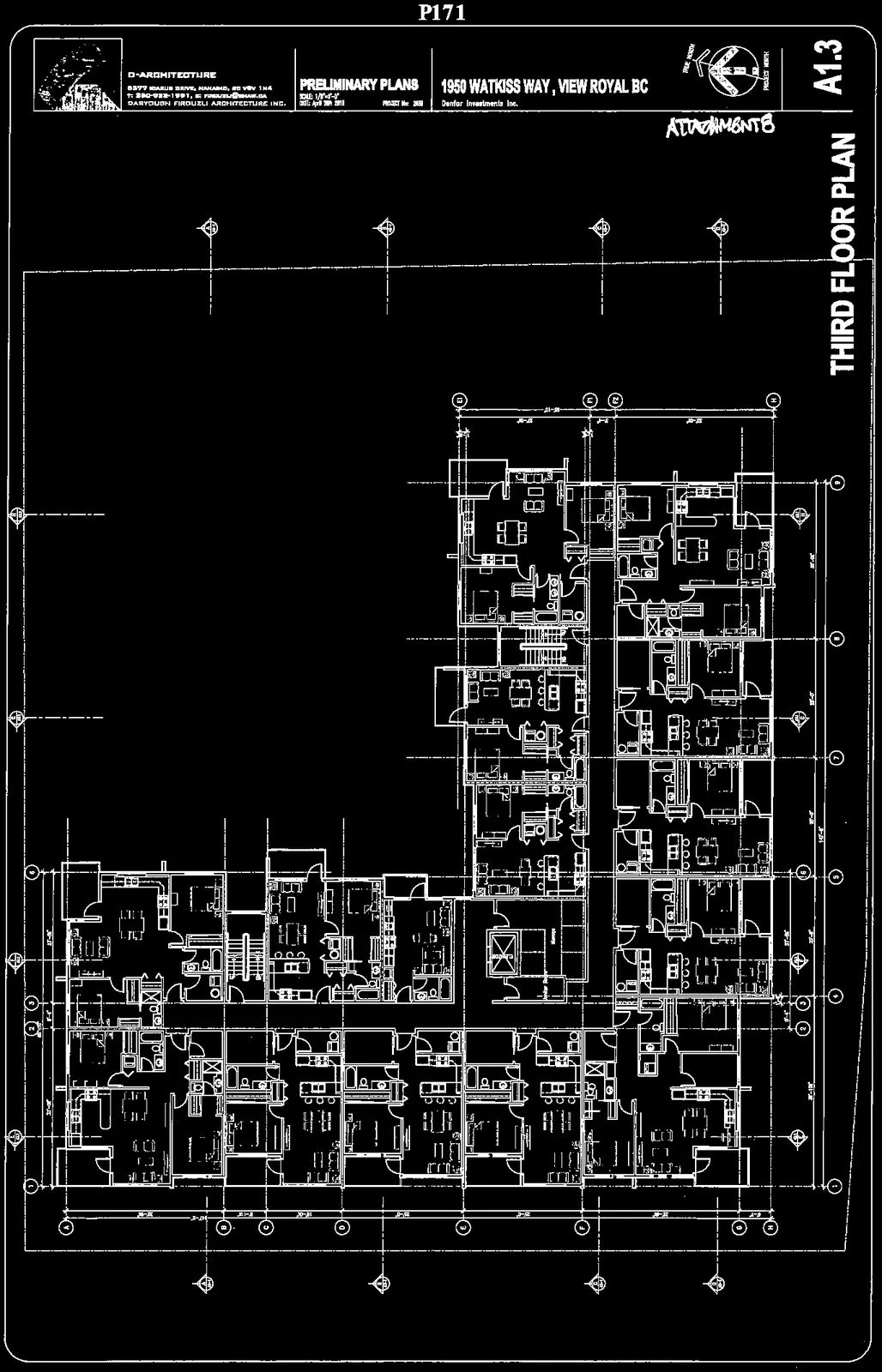

Preliminary Plans - Third Floor Plan for 1950 Watkiss Way showing the top floor residential layout consisting of multiple suites and central circulation areas.
Preliminary Plans - Third Floor Plan for 1950 Watkiss Way showing the top floor residential layout consisting of multiple suites and central circulation areas.
Page 173–176

Document Images

(4)
Document image
Document image
Document image
Document image
