Committee of the Whole/Documents/Landscape Plan - 280 Island Highway
Appendix

Landscape Plan - 280 Island Highway

June 14, 2016Page 2251 section

Landscape layout showing conceptual planting and bike path integration.

2 APPROVAL OF AGENDA
May 12, 2016Lombard North Group

280 ISLAND HIGHWAY VICTORIA, B.C.

LANDSCAPE PLAN IP1

Faint overview of the landscape plan document.
Faint overview of the landscape plan document.

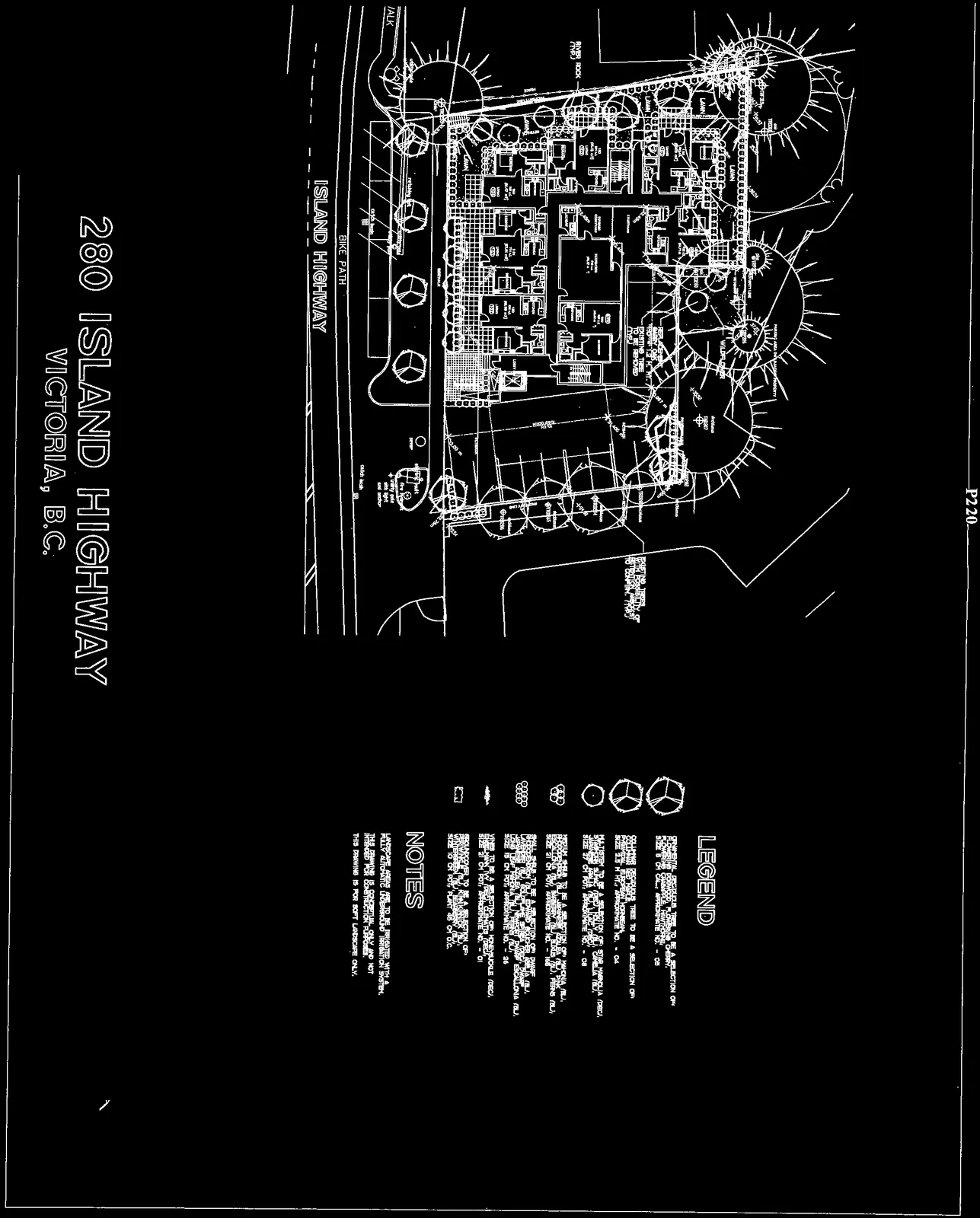

High-contrast landscape plan drawing for 280 Island Highway, showing building footprints, lawn areas, parking, bike path, and proposed plant locations.
High-contrast landscape plan drawing for 280 Island Highway, showing building footprints, lawn areas, parking, bike path, and proposed plant locations.
Detail of the plan's title block containing project number, scale, date, and designer information.
Detail of the plan's title block containing project number, scale, date, and designer information.

Project Information:

  • By: J.P.
  • App: B.P.
  • Date: MAY 12, 2016
  • Drawing No: 280 IH-PI.DWG
  • Ref No: 472 16 01
  • Scale: 1 : 200

LEGEND

Symbol Description
Ornamental Deciduous Tree To be a selection of: Flowering Dogwood, Flowering Cherry. Size 8 cm cal. Approximate no. - 08
Columnar Deciduous Tree To be a selection of: Pyramidal European Hornbeam. Size 3.5 m ht. Approximate no. - 04
Multistem Tree To be a selection of: Star Magnolia (Dec.), Threadleaf Maple (Dec.), or Camellia (Ev.). Size 2.5 m ht. Approximate no. - 02
Large Shrub To be a selection of: Magnolia (Ev.), Strawberry Tree (Ev.), or Serviceberry (Dec.). Size 27 cm pot. Approximate no. - 108
Medium Shrub To be a selection of: Abelia (Ev.), Mexican Orange (Ev.), Photinia (Ev.), Pieris (Ev.), Boxwood (Ev.), Barberry (Dec.), or Spiraea (Dec.). Size 18 cm pot. Approximate no. - 142
Small Shrub To be a selection of: Sweet Box (Ev.), Skimmia (Ev.), Kinnikinnick (Ev.), or Dwarf Escallonia (Ev.). Size 15 cm pot. Approximate no. - 102
Vines To be a selection of: Honeysuckle (Dec.), Clematis (Dec.), or Climbing Hydrangea (Dec.). Size 15 cm pot. Approximate no. - 01
Groundcovers To be a selection of: Pachysandra, Kinnikinnick, or Dwarf St. John's Wort. Size 10 cm pot. Plant 45 cm o.c.

NOTES

  • LANDSCAPE AREAS ARE TO BE IRRIGATED WITH A FULLY AUTOMATIC UNDERGROUND IRRIGATION SYSTEM.
  • THIS DRAWING IS CONCEPTUAL ONLY AND NOT INTENDED FOR CONSTRUCTION PURPOSES.
  • THIS DRAWING IS FOR SOFT LANDSCAPE ONLY.
Page 225
Extracted from: 2016 06 14 Committee of the Whole Agenda
