Committee of the Whole/Documents/Site Plan and Renovation Drawings - Admirals Walk
Appendix

Site Plan and Renovation Drawings - Admirals Walk

June 14, 2016Pages 239–2453 sections

Architectural drawings detailing the facade renovations for multiple buildings in the mall complex.

2 APPROVAL OF AGENDA
April 5, 2016Doran Musgrove Architecture

ADMIRALS WALK MALL - RENOVATION

1497 Admirals Rd, Victoria, BC V9A 7K2

Site Plan

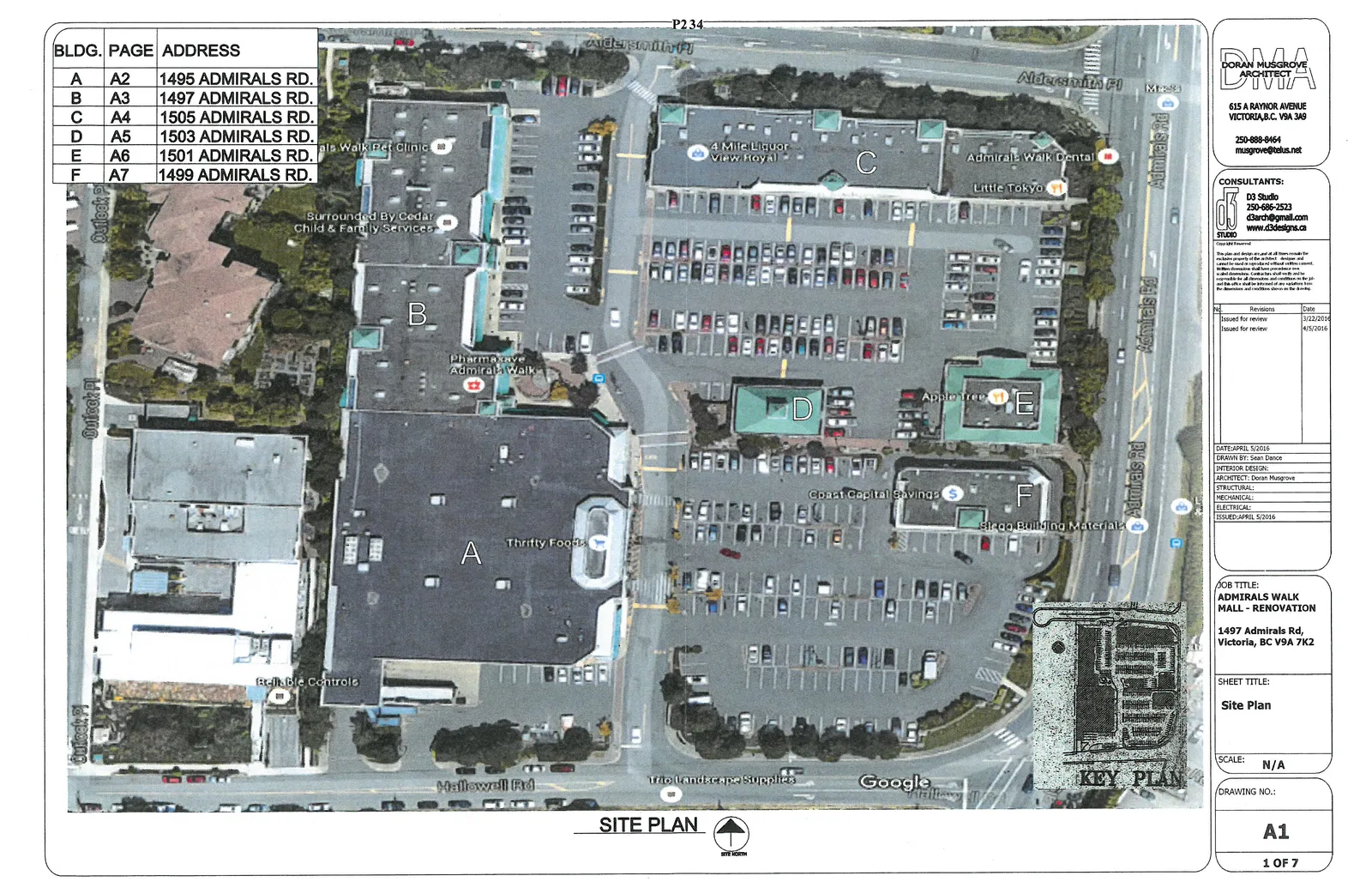

Site Plan aerial view with building labels A through F and a building schedule table
Site Plan aerial view with building labels A through F and a building schedule table

Building Schedule

BLDG. PAGE ADDRESS
A A2 1495 ADMIRALS RD.
B A3 1497 ADMIRALS RD.
C A4 1505 ADMIRALS RD.
D A5 1503 ADMIRALS RD.
E A6 1501 ADMIRALS RD.
F A7 1499 ADMIRALS RD.

Project Information

  • Job Title: ADMIRALS WALK MALL - RENOVATION
  • Address: 1497 Admirals Rd, Victoria, BC V9A 7K2
  • Sheet Title: Site Plan
  • Scale: N/A
  • Drawing No.: A1
  • Date: April 5/2016
  • Drawn By: Sean Dance
  • Architect: Doran Musgrove

Consultants

  • Architect: Doran Musgrove Architect, 615 A Raynor Avenue, Victoria, B.C. V9A 3A9. Phone: 250-888-8464.
  • Consultant: D3 Studio, Phone: 250-586-2523.

Revision History

  • Issued for review: 3/22/2016
  • Issued for review: 4/5/2016
Page 239–245

ADMIRALS WALK MALL - EXTERIOR RENOVATIONS

1495 Admirals Rd, Victoria, BC V9A 7K2

Building A

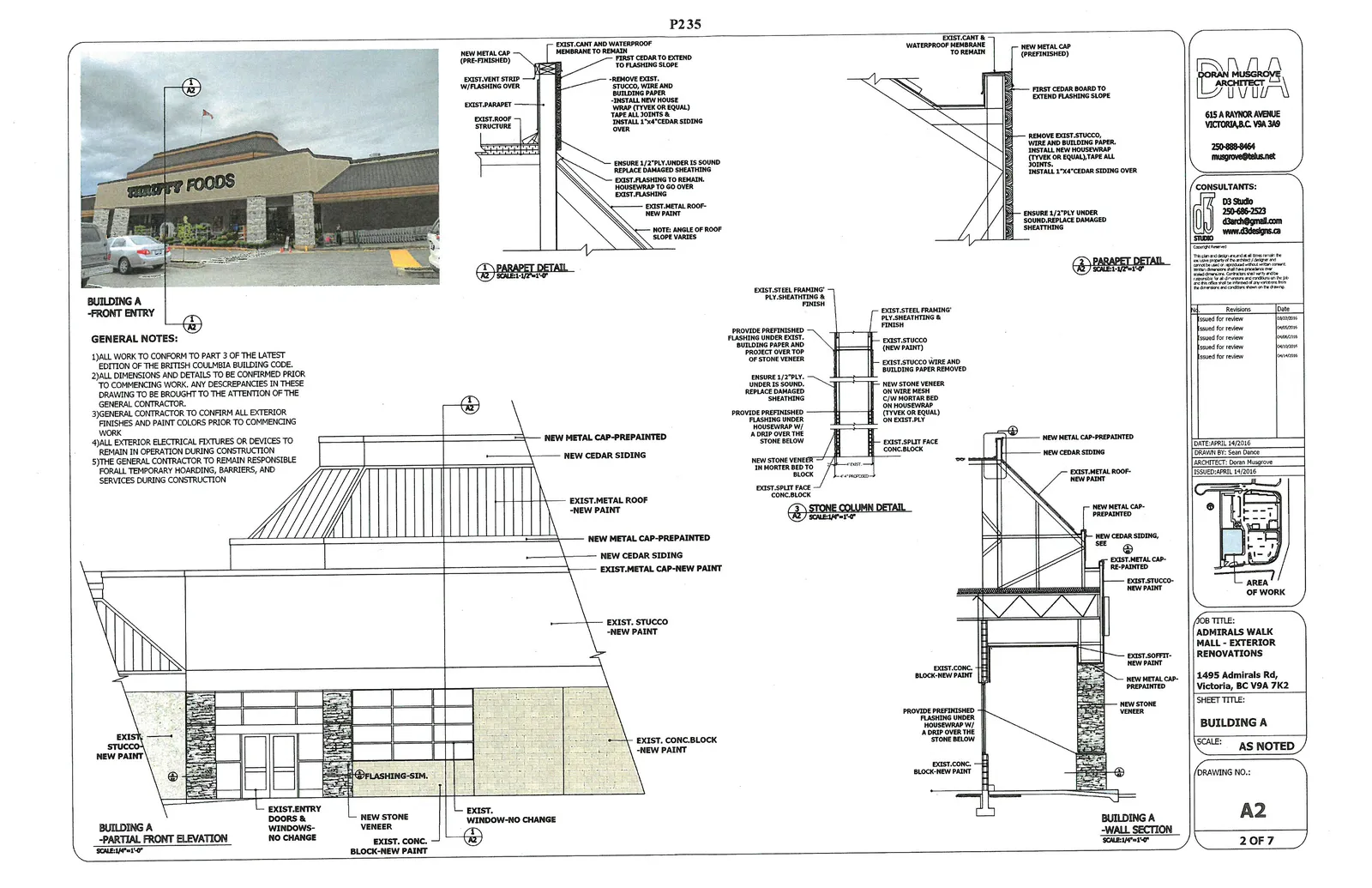

Building A documentation including a photo of the Thrifty Foods storefront, architectural elevations, and wall section details
Building A documentation including a photo of the Thrifty Foods storefront, architectural elevations, and wall section details

General Notes

  1. All work to conform to part 3 of the latest edition of the British Columbia Building Code.
  2. All dimensions and details to be confirmed prior to commencing work. Any discrepancies in these drawing to be brought to the attention of the General Contractor.
  3. General Contractor to confirm all exterior finishes and paint colors prior to commencing work.
  4. All exterior electrical fixtures or devices to remain in operation during construction.
  5. The General Contractor to remain responsible for all temporary hoarding, barriers, and services during construction.

Drawing Components

  • Building A - Partial Front Elevation
  • Building A - Wall Section
  • Parapet Detail
  • Stone Column Detail

Key Labels and Details

  • Exist. Stucco - New Paint
  • Exist. Conc. Block - New Paint
  • Exist. Entry Doors & Windows - No Change
  • New Stone Veneer
  • New Cedar Siding
  • New Metal Cap - Prepainted
  • Exist. Metal Roof - New Paint

Sheet Information

  • Sheet Title: BUILDING A
  • Scale: AS NOTED
  • Drawing No.: A2
  • Sheet Number: 2 of 7
  • Date: April 14/2016

Revision History

  • Issued for review: 03/22/2016
  • Issued for review: 04/05/2016
  • Issued for review: 04/06/2016
  • Issued for review: 04/11/2016
  • Issued for review: 04/14/2016

Building B

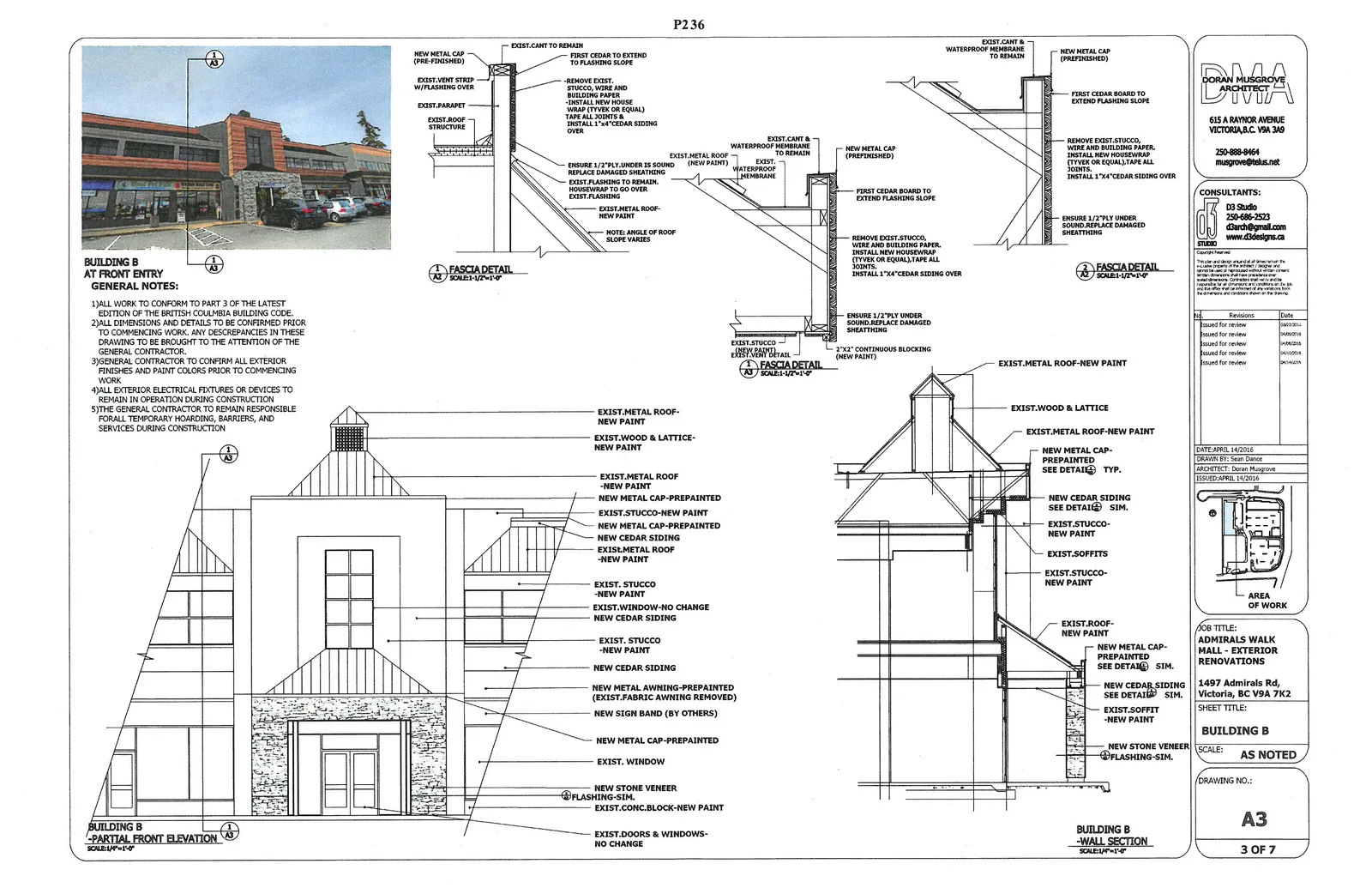

Building B documentation including a photo of the storefront with Pet Clinic and Pharmasave, partial front elevation, and wall section details
Building B documentation including a photo of the storefront with Pet Clinic and Pharmasave, partial front elevation, and wall section details

General Notes

  1. All work to conform to part 3 of the latest edition of the British Columbia Building Code.
  2. All dimensions and details to be confirmed prior to commencing work. Any discrepancies in these drawing to be brought to the attention of the General Contractor.
  3. General Contractor to confirm all exterior finishes and paint colors prior to commencing work.
  4. All exterior electrical fixtures or devices to remain in operation during construction.
  5. The General Contractor to remain responsible for all temporary hoarding, barriers, and services during construction.

Drawing Components

  • Building B - Partial Front Elevation
  • Building B - Wall Section
  • Fascia Detail

Key Labels and Details

  • Exist. Wood & Lattice - New Paint
  • New Metal Cap - Prepainted
  • Exist. Stucco - New Paint
  • New Cedar Siding
  • New Metal Awning - Prepainted (Exist. Fabric Awning Removed)
  • New Sign Band (By Others)
  • New Stone Veneer
  • Exist. Doors & Windows - No Change

Sheet Information

  • Sheet Title: BUILDING B
  • Scale: AS NOTED
  • Drawing No.: A3
  • Sheet Number: 3 of 7
  • Date: April 14/2016

Building C

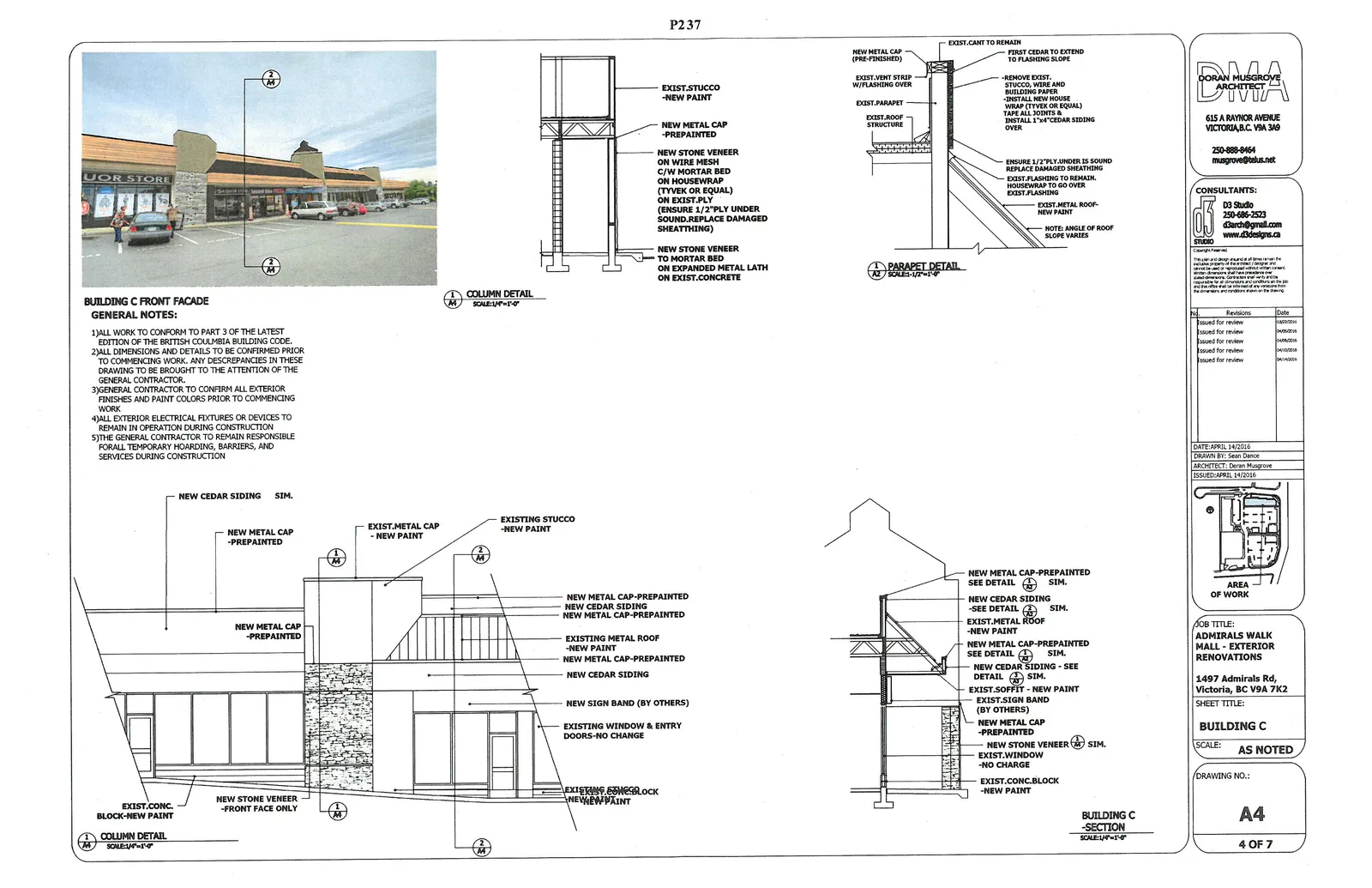

Building C documentation including a photo of the 4 Mile Liquor Store front facade, architectural elevation, and wall section details
Building C documentation including a photo of the 4 Mile Liquor Store front facade, architectural elevation, and wall section details

General Notes

  1. All work to conform to part 3 of the latest edition of the British Columbia Building Code.
  2. All dimensions and details to be confirmed prior to commencing work. Any discrepancies in these drawing to be brought to the attention of the General Contractor.
  3. General Contractor to confirm all exterior finishes and paint colors prior to commencing work.
  4. All exterior electrical fixtures or devices to remain in operation during construction.
  5. The General Contractor to remain responsible for all temporary hoarding, barriers, and services during construction.

Drawing Components

  • Building C - Front Facade
  • Building C - Section
  • Column Detail
  • Parapet Detail

Key Labels and Details

  • New Cedar Siding
  • New Metal Cap - Prepainted
  • Exist. Metal Roof - New Paint
  • New Sign Band (By Others)
  • Existing Window & Entry Doors - No Change
  • New Stone Veneer - Front Face Only
  • Exist. Conc. Block - New Paint

Sheet Information

  • Sheet Title: BUILDING C
  • Scale: AS NOTED
  • Drawing No.: A4
  • Sheet Number: 4 of 7
  • Date: April 14/2016

Building D

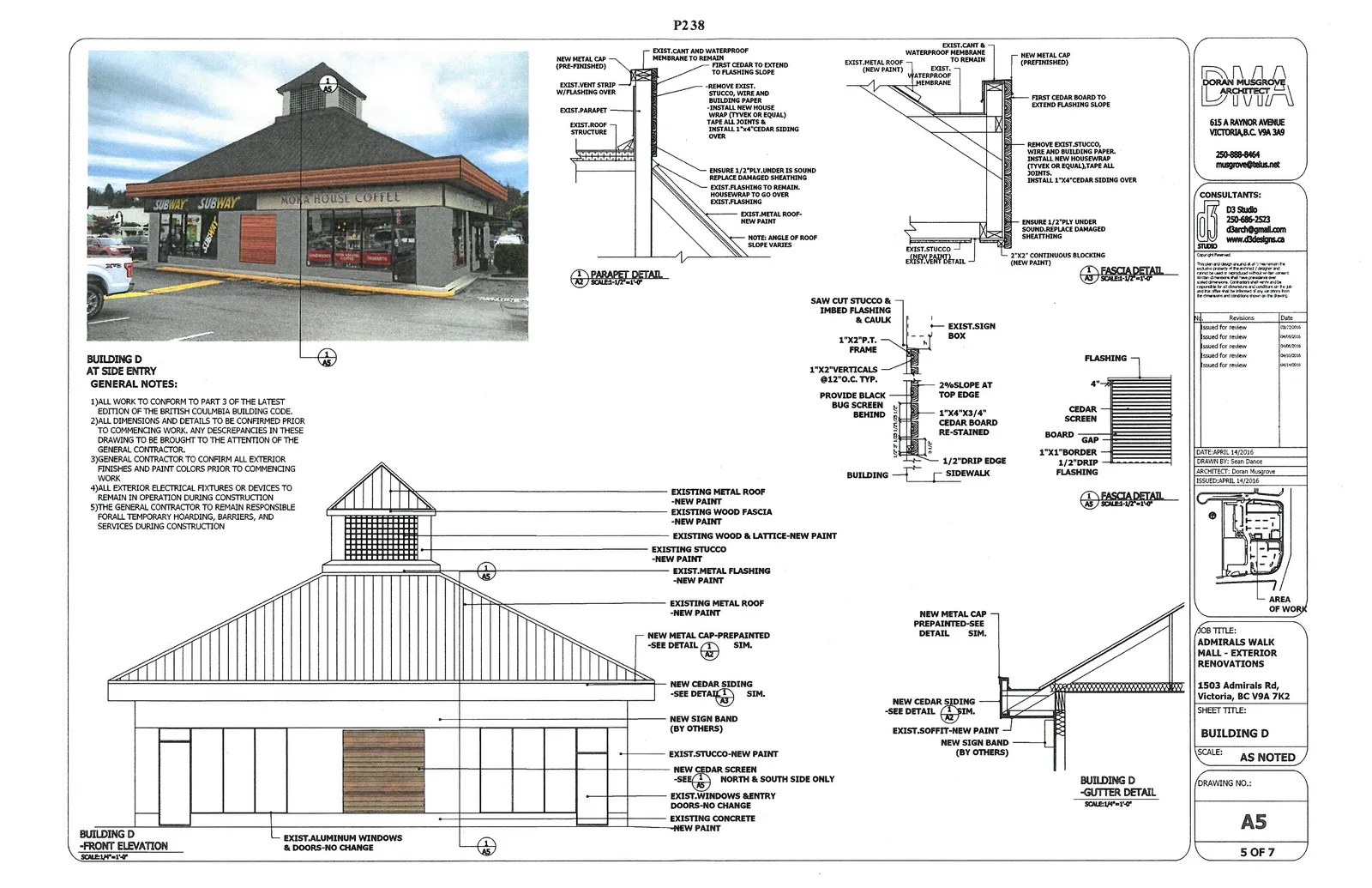

Building D documentation including a photo of the Subway and Moka House storefronts, architectural front elevation, and gutter detail
Building D documentation including a photo of the Subway and Moka House storefronts, architectural front elevation, and gutter detail

General Notes

  1. All work to conform to part 3 of the latest edition of the British Columbia Building Code.
  2. All dimensions and details to be confirmed prior to commencing work. Any discrepancies in these drawing to be brought to the attention of the General Contractor.
  3. General Contractor to confirm all exterior finishes and paint colors prior to commencing work.
  4. All exterior electrical fixtures or devices to remain in operation during construction.
  5. The General Contractor to remain responsible for all temporary hoarding, barriers, and services during construction.

Drawing Components

  • Building D - Front Elevation
  • Building D - Gutter Detail
  • Parapet Detail
  • Fascia Detail

Key Labels and Details

  • Existing Wood Facia - New Paint
  • Existing Wood & Lattice - New Paint
  • Existing Stucco - New Paint
  • Exist. Metal Flashing - New Paint
  • New Cedar Siding
  • New Sign Band (By Others)
  • New Cedar Screen (North & South Side Only)
  • Exist. Windows & Entry Doors - No Change
  • Exist. Aluminum Windows & Doors - No Change

Sheet Information

  • Sheet Title: BUILDING D
  • Scale: AS NOTED
  • Drawing No.: A5
  • Sheet Number: 5 of 7
  • Date: April 14/2016

Building E

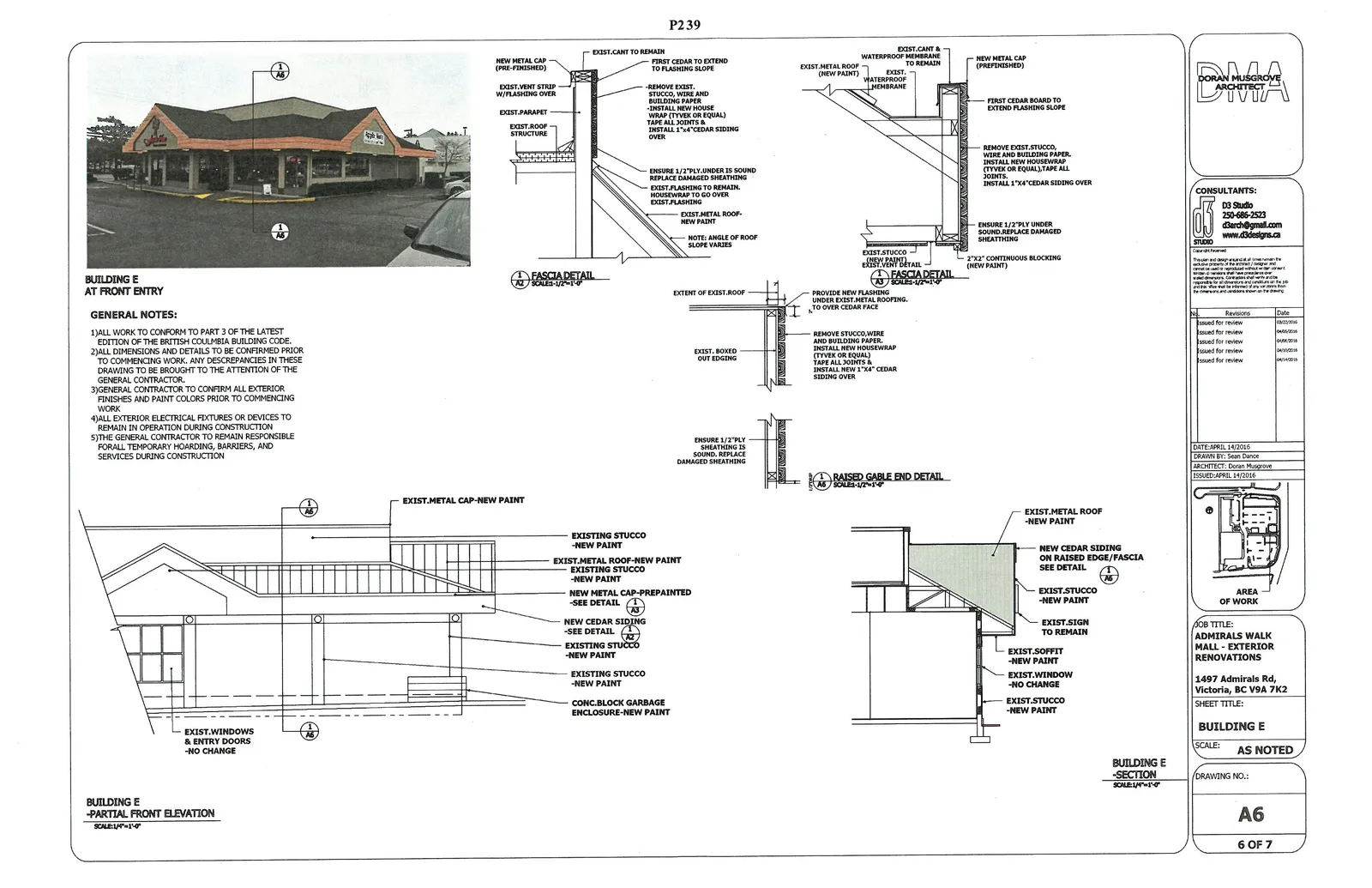

Building E documentation including a photo of the Apple Tree storefront, architectural partial front elevation, and section details
Building E documentation including a photo of the Apple Tree storefront, architectural partial front elevation, and section details

General Notes

  1. All work to conform to part 3 of the latest edition of the British Columbia Building Code.
  2. All dimensions and details to be confirmed prior to commencing work. Any discrepancies in these drawing to be brought to the attention of the General Contractor.
  3. General Contractor to confirm all exterior finishes and paint colors prior to commencing work.
  4. All exterior electrical fixtures or devices to remain in operation during construction.
  5. The General Contractor to remain responsible for all temporary hoarding, barriers, and services during construction.

Drawing Components

  • Building E - Partial Front Elevation
  • Building E - Section
  • Fascia Detail
  • Raised Gable End Detail

Key Labels and Details

  • Exist. Metal Cap - New Paint
  • Existing Stucco - New Paint
  • Exist. Metal Roof - New Paint
  • New Metal Cap - Prepainted
  • New Cedar Siding
  • Exist. Sign to Remain
  • Conc. Block Garbage Enclosure - New Paint
  • Exist. Windows & Entry Doors - No Change

Sheet Information

  • Sheet Title: BUILDING E
  • Scale: AS NOTED
  • Drawing No.: A6
  • Sheet Number: 6 of 7
  • Date: April 14/2016

Building F

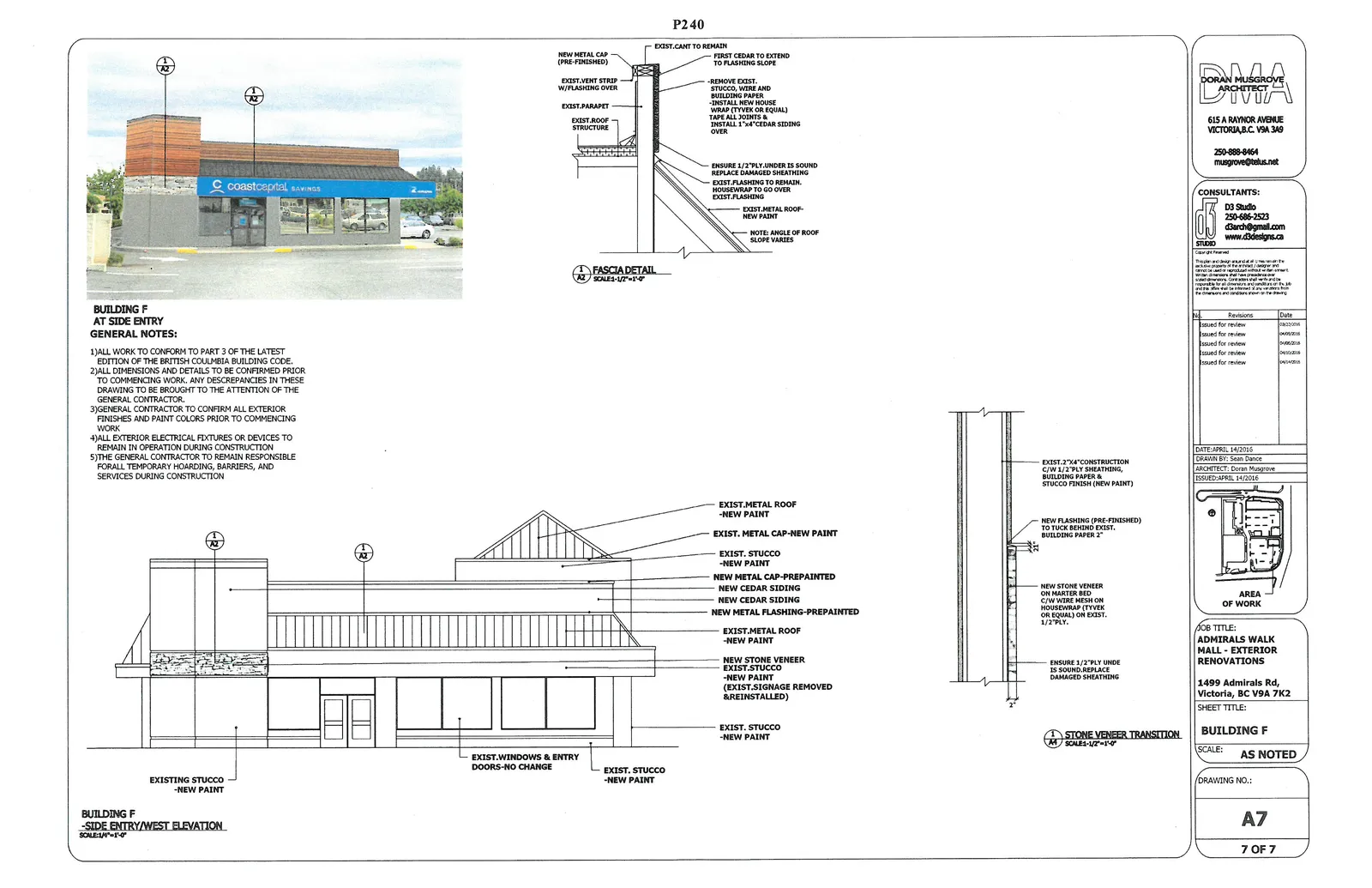

Building F documentation including a photo of the Coast Capital Savings storefront, architectural side entry/west elevation, and detail diagrams
Building F documentation including a photo of the Coast Capital Savings storefront, architectural side entry/west elevation, and detail diagrams

General Notes

  1. All work to conform to part 3 of the latest edition of the British Columbia Building Code.
  2. All dimensions and details to be confirmed prior to commencing work. Any discrepancies in these drawing to be brought to the attention of the General Contractor.
  3. General Contractor to confirm all exterior finishes and paint colors prior to commencing work.
  4. All exterior electrical fixtures or devices to remain in operation during construction.
  5. The General Contractor to remain responsible for all temporary hoarding, barriers, and services during construction.

Drawing Components

  • Building F - Side Entry / West Elevation
  • Fascia Detail
  • Stone Veneer Transition

Key Labels and Details

  • Exist. Metal Roof - New Paint
  • Exist. Metal Cap - New Paint
  • Exist. Stucco - New Paint
  • New Metal Cap - Prepainted
  • New Cedar Siding
  • New Metal Flashing - Prepainted
  • New Stone Veneer (Exist. Signage Removed & Reinstalled)
  • Exist. Windows & Entry Doors - No Change
Page 239–245

Sheet Information

  • Sheet Title: BUILDING F
  • Scale: AS NOTED
  • Drawing No.: A7
  • Sheet Number: 7 of 7
  • Date: April 14/2016
Page 239–245
