Project Name: Eagle's Nest Residences Address: 3 Helmcken Road, Victoria, BC Architect: dHKarchitects Date: 29 OCT 21 Project Number: 2152 Drawing Number: A310

Material Palette

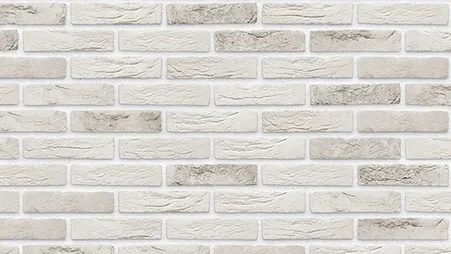

1. RUNNING BOND STANDARD SIZE BRICKS IN WHITE WITH WHITE MORTAR, LIMA BY VANDERSANDEN OR SIMILAR



2. 4" HORIZONTAL GROOVE FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D, HARDI PLANK SMOOTH OR ARTISAN SHIPLAP OR SIMILAR



3. FLUSH JOINTED SMOOTH FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR



4. 2' X 5' SPACED BOARD AND BATTEN INSTALLATION SMOOTH-FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR

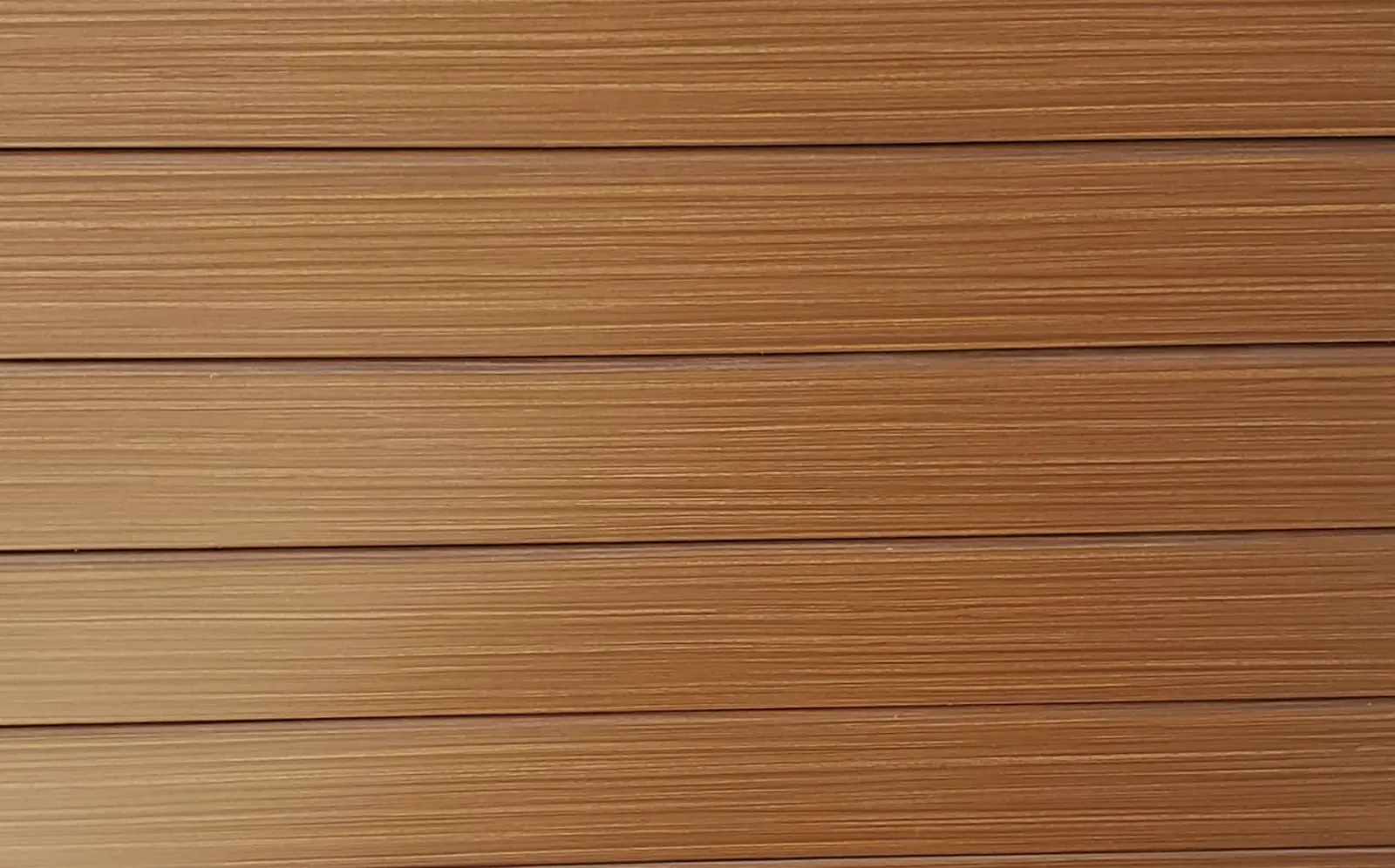

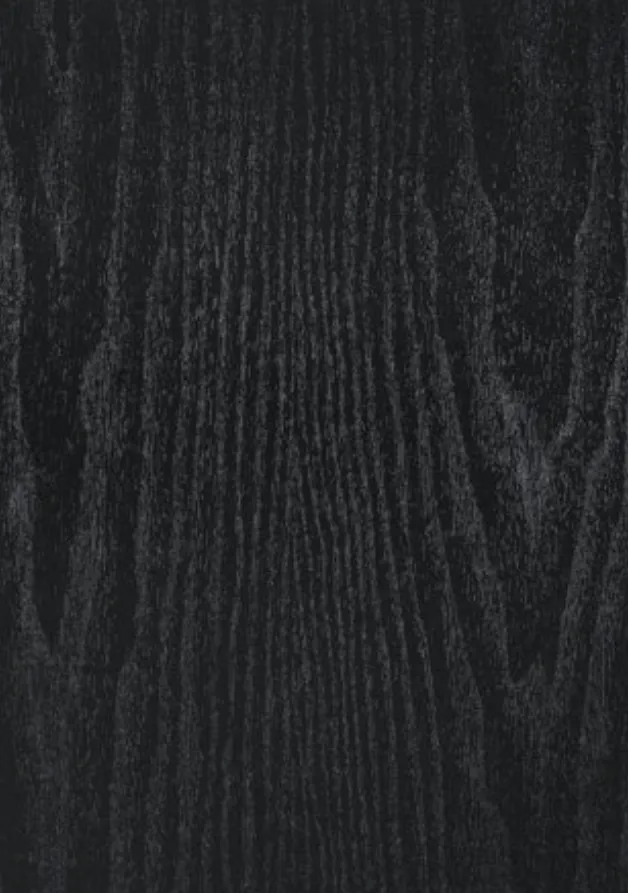

5. VERTICAL 4" V-GROOVE WOOD-LOOK METAL CLADDING, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR



6. FASCIA: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK



7. SOFFIT, MAIN ROOF: 4" V-GROOVE WOOD-LOOK METAL SOFFIT, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR*
8. SOFFIT, SECONDARY CANOPIES & U/S OF BALCONIES: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN COLOUR D OR E
9. TEMPERED AND LAMINATED GLASS GUARDRAIL WITH ANODIZED ALUMINUM CAP RAIL



10. CANOPY: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
11. COLUMNS: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK

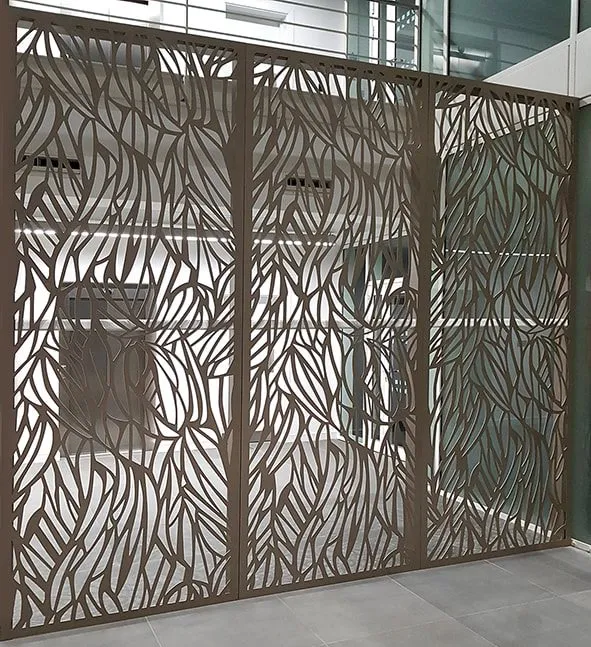

12. METAL SCREENS: WATER JET CUT, POWDER COATED STEEL



13. VINYL WINDOWS, PRE-FINISHED IN BLACK

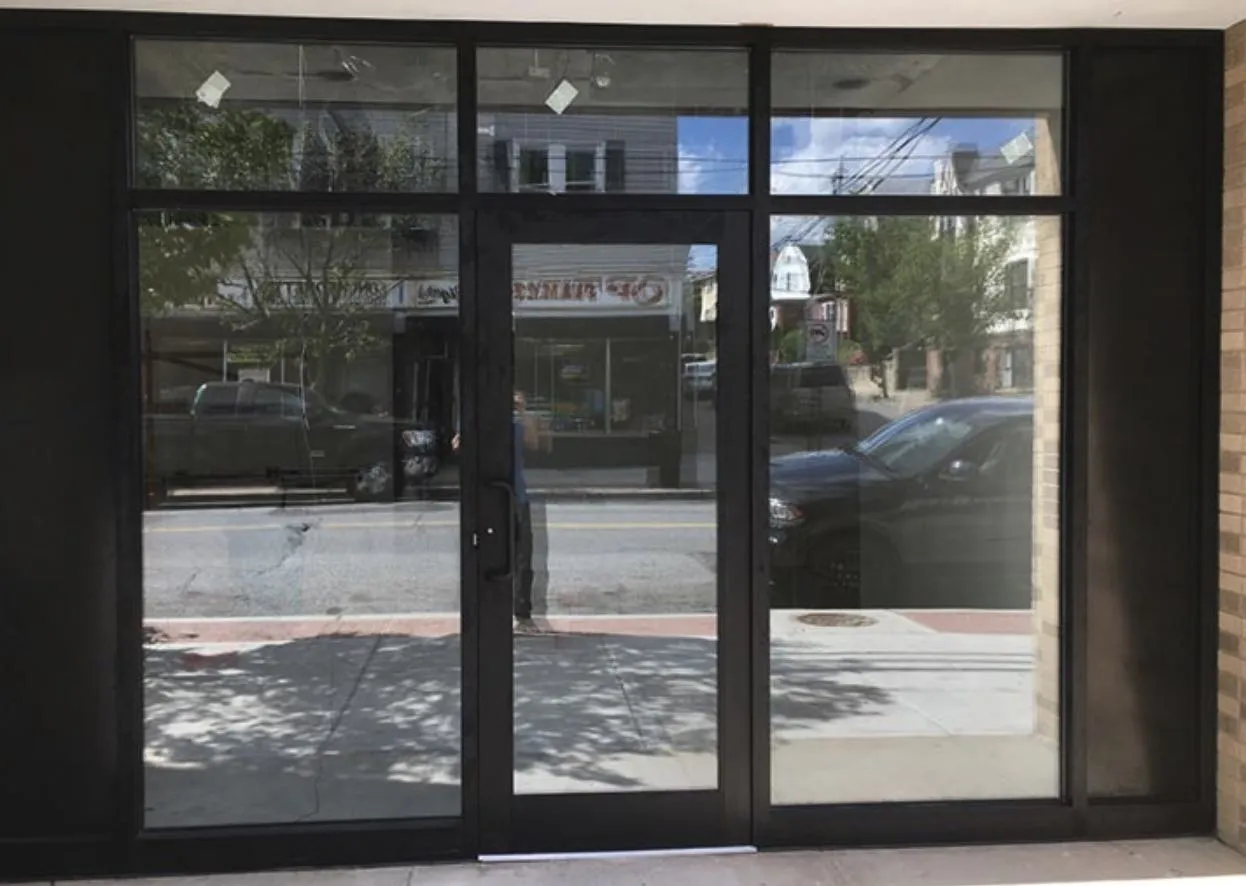

14. EXTRUDED ALUMINUM STORE FRONT GLAZING C/W DOORS, PRE-FINISHED IN BLACK



15. VINYL SWING DOOR WITH GLASS PANEL, PRE-FINISHED IN BLACK
16. VINYL SWING DOOR WITH GLASS PANEL AND TOP LITE, PRE-FINISHED IN BLACK
17. WIDE PLANK WOOD-LOOK DOORS WITH SIDE AND TOP LITES, VINYL FRAME, PRE-FINISHED IN BLACK
18. WOOD PERGOLA STAINED TO MATCH 5 METAL CLADDING

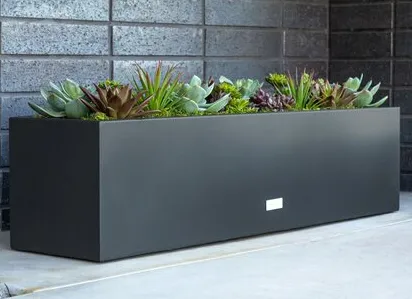

19. PRE-FABRICATED ALUMINUM CLAD PLANTERS, PRE-FINISHED IN COLOUR C



20. WOOD TRIM, BLACK



21. STEEL KNIFE EDGE TRIM, PRE-FINISHED IN BLACK
22. ARCHITECTURAL EXPOSED CONCRETE WALL



23. SBS MEMBRANE ROOFING IN LIGHT GREY

Colour Palette

• A WHITE



• B DOVE GREY

• C MEDIUM GREY

• D CHARCOAL GREY

• E BLACK

Notes

• • COLOUR TO MATCH 5 METAL CLADDING
• ** FLASHING TO COLOUR MATCH MATERIALS
• ALUMINUM FLASHING, PRE-FINISHED IN COLOURS A, B, C, D, & E
