9.2.3 a) Rezoning Application No. 2021/03 - 10 Erskine Lane

Address: 8 & 10 Erskine LaneTotal Floor Area: 3,851.7 m2Building Height: 17.5 m53 vehicle parking stalls providedUnit mix: 5 studios, 18 one-bedroom, 20 two-bedroom

PROJECT DESCRIPTION

CIVIC ADDRESS: 8 & 10 Erskine Lane, View Royal, BC LEGAL DESCRIPTION: REM. OF LOT3, PLAN 4206, EXCEPT PART IN PLAN VIP61887 - SECTION 93, ESQUIMALT DISTRICT. ZONE: EXISTING: CD-12

Page 137–147

REGISTERED OWNER

Parshome Ltd. 934 Kentwood terrace Victoria, B.C. V8Y 1A4 tel: 888-7010 parshome@hotmail.com

Page 137–147

SURVEYOR

Powell & Associates 250 - 2950 Douglas Street Victoria BC V8T 4N4 Alan Powell tel: 382-8855 fax: 382-1377 info@powellsurveys.com

Page 137–147

BUILDING CODE SUMMARY

REFERENCED DOCUMENT: BRITISH COLUMBIA BUILDING CODE 2018 - PART 3 MAJOR OCCUPANCY CLASSIFICATION: GROUP C - RESIDENTIAL BUILDING AREA: 866 m² (9,322 s.f.) BUILDING HEIGHT: 5 STOREYS ACCESSIBLE FACILITIES:

ACCESSIBLE ENTRANCE
ACCESSIBLE PARKING STALL

CONSTRUCTION REQUIREMENTS:

3.2.2.50 GROUP C, UP TO 6 STOREYS, SPRINKLERED
COMBUSTIBLE OR NON-COMBUSTIBLE CONSTRUCTION WITH 1HR MIN FIRE RESISTANCE RATING TO FLOORS AND LOADBEARING WALLS.

Page 137–147

ZONING BYLAW SUMMARY

BUILDING DESCRIPTION: 5 STOREY RESIDENTIAL BUILDING USES: RESIDENTIAL ZONE: EXISTING: CD-12, PROPOSED: CD-12 SITE AREA: 2 774 m² (29 860 sf)

FLOOR AREA m²		sf
L1	866.2	9322
L2	816.8	8793
L3	831.8	8954
L4	831.8	8954
L5	505.3	5440
TOTAL	3851.7	41463

FLOOR SPACE RATIO: 1.38 : 1 FSR SITE COVERAGE: 31% (866 m²) OPEN SITE SPACE: 69% (1908 m²) DENSITY: 43 Units

SUITE SUMMARY:

2 BED: 20
1 BED: 18
0 BED: 5
TOTAL: 43

REQUIRED PARKING: 53 Stalls (1) PROVIDED PARKING: 53 stalls (incl. 1 HC) BICYCLE PARKING: 43 (1 per suite, 100% Class I) + 6-space rack OCCUPANT LOAD: 126 (2) SETBACKS:

FRONT: 8.31 m (Erskine Road)
SIDE: 7.63 m
SIDE (INT.): 7.55 m
REAR: 10.00 m

GRADE OF BUILDING: 11.00 m (GEODETIC) HEIGHT OF BUILDING: 17.5 m NUMBER OF STOREYS: 5 storeys

NOTES: (1) Studio or One Bedroom units (18+5) x 1 = 23 stalls Two Bedroom units 20 x 1.5 = 30 stalls 23+30=53

(2) Studio or One Bedroom units (18+5) x 2 = 46 + 2 bedroom Units 20 x 4 = 80 Total 126

AVERAGE GRADE CALCULATION (in meters)

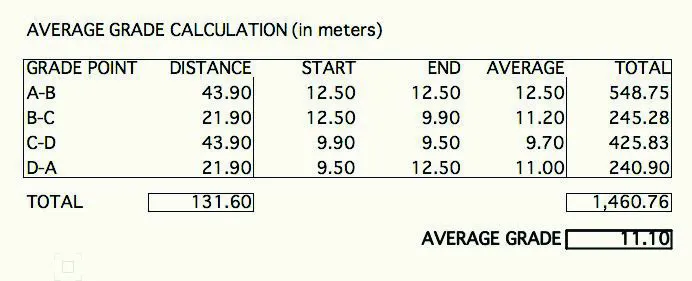

Average grade calculation table showing distance of 131.60 and average grade of 11.10

GRADE POINT	DISTANCE	START	END	AVERAGE	TOTAL
A-B	43.90	12.50	12.50	12.50	548.75
B-C	21.90	12.50	9.90	11.20	245.28
C-D	43.90	9.90	9.50	9.70	425.83
D-A	21.90	9.50	12.50	11.00	240.90
TOTAL	131.60				1,460.76

AVERAGE GRADE: 11.10

AVERAGE GRADE CALCULATION (in meters)

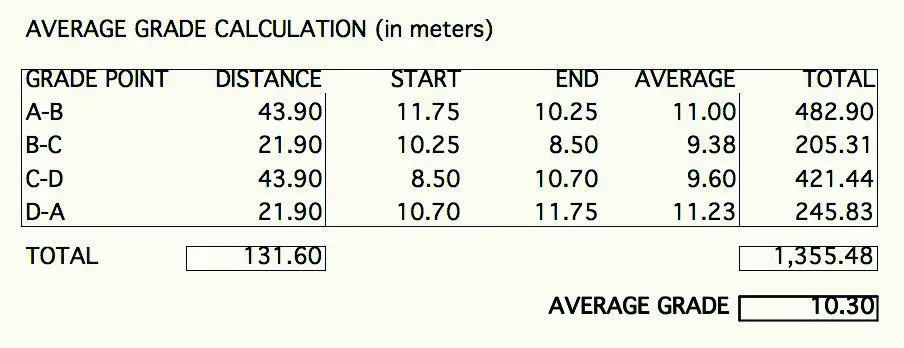

Average grade calculation table showing distance of 131.60 and average grade of 10.30

GRADE POINT	DISTANCE	START	END	AVERAGE	TOTAL
A-B	43.90	11.75	10.25	11.00	482.90
B-C	21.90	10.25	8.50	9.38	205.31
C-D	43.90	8.50	10.70	9.60	421.44
D-A	21.90	10.70	11.75	11.23	245.83
TOTAL	131.60				1,355.48

AVERAGE GRADE: 10.30

Aerial view of property lines with parcel number 10

Neighborhood aerial map showing Wat Kiss Way and Erskine Lane

Page 137–147

Main Floor Plan (A102)

SETBACK: 5.43 [5.43]
SETBACK: 7.71 [7.71]
SETBACK: 7.51 [7.51]
SETBACK: 7.64 [7.64]
SETBACK: 7.5 [7.5]
SETBACK: 8.51 [8.51]
Galloping Goose Trail
Pt 3 in Plan VIP61887 area = 342 m2

Page 137–147

Basement Plan (A201)

53 Parking stalls total (stalls numbered 1-53)
MECH. R.
ELEC. R.
LOBBY (EL. 9.00)
ELEV. MACH R.
GARBAGE RECYCLE
Pt 3 in Plan VIP61887 area = 342 m2

Page 137–147

Main Floor Plan (A202)

TYPE 'A': 665.00 S.F.
TYPE 'B': 625.00 S.F.
TYPE 'C': 870.00 S.F.
TYPE 'D': 995.00 S.F.
TYPE 'E': 880.00 S.F.
TYPE 'F': 650.00 S.F.
TYPE 'G': 945.00 S.F.
GYM: 480.00 S.F.
LOBBY (EL. 12.60)
VEST.

Page 137–147

2nd Floor Plan (A203)

TYPE 'A': 665.00 S.F.
TYPE 'B': 625.00 S.F.
TYPE 'C': 870.00 S.F.
TYPE 'D': 995.00 S.F.
TYPE 'E': 880.00 S.F.
TYPE 'F': 650.00 S.F.
TYPE 'G': 945.00 S.F.
TYPE 'H': 480.00 S.F.
LOBBY (EL. 12.60)

Page 137–147

3rd & 4th Floor Plan (A204)

TYPE 'A': 665.00 S.F.
TYPE 'B': 625.00 S.F.
TYPE 'C': 870.00 S.F.
TYPE 'D': 995.00 S.F.
TYPE 'E': 880.00 S.F.
TYPE 'F': 650.00 S.F.
TYPE 'G': 945.00 S.F.
TYPE 'I': 480.00 S.F.
LOBBY (EL. 12.60)

Page 137–147

5th Floor Plan (A205)

TYPE 'J': 625.00 S.F.
TYPE 'K': 995.00 S.F.
TYPE 'L': 880.00 S.F.
TYPE 'M': 480.00 S.F.
DECK: 1880.00 S.F.
DECK: 1650.00 S.F.
LOBBY (EL. 12.60)

Page 137–147

Elevations (A301)

MATERIALS SCHEDULE

CONCRETE SIDING - WHITE
PREFINISHED METAL SIDING - BLACK
ALUMINUM WINDOWS - WHITE
PREFINISHED ALUMINUM & GLASS GUARDS, ENGINEERED
PREFINISHED TEMPERED GLASS PATIO DOOR
CONCRETE SIDING - WOOD LOOK
PREFINISHED METAL FASCIA - DARK GREY
COMPOSITE METAL SIDING - LIGHT GRAY
PREFINISHED ALUMINUM GUARDS, ENGINEERED
ENTRY GLAZED DOOR
CONCRETE

Front Elevation

Side Elevation

Page 137–147

Elevations (A302)

Back Elevation

Side Elevation

Page 137–147

Sections (A401)

Section 'A'
Section 'B'
Max. Building Height: 17.5 m

Page 137–147

SPATIAL SEPARATION CALCULATIONS (A303)

OCCUPANCY: GROUP C - RESIDENTIAL

EXPOSING BUILDING FACE	RATIO L/H	LIMITING DISTANCE	UNPROTECTED OPENING LIMITS	PROVIDED
NORTH	637.1 m² (6 858 s.f.)	44 / 15.7	N/A - Facing street	35.8 % (228.4 m²)
EAST	196.9 m² (2 120 s.f.)	16.5 / 12.5	7.6 m	25.4 % (50 m²)
SOUTH	590.0 m² (6 353 s.f.)	39 / 16	N/A - Facing Galloping Goose	36.7 % (213.8 m²)
WEST	277.9 m² (2 992 s.f.)	22 / 12.5	5.4 m	31.8 % (88.44 m²)

Table 3.2.3.1.-D

Unprotected Opening Limits for a Building or Fire Compartment that is Sprinklered Throughout Forming Part of Article 3.2.3.1.

Exposing Building Face	Area of Unprotected Opening for Groups A, B, C, D and F, Division 3 Occupancies, %
	Limiting Distance, m
Max. Area, m²	0	1.2	1.5	2.0	2.5	3	4	5	6	7	8
10	0	16	24	42	66	100
15	0	16	20	34	50	74	100
20	0	16	20	30	42	60	100
25	0	16	18	26	38	52	90	100
30	0	14	18	24	34	46	78	100
40	0	14	16	22	30	40	64	96	100
50	0	14	16	20	28	36	56	82	100
60	0	14	16	20	26	32	50	72	98	100
80	0	14	16	18	22	28	42	58	80	100
100	0	14	16	18	22	26	36	50	68	88	100
150 or more	0	14	14	16	20	22	30	40	52	66	82
