Attachment 3 - Sign Plans – KnightSigns

November 5, 2024Page 381 section

Technical drawings and specifications for the proposed electronic message center sign at 494 Island Highway.

8.1.a) Development Variance Permit 2024-02 - 498 Island Highway
KnightSignsArtisan Food. Craft Beer.Digital message centre 1280mm x 960mm

Attachment 3

SPECIFICATIONS

  1. Remove existing 4'2" x 3' read-o-graph sign and wooden frame, replace with new 960mm x 1280mm digital message centre with new enclosing 10ga aluminum cabinet 6" deep.
    • Mounted flush to the building exterior
    • Cabinet sides to be painted to match to Pub brown cladding panels Colour TBD
    • Shop drawing required
    • Survey required

COLOURS + FINISHES

Code Finish Note
P1 Dark Brown TBD Colour Match

GRAPHICS & MEASUREMENTS

Digital sign face graphic with the text "Artisan Food. Craft Beer. Historic Setting. Six Mile Pub & Eatery. Handcrafted cuisine in British Columbia’s oldest pub. Established 1855."
Digital sign face graphic with the text "Artisan Food. Craft Beer. Historic Setting. Six Mile Pub & Eatery. Handcrafted cuisine in British Columbia’s oldest pub. Established 1855."

The display dimensions are specified as 4'-2 13/32" (1,280 mm) wide by 3'-1 25/32" (960 mm) high.

SIDE VIEW

Side view diagram of the sign cabinet showing a depth of 6" (152 mm)
Side view diagram of the sign cabinet showing a depth of 6" (152 mm)

CONCEPT - NTS REFERENCE ONLY

[Graphic showing a conceptual mockup of the proposed digital sign installed on the building's gable]

CURRENT CONDITIONS

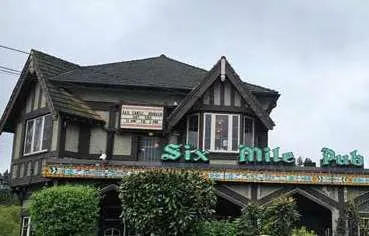

Photograph of the building's current exterior featuring the existing read-o-graph sign to be replaced
Photograph of the building's current exterior featuring the existing read-o-graph sign to be replaced

PROJECT DETAILS

  • Project: Six Mile Pub + Eatery - Digital Display
  • Client: Six Mile Pub + Eatery
  • Quote Number: 22350-05-24-SMPRG
  • Date: 08-05-24
  • Account Manager: Lynda Van de Putte
  • Drawn/Revised By: Rachelle
  • Scale: 1:10
  • Address: 494 Island HWY, Victoria, BC, V9B 1H5

SIGN 1: MOUNTED MESSAGE CENTRE

  • Quantity: 1
  • Typeface: -
  • Illumination: ILLUMINATED (digital)
Page 38
