Appendix 'B' - SCH40 All-in-one Retractable Pedestal evCHARGER Spec Sheet
Product specifications and dimensions for the proposed electric vehicle charging stations.
SCH40 All-in-one Retractable Pedestal
Category: Store > Level II evCHARGERS
evCHARGER SCH SERIES EVSE
SCH40 All-in-one Pedestal Cord management system and EV Charger.
The revolutionary new pedestal features the industry leading retractable cable system, helping to reduce the risk for trips and falls, promote accessibility, and protect cables against harm. The system includes the popular SCH40 EV Charger that provides fast charge times for electric vehicles and commercial fleet vehicles. The charger is mounted on an extended pedestal with aluminum base with integrated retractable cable system and a FREE Electric Vehicle Parking Sign.
Competitively priced hardware upgrade solutions available for remote monitoring communications and electronic payment processing.
OUR FLAGSHIP PRODUCT
- UL listed. Outdoor Rated (NEMA 4) enclosure.
- Reclosure: Smart software that automatically self-checks unit and resumes charging after minor fault.
- Charge Circuit Interruption Device: Ground Fault protection with fully automatic self-check feature that eliminates the need for monthly testing by user.
- Service Ground Monitor: Constantly checking for presence of proper safety ground.
- External Control Input: Allows external control from smart meter (AMI), billing or load management device.
- Cold Load Pickup: Time-delayed and randomized to allow re-energizing of unit following power outages.
PRODUCT SPECS
- Service Entrance: 208V to 240V - 30 to 100 Amps, single phase, 2 wire w/ground 7”Wx14”Hx6”D(430mmWx360mmHx150mmD)NEMA4Construction
- Operating Temperatures: -22 F to 122 F (-30 C to 50 C)
AVAILABLE NOW
- Innovative low cost BILLING SYSTEM
- SMART GRID Enabled EVSE - tie directly into your AMI Meter
CODES, STANDARDS AND RECOMMENDED PRACTICES
- UL 2202: Charging Station Safety
- UL 2231: Personal Protection Device (i.e. CCID Hardware)
- UL 1998: Standard for Safety Related Software
- UL 991: Standard for Tests for Safety-Related Controls Employing Solid-State Devices
- NEC 625: Electric Vehicle Charge System
- SAE-J1772™: Electric Vehicle Conductive Charge Coupler
The SCH line offers multiple currents that enable you to charge at the highest rate possible, so that vehicles are always fully charged.
| Model | SCH-40 |
|---|---|
| Circuit Breaker Rating, Amps | 40 |
| Continuous Current, Amps | 32 |
EVPay EVSE Solution
SUPPORTED PAYMENT SCHEMES
- Contact Card: EMV Level 1 + Level 2 - Certified
- Contactless: EMV Level 1 - Certified
- Contactless: EMV Level 2:
- Visa PayWave MSD + qVSDC
- MasterCard PayPass Mag Stripe
- Magnetic Stripe Card - ISO7811, Track 1 + Track 2
- Other Cards Supported: NFC, MIFARE, HID-iClass
- Support of Payment Applications-Global and Local Environment
TECHNICAL INFORMATION
- Interface communication - RS232 up to 115,200 kbps
- 2 X 16 Character LCD display + 4 LEDs + Buzzer + Speaker
- Transaction start/end button
- Power Supply: 8 Volt DC - 16 Volt DC
- Security - Support of DES, 3DES, AES, RSA, SHA 1 algorithms
- On-board SAM: EMV/HID support
- RF contactless Interface: Frequency - 13.56 MHz, MIFARE, NFC, HID
REGULATORY COMPLIANCE
- EMVco Level 1 + Level 2
- CE + FCC + RoHS
CODES & STANDARDS
- ISO 7816: Contact Smart Card, approved by EMVco
- ISO 14443: Type A and B, approved by EMVco
- ISO 15693
OPERATING & STORAGE CONDITIONS
- Operating temperature -30°C to 50°C (-22°F to 122°F)
- Operating humidity 5%-95% (non-condensing)
- Storage temperature -40°C to 60°C (-40°F to 140°F)
- Storage humidity 5%-95% (non-condensing)
PHYSICAL DIMENSIONS
- H 4.13” x W 3.31” x D 1.9” (105mm x 84mm x 48.3mm)
- Weight 8.11 ounces (230 grams)
Pedestal Dimensions

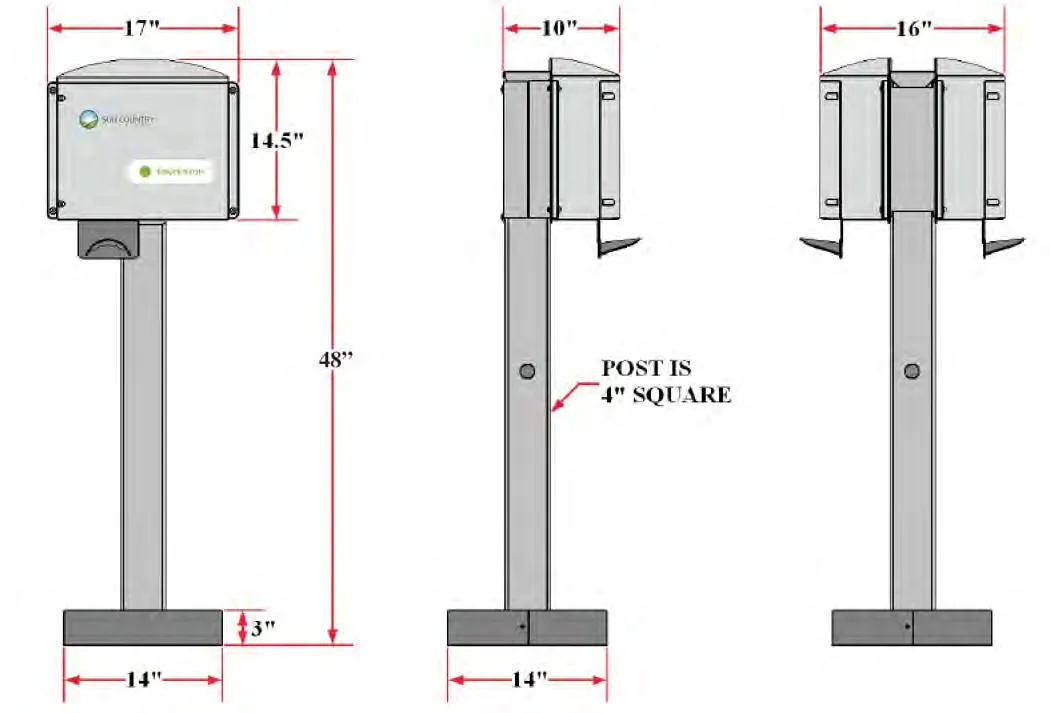

Figure 1: Pedestal Dimensions for Single-Mount and Dual-Mount Installations

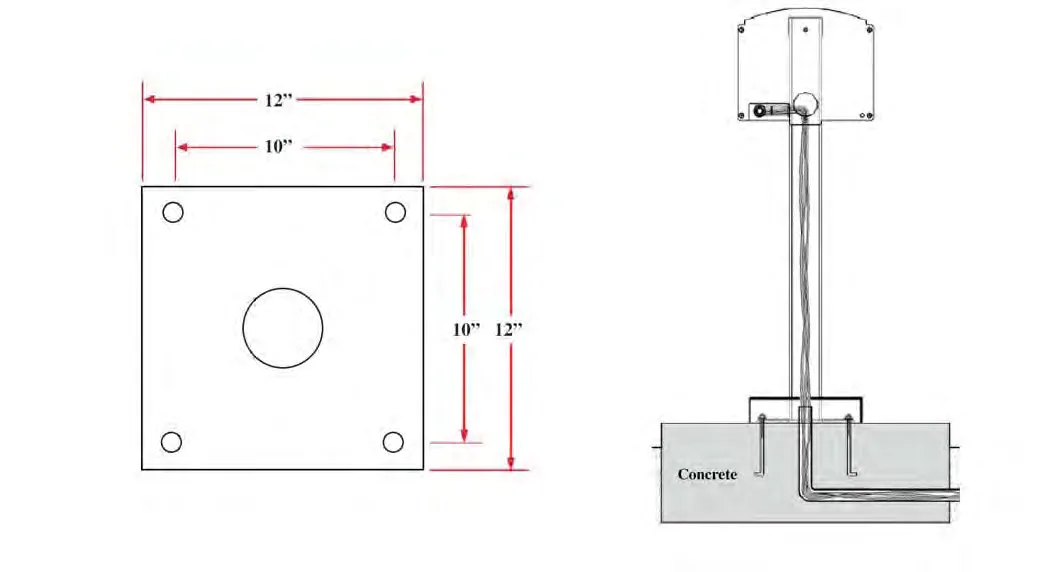

Figure 2: Pedestal Base Dimensions
Figure 3: An Installation Cross-Section
