Geotechnical assessment of the newly constructed retaining walls and slope stability at 49 Tovey Crescent.
Geotechnical Field Review / Site Instruction
Project No: 4910-50 Project: Slope Assessment Address: 49 Tovey Cres - View Royal, BC Client: Flintstones Construction Contact: Mike de Palma Email / Fax No: mike@flintstonesconstruction.com Date: December 16, 2019
Distribution List:
- Mike Gibbs - Flintstones Construction (Email/Fax: mikegibbs@flintstonesconstruction.com)

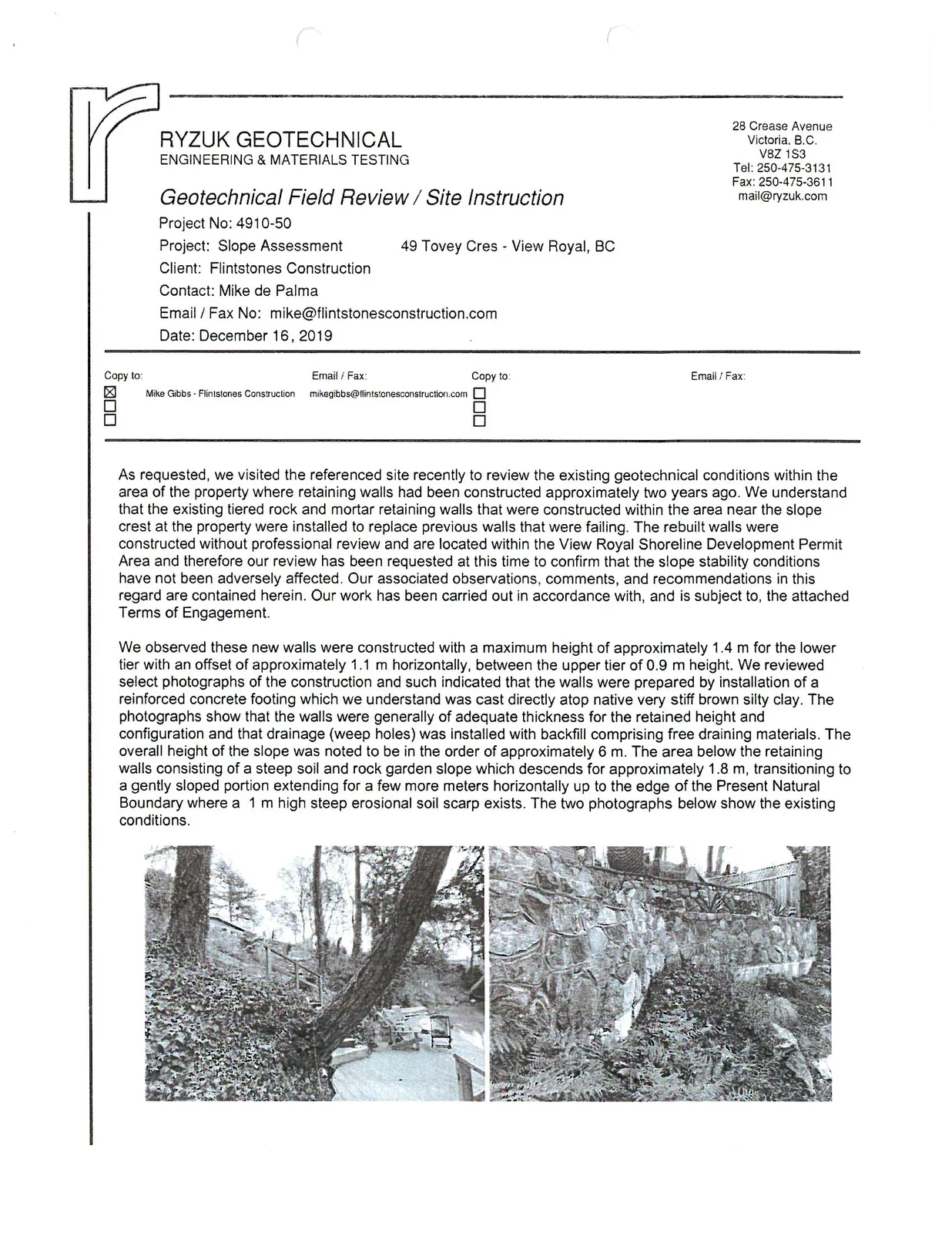

As requested, we visited the referenced site recently to review the existing geotechnical conditions within the area of the property where retaining walls had been constructed approximately two years ago. We understand that the existing tiered rock and mortar retaining walls that were constructed within the area near the slope crest at the property were installed to replace previous walls that were failing. The rebuilt walls were constructed without professional review and are located within the View Royal Shoreline Development Permit Area and therefore our review has been requested at this time to confirm that the slope stability conditions have not been adversely affected. Our associated observations, comments, and recommendations in this regard are contained herein. Our work has been carried out in accordance with, and is subject to, the attached Terms of Engagement.
We observed these new walls were constructed with a maximum height of approximately 1.4 m for the lower tier with an offset of approximately 1.1 m horizontally, between the upper tier of 0.9 m height. We reviewed select photographs of the construction and such indicated that the walls were prepared by installation of a reinforced concrete footing which we understand was cast directly atop native very stiff brown silty clay. The photographs show that the walls were generally of adequate thickness for the retained height and configuration and that drainage (weep holes) was installed with backfill comprising free draining materials. The overall height of the slope was noted to be in the order of approximately 6 m. The area below the retaining walls consisting of a steep soil and rock garden slope which descends for approximately 1.8 m, transitioning to a gently sloped portion extending for a few more meters horizontally up to the edge of the Present Natural Boundary where a 1 m high steep erosional soil scarp exists. The two photographs below show the existing conditions.

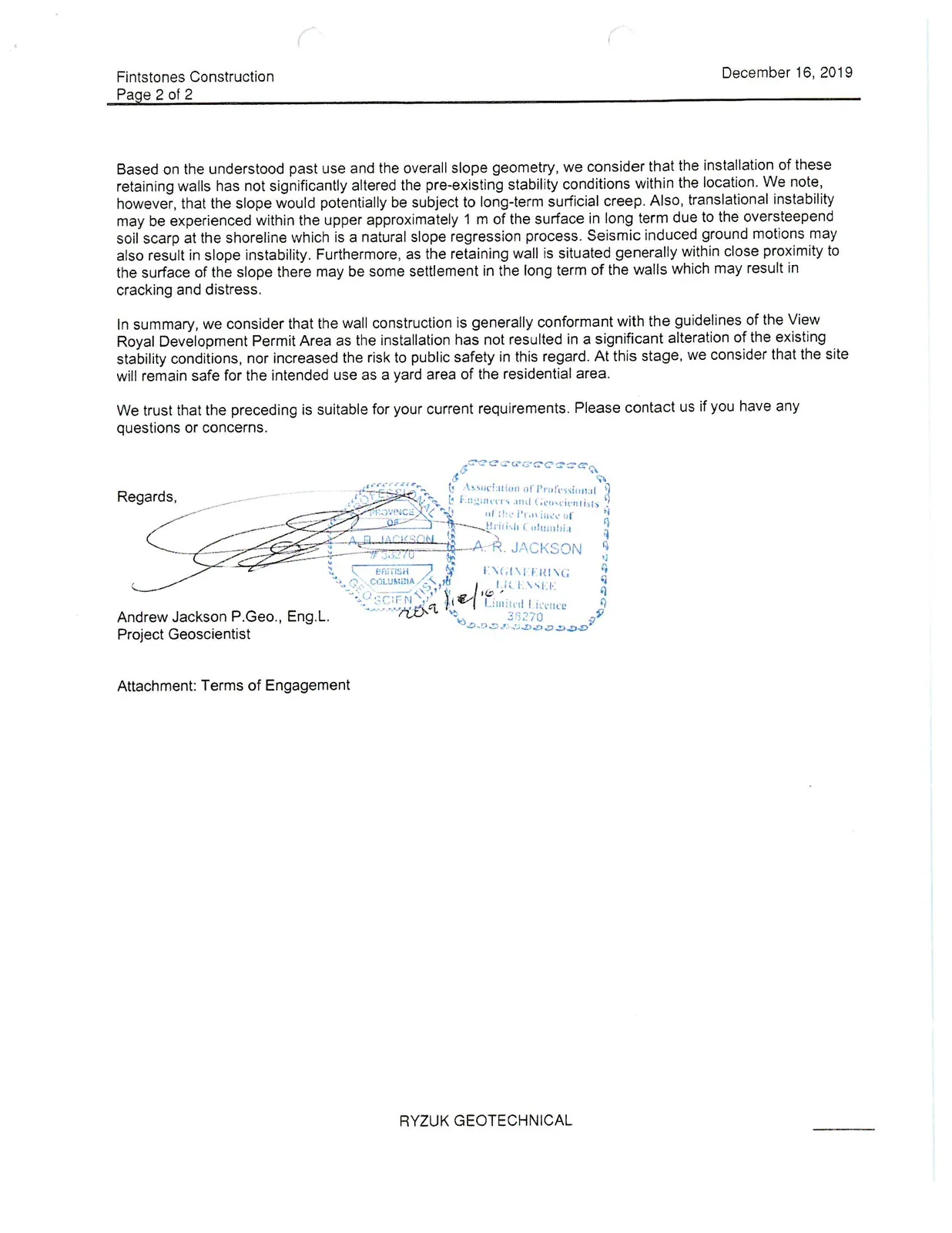

Based on the understood past use and the overall slope geometry, we consider that the installation of these retaining walls has not significantly altered the pre-existing stability conditions within the location. We note, however, that the slope would potentially be subject to long-term surficial creep. Also, translational instability may be experienced within the upper approximately 1 m of the surface in long term due to the oversteepend soil scarp at the shoreline which is a natural slope regression process. Seismic induced ground motions may also result in slope instability. Furthermore, as the retaining wall is situated generally within close proximity to the surface of the slope there may be some settlement in the long term of the walls which may result in cracking and distress.
In summary, we consider that the wall construction is generally conformant with the guidelines of the View Royal Development Permit Area as the installation has not resulted in a significant alteration of the existing stability conditions, nor increased the risk to public safety in this regard. At this stage, we consider that the site will remain safe for the intended use as a yard area of the residential area.
We trust that the preceding is suitable for your current requirements. Please contact us if you have any questions or concerns.
Regards,
Andrew Jackson P.Geo., Eng.L. Project Geoscientist
Attachment: Terms of Engagement

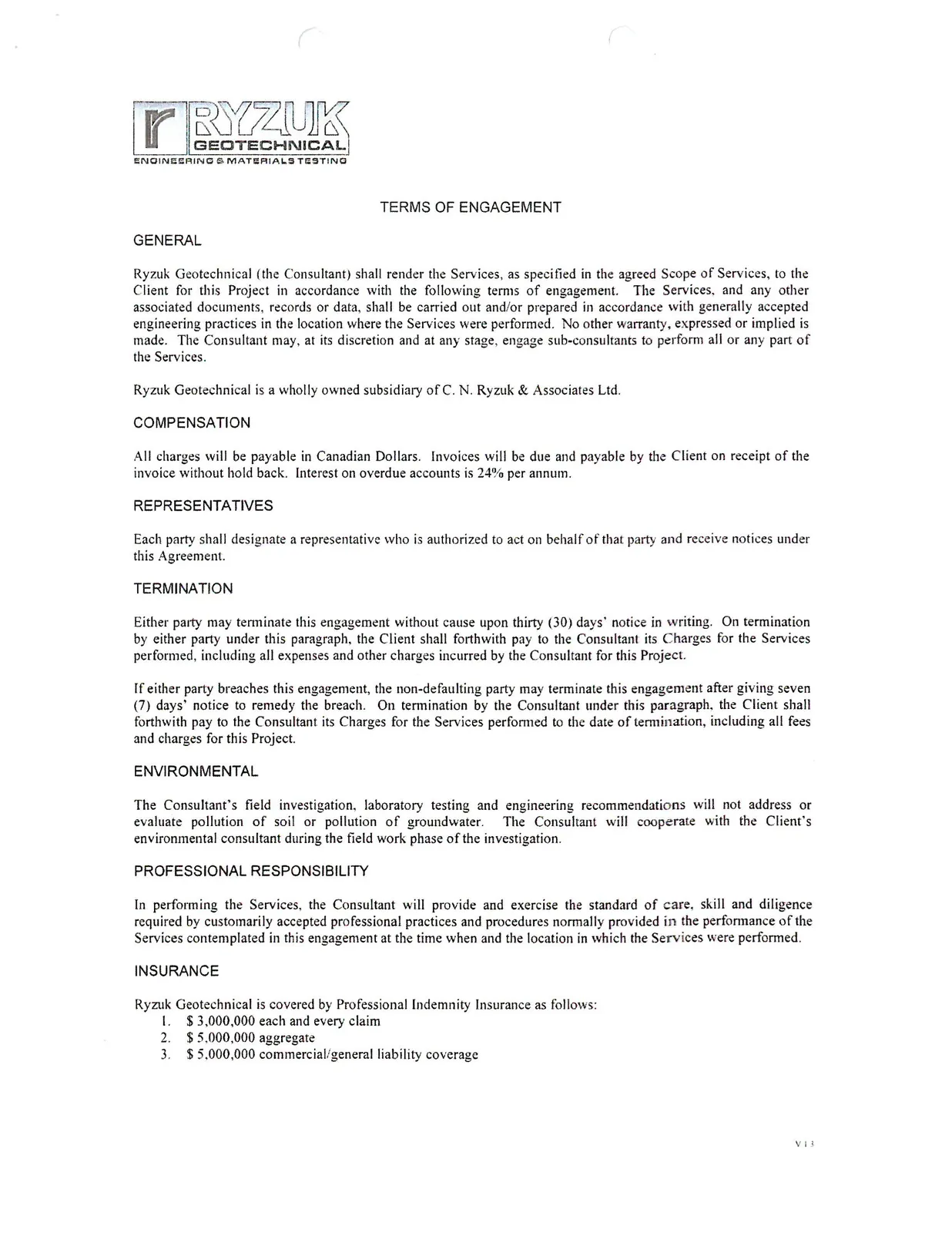

TERMS OF ENGAGEMENT
GENERAL
Ryzuk Geotechnical (the Consultant) shall render the Services, as specified in the agreed Scope of Services, to the Client for this Project in accordance with the following terms of engagement. The Services, and any other associated documents, records or data, shall be carried out and/or prepared in accordance with generally accepted engineering practices in the location where the Services were performed. No other warranty, expressed or implied is made. The Consultant may, at its discretion and at any stage, engage sub-consultants to perform all or any part of the Services.
Ryzuk Geotechnical is a wholly owned subsidiary of C. N. Ryzuk & Associates Ltd.
COMPENSATION
All charges will be payable in Canadian Dollars. Invoices will be due and payable by the Client on receipt of the invoice without hold back. Interest on overdue accounts is 24% per annum.
REPRESENTATIVES
Each party shall designate a representative who is authorized to act on behalf of that party and receive notices under this Agreement.
TERMINATION
Either party may terminate this engagement without cause upon thirty (30) days' notice in writing. On termination by either party under this paragraph, the Client shall forthwith pay to the Consultant its Charges for the Services performed, including all expenses and other charges incurred by the Consultant for this Project.
If either party breaches this engagement, the non-defaulting party may terminate this engagement after giving seven (7) days' notice to remedy the breach. On termination by the Consultant under this paragraph, the Client shall forthwith pay to the Consultant its Charges for the Services performed to the date of termination, including all fees and charges for this Project.
ENVIRONMENTAL
The Consultant's field investigation, laboratory testing and engineering recommendations will not address or evaluate pollution of soil or pollution of groundwater. The Consultant will cooperate with the Client's environmental consultant during the field work phase of the investigation.
PROFESSIONAL RESPONSIBILITY
In performing the Services, the Consultant will provide and exercise the standard of care, skill and diligence required by customarily accepted professional practices and procedures normally provided in the performance of the Services contemplated in this engagement at the time when and the location in which the Services were performed.
INSURANCE
Ryzuk Geotechnical is covered by Professional Indemnity Insurance as follows:
- $3,000,000 each and every claim
- $5,000,000 aggregate
- $5,000,000 commercial/general liability coverage

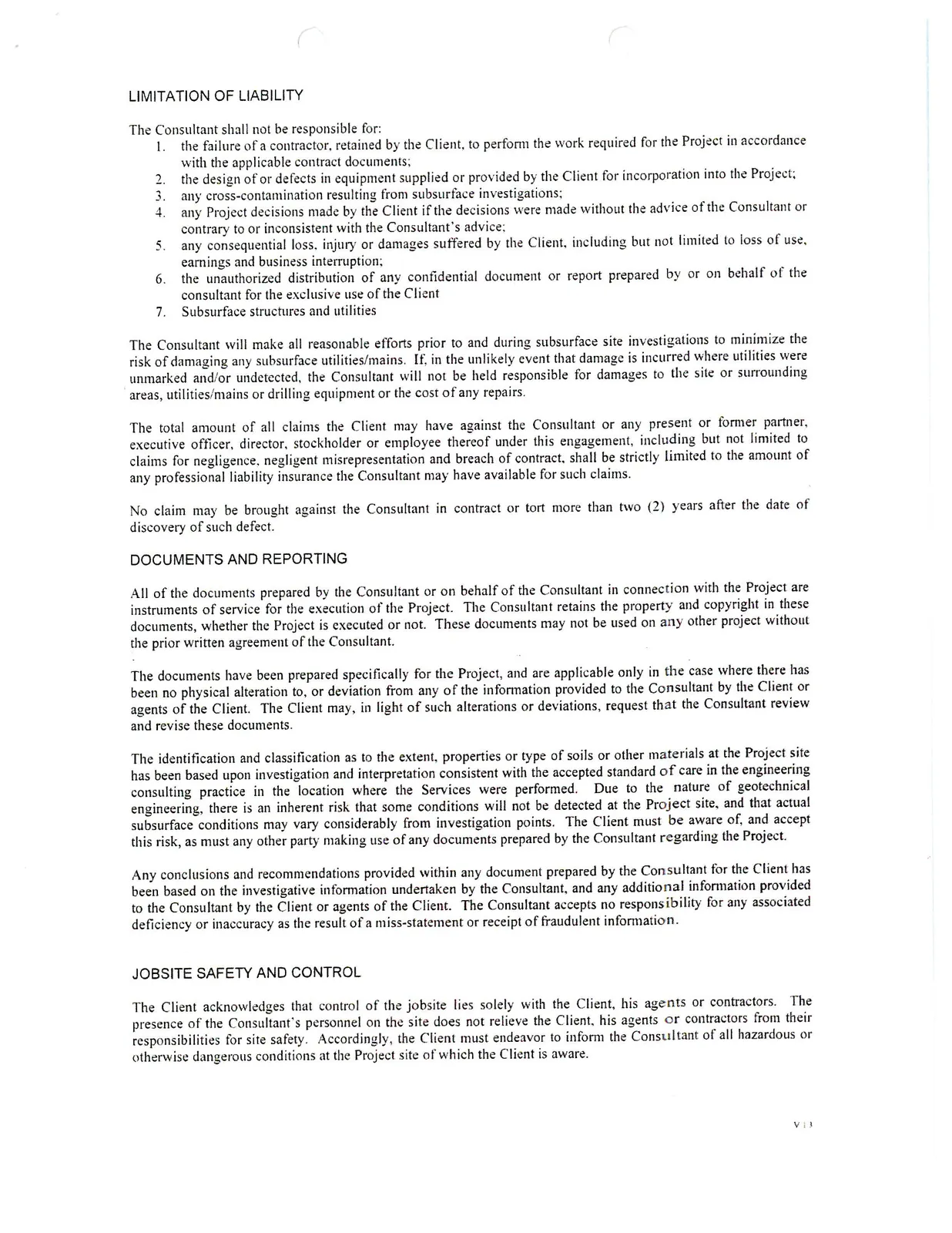

LIMITATION OF LIABILITY
The Consultant shall not be responsible for:
- the failure of a contractor, retained by the Client, to perform the work required for the Project in accordance with the applicable contract documents;
- the design of or defects in equipment supplied or provided by the Client for incorporation into the Project;
- any cross-contamination resulting from subsurface investigations;
- any Project decisions made by the Client if the decisions were made without the advice of the Consultant or contrary to or inconsistent with the Consultant's advice;
- any consequential loss, injury or damages suffered by the Client, including but not limited to loss of use, earnings and business interruption;
- the unauthorized distribution of any confidential document or report prepared by or on behalf of the consultant for the exclusive use of the Client;
- Subsurface structures and utilities.
The Consultant will make all reasonable efforts prior to and during subsurface site investigations to minimize the risk of damaging any subsurface utilities/mains. If, in the unlikely event that damage is incurred where utilities were unmarked and/or undetected, the Consultant will not be held responsible for damages to the site or surrounding areas, utilities/mains or drilling equipment or the cost of any repairs.
The total amount of all claims the Client may have against the Consultant or any present or former partner, executive officer, director, stockholder or employee thereof under this engagement, including but not limited to claims for negligence, negligent misrepresentation and breach of contract, shall be strictly limited to the amount of any professional liability insurance the Consultant may have available for such claims.
No claim may be brought against the Consultant in contract or tort more than two (2) years after the date of discovery of such defect.
DOCUMENTS AND REPORTING
All of the documents prepared by the Consultant or on behalf of the Consultant in connection with the Project are instruments of service for the execution of the Project. The Consultant retains the property and copyright in these documents, whether the Project is executed or not. These documents may not be used on any other project without the prior written agreement of the Consultant.
The documents have been prepared specifically for the Project, and are applicable only in the case where there has been no physical alteration to, or deviation from any of the information provided to the Consultant by the Client or agents of the Client. The Client may, in light of such alterations or deviations, request that the Consultant review and revise these documents.
The identification and classification as to the extent, properties or type of soils or other materials at the Project site has been based upon investigation and interpretation consistent with the accepted standard of care in the engineering consulting practice in the location where the Services were performed. Due to the nature of geotechnical engineering, there is an inherent risk that some conditions will not be detected at the Project site, and that actual subsurface conditions may vary considerably from investigation points. The Client must be aware of, and accept this risk, as must any other party making use of any documents prepared by the Consultant regarding the Project.
Any conclusions and recommendations provided within any document prepared by the Consultant for the Client has been based on the investigative information undertaken by the Consultant, and any additional information provided to the Consultant by the Client or agents of the Client. The Consultant accepts no responsibility for any associated deficiency or inaccuracy as the result of a miss-statement or receipt of fraudulent information.
JOBSITE SAFETY AND CONTROL
The Client acknowledges that control of the jobsite lies solely with the Client, his agents or contractors. The presence of the Consultant's personnel on the site does not relieve the Client, his agents or contractors from their responsibilities for site safety. Accordingly, the Client must endeavor to inform the Consultant of all hazardous or otherwise dangerous conditions at the Project site of which the Client is aware.

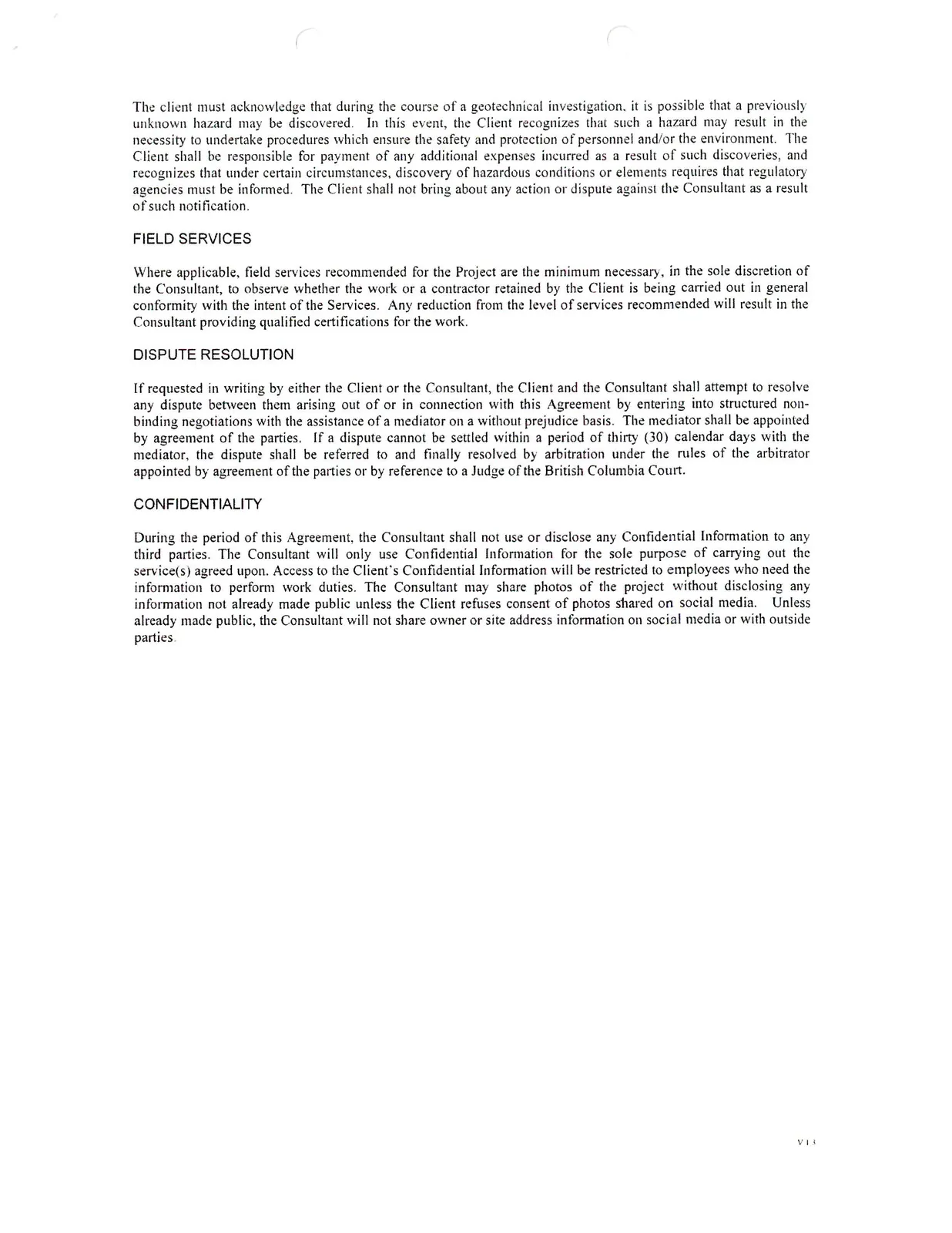

The client must acknowledge that during the course of a geotechnical investigation, it is possible that a previously unknown hazard may be discovered. In this event, the Client recognizes that such a hazard may result in the necessity to undertake procedures which ensure the safety and protection of personnel and/or the environment. The Client shall be responsible for payment of any additional expenses incurred as a result of such discoveries, and recognizes that under certain circumstances, discovery of hazardous conditions or elements requires that regulatory agencies must be informed. The Client shall not bring about any action or dispute against the Consultant as a result of such notification.
