Figures 7-9: Shoreline Stabilisation and Pony Wall Design Drawings

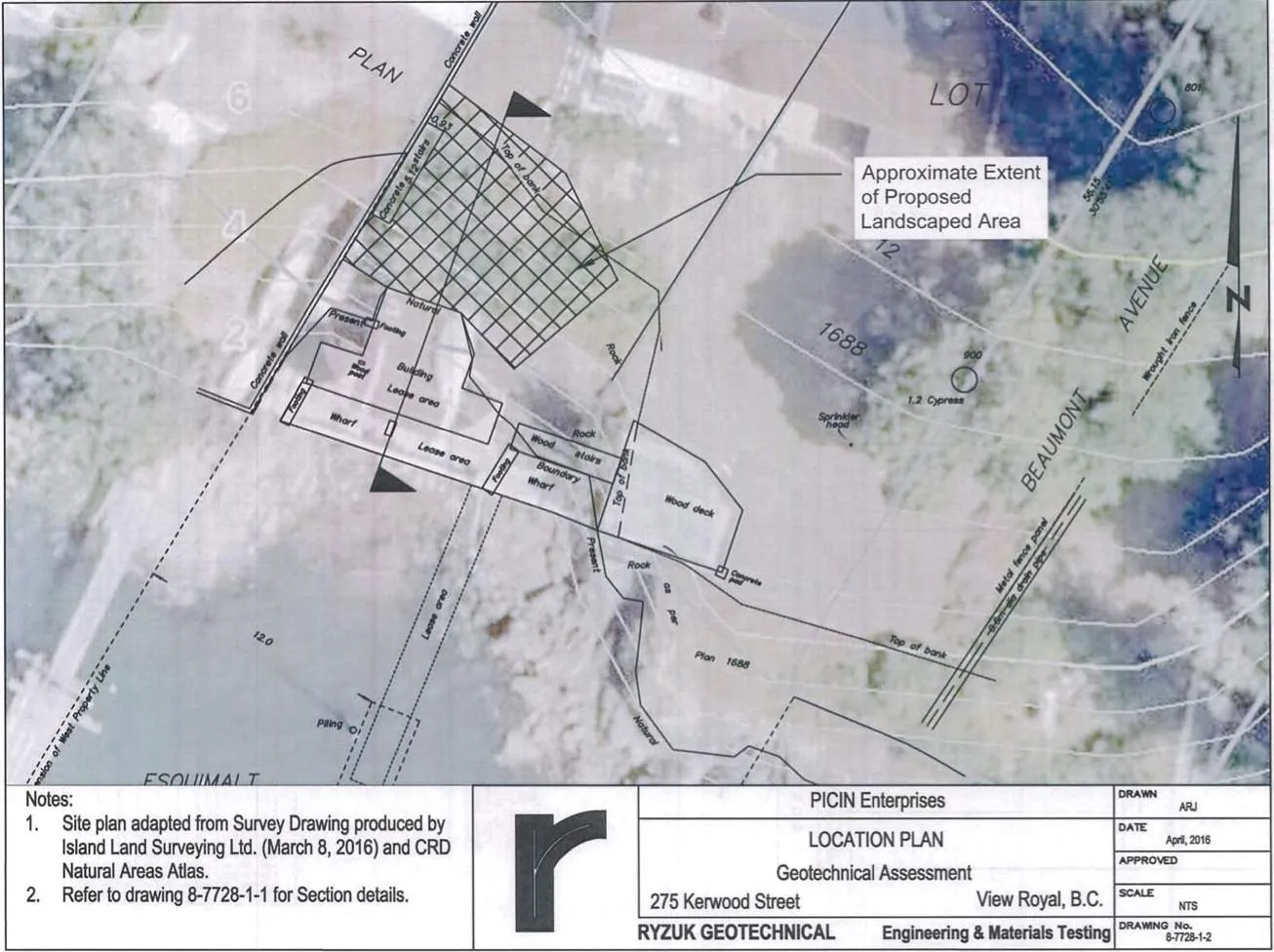

Location plan for shoreline stabilisation area showing property boundaries, existing structures like a wharf and building lease area, and the approximate extent of proposed landscaped area

Notes:

Site plan adapted from Survey Drawing produced by Island Land Surveying Ltd. (March 8, 2016) and CRD Natural Areas Atlas.
Refer to drawing 8-7728-1-1 for Section details.

PICIN Enterprises	DRAWN	ARJ
LOCATION PLAN	DATE	April, 2016
Geotechnical Assessment	APPROVED
275 Kerwood Street, View Royal, B.C.	SCALE	NTS
RYZUK GEOTECHNICAL Engineering & Materials Testing	DRAWING No.	8-7728-1-2

Figure 7. Shoreline stabilisation area (Ryzuk Engineering) – 275 Kerwood Avenue. Design was prepared for 2016 development, but will be used in current proposal.

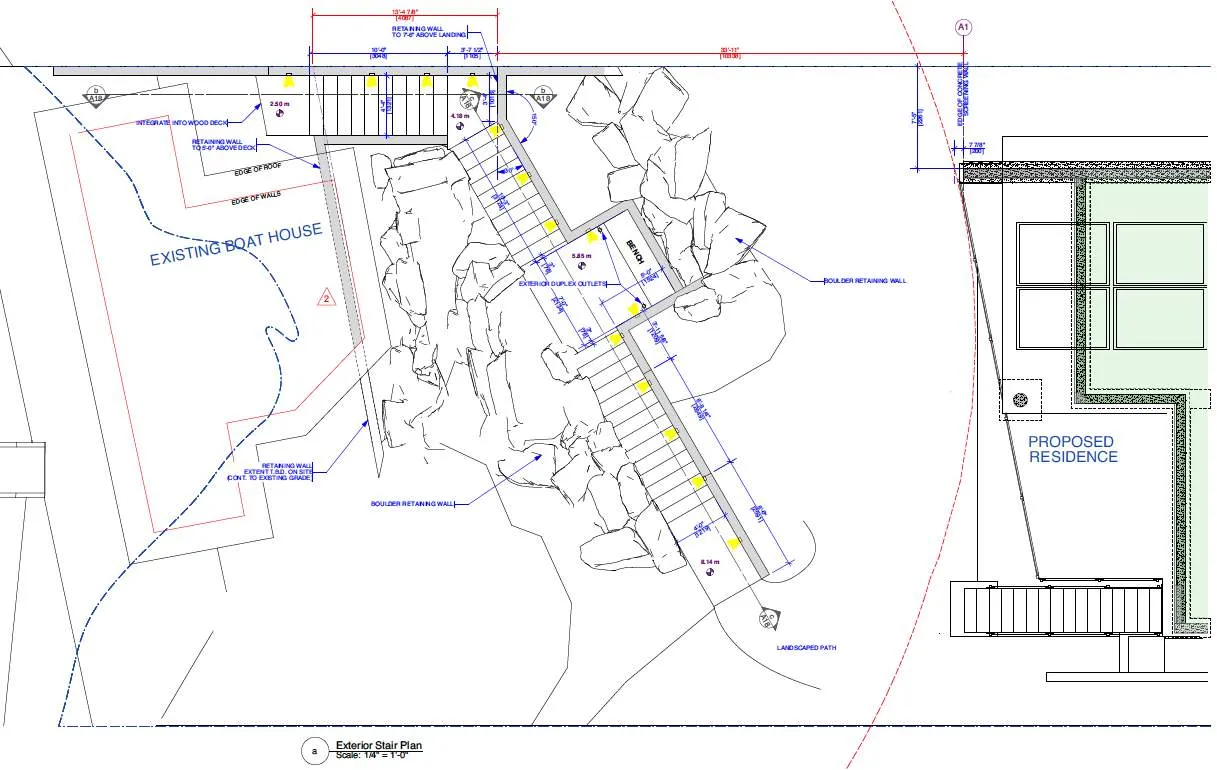

Plan view of proposed engineered shoreline stabilisation including an exterior stair plan, existing boat house, boulder retaining walls, and proximity to proposed residence

Exterior Stair Plan Scale: 1/4" = 1'-0"

Figure 8. Proposed engineered shoreline stabilisation (Ryzuk Engineering) – 275 Kerwood Avenue. (Portion of drawing)

NOTES:

USE EPOXY COATED REBAR TYP.
USE STAINLESS CONNECTING HARDWARE
35 MPa CONCRETE C-1 EXPOSURE

SKYLINE ENGINEERING 380 - 4243 Glanford Avenue Victoria, BC V8Z 4B9 250-590-4133 www.skylineengineering.ca

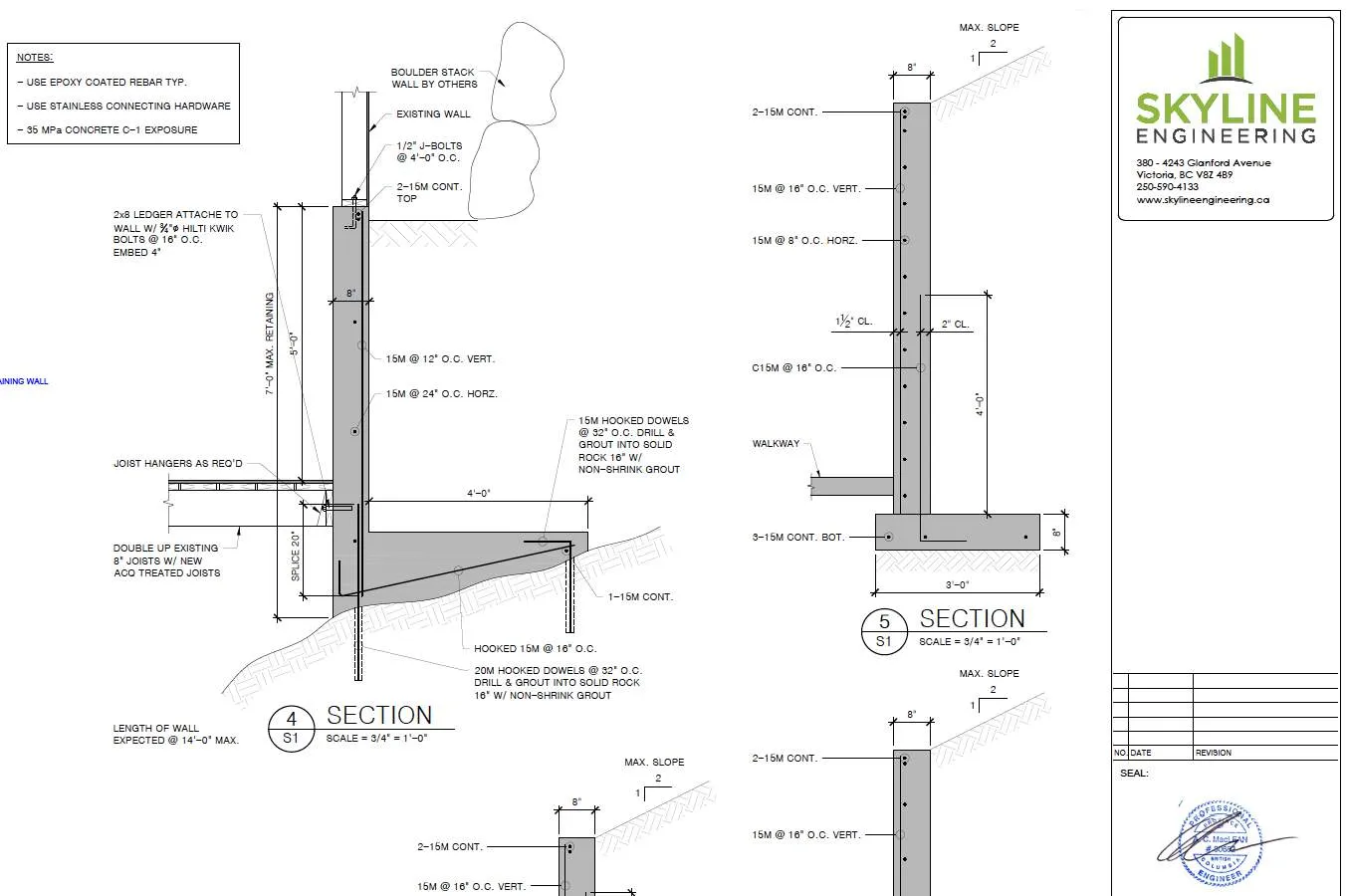

Engineering section drawings showing technical specifications for a proposed pony wall including rebar placement, concrete thickness, and anchorage into solid rock

4 SECTION SCALE = 3/4" = 1'-0"

5 SECTION SCALE = 3/4" = 1'-0"

Figure 9. Proposed engineered pony wall (Skyline Engineering) – 275 Kerwood Avenue. (Portion of drawing.)
