Figures 10-12: Concept Drawings and Proposed Landscape Plan

Environmental Review for 275 Kerwood Avenue, Victoria, BC – Shoreline DPA

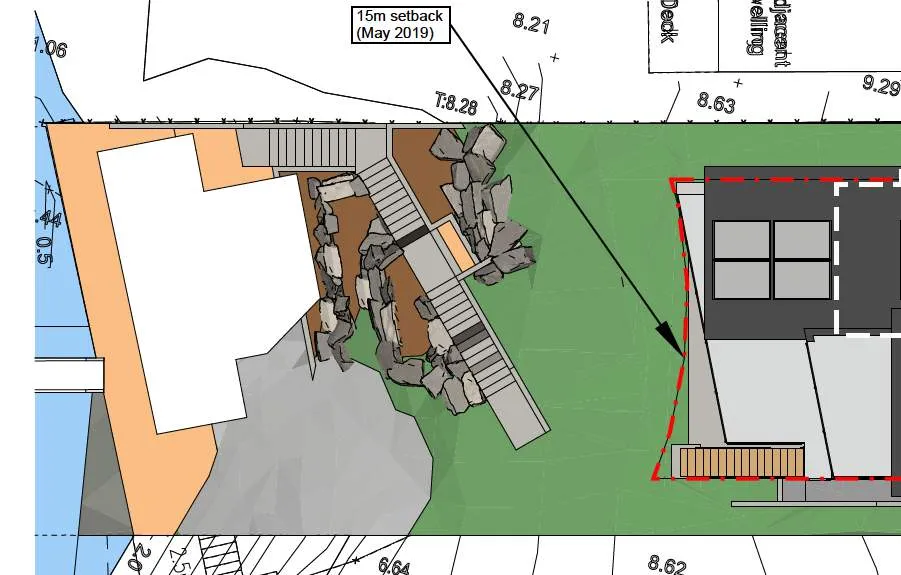

Plan view concept drawing for stair relocation and retaining walls

Figure 10. Concept Drawing for stair relocation and retaining walls (KB Design) – 275 Kerwood Avenue.

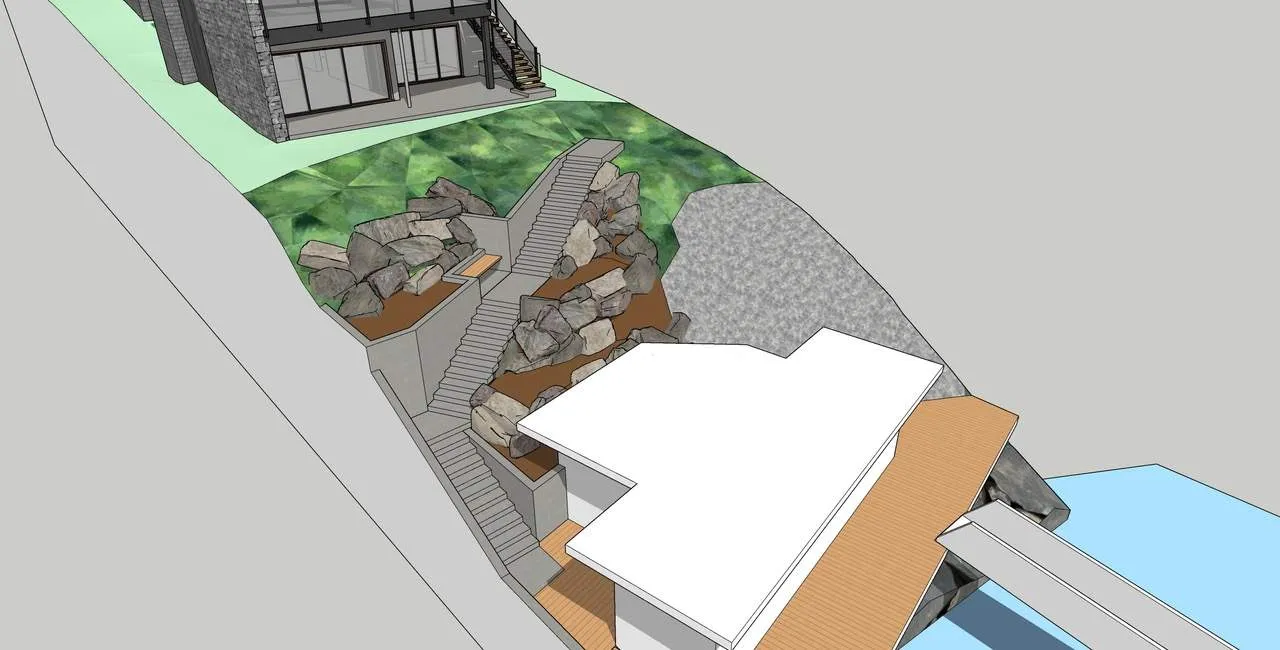

3D perspective concept drawing for stair relocation and retaining walls

Figure 11. Concept Drawing for stair relocation and retaining walls (KB Design) – 275 Kerwood Avenue. All areas shown in dark brown and mottled green to be planted with native vegetation. Concrete surfaces to be minimised during construction and planting areas maximised.

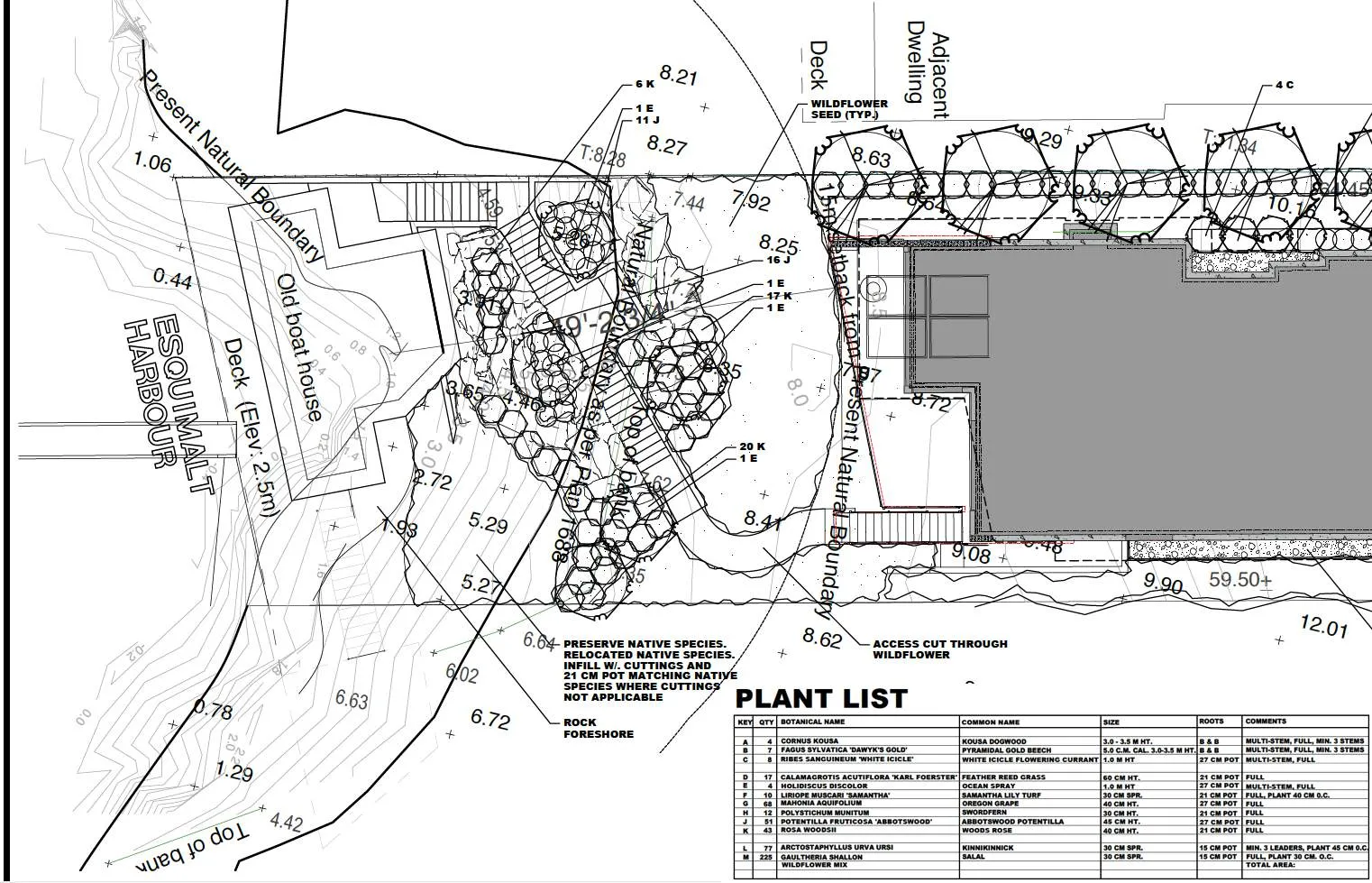

Figure 12. Proposed Landscape Plan by Lombard North Group (August 28, 2019) – DPA Portion only (see suggested revisions on pages 8-9)

PLANT LIST

KEY	QTY	BOTANICAL NAME	COMMON NAME	SIZE	ROOTS	COMMENTS
A	4	CORNUS KOUSA	KOUSA DOGWOOD	3.0 - 3.5 M HT.	B & B	MULTI-STEM, FULL, MIN. 3 STEMS
B	7	FAGUS SYLVATICA 'DAWYK'S GOLD'	PYRAMIDAL GOLD BEECH	5.0 C.M. CAL. 3.0-3.5 M HT.	B & B	MULTI-STEM, FULL, MIN. 3 STEMS
C	8	RIBES SANGUINEUM 'WHITE ICICLE'	WHITE ICICLE FLOWERING CURRANT	1.0 M HT	27 CM POT	MULTI-STEM, FULL
D	17	CALAMAGROSTIS ACUTIFLORA 'KARL FOERSTER'	FEATHER REED GRASS	60 CM HT.	21 CM POT	FULL
E	4	HOLIDISCUS DISCOLOR	OCEAN SPRAY	1.0 M HT	27 CM POT	MULTI-STEM, FULL
F	10	LIRIOPE MUSCARI 'SAMANTHA'	SAMANTHA LILY TURF	30 CM SPR.	21 CM POT	FULL, PLANT 40 CM O.C.
G	68	MAHONIA AQUIFOLIUM	OREGON GRAPE	40 CM HT.	27 CM POT	FULL
H	12	POLYSTICHUM MUNITUM	SWORDFERN	30 CM HT.	21 CM POT	FULL
J	51	POTENTILLA FRUTICOSA 'ABBOTSWOOD'	ABBOTSWOOD POTENTILLA	45 CM HT.	27 CM POT	FULL
K	43	ROSA WOODSII	WOODS ROSE	40 CM HT.	21 CM POT	FULL
L	77	ARCTOSTAPHYLLOS URVA URSI	KINNIKINNICK	30 CM SPR.	15 CM POT	MIN. 3 LEADERS, PLANT 45 CM O.C.
M	225	GAULTHERIA SHALLON	SALAL	30 CM SPR.	15 CM POT	FULL, PLANT 30 CM. O.C.
		WILDFLOWER MIX				TOTAL AREA:
